Chicago Pneumatic Air Compressor and Jack Guide

Size a compressor by the cfm your tools draw and the power you have. Size a jack by the axle weight and the lowest lift point.

RCP Air Compressors

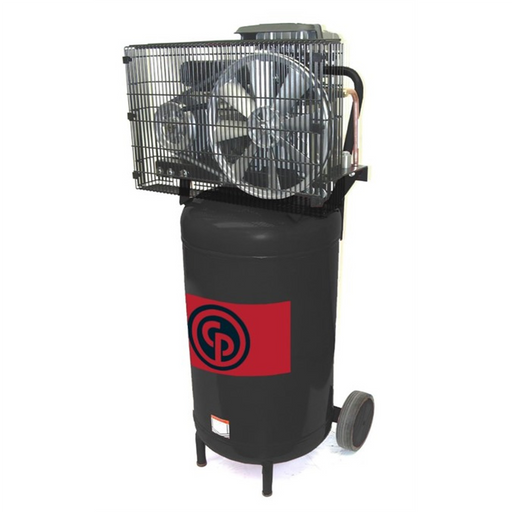

• RCP-224VP — 2 HP portable, 24 gal vertical. 7.4 cfm at 100 psi on 120/230V single phase.
• RCP-508H — Gas air compressor with a 5.5 HP Honda engine and twin 4 gal tanks. 12.4 cfm at 100 psi, recoil start, for road service and jobsites.

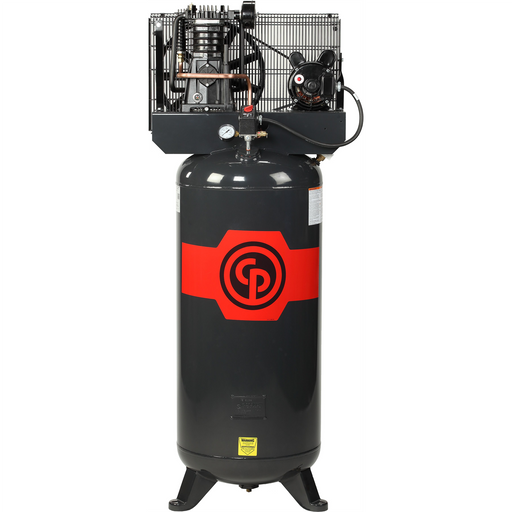

• RCP-561VNS — 60 gallon air compressor, 5 HP two-stage. 15.3 cfm at 100 psi on 208-230V single phase.
• RCP-583V — 80 gallon air compressor, 5 HP two-stage. 18.5 cfm at 100 psi on 208-230V three phase.

Air Hydraulic Jacks

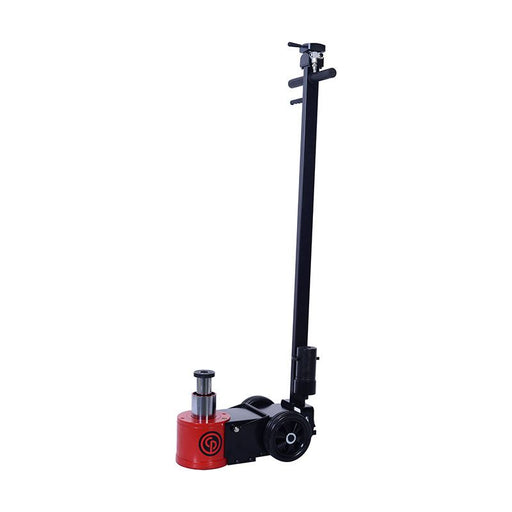

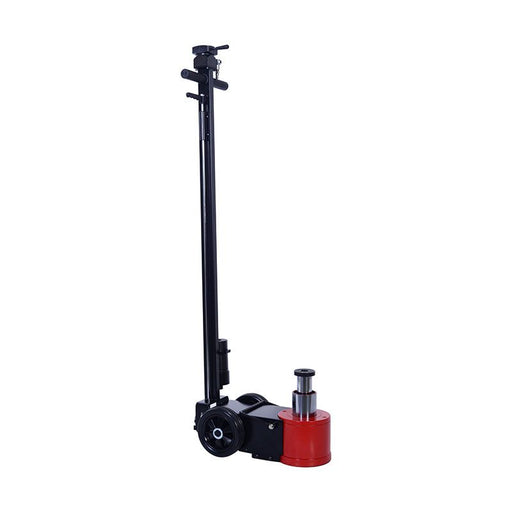

• CP85030 — 30 t, 5.91 in. minimum height, up to 16.1 in. with extension. 83 lb.

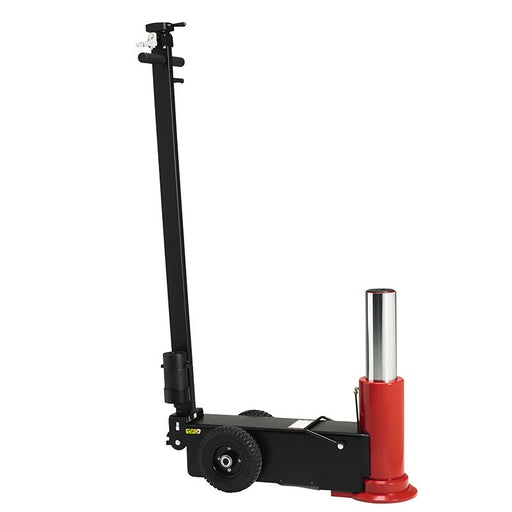

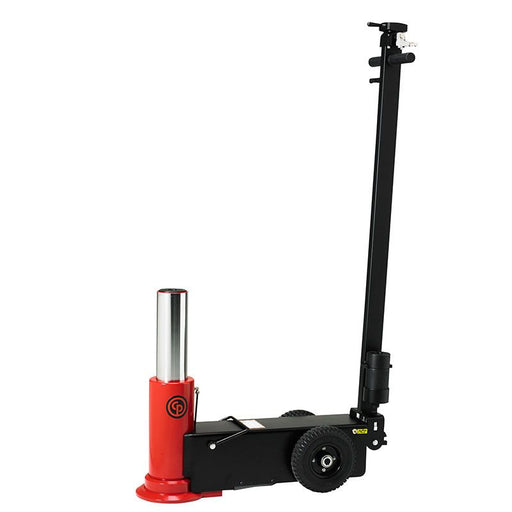

• CP85031 High-Lift — 30 t, 14.17 in. to 30.39 in. with extension, for tall axles.

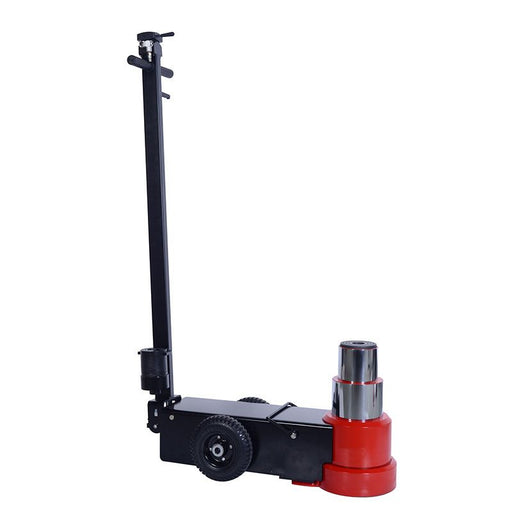

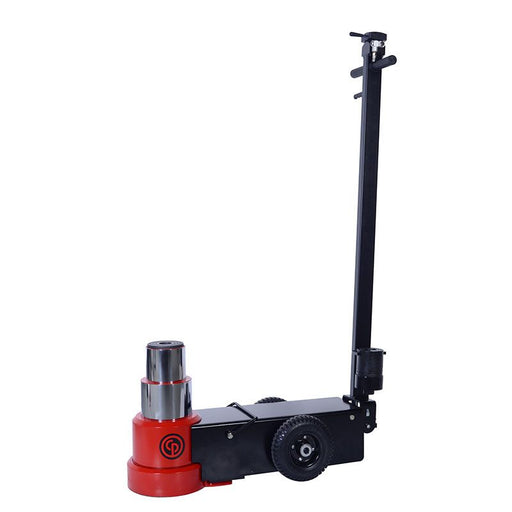

• CP85080 — 80 t, 9.06 in. to 22.17 in.

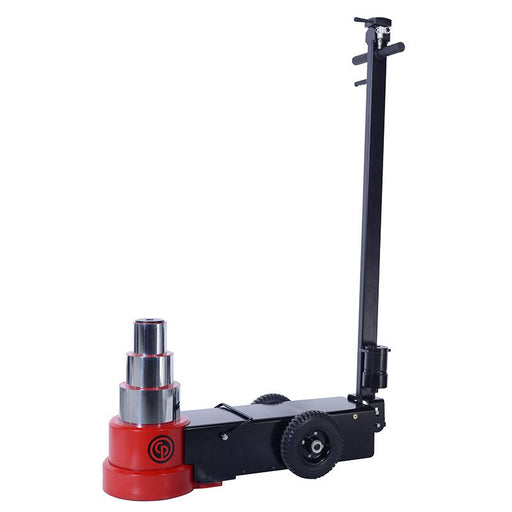

• CP85100 — 100 t in three stages (100/60/32 t), 8.46 in. to 24.02 in.

Chicago Pneumatic FAQ

Do the jacks come with extensions?

Yes. Each air jack includes two extensions that store on the handle: 45 and 75 mm, or 45 and 100 mm on the CP85031.

Which compressor works without three-phase power?

The RCP-224VP and RCP-561VNS run on single phase, and the RCP-508H runs on gas.

Compare all air compressors and ESCO heavy-duty jacks. Questions? Contact us or call 855-559-5589.
