ESCO Air Hydraulic Jack Models Compared

Pick an ESCO jack by the height of the lift point first, then by tonnage. The Mammut models run on compressed air with remote control; the 10809 is a hydraulic cylinder that connects to your pump.

Models

• 91043 Mammut Low-Profile — 110 ton. 15.7 in. minimum height, 23.7 in. maximum. For heavy machines with low clearance.

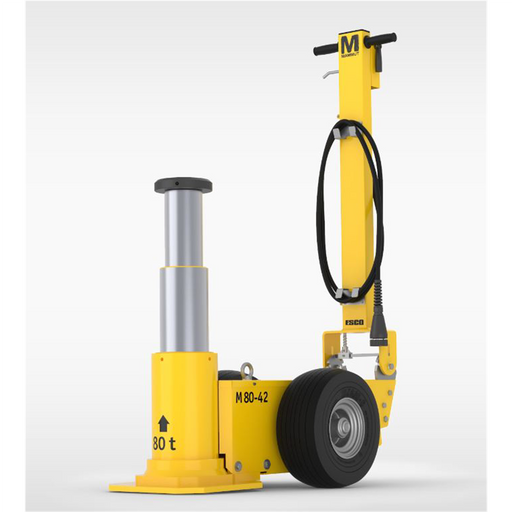

• 91003 Mammut 2-Stage — 88/55 ton. 16.4 to 33 in. range on 145–174 psi air. Folding handle and transport hook.

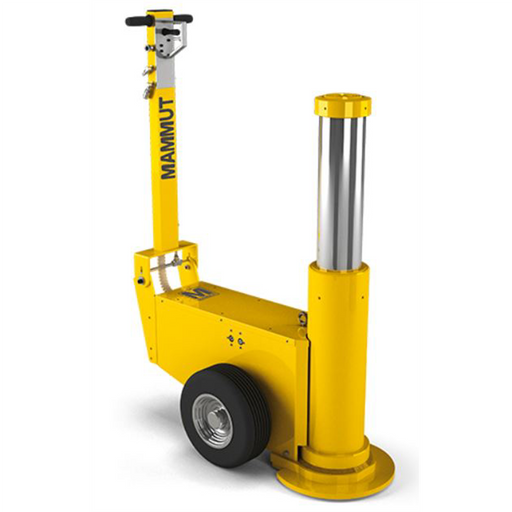

• 91005 Mammut High-Lift — 165 ton. 35.4 to 57.2 in. range for tall lift points, on large pneumatic wheels.

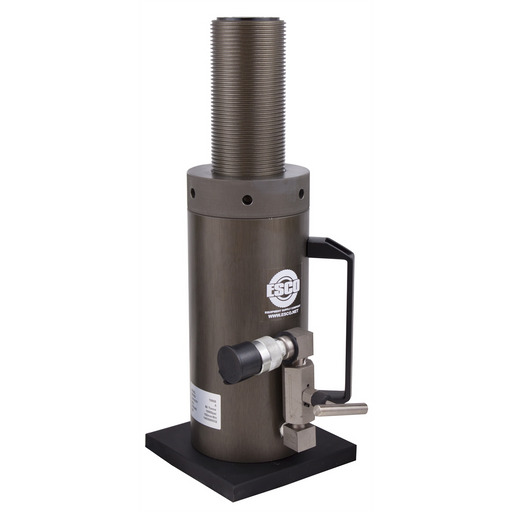

• 10809 Locking Collar Jack — 100 ton at 10,000 psi. 6 in. stroke, 13.37 to 19.60 in. Aluminum, 66 lb.

ESCO Jack FAQ

Do I still need jack stands with the 10809?

The safety lock nut spins down to hold the load on steel threads, so the jack works as its own support stand. ESCO states it aids compliance with OSHA 29CFR1926.305.

How does a Mammut air jack lower the load?

Dual descent valves control lowering and the piston returns automatically. The 91003 and 91005 list an optional manual emergency pump.
