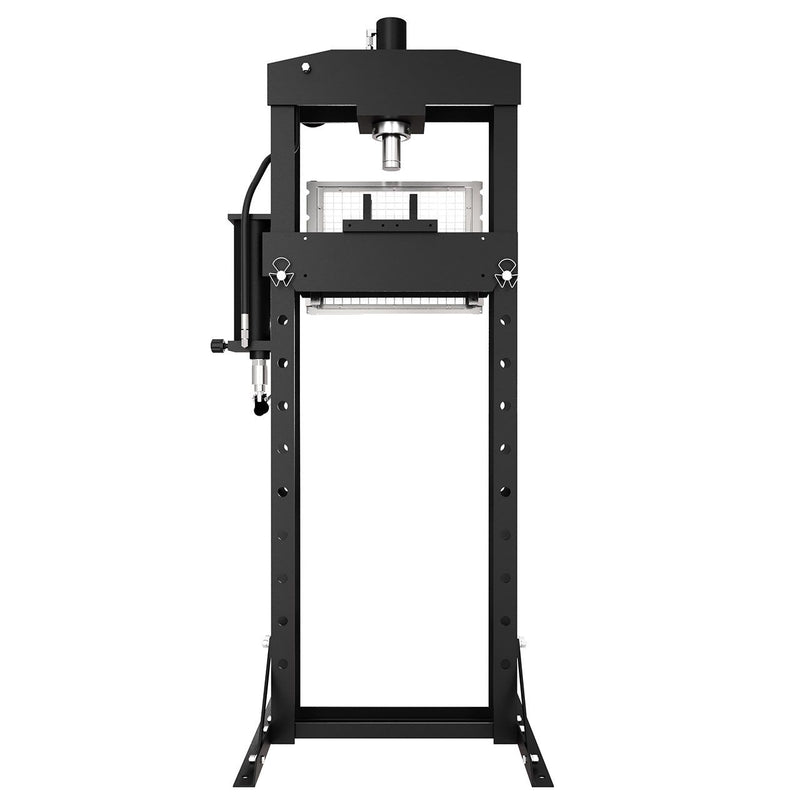

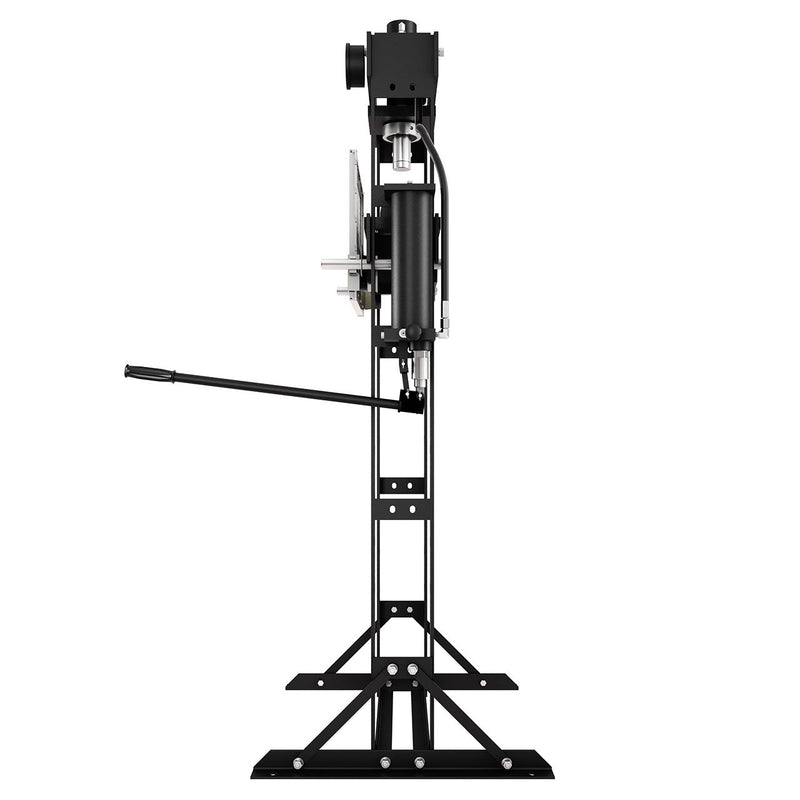

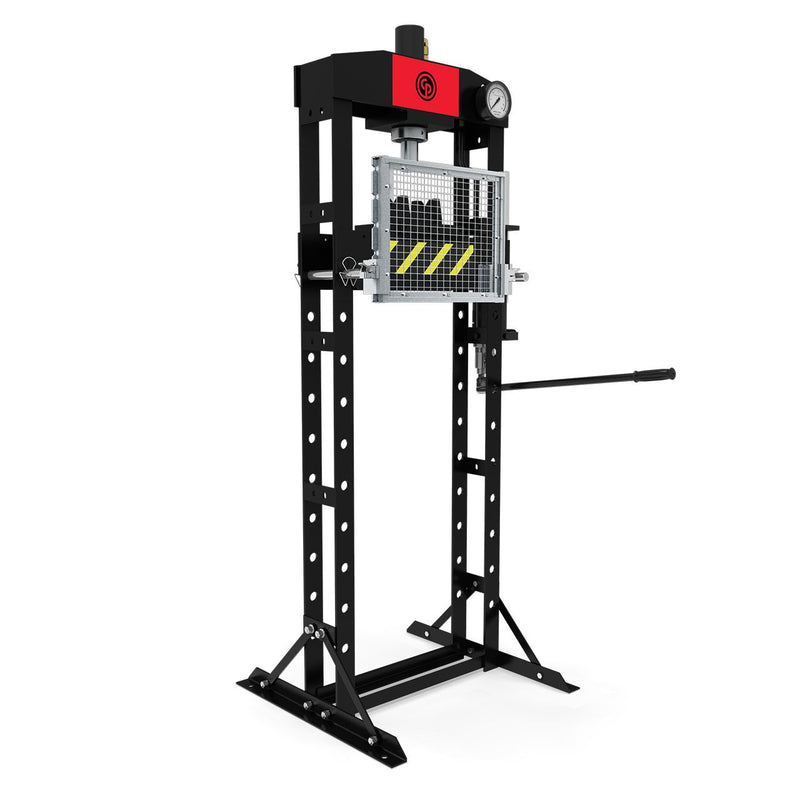

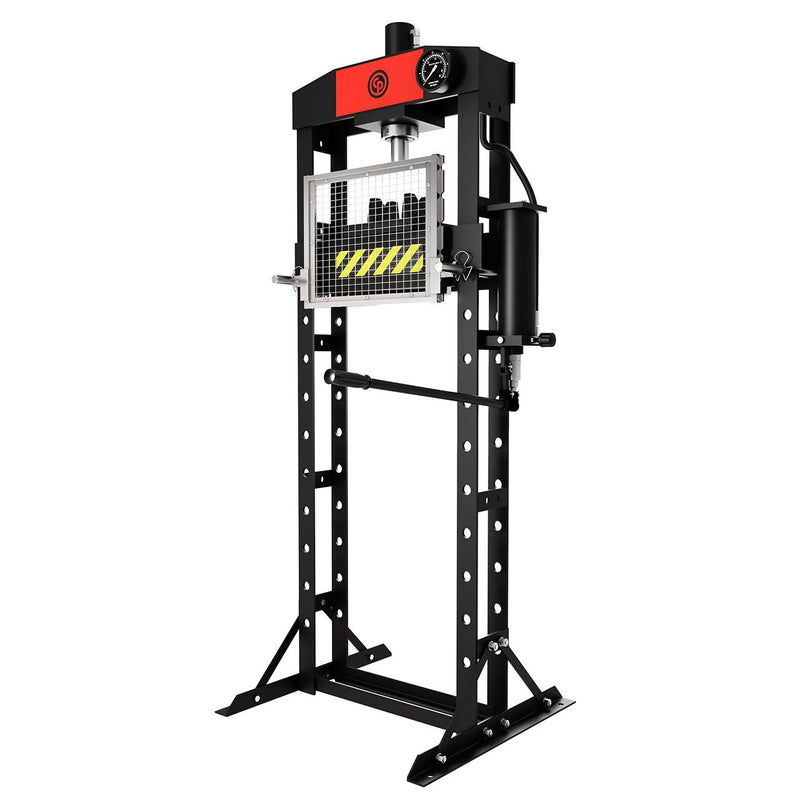

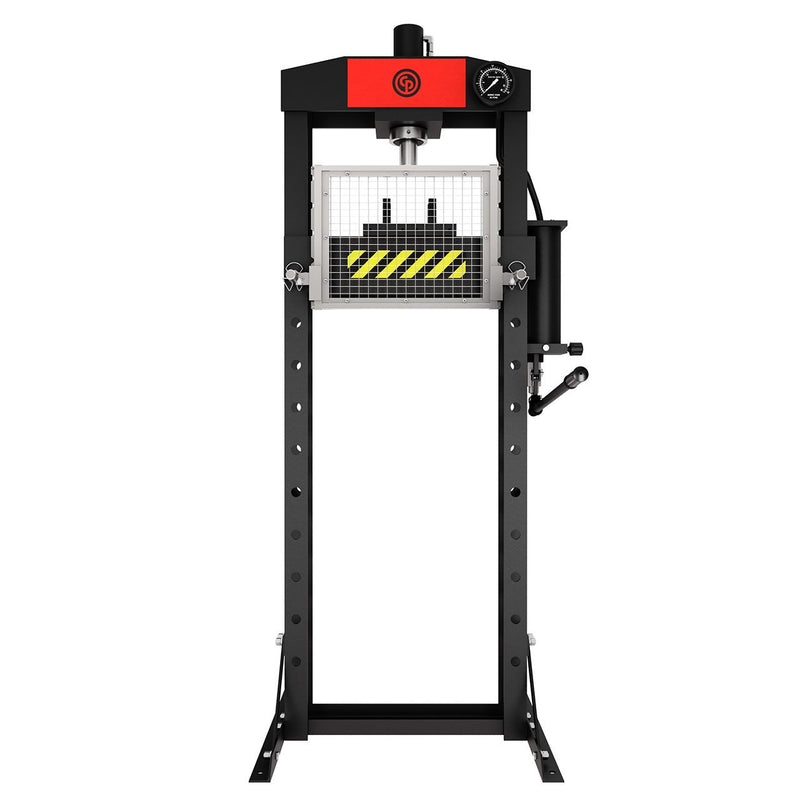

Chicago Pneumatic CP86201 Hydraulic Shop Press 20 Metric Ton Capacity

20 Metric Ton Hydraulic Workshop Press With 2-Step Pump and Adjustable Bench

Bearings, bushings and seals don't come out with a hammer. Beat on them and you wreck the part or the housing.

The Chicago Pneumatic CP86201 puts 44,000 lb of controlled force on the part. A 2-step pump moves the ram fast to the work, then slows down so you can feel the load build on the gauge.

Why Choose the CP86201

20 metric tons of force with fine control on the last inch.

• 44,000 lb compression force (20 metric tons) for light and heavy vehicle work
• 2-step stroke system: full stroke for a quick approach, small stroke for fine load control
• Large gauge in short and metric tons so you see the pressure as you pump
• CE, TÜV and ASME certified

What's Included

• CP86201 20 metric ton workshop press
• 2 V blocks

Made For

Built for shops that press parts in and out every week.

• Auto repair shops pressing bearings, bushings and seals
• Truck and fleet maintenance shops
• Ag and heavy equipment repair shops
• Fabrication and machine shops

Features

• 44,000 lb compression force — 20 metric tons for light and heavy vehicle parts
• 7.32 in hydraulic stroke — total ram travel
• 2-step stroke system — fast approach, then a small stroke for fine tuning
• Large dual-scale gauge — reads in short tons and metric tons
• Movable cylinder — line the ram up with the part instead of moving the part
• Adjustable workbench — 2 removable steel rods and a winch set the bench height
• Steel frame — 2 holes in each foot to anchor the press to the floor
• Rubber-grip pump handle — easy on the hands during long pressing jobs

Two-Step Pump for Speed and Control

In the closed setting, the pump runs the full stroke and brings the ram down to the part fast. Switch to open and the small stroke takes over, so you can add load a little at a time.

The large gauge reads in short tons and metric tons. You see exactly how much force is on the part before something gives.

A Bench You Can Set Up Alone

The workbench rides on 2 removable steel rods. A dedicated winch raises and lowers it, so one tech can change the bench height without help.

The cylinder moves along the frame to line up with the work. Bolt the press down through the 2 holes in each foot for a stable base at 44,000 lb of force.

The Right Shop Press for Your Shop

The Chicago Pneumatic CP86201 gives you 44,000 lb of force, a 7.32 in stroke, a 2-step pump and a dual-scale gauge on a steel frame you can anchor to the floor.

Don't wait — scroll back up and click the orange Add to Cart button to get this shop press on its way to your shop.
