John Dow PRO30 Fuel Caddy: Hand Pump or Air Pump

The two PRO30 caddies share the same tank, hose, filter and wheels. The only choice is how the fuel moves.

Pump Options

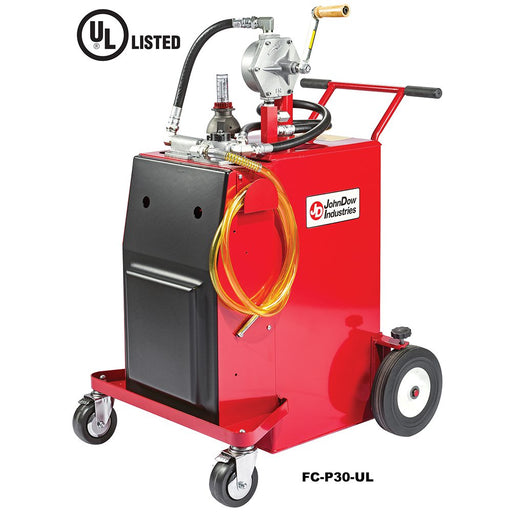

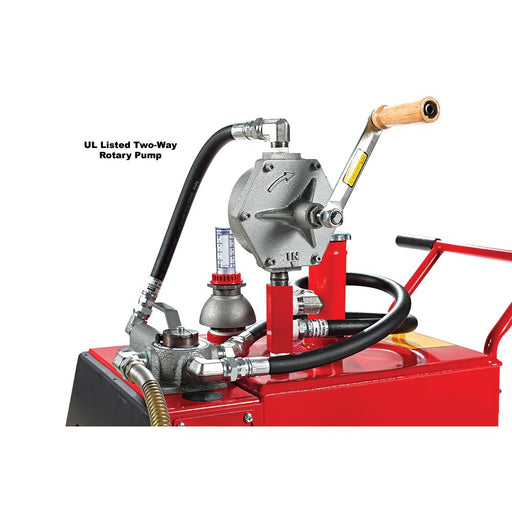

• FC-P30-UL Manual Rotary Pump — Two-way pump with carbon vanes and Viton seals siphons or dispenses fuel. 1 gallon per 12 handle turns. No air line needed.

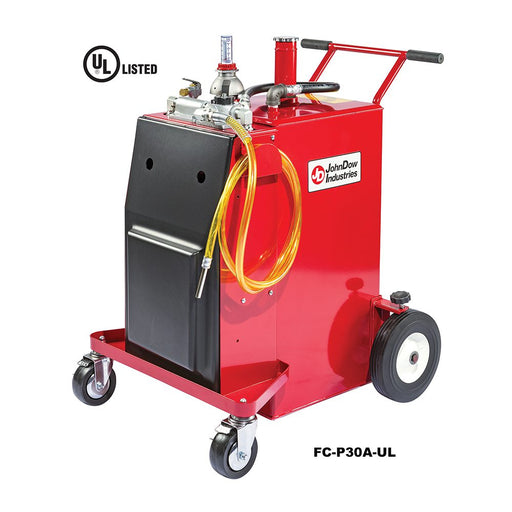

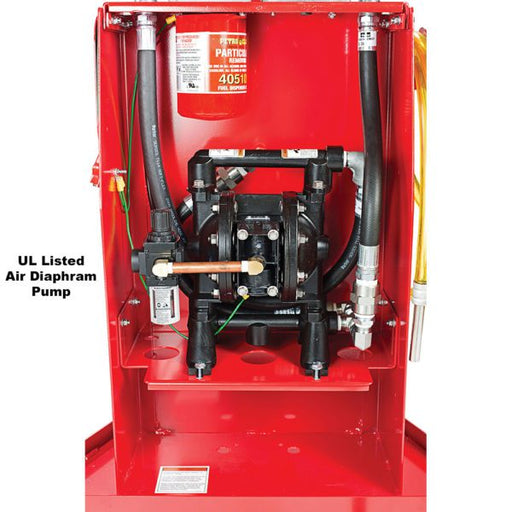

• FC-P30A-UL Air-Operated Pump — UL Listed air diaphragm pump runs on shop air through a throttle on top of the tank. Best for shops that drain tanks often.

Shared Specs

• Tank — 30 gallon steel, red for gasoline, with vent and level gauge.
• Flow Control — 4-way directional valve and 8 ft. PVC hose with internal grounding wire.
• Filter — 10 micron in-line filter, works in both directions. 1, 10 and 30 micron replacements available.
• Mobility — 10 in. locking rear wheels and 5 in. locking swivel casters. 24 x 30 x 41 in., 165 lbs.

Gas Caddy FAQ

Is the PRO30 OSHA compliant?

Both models are UL Listed, tested for leakage, rupture, stability, abuse and endurance, and comply with OSHA guidelines for gas handling.

What comes in the box?

The caddy, 8 ft. hose, ground wire and clamp, 10 micron filter and a decal set.

Running the air pump model? See our air compressors and shop equipment. Questions? Contact us or call 855-559-5589.
