How to Choose Step Deck Load Levelers

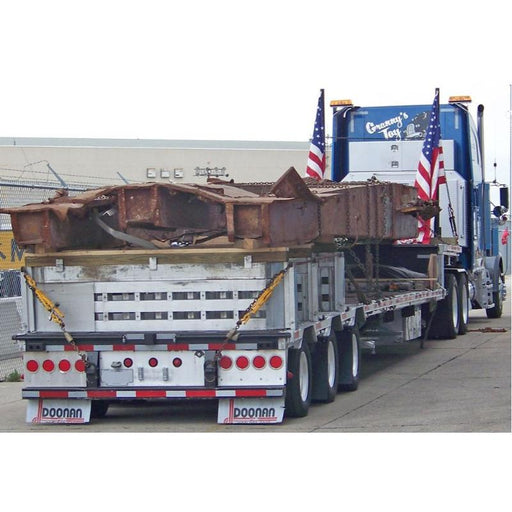

Pipe, steel beams, lumber and containers often run longer than the upper deck. A load leveler fills the step so the load rests on one flat surface instead of hanging over the drop.
Match the Leveler to Your Deck Step
Measure the height of the step on your trailer first. Every leveler here is built for one step height, so the load sits flat rather than close to flat.
- Load leveler bridges — 100-7/8" span, made for 16", 18", 20", 22", 24" and 26" steps. The 16" bridge is rated 20,000 lb and weighs 53 lb, so two people can set it by hand.
- Bunk and ramp systems — Made for 16", 20" and 26" steps.
Stand-Alone Bridge or Bunk and Ramp System
- Bridge — A single leveler for freight only. Pick this if you already have loading ramps.
- 2 bunk / 2 ramp system — Two leveler bunks plus two 8' ramps (16" or 20" wide) and stake pocket mounting hardware.
- 2 or 4 bunk / 4 ramp system — Four 16' ramps for machinery, with 2 or 4 bunks to level longer loads.
- Capacity — 16" wide kits are rated 20,000 lb per axle. 20" wide kits are rated 23,500 lb per axle.
For full kits that add support stands and storage brackets, see the HD Ramps step deck sets.
How the Bunks Hold the Load
Welded brackets on top of each bunk form a channel for true 6" lumber. The lumber levels the surface and takes the wear instead of the aluminum. Bunks secure in the trailer stake pockets with chains and binders, and offset adjustable inserts give up to half an inch of play to match your trailer width.
Load Leveler FAQ
Do I need separate ramps to load equipment?
Not with a bunk system. The ramps in each kit pin onto the deck, and bunks and ramps carry one shared rating per axle, so nothing has to be matched afterwards.
What lumber do I need?
The ratings assume true 6" lumber in the channels. Undersized lumber changes how the load is spread.
Skid seat brackets and ramp storage brackets are in ramp accessories, and the full range is under HD Ramps. Not sure which height you need? Contact us or call 855-559-5589.
