How Much Ceiling Height Do You Need for a 4 Post Lift?
Most four-post lift buyers measure their ceiling, look at a lift’s column height, and assume the two numbers settle the question. They do not. What decides it is how high the lift raises a vehicle, how much usable space is left under the runways, and a margin so nothing touches the ceiling.
To find how much ceiling height you need for a 4 post lift, add the lift’s maximum lift height, the height of the vehicle raised on it, and a 6 to 12 inch safety buffer, then compare that total to the distance from your floor to the lowest overhead obstruction. If you also want to park a car underneath, that car has to be shorter than the lift’s clearance beneath the runways — a second, separate check.
That difference explains why one shopper fits a four-post lift under a 10-foot (120 in) ceiling while another needs 14 feet (168 in) for the same task. Vehicle height, lift model, and what you plan to do with the lift all move the number, and column height is the least useful figure of the group.
If you already have your measurements, the four-post lift ceiling height calculator runs this arithmetic for you and shows only the lifts that clear.
Calculate Usable Ceiling Height From Lift Height and Clearance Beneath
Two numbers do the work: lift height, which your ceiling has to absorb, and clearance beneath, which the parked car has to fit inside. Column height only tells you how tall the lift’s posts are, and posts do not touch the vehicle you park underneath.
Lift Height vs. Clearance Beneath
Lift height (also called rise, maximum rise, or lifting height) is the distance from the floor to the top surface of the runways when the lift is fully raised. Clearance beneath is the usable space under the runways, measured from the floor to the underside of the runway structure. The gap between the two figures is runway thickness, and it is the space you lose to steel.
Both numbers are model-specific. Manufacturers publish them differently, so read the spec sheet for the exact model you are considering instead of borrowing figures from a similar-looking lift.
The Ceiling-Height Formula for Vehicle Storage
Stacking one vehicle under another has to pass two checks, not one:
Ceiling check: maximum lift height + height of the vehicle on the lift + safety buffer ≤ usable ceiling height
Fit check: height of the vehicle parked underneath < clearance beneath
Use lift height for the ceiling check, not clearance beneath. The raised vehicle sits on top of the runways, so runway thickness counts against your ceiling. On most models that is about 5 inches, which is enough to turn a lift that looks like it fits into one that does not.
For service work with an empty floor below, only the ceiling check applies. Nothing is parked underneath, so clearance beneath does not constrain you.
Measure your vehicles yourself. Roof racks, antennas, light bars, and aftermarket suspension all add height that no spec sheet accounts for.
Rather not do the arithmetic? Put your numbers into the ceiling height calculator and it returns the lifts that fit, with the headroom left on each.
Why a Safety Buffer and Overhead Obstructions Matter
Usable ceiling height is the distance from your floor to the lowest fixed thing overhead, not the height of your ceiling deck. Garage door tracks, opener rails, light fixtures, sprinkler heads, ductwork, and structural beams routinely sit well below the deck. A garage with a 10-foot (120 in) ceiling and a door track at 8 feet 6 inches (102 in) is a 102-inch garage for lift planning.
Add 6 to 12 inches of buffer on top of your calculation. That margin covers uneven floors, minor measurement error, and the fact that you will want to open a hood or hatch on the vehicle underneath.
Match Your Garage Height to the Right Four-Post Setup
Your available height decides which jobs a four-post lift can do for you, and stacking two vehicles is the most demanding of them. A 9- or 10-foot ceiling (108 to 120 in) supports plenty of useful work; it rarely supports parking one car above another.
How to Assess a 9-, 10-, or 12-Foot Ceiling
Measure at the lift location, not at the tallest point in the room. Then measure again to the bottom of the door track, the opener, and any light or beam that crosses the bay.
| Usable height | Realistic four-post use |
|---|---|
| 9 to 10 ft (108 to 120 in) | Service and maintenance access, wheel-free work with a rolling jack, limited or no stacking |
| 10 to 12 ft (120 to 144 in) | Service plus stacking of two low vehicles, depending on model and vehicle heights |
| 12 ft and up (144 in and up) | Full-rise service on taller vehicles; stacking becomes practical |
| 14 ft (168 in) and up | Purpose-built stacking lifts; the Garage PRO7000ST states this as its requirement |
Treat these as planning brackets, not guarantees. The deciding numbers are your model’s clearance beneath and your own vehicle measurements.
When a Standard Four-Post Lift Supports Service but Not Stacking
Under a 9- or 10-foot ceiling (108 to 120 in), a four-post lift still earns its keep. Raising a vehicle two or three feet gives comfortable access for oil changes, exhaust work, undercoating, and inspections, and a rolling jack lets you lift the wheels free for brake and tire work.
What you lose is the ability to park a second vehicle underneath with the hood clearance you need. Buyers often discover this after the lift arrives, which is why a fit check before ordering saves the most trouble.
How Garage PRO8000, Garage PRO9000, and Apex 9 Clearance Figures Compare
Here are the published figures for the four-post lifts we stock most often. Lift height is measured to the top of the runway and is what your ceiling has to absorb. Clearance beneath is the usable space under the runways and is what the parked car has to fit inside.
| Model | Lift height (in) | Clearance beneath (in) | Capacity | Price |
|---|---|---|---|---|
| ATD 4P14ALCH | 67 | 60 | 14,000 lb | See price |
| Atlas Garage PRO8000 | 72 | 67 | 8,000 lb | See price |
| ATD 4P8B | not published | 70 | 8,000 lb | See price |
| Katool KT-4H850 | 70.87 | 70.86 * | 8,500 lb | See price |
| Atlas Garage PRO8000EXT-L | 84 | 78.5 | 8,000 lb | See price |
| Katool KT-4H110 | 84.25 | 78.7 | 11,000 lb | See price |
| Atlas Garage PRO8000EXT | 84.25 | 79 | 8,000 lb | See price |
| Katool KT-4H950 | 84.5 † | 79 † | 9,500 lb | See price |
| Katool KT-4H120X | 86.9 | 80 | 12,000 lb | See price |
| Atlas Garage PRO9000 | 85 | 80.25 | 9,000 lb | See price |
| Atlas Apex 9 | 86 | 81.25 | 9,000 lb | See price |
| Atlas Garage PRO7000ST | 147 | 142 † | 7,000 lb | See price |
Sorted by clearance beneath, lowest first, because that is the number that decides whether a second vehicle fits underneath. * The KT-4H850 is supplied with a lift height and a clearance-beneath figure that are effectively identical. That leaves no room for runway thickness, so treat it as a supplier-stated number and confirm it with us before ordering. † Approximate figure from the manufacturer.
Between a standard Garage PRO8000 and the extended Garage PRO8000EXT you gain 12 inches of clearance beneath at the same 8,000 lb capacity. That difference is often what decides whether a second vehicle fits underneath.
Worked example: a 12-foot garage that is really an 11.5-foot garage
The ceiling deck measures 144 in. The garage door track hangs at 138 in, so usable height is 138 in, not 144.
You want to raise a full-size sedan at 57 in and park a second one underneath. Start with the ceiling check and a 6 in buffer:
138 − 57 − 6 = 75 in is the tallest lift height you can use
Three models in the table are at or under that: the ATD 4P14ALCH at 67 in, the Katool KT-4H850 at 70.87 in, and the Garage PRO8000 at 72 in. The ATD 4P8B does not publish a lift height, so it cannot be checked from the spec sheet.
Now the fit check. Each of those three has clearance beneath greater than the 57 in car going underneath — 60, 70.86, and 67 in — so all three pass. The 4P14ALCH clears by only 3 in, which is not enough to open a door down there.
Now raise a compact SUV at 66 in instead of the sedan:
138 − 66 − 6 = 66 in of lift height
Nothing on the list clears. The lowest lift height available is 67 in. A nine-inch taller vehicle on the lift took you from three options to none, without your building changing at all.
Run your own numbers in the ceiling height calculator — it filters this table to the lifts that clear, or call us at +1 (855) 559-5589 and we will check the fit for you.
Other four-post models we carry are listed in the four-post lift collection. Confirm the clearance-beneath and rise figures for the exact version you want before you commit, since extended and long-runway variants of the same model differ.

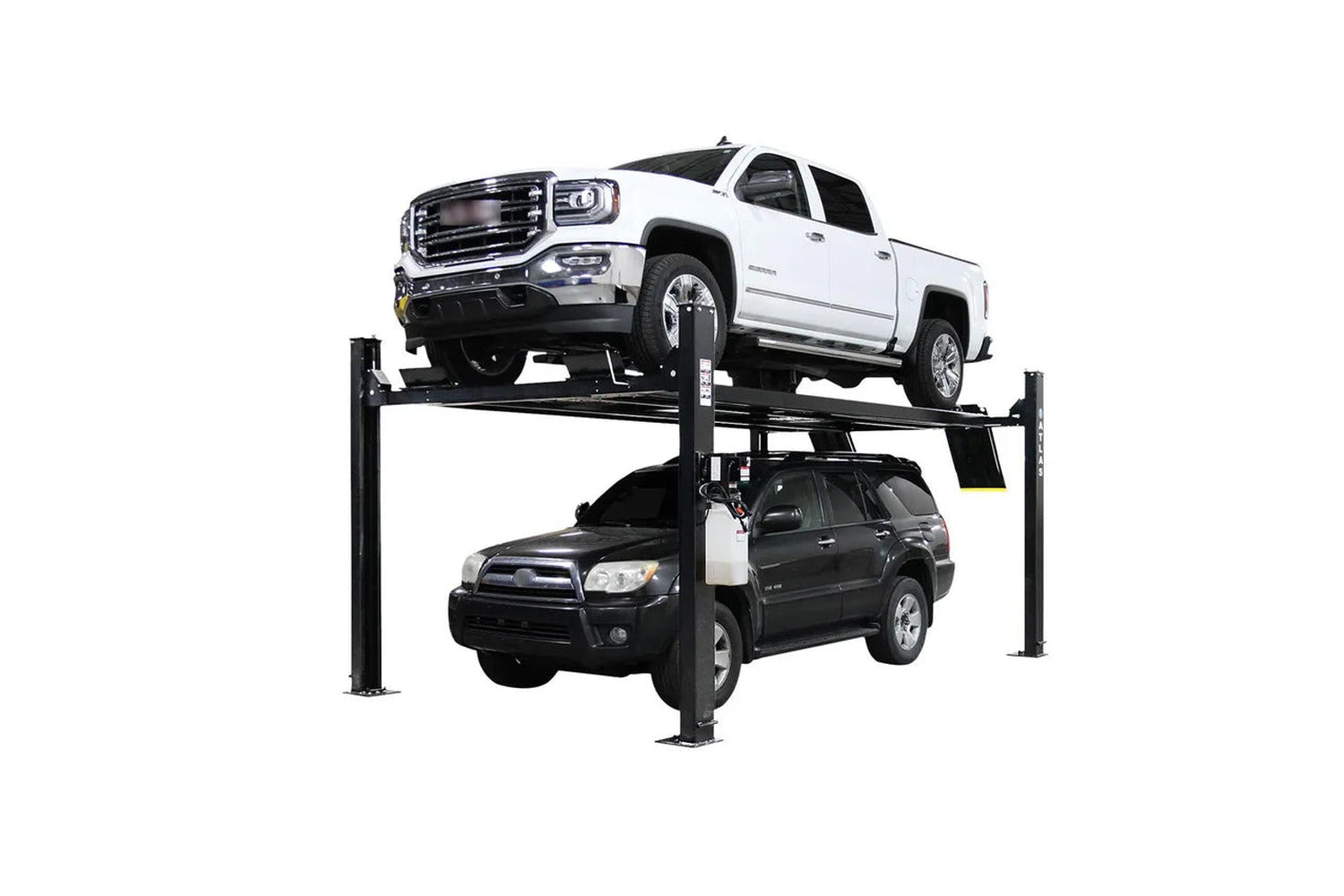

Why the Garage PRO7000ST Is Built for Genuine Two-Vehicle Stacking
The Garage PRO7000ST is designed for stacking, and it carries a stated 14-foot (168 in) ceiling requirement. That figure exists because real stacking needs enough clearance beneath the runways to hold a full-height vehicle with room to open its doors and hood.
If you have 14 feet (168 in), stacking is a design goal you can plan around. If you have 10 feet (120 in), a taller lift will not create height you do not have.
Choose a Lift Configuration for Your Vehicles and Work
Vehicle shape and the type of work you do narrow the field faster than ceiling height alone. Low sports cars, long-wheelbase trucks, alignment work, and wheel-free service each push toward a different configuration.
When an Extra-Tall Four-Post Model Is Necessary
Extra-tall four-post models exist for buildings with real height to use, and they are the only path to storing a tall vehicle underneath. A 12- to 14-foot bay (144 to 168 in) lets you park an SUV or pickup below and still open its tailgate.
Height alone does not qualify you. Confirm that the extended-height version fits under your lowest obstruction, since taller columns often need more overhead room for the crossbeam and cable sheaves.
Low-Profile Access for Sports Cars
Low ground clearance is an approach problem more than a height problem. A sports car with a front lip needs a shallow approach angle onto the runways, which usually means factory or aftermarket approach ramps designed for low-clearance vehicles.
For storage, low cars help you twice: a lower stored vehicle underneath reduces the ceiling height your stack requires.
Runway Length and Wheelbase for Trucks and SUVs
Runway length has to cover the vehicle’s wheelbase with the tires fully supported and clear of the ends. Long-bed crew-cab pickups and extended vans are the usual culprits when a lift comes up short.
Check the published runway length and overall lift dimensions against your longest vehicle before ordering. Runway lengths differ across four-post models, so confirm the figure for the model you select.
When a Two-Post or Scissor Lift Is a Better Choice
A two-post lift makes sense when you want open access to the wheels and undercarriage for repair work and you are not storing vehicles. Clear-floor two-post models generally need more overhead height because the crossbeam sits above the vehicle, while baseplate designs route the overhead components along the floor.
A scissor lift suits tight bays and low ceilings, and it leaves a clear floor when lowered. It cannot stack vehicles, so it solves a height problem by removing the option rather than fitting it.
Storage, Alignment, and Wheel-Free Service Requirements
Match the lift to the job, since the three uses have different requirements:
- Storage: lift height controls the ceiling and clearance beneath controls what fits below, and safety locks must hold the load indefinitely.
- Alignment: requires an alignment-capable four-post platform plus turnplates and slip plates, and enough height to work at the wheel with the vehicle raised.
- Wheel-free service: needs a compatible rolling jack. A rolling jack raises the vehicle a few inches above the runways, so add that to your ceiling math before you order one.
What to Measure and Verify Before Ordering
Write down these numbers before you shop, and compare each one against the range the four-post models we stock actually fall in:
| Measure this | Typical four-post range | Why it matters |
|---|---|---|
| Floor to lowest obstruction | varies | The number the whole calculation hangs on. Measure at the lift position, not the tallest point in the room. |
| Column height (lift at rest) | 95 to 99 in | The columns stand this tall whether the lift is raised or not. An 8 ft (96 in) garage cannot take most four-post lifts at all. |
| Overall width | 116 to 136 in | Wider than the runways, because the columns sit outside them. Add walk-around space on both sides. |
| Overall length with ramps | 222 to 230 in | Roughly 19 ft of floor. The approach ramps are part of the footprint. |
| Runway length | 185 to 200 in | Has to carry the wheelbase with the tires clear of both ends. |
| Maximum wheelbase | 173 to 187 in | Long-bed crew cabs and extended vans are where lifts come up short. |
| Runway driving surface | 19 to 20 in | Narrow enough that driving on takes care; wide track vehicles need checking. |
| Drive-through clearance | 84 to 97 in | Outside tire to outside tire. Decides whether you can drive between the columns at all. |
Ranges taken from the four-post models in our own catalogue, from the Garage PRO8000EXT-L at the compact end to the Katool KT-4H120X at the wide end. Confirm the exact figure for the model you pick, since variants of the same model differ.
Note the column-height line. A four-post lift is tall even when it is fully lowered, so a bay that fails on column height fails before any of the ceiling arithmetic starts.
Concrete: What the Slab Under It Has to Be
A four-post lift spreads its load across four columns, so it asks less of a slab than a two-post does. That does not make the slab a non-issue, and it is the one requirement you cannot fix after the lift arrives.
- Thickness and strength: 4 in of concrete at 3,000 PSI is the common minimum for a residential four-post lift. The Katool KT-4H110 manual, for example, calls for at least 3.93 in (100 mm) at 3,000 PSI. Step up to 6 in at 3,500 PSI for heavier vehicles or an 11,000 lb and up lift.
- Age: New concrete needs roughly 28 days to cure before a lift goes on it. Green concrete will not hold an anchor.
- Level: The slab should be flat across the four column positions, within about 1/8 in. Shims correct small differences; a sloped bay does not.
- Joints and cracks: Keep column feet clear of expansion joints, control joints and cracks — about 6 in of sound concrete around each one.
- Anchors: Not every four-post lift needs them. The Atlas Garage PRO8000 is sold as free-standing and portable, no anchor required. Others do require anchoring, and the installation manual for your model is what decides it.
If you do not know what is under your floor, the cheapest answer is to drill a test hole at the lift position, or check the slab edge at the garage door.
Electrical Requirements for 110V and 220V Models
Power units come in 110V and 220V versions, and the requirement is model-specific. The Atlas garage four-post models run on 110V single-phase with a 30-amp breaker. The Katool KT-4H110 ships 110V with 220V as an option, while the heavier KT-4H120X is 220V. Shop-grade lifts generally want a dedicated 220V single-phase circuit.
Confirm the voltage, amperage, and circuit type on the spec sheet for your exact model, then confirm your building can supply it. Some lifts also need shop air for the safety-lock release, so check air-supply requirements too.
Match the Lift to Your Usable Garage Height
The number that decides your lift is usable ceiling height, measured from the floor to the lowest fixed obstruction over the bay. Add your model’s maximum lift height to the height of the vehicle you raise on it, then add 6 to 12 inches of buffer, and you have the minimum your building must provide. If a second vehicle goes underneath, check separately that it is shorter than the model’s clearance beneath.
Under 10 feet (120 in), a four-post lift serves maintenance and wheel-free work well. Genuine two-vehicle stacking asks for far more, up to the 14 feet (168 in) stated for the Garage PRO7000ST. Between those extremes, the answer comes from published specs for your exact model and from your own measured vehicle heights, including racks and antennas.
Before ordering, call or text us at +1 (855) 559-5589 weekdays 9 to 5 EST, or email info@accessdivision.com, for a ceiling-height check, bay-fit review, slab, electrical and air-supply confirmation, or a model comparison. Most products ship free, though flatbed freight and certain oversized items are exceptions.
Frequently Asked Questions
Can you put a 4 post lift in a garage with a 10-foot (120 in) ceiling?
Yes, for service and maintenance work on many models. Stacking a second vehicle underneath rarely works at 10 feet (120 in), because the lift height plus the raised vehicle plus a safety buffer usually exceeds that total. Confirm both the lift height and the clearance-beneath figure for your model, and measure to the lowest obstruction, not the ceiling deck.
Is a 12-foot (144 in) ceiling high enough for a 4 post lift?
A 12-foot (144 in) usable height supports full-rise service on most passenger vehicles and makes stacking practical with lower cars. Taller stored vehicles such as SUVs and pickups can still push past it once you add a buffer. Run the numbers with your own vehicle heights before you decide.
How do I calculate ceiling height for two-car storage on a 4 post lift?
Run two checks. First, add the lift’s maximum lift height, the measured height of the vehicle you raise on it, and 6 to 12 inches of buffer, then compare that total to the distance from your floor to the lowest overhead obstruction in the bay. Second, confirm the vehicle going underneath is shorter than the lift’s clearance beneath the runways. If your building falls short, a lower vehicle on the lift is the easiest variable to change.
Do I need an extra-tall 4 post lift for an SUV or truck?
You need an extra-tall model to store an SUV or truck underneath, and enough building height to use it. For service work alone, a standard-height four-post lift usually handles taller vehicles as long as the raised vehicle clears your lowest obstruction. Check runway length against the wheelbase too, since long crew-cab pickups can outrun shorter runways.
Can a low-profile sports car drive onto a 4 post lift?
Yes, with approach ramps designed for low ground clearance. The concern is the approach angle at the runway ends, where a front lip or splitter can contact the ramp. Ask about low-profile approach ramp options for the specific model before ordering.
Do 4 post car lifts have to be bolted down?
Not always. Several four-post storage lifts are engineered to stand free — the Atlas Garage PRO8000 is sold as free-standing and portable with no anchor required, which is also what lets it be moved on a caster kit. Other four-post models do require anchoring into the slab. The installation manual for your model is what decides it, and local rules can add requirements of their own. Either way the slab still has to meet the thickness and strength the manual states.
