Homak DC17192402 TECH Diagnostic Charging Cart with Clore Battery Service Bundle

Mobile Battery Service Station: Homak TECH Cart with Charger, Tester and Jump Starter

Battery work means dragging a charger, a tester and a jump pack across the shop. Then the cords end up on the floor and the laptop ends up on the fender.

The Homak DC17192402 puts it all on one rolling cart. You get the Homak TECH Mobile Diagnostic and Testing Terminal plus three Clore battery tools: the PRO-LOGIX PL6850 120A power supply and charger, the SOLAR BA327 tester with printer and the Jump-N-Carry JNC325 jump starter.

Why Choose the Homak DC17192402

One cart that holds your laptop, charges batteries and carries the tools to test and start the car.

• 0–120A power supply (12V) — PL6850 holds system voltage steady during module reprogramming and ADAS calibration
• 40–2000 CCA testing with a built-in printer — BA327 hands the customer a printed battery and charging system result
• 450 Start Assist Amps — JNC325 starts gas engines up to 8L and diesels up to 6L
• Charging area with a vented shield and sliding battery shelf — the TECH cart is built around battery work

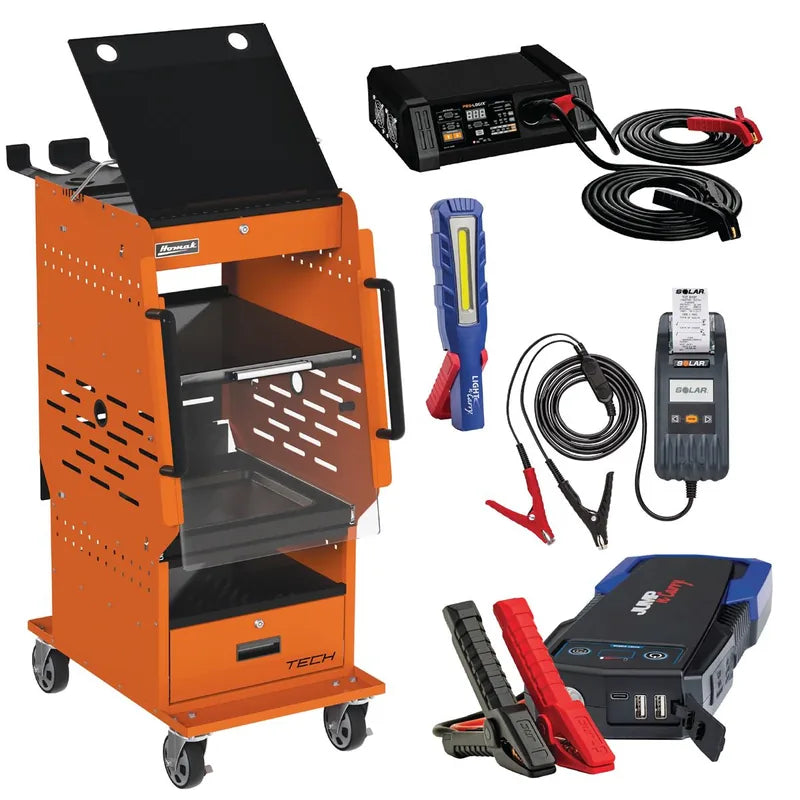

What's Included

• Homak TECH Mobile Diagnostic and Testing Terminal (06019020), Competition Orange
• Clore PRO-LOGIX PL6850 12/24V 120A Flashing Power Supply and Fleet Battery Charger
• Clore SOLAR BA327 Digital Battery and System Tester with Printer
• Clore Jump-N-Carry JNC325 450 Start Assist Amp 12V Lithium Jump Starter

Made For

Built for shops that test, charge and reprogram cars every day.

• Auto repair shops running battery and charging system checks
• Dealership and independent shops doing module reprogramming
• Fleet maintenance shops servicing Group 31 battery packs
• Tire and quick lube shops that sell batteries
• ADAS calibration and diagnostic techs

Features

• Adjustable workstation top — set the height and angle for your laptop or tablet
• Power tool drawer with power strip — four outlets and two USB ports
• Sliding battery shelf with ventilated shield — charge with airflow and a blowout vent
• Pull-out shelf with non-slip rubber mat — extra space when you need it
• PL6850 13.1–14.9V output — adjustable in 0.1V steps, under 100mV ripple
• BA327 1.5–30V operating range — tests 6V and 12V batteries, 12V and 24V systems
• JNC325 UL2743 lithium pack — 2 USB outlets, 10A DC outlet and LED flashlight
• 4 casters rated 264 lb each — 2 swivel locking, 2 fixed

Charge, Test and Jump From One Cart

The PL6850 runs as a 0–120A (12V) or 0–60A (24V) power supply to hold system voltage while you flash modules. In charge mode it gives you 120/60/40/10A at 12V and handles flooded, AGM, spiral wound, deep cycle, marine and LiFePO4 batteries. A forced start mode charges batteries down to 0.0V, and the 13 ft cables reach across the bay.

The BA327 tests batteries from 40 to 2000 CCA, then runs starter and alternator tests. Results print on the spot. The JNC325 delivers 450 Start Assist Amps and can start a totally dead battery with its override button.

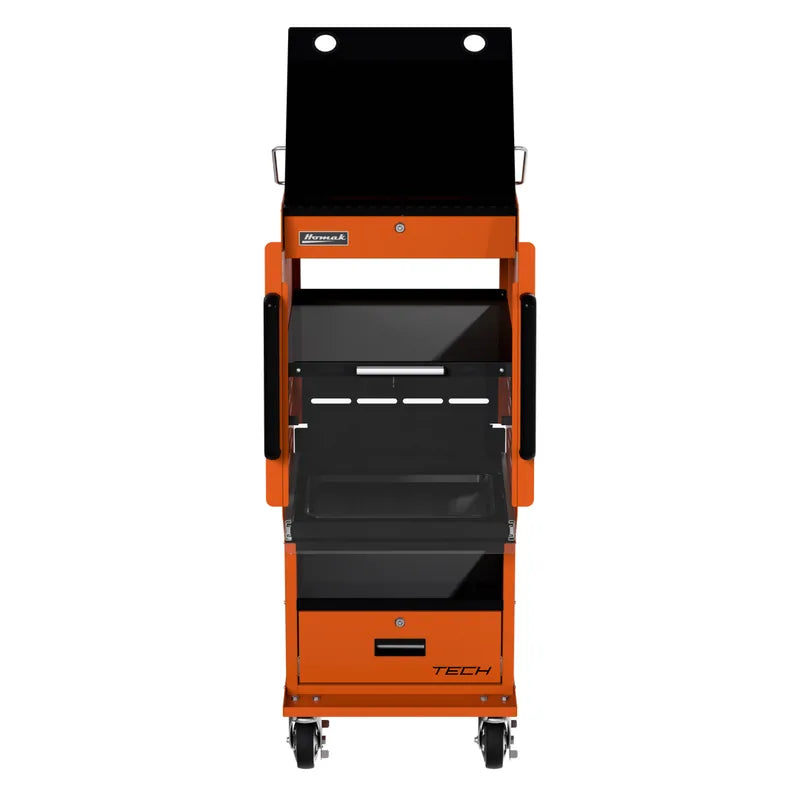

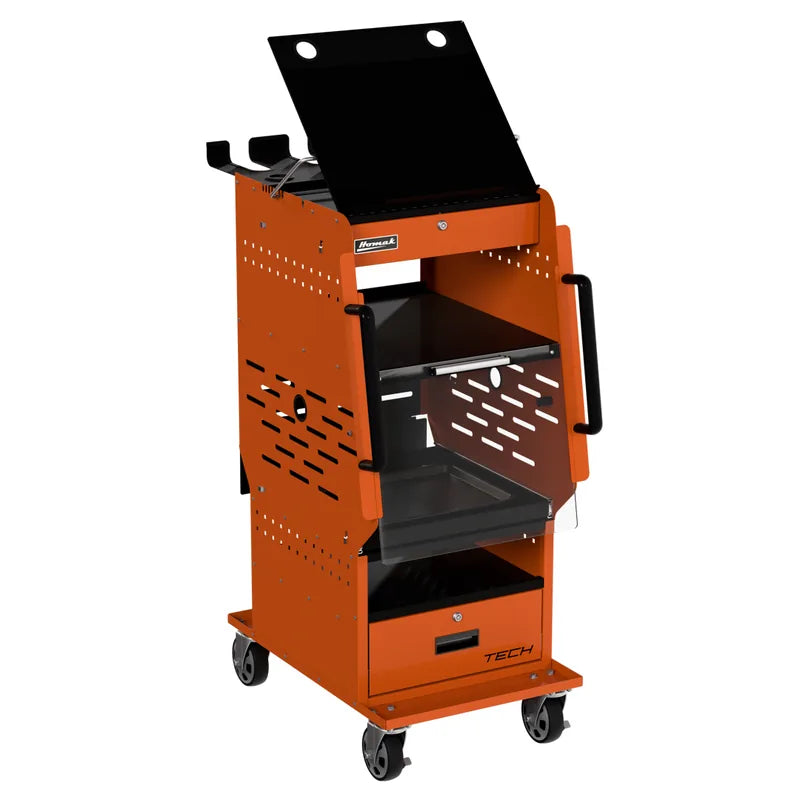

A Diagnostic Workstation on Wheels

The TECH cart top adjusts in height and angle, so the laptop or scan tablet sits where you can read it. The power tool drawer has a power strip with four outlets and two USB ports to keep packs and devices charged.

Batteries charge on a sliding shelf behind a ventilated protective shield. Drawers run on ball-bearing slides rated 100 lb per slide pair, and the HMC High Security Tubular Locking System locks the cart. A 3.2 mil UV powder coat finish stands up to shop use.

The Right Service Cart for Your Shop

The Homak DC17192402 bundles the TECH diagnostic cart with a 120A Clore power supply and charger, a printing battery tester and a 450A jump starter, in Competition Orange.

Don't wait — scroll back up and click the orange Add to Cart button to get this battery service cart on its way to your shop.

Technical Specifications
