John Dow Industries FC-P30A-UL PRO30 30 Gallon UL Listed Gas Caddy with Air-Operated Pump

30-Gallon Rolling Steel Fuel Caddy with Air Diaphragm Pump for Shop Fuel Transfer

Draining a tank or refueling a car in the bay shouldn't mean gas cans and a funnel. One spill on a hot floor and the whole shop has a problem.

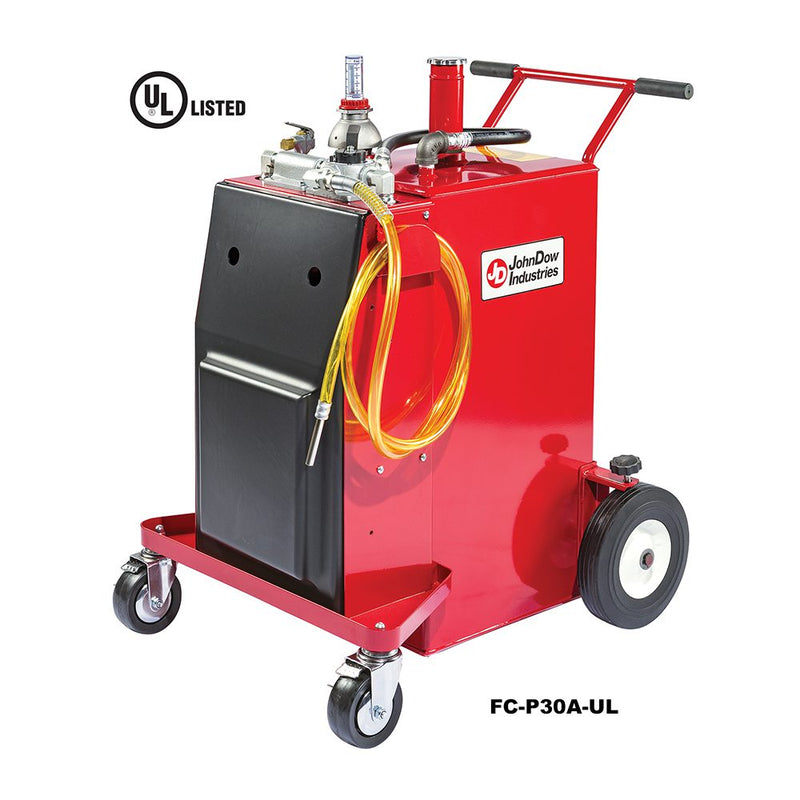

The John Dow Industries FC-P30A-UL is a 30-gallon UL Listed steel gas caddy on wheels. Hook up shop air and the air diaphragm pump moves fuel to or from the vehicle — no cranking.

Why Choose the FC-P30A-UL

The strongest point: shop air does the pumping, so a full tank drains or fills while your hands stay free.

• UL Listed air diaphragm pump — runs off shop air through the throttle control on top of the tank, quick and quiet
• Tested for leakage, rupture, stability, abuse and endurance — UL Listed and compliant with OSHA guidelines for gas handling
• In-line 10 micron filter in both directions — protects the vehicle's fuel pump from contamination

What's Included

• John Dow Industries FC-P30A-UL 30-gallon steel gas caddy with air-operated pump
• 8' PVC suction/discharge hose with internal grounding wire
• Ground wire and clamp on a side-mounted hanger
• 10 micron fuel filter
• Decal set for content identification

Made For

The FC-P30A-UL is built for techs who pull fuel out of tanks and put it back in as part of the job.

• Independent auto repair shops doing fuel pump and tank work
• Dealership service departments
• Fleet maintenance garages
• Collision shops draining tanks before repairs

Features

• 30-gallon steel tank — enough to drain a full car or truck tank in one go
• UL Listed air diaphragm pump — fuel moves to and from the vehicle on shop air
• UL Listed, OSHA compliant — tested for leakage, rupture, stability, abuse and endurance
• 4-way directional valve — clearly sets flow to or from the vehicle
• 10 micron in-line filter — filters fuel in both directions; 1, 10 and 30 micron replacements available
• Vent and level gauge — fill level at a glance, vent prevents fume build-up
• 10" locking rear wheels and 5" locking swivel casters — rolls easily, stays put while in use
• Ground wire and clamp — on a side-mounted hanger, ready to attach before every transfer

Shop Air Does the Pumping

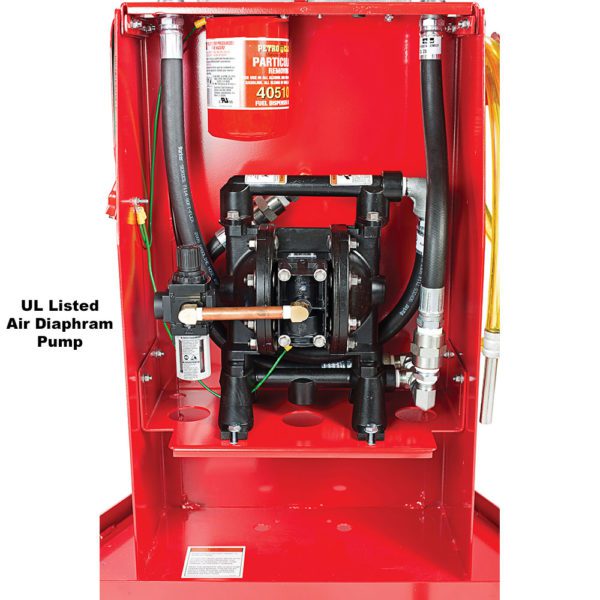

Connect shop air to the air throttle control on top of the tank and the UL Listed air diaphragm pump moves fuel to and from the vehicle. It runs quickly and quietly, so a tank drain is not a workout.

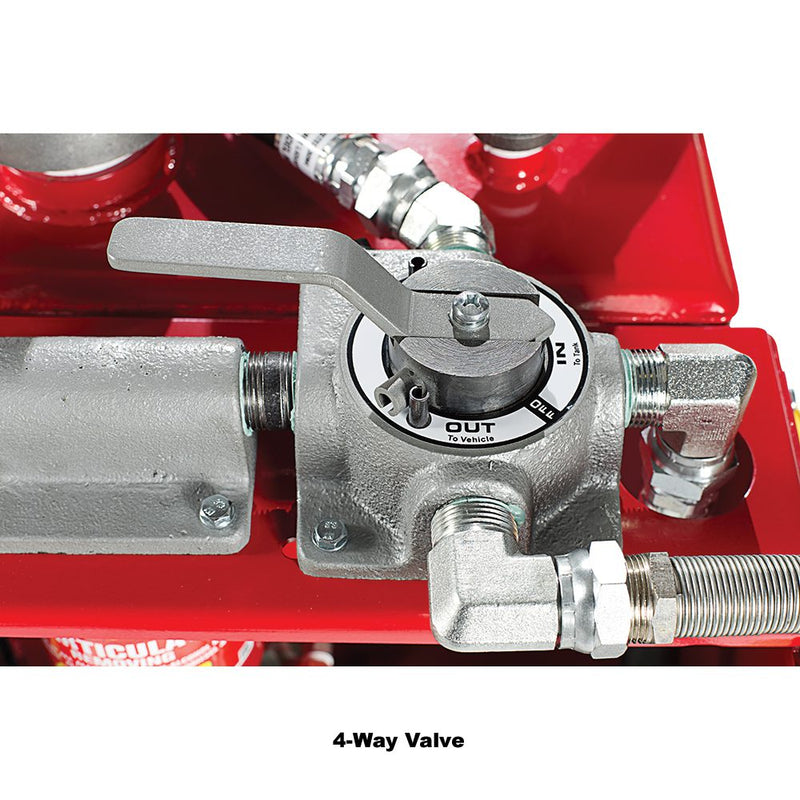

The integral 4-way valve sets the direction of flow at a glance — out of the vehicle into the caddy, or back from the caddy into the vehicle — through the 8' PVC hose with its internal grounding wire.

Built for Safe Fuel Handling in the Bay

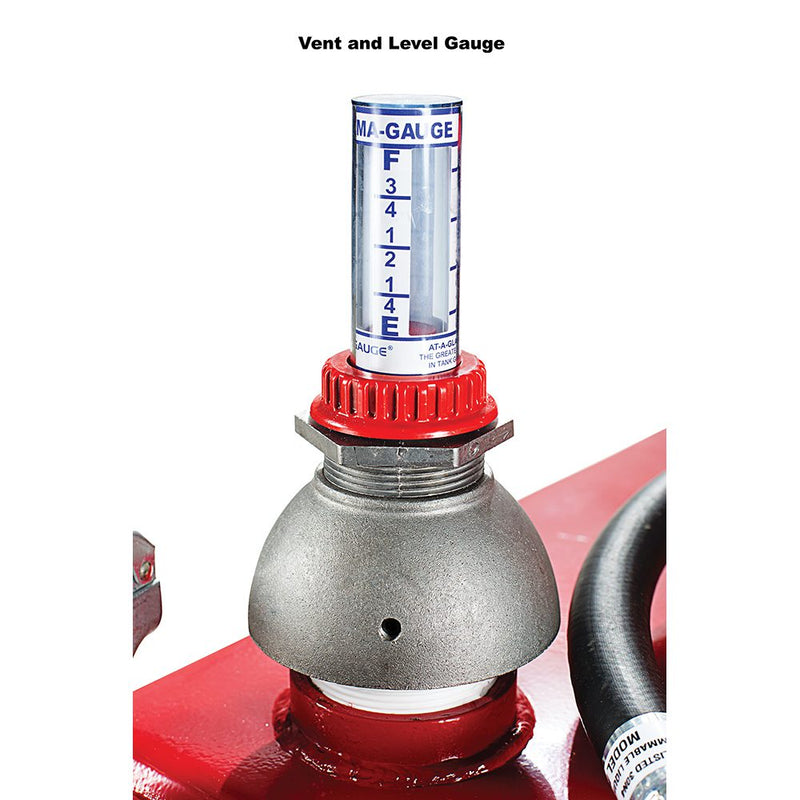

Ground the caddy to the vehicle before every transfer — the ground wire and clamp hang on the side of the tank, right where you need them. The vent prevents excess fumes from building up, and the level gauge shows how full the tank is without opening anything.

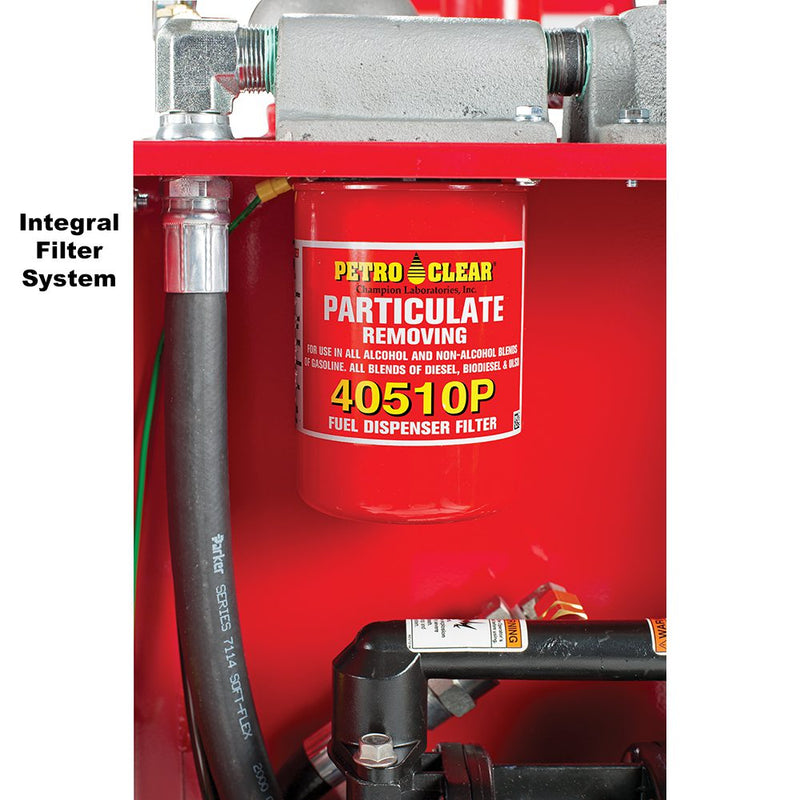

The in-line filter catches contamination in both directions, so dirty fuel from one tank doesn't end up in the next vehicle's fuel pump. A 10 micron filter comes installed, with 1, 10 and 30 micron replacements available.

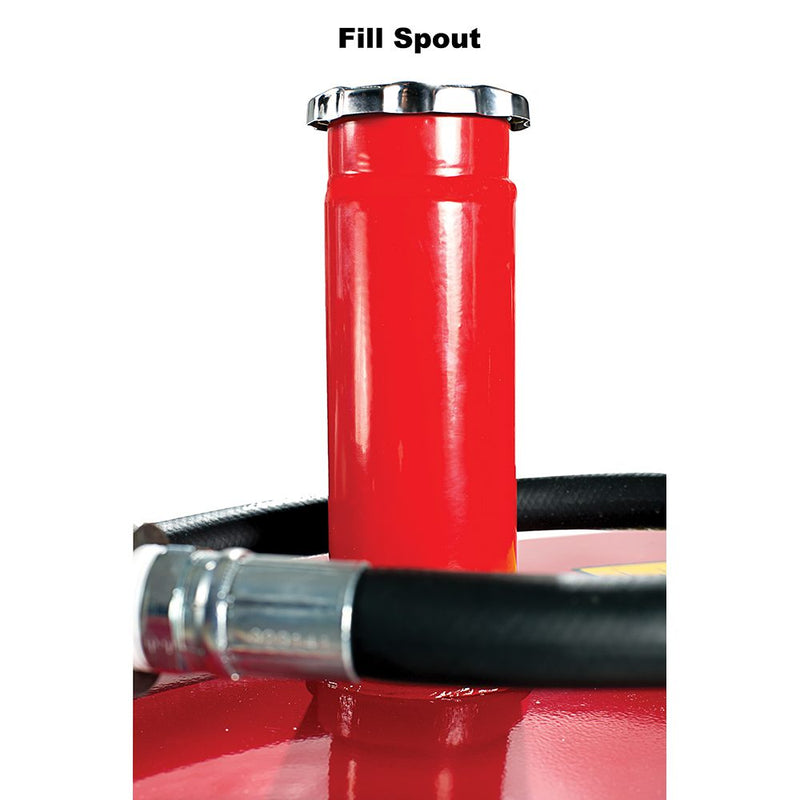

The 10" rear wheels and 5" swivel casters roll the caddy across the shop floor, and the locks on both hold it still while you work. Fill it fast through the easy-access fill spout.

The Right Fuel Caddy for Your Shop

The FC-P30A-UL gives you a 30-gallon UL Listed steel tank with an air-operated pump, a 4-way valve, a 10 micron filter and locking wheels — a safe way to drain and refill fuel tanks in the bay.

Don't wait — scroll back up and click the orange Add to Cart button to get this fuel caddy on its way to your shop.

Technical Specifications
