Alignment Scissor Lift with 217" Runways and 72" of Vertical Rise
A four-post alignment lift takes up most of a bay. The posts and the frame sit right where the technician needs to stand, and every camber and toe adjustment means reaching around steel. In a shop where floor space is already spoken for, that is a lot of bay given up to one machine.
The Rotary XA14 is a scissor lift, so there are no posts and no side frame. It measures 7' 8-1/8" across, over 34% narrower than a standard four-post, and it opens straight through from front to rear. The technician walks to any adjustment point on the vehicle without working around the lift.
Why Choose the XA14
The XA14 puts a full four-wheel alignment rack in a bay that will not take a four-post lift.
- At 7' 8-1/8" overall width the XA14 is over 34% narrower than a standard four-post lift, and the open front-to-rear design leaves the wheels and adjustment points clear.
-
217" runways cover general service wheelbases up to 201" and two-wheel alignments up to 189", so long trucks and vans stay on the rack.
-
72" of true vertical rise on a surface-mount installation, with 14 locking positions that engage automatically and release pneumatically.
- Recessed adjustable lights are built into the runways and aimed at the underside of the vehicle, so the technician is not working off a drop light.
What's Included
- Two 7,000 lb. rolling jacks
- Two turning radius gauges
- Air-actuated rear slip plate locks
- Console controls
- Surface-mount ramps with self-chocking hinges, plus ramp extensions
- Base plate leveling system
- Frame-engaging adjustable adapters, extensions and polymer pads
- Four 6" spacers
Made For
The XA14 is built for shops that run alignments as regular work and need the bay back for everything else.
- Auto dealership service departments
- Tire shops running four-wheel and two-wheel alignments
- Independent auto repair shops
- Shops fitting alignment work into a compact bay
Features
-
14,000 lb. capacity — takes light-duty trucks, vans and full-size SUVs, not just cars.
-
217" runways, 201" general service wheelbase — long-wheelbase vehicles sit on the rack with room to work.
-
72" maximum rise, surface mount — the technician stands upright under the vehicle instead of stooping.
-
11" lowered height, surface mount — low-profile vehicles load over the ramps without scraping.
-
14 locking positions — the lift holds where the job needs it, engaging automatically and releasing on air.
-
Air-actuated rear slip plate locks — the technician locks and releases the rear steers from the console instead of walking back to the rack.
-

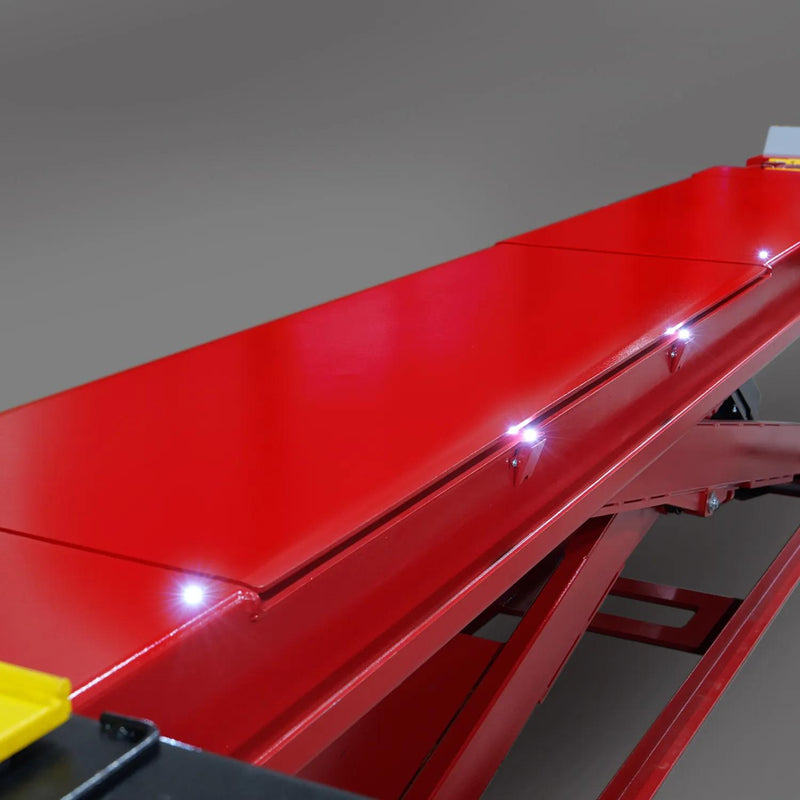

Integrated recessed runway lighting — the work area is lit from the runway itself, adjustable to the job.
-
4 HP, 208-230V single-phase motor — runs on single-phase power, with full rise in 61 seconds and descent in 49.
A Footprint That Fits the Bay You Have

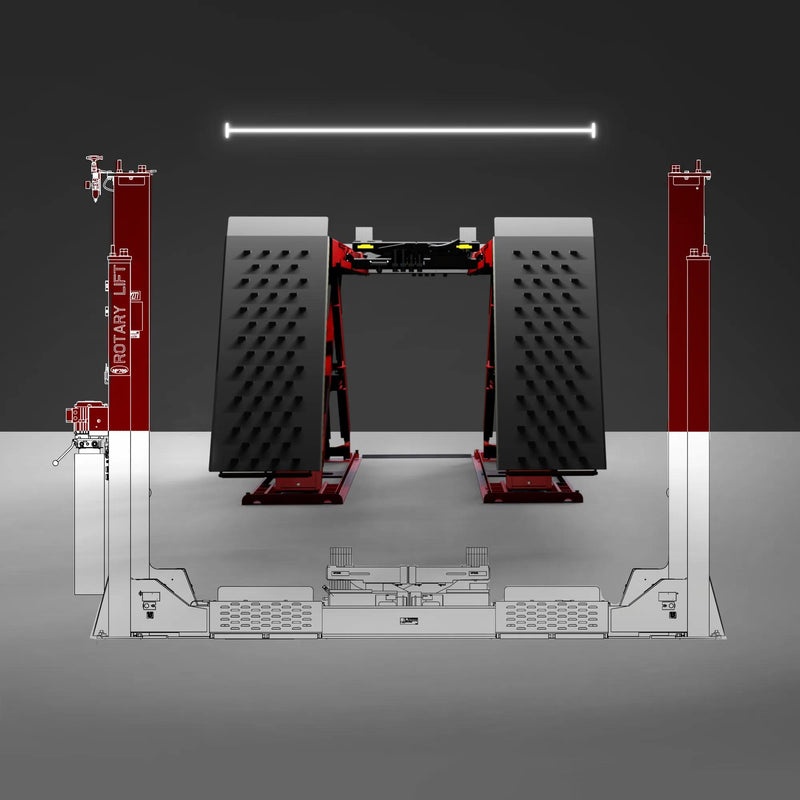

The XA14 is over 34% narrower than a traditional four-post lift, at 7' 8-1/8" overall width with 26" runways set 40" apart. That difference is what lets a shop put a dedicated alignment rack into a bay that was never going to hold a four-post.
There are two installation options. A surface installation sets the lift on the floor and uses the two standard self-chocking ramps and ramp extensions to load the vehicle, with an 11" lowered height and 72" of rise. A flush installation drops the lift into the floor for a smaller footprint still, a flat working surface, and 61" of rise.
The base plate leveling system and the optional shim kit handle floors that are not perfectly flat, and the minimum bay size is 13' x 28'. If a tower camera aligner or an ADAS calibration system is going to share the bay, allow for the space that equipment calls for in front of the lift.
Set Up for Four-Wheel and Two-Wheel Alignment Work

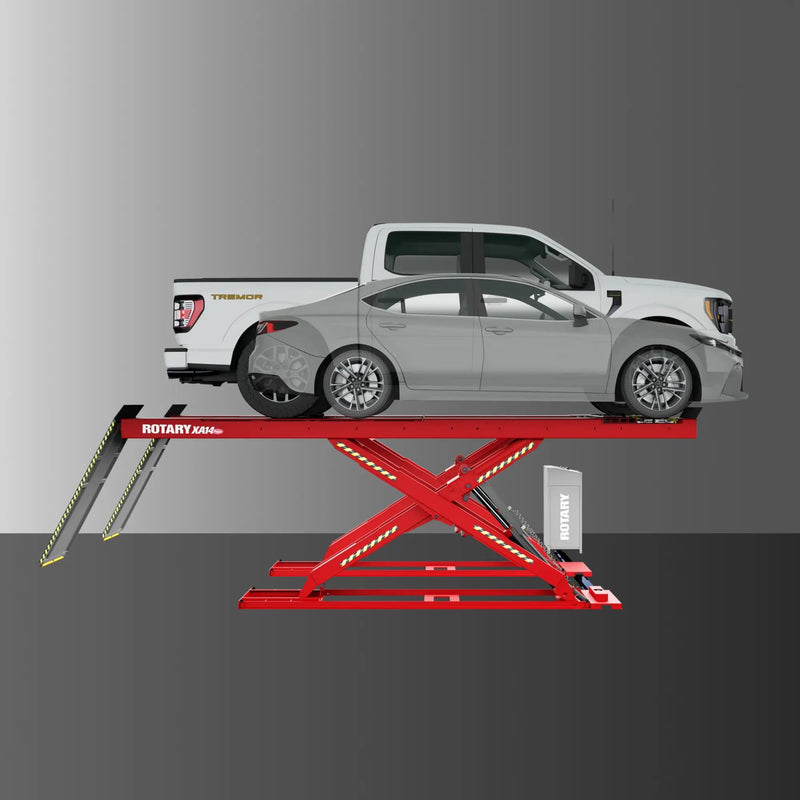

The 217" runways carry four-wheel alignment wheelbases from 81.5" to 168" and two-wheel alignments up to 189". Two turning radius gauges and the rear slip plates come as standard equipment rather than as an add-on package, so the lift arrives ready for alignment work.

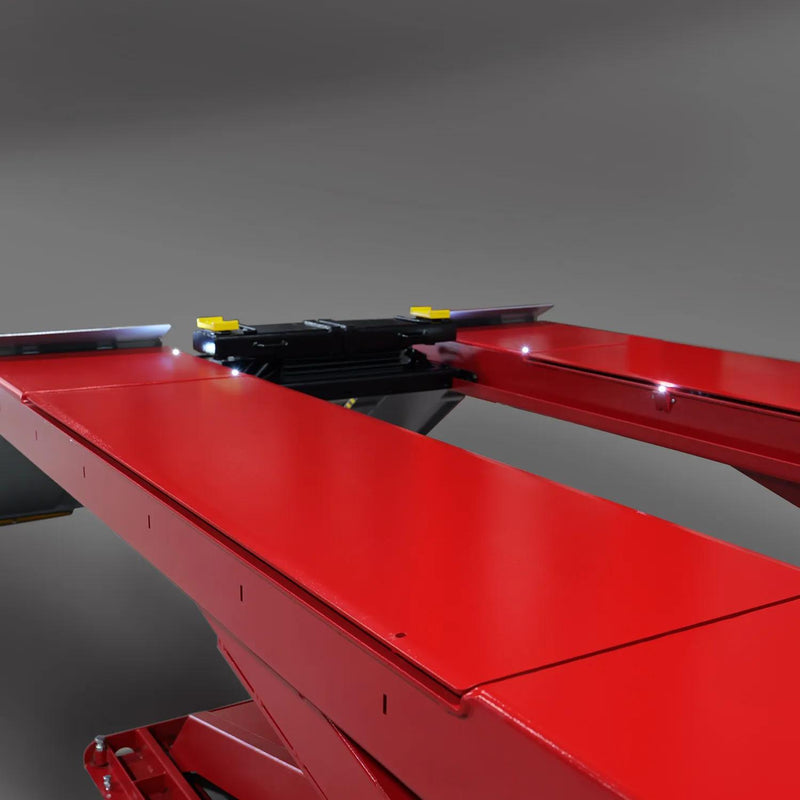

The rear slip plate locks are air actuated and controlled from the operations panel. The technician sets and releases the rear steers without walking back and forth to the rack, which takes a step out of every alignment.
Adjustable lighting is recessed into the runways and positioned along their length, so the underside of the vehicle is lit where the technician is actually working. The lift is compatible with Rotary alignment systems, and the open front-to-rear design keeps the wheels and suspension reachable from either side.
The Right Scissor Lift for Your Shop

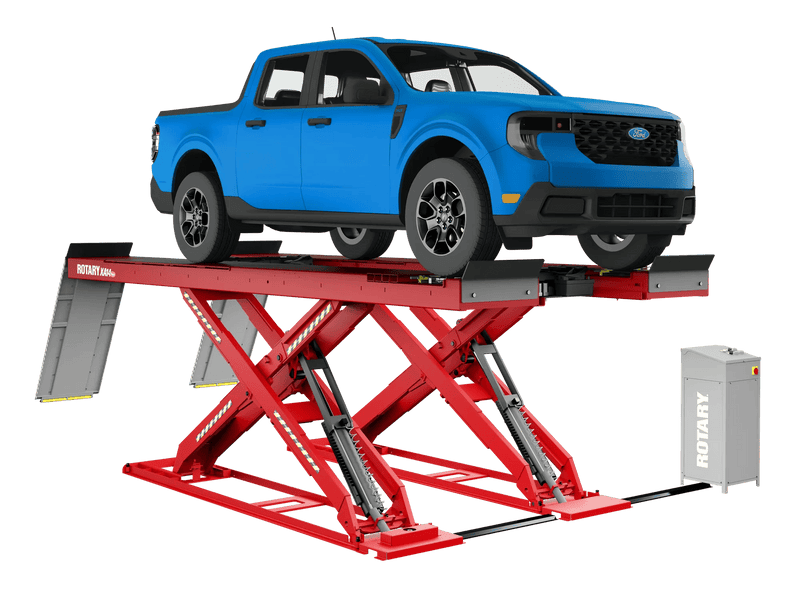

The XA14 is a 14,000 lb. alignment scissor lift with 217" runways, 72" of vertical rise, two 7,000 lb. rolling jacks and integrated runway lighting, in a footprint over 34% narrower than a four-post. It gives a shop a real alignment rack without giving up the bay. Don't wait — scroll back up and click the orange Add to Cart button to get this alignment scissor lift on its way to your shop.
