Rotary SPOA7 Movable Pad 2-Post Lift with 2 Ft. Extension 7,000 lb. Capacity

7,000 lb Rotary SPOA7 Asymmetric Quick-Service Pad Lift with 2 Ft. Column Extension

Routine service dies waiting on arm setup. On a swing-arm lift the tech spots the car, sets four arms, and checks every contact point before a single bolt turns. On an oil change, that setup is most of the job.

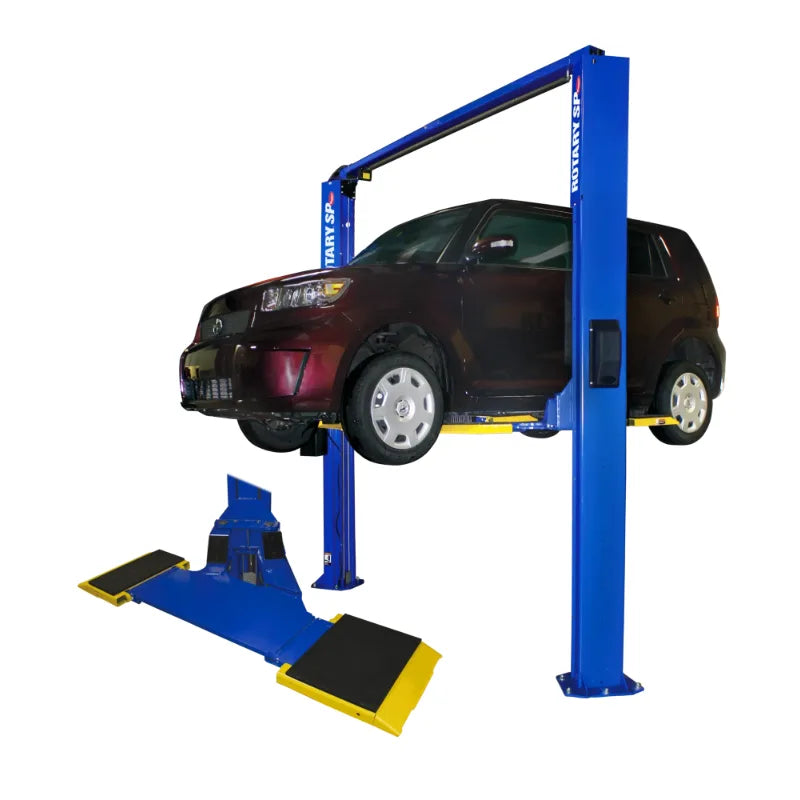

The Rotary SPOA7-MP is a quick-service pad lift rated for 7,000 lbs. The car rolls over ultra-low pads with just 2 5/8" of clearance, the tech adjusts the pads, and the vehicle goes up. No arms to swing, no appointment needed. This configuration adds a 2 ft. column extension for a 13' 8 1/2" floor-to-overhead height.

What's Included

• SPOA7-MP asymmetric two-post pad lift with original Double-S columns
• Adjustable low-profile drive-over pads (movable pad design)
• 2 ft. column extension — 13' 8 1/2" floor to top of overhead
• Four 1.5" and four 3" rubber spacer blocks for added clearance

Made For

The SPOA7-MP keeps quick services moving in any bay that lives on volume.

• Quick-lube and express service bays turning cars all day
• Auto dealerships running no-appointment maintenance lanes
• Utility fleets keeping light vehicles on schedule
• Collision repair shops that need fast spotting for estimates and teardown
• General repair shops adding a dedicated fast-service bay

Features

• 7,000 lb capacity — 3,500 lbs per platform, and the pads accommodate most unibody vehicles
• 2 5/8" drive-over clearance — ultra-low profile, so even low cars spot quickly without scraping
• Adjustable movable pads — pads set from 39 9/16" to 55 9/16" apart and extend from 70 13/16" to 86 13/16" to match the vehicle
• 2 ft. column extension — raises the floor-to-overhead height to 13' 8 1/2" for taller bays
• Original Double-S columns — the multi-bend Rotary column profile on an asymmetric layout
• 2 HP, 208–230V single-phase motor — full rise in 45 seconds, descent in 40
• Rubber spacer blocks included — four 1.5" and four 3" blocks provide extra clearance where needed
• ALI Gold Certified — independently tested and certified by the Automotive Lift Institute

Spot the Car and Go

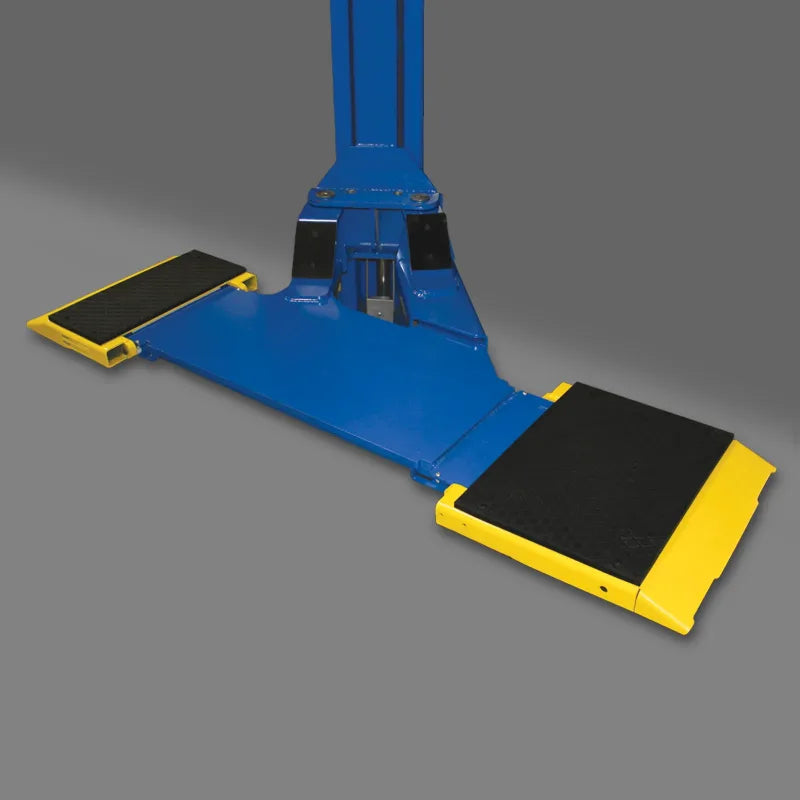

The pad lift design removes the slowest part of every quick service. With a minimal 2 5/8" drive-over height, vehicles can be spotted quickly, easily, and accurately — the car drives on, the pads adjust to the lift points, and the vehicle is in the air. Faster service means more cars through the same bay every day.

Pads That Fit the Vehicle, Not the Other Way Around

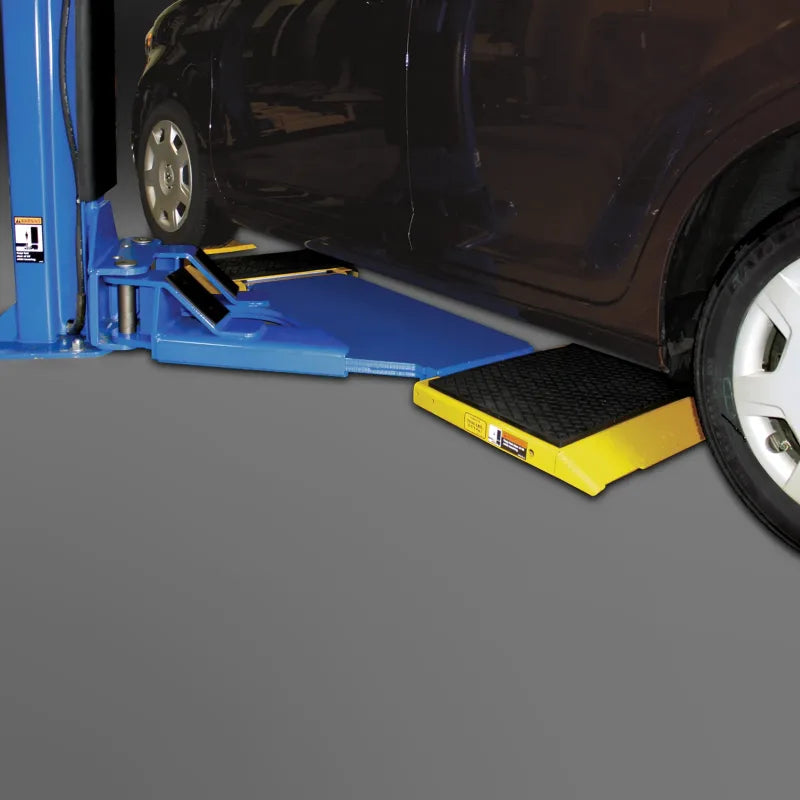

The movable pads adjust from 39 9/16" to 55 9/16" between pads and extend from 70 13/16" to 86 13/16" overall, so one bay handles most unibody cars and small SUVs. The included 1.5" and 3" rubber spacer blocks add clearance on rocker panels and pinch welds that sit higher than the lift points.

The Right Two-Post Pad Lift for Your Shop

The SPOA7-MP puts 7,000 lbs of ALI Gold Certified quick-service lifting on ultra-low adjustable pads, with a 2 ft. column extension sized for taller bays. Don't wait — scroll back up and click the orange Add to Cart button to get this two-post pad lift on its way to your shop.

Technical Specifications
