Rotary SPOA10-AV Shockwave Asymmetric 2-Post Lift 10,000 lb. Capacity

Rotary SPOA10-AV 10,000 lb Asymmetric Two-Post Car Lift with Shockwave Power and All-Vehicle Arms

A lift that takes 45 seconds to go up takes 45 seconds every single time. Add the trip back down and a tech spends a good part of the day standing next to a car, waiting.

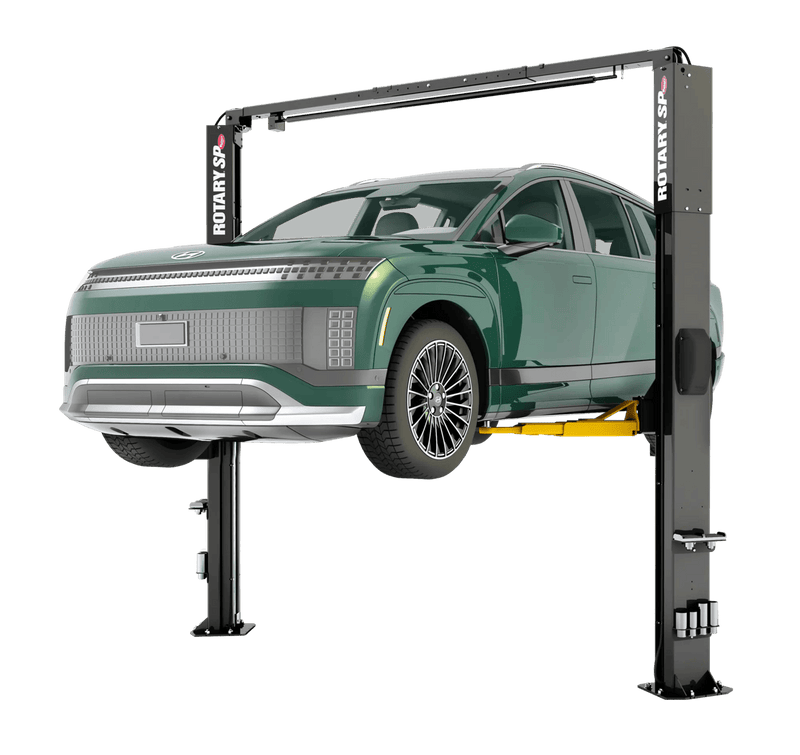

The Rotary SPOA10-AV is a 10,000 lb asymmetric two-post lift with Shockwave power and Rotary's all-vehicle arms. Full rise takes 25 seconds and the descent takes 19. It is ALI Gold Label Certified, and it comes in black, blue or red with a standard or extended column.

Why Choose the SPOA10-AV Shockwave

Shockwave power roughly halves the cycle: 25 seconds up where the standard SPOA10 takes 45.

• 25 seconds up, 19 seconds down. The standard SPOA10 we also carry runs 45 and 40 on the same job.
• Adapters drop to 3 3/8", against 4 3/4" on the standard SPOA10. Low rockers, air dams and EV battery trays come within reach.
• The rear arms retract to 28 1/2" and reach out to 58 1/4". A short unibody car and a long-frame truck both spot properly on the same arms.
• Drive-thru is set at install, anywhere from 94 7/8" to 109 1/2", so a tight bay and a wide-vehicle bay take the same lift.

What's Included

• SPOA10-AV asymmetric two-post lift, Shockwave equipped
• Four round polymer pad adapters
• Four adjustable thread-up truck adapters
• Two sets of stackable adapter extensions, 3 1/2" and 5 1/4"
• Adapter storage rack

Made For

Rotary builds the SPOA series for shops that see everything come through the door.

• Auto Dealers
• Auto Fleets
• Utility Fleets
• Auto Repair
• Collision Repair

Features

• 10,000 lb capacity — cars, light trucks, vans and full-size SUVs
• Shockwave power, 25-second rise and 19-second descent — roughly half the cycle of a standard-power lift
• All-vehicle arms — front 18 1/2" to 41", rear 28 1/2" to 58 1/4", so short and long wheelbases both spot cleanly
• 3 3/8" minimum adapter height — gets under low-clearance rockers and EV battery trays
• Asymmetric configuration — the vehicle sits back in the bay so the doors open wide
• Drive-thru 94 7/8" to 109 1/2" — three width settings chosen at install
• ALI Gold Label Certified — third-party validated on the assembled lift, which most commercial insurers and fleet contracts ask for
• Black, blue or red — factory finish, standard or extended column height

What Shockwave Changes

Shockwave is Rotary's high-speed power option, and the cutsheet is specific about what it moves. Full rise goes from 45 seconds to 25. Descent goes from 40 seconds to 19. Rise height goes from 81 1/2" to 84 1/2".

It also makes the lift taller. Overall height on the standard-height Shockwave build is 12' 5 1/2" against 11' 11 1/2" on standard power, and the minimum clear ceiling goes to 12' 6" from 12'. Measure before you order, because that six inches is real.

Everything else on the spec sheet stays put. Same arms, same adapters, same width settings, same 12' x 24' minimum bay.

All-Vehicle Arms

The AV arms are what the model name is about. Front arms cover 18 1/2" to 41" and rear arms cover 28 1/2" to 58 1/4", which is a wide enough spread that a compact car and a long-frame truck both find their lift points without the arms working against each other.

The adapter set does the rest. Four round polymer pads sit flat against a unibody pinch weld, four thread-up truck adapters climb to meet a frame rail, and two sets of stackable extensions at 3 1/2" and 5 1/4" cover the gap. All of it is included, along with a rack to keep it off the floor.

At 3 3/8", the minimum adapter height is low enough to slide under vehicles a taller adapter cannot reach. On EV work, where the lift points sit inboard alongside a battery tray, that clearance decides whether the job stays in the bay.

Configuration Note

This page carries six factory builds: three colours in two column heights.

Every spec row below is the standard-height build. If you are choosing the extended column, measure your ceiling at its lowest point with lights and door tracks included, and talk to us before you order so we can confirm the finished height against your bay.

The Right Two-Post Lift for Your Shop

The SPOA10-AV Shockwave puts 10,000 lbs in the air in 25 seconds, on ALI Gold Label Certified columns, with arms and adapters that reach everything from a low unibody to a framed truck.

Pick the colour and the column height that match your bay. Arms, adapters, extensions and rack all arrive with the lift.

Don't wait — scroll back up and click the orange Add to Cart button to get this two-post lift on its way to your shop.
