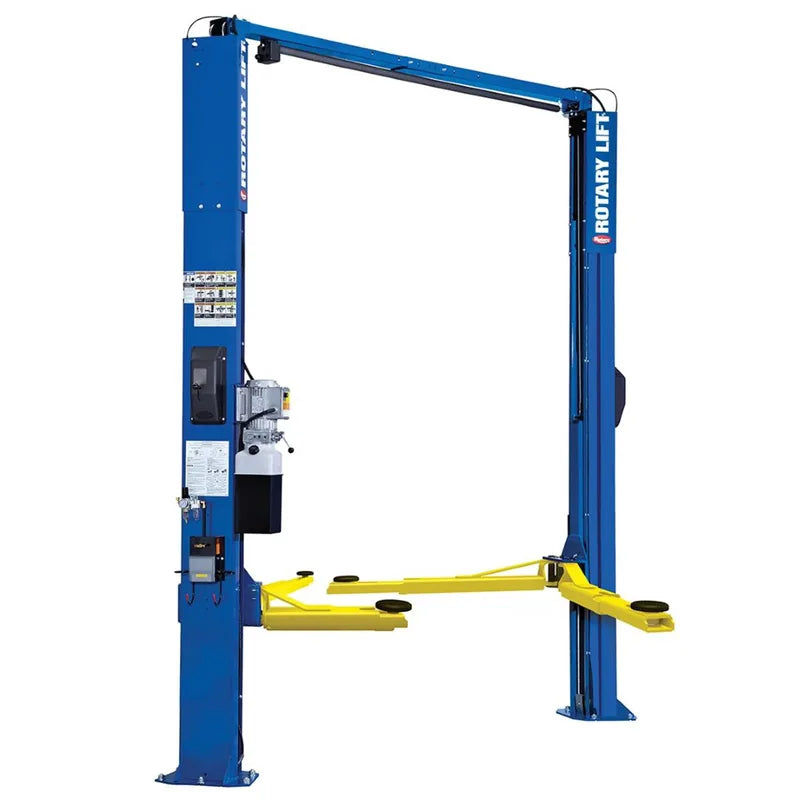

Rotary SPOA10 Asymmetric 2-Post Lift 10,000 lb. Capacity

10,000 lb Asymmetric Two-Post Car Lift — 2-Stage Arms, ALI Gold Certified

Most shops buy their two-post lift twice: once cheap, then again properly after the first one shows its seams. Doors that won't open at the columns, arms that miss lift points, and a frame that wasn't tested past its brochure.

The Rotary SPOA10 is the tried-and-true asymmetric answer — a 10,000 lb two-stage lift on Rotary's original Double-S columns, performance tested to 20,000 cycles and ALI Gold Certified. The columns are rotated so the doors clear the structure, and the vehicle loads and unloads without a fight.

What's Included

• SPOA10 asymmetric two-post lift with original Double-S columns
• Standard 2-stage FA arms with flip-up adapters
• Overhead assembly in the ordered configuration (Standard or 2 Ft. Extension)

Made For

Rotary builds the SPOA series for passenger cars and lighter vehicles, and names five industries for it.

• Auto dealer service departments
• Auto fleet shops
• Utility fleet shops
• Independent auto repair shops
• Collision repair shops

Features

• 10,000 lb capacity — covers cars, SUVs, vans and light trucks in one bay
• Asymmetric column layout — the driver's door opens clear of the column, so nobody squeezes out sideways
• Columns rotated 30 degrees — shifts the vehicle's center of gravity behind the structure
• Conventional 2-stage arms — shorter front arms and longer rear arms, matched to the asymmetric layout
• Flip-up FA adapters — set from the arm, so there's nothing loose to chase around the bay

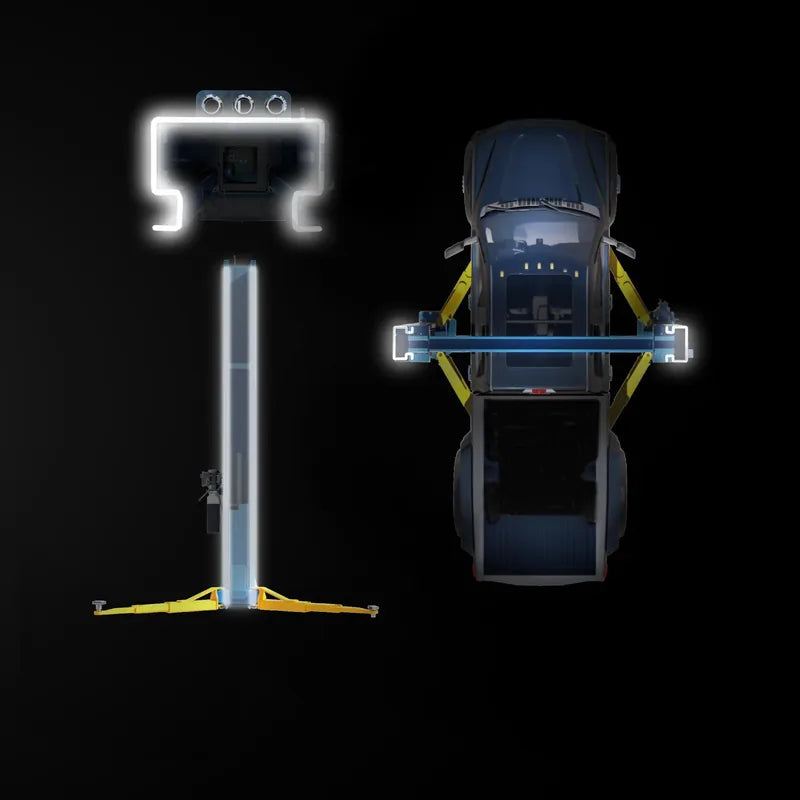

• Original Double-S columns — the shape gives the carriage a secure channel to run in, up and down
• Performance tested to 20,000 cycles — validated far beyond a typical shop's yearly duty
• ALI Gold Certified — independently tested and certified by the Automotive Lift Institute

True Asymmetric Lifting

Rotary rotates the columns 30 degrees and pairs shorter front arms with longer rear arms. That shifts the vehicle's center of gravity behind the columns.

The tech feels it every day. Doors open all the way. No column in the swing, no climbing out through a six-inch gap.

Choose Your Overhead Height

The Standard configuration rises 72 5/8" and needs a 12' minimum ceiling. The 2 Ft. Extension adds two feet of column above that build and rises 75 5/8".

Both run the same 10,000 lb platform, the same arms and the same Double-S columns. Measure the height above your bay before you order the extension.

The Right Two-Post Lift for Your Shop

The SPOA10 pairs 10,000 lbs of ALI Gold Certified capacity with the rotated-column geometry that keeps doors clear of the structure, and Rotary performance tests it to 20,000 cycles.

Arms and flip-up adapters come with the lift, so it's ready for its first vehicle as soon as it's installed.

Don't wait — scroll back up and click the orange Add to Cart button to get this two-post lift on its way to your shop.

Technical Specifications
