Rotary SPO20 Heavy-Duty Symmetric 2-Post Lift 20,000 lb. Capacity

20,000 lb Rotary SPO20 Symmetric Two-Post Truck Lift with Trio Arms

A work truck that fits the bay fine can still max out a standard two-post lift. Class 4 and 5 trucks end up waiting on the one heavy rack in the shop. That queue costs jobs every week.

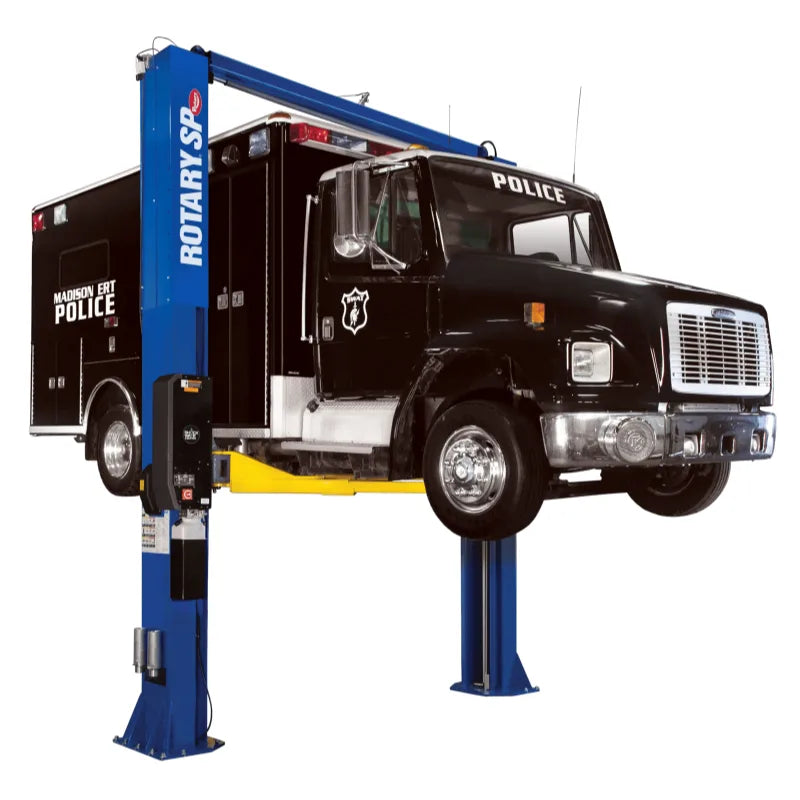

The Rotary SPO20 is a heavy-duty symmetric 2-post lift rated for 20,000 lbs — Class 1 cars through Class 5 trucks on one lift. Its patented three-stage Trio arms reach from 34 11/16" to 64", and the true-symmetric design leaves room to open the doors on big trucks and vans.

What's Included

• SPO20 symmetric two-post lift with Double-S columns and single-piece overhead
• Patented three-stage Trio arms with thread-up truck adapters
• Stackable adapter extensions — two 10" and four 5"
• Clip-on rubber adapter pads for unibody cars (set of four)
• Two three-position wheel spotting dishes
• Single-point air-operated lock release

Made For

The SPO20 fits operations that lift everything from sedans to Class 5 trucks in the same bay.

• Truck dealerships servicing mixed light and medium-duty inventory
• Commercial and utility fleets keeping work trucks on the road
• Government and municipal fleet garages
• General repair shops taking on heavier truck work
• Shops with tall bays that want one lift for the whole fleet

Features

• 20,000 lb capacity — Class 1 through Class 5 vehicles on a single lift, up to 5,000 lbs per arm
• Patented Trio three-stage arms — 22% greater reach than conventional two-stage arms, 34 11/16" to 64"
• Sliding third-stage adapter — pinpoint the vehicle contact point without moving the heavy inner arms
• True symmetric lifting — center of gravity sits between the columns, so truck and van doors open clear

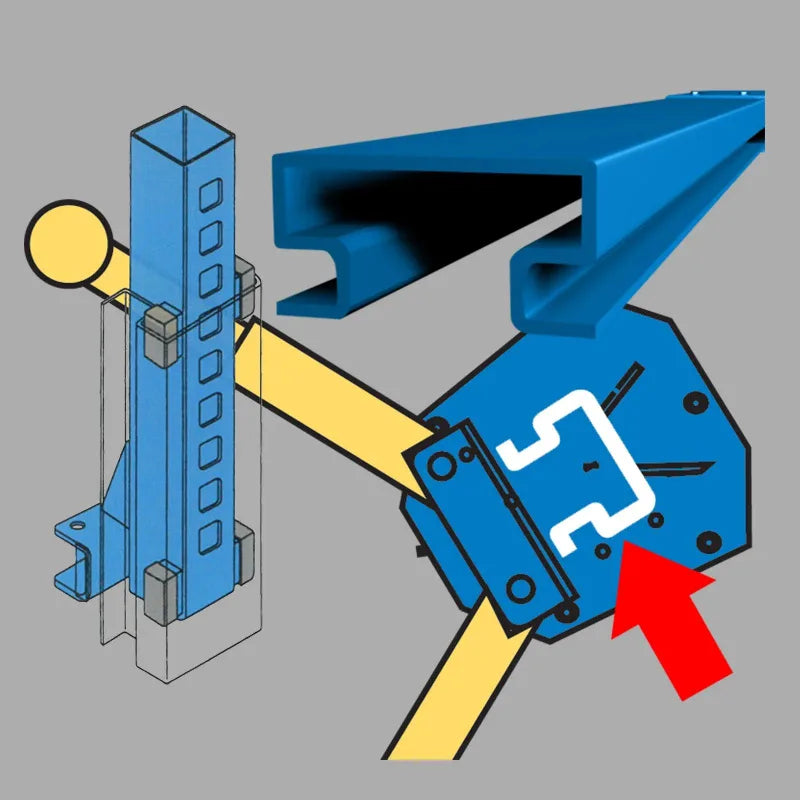

• Double-S columns — multi-bend profile for strength, with maintenance-free UHMW slider blocks
• Three install widths and heights from 15' to 16'6" — fit the lift to your bay in 6" increments
• 77"–80" rise in 81 seconds — 4 HP, 208–230V power unit, 20-second lowering
• ALI Gold Certified — performance tested to 20,000 lift cycles

Trio Arms Reach More and Move Less

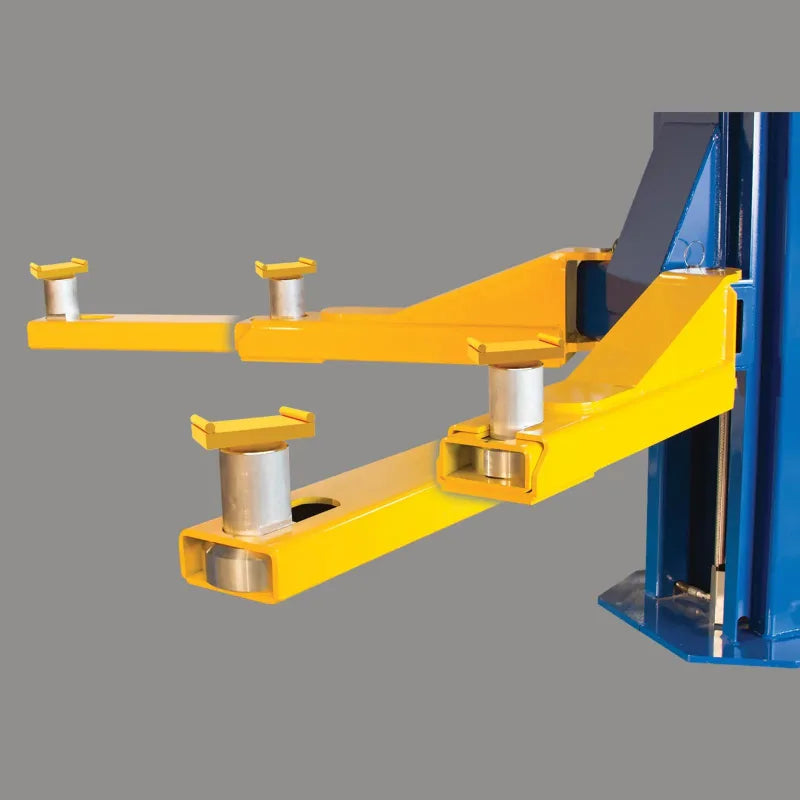

Each Trio arm is a two-piece arm with a patented sliding adapter as the third stage. The tech slides the adapter straight to the vehicle contact point instead of dragging the whole arm, covering 9,088 square inches of adapter area — 22% more reach and retraction than conventional two-stage arms. Small low-profile cars and long-frame trucks spot on the same lift.

Fit the Lift to Your Bay

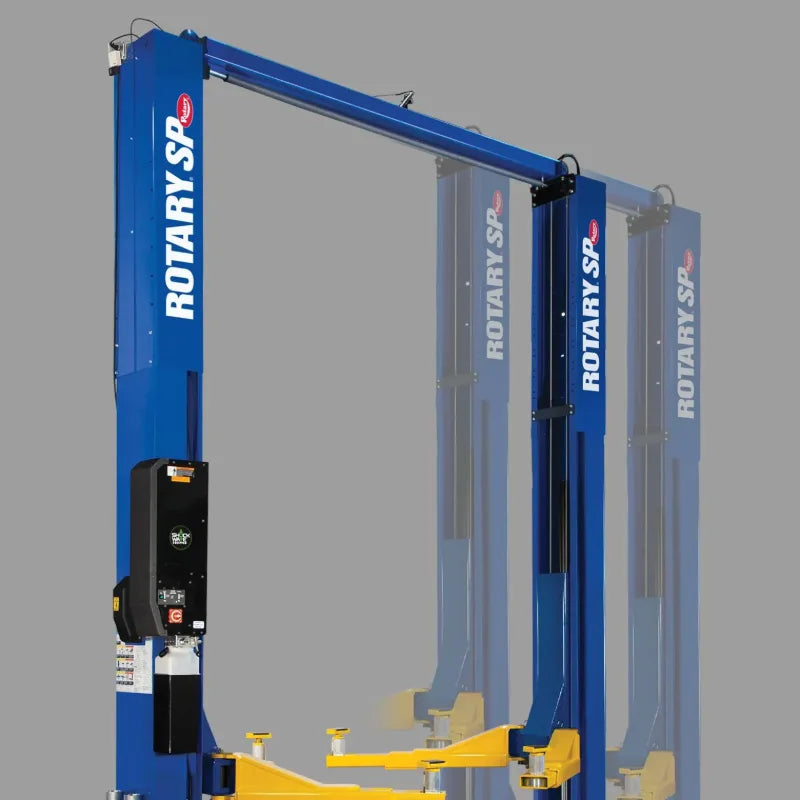

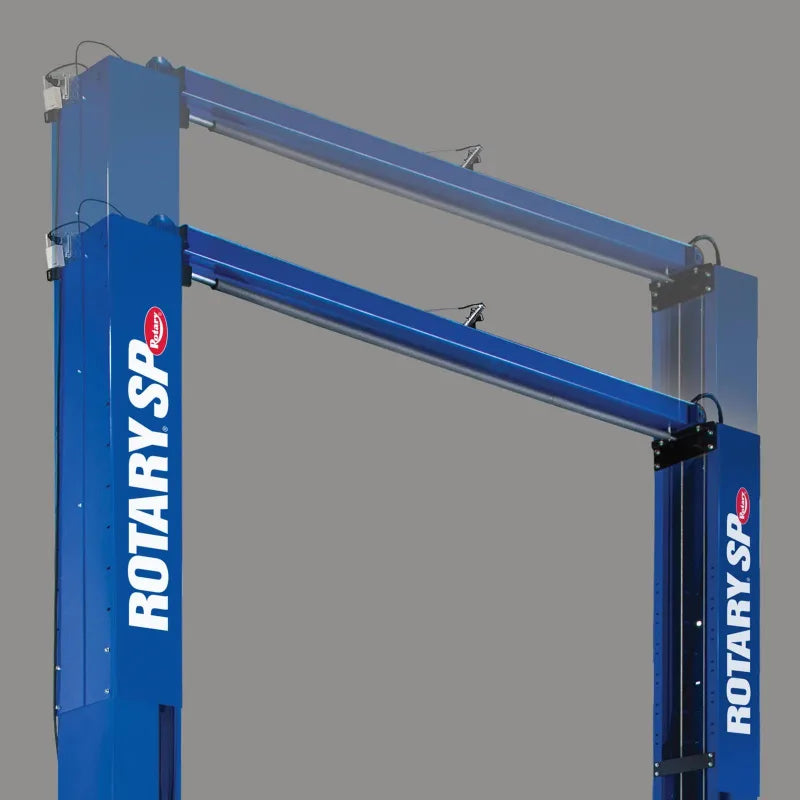

The SPO20 installs at three column widths from 12'11" to 13'11" and heights from 15' to 16'6" in 6-inch increments, so the lift matches your ceiling and your traffic instead of the other way around. The widest setting gives the best tire clearance on shorter wheelbases, and a single-point air-operated lock release drops all locks at once.

Watch the SPO20 in Action

See the Trio arms, Double-S columns, and symmetric lifting design at work before this lift lands in your shop.

The Right Heavy-Duty Two-Post Lift for Your Shop

The SPO20 puts 20,000 lbs of ALI Gold Certified symmetric lifting on patented Trio arms, sized to your bay with three widths and multiple heights. Don't wait — scroll back up and click the orange Add to Cart button to get this two-post lift on its way to your shop.

Technical Specifications
