10,000 lb Rotary SPO10 Symmetric Two-Post Lift, Shockwave Equipped
A busy bay loses time twice on every job. Once waiting for the lift to crawl up, and again waiting for it to come back down. On a standard-powered lift, that is minutes lost on every car, all day long.

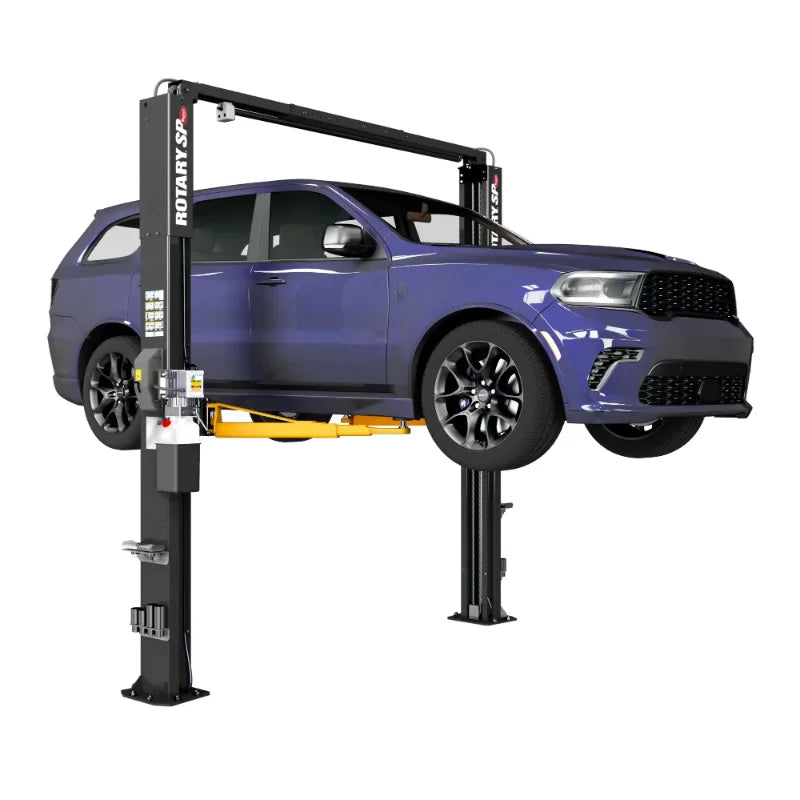

The Rotary SPO10 is a symmetric two-post lift rated for 10,000 lbs, engineered for cars and light trucks and built on Rotary's original Double-S columns. This configuration comes Shockwave equipped: DC battery power with an onboard 110V charger that raises and lowers the vehicle at twice the speed of a standard-powered lift.
What's Included
- SPO10 symmetric two-post lift with original Double-S columns
- DC Shockwave power unit with onboard 110V charger
- Standard 2-stage arms with exclusive three-position flip-up FA adapters
Made For
Rotary builds the SPO10 for four kinds of shop.
- Auto fleets servicing their own vehicles in-house
- Auto repair shops working cars and light trucks through the same bay
- Collision repair shops that need full door clearance at the columns
- Utility fleets keeping work trucks in service
Features
-
10,000 lb capacity — engineered for cars and light trucks
-
True symmetric lifting — the vehicle's center of gravity is spotted directly between the columns, leaving room in front of the columns to open truck and van doors
-
5 HP DC Shockwave power, 110V — battery-driven lifting with an onboard 110V charger, full rise in 25 seconds and descent in 19
-
75 3/4" – 81 1/4" rise — measured at the lowest and highest position of the supplied adapters
-
Standard 2-stage arms — with exclusive three-position flip-up FA adapters, 31" to 54" of reach
-
Three width installation options — up to 12" of extra drive-thru clearance for wide vehicles
-

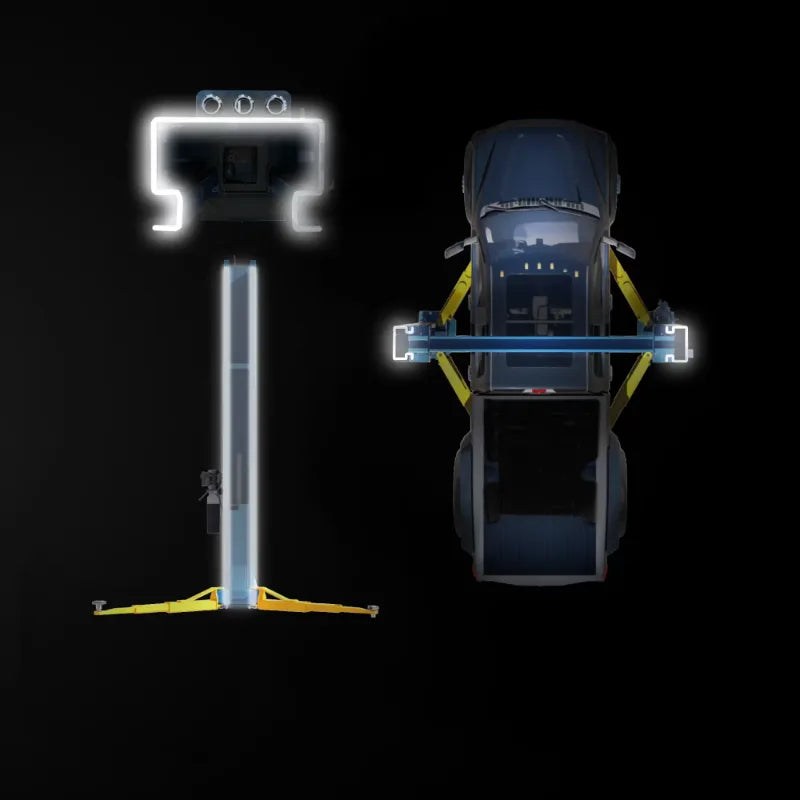

Original Double-S columns — Rotary's single-piece column shape gives the carriage a secure channel for smooth travel up and down
-
ALI Gold Certified — independently certified, with performance testing to 20,000 cycles
Shockwave Power Cuts the Wait
Shockwave is Rotary's DC battery power system. A 5 HP unit runs off the lift's own batteries, recharged by an onboard 110V charger, giving twice the lifting speed of a standard-powered lift.
In practice that is a full rise in 25 seconds and a descent in 19, against 45 and 40 on the standard-power SPO10. Across a full day of jobs through one bay, the saved cycles add up.
Symmetric Lifting and Door Clearance
Rotary's SPO series uses true-symmetric lifting. The vehicle's center of gravity sits directly between the structure for a smooth, balanced lift, and the door line clears the columns so techs get in and out without dings.
The standard 2-stage arms swing under low vehicles and reach the lift points with three-position flip-up FA adapters, covering 31" to 54" of reach front and rear at a minimum adapter height of 5".
Sized to Your Bay
The SPO10 fits a standard 12' x 24' bay and installs at one of three width settings. The base setting gives 11' 5 5/8" overall width and 102 1/2" of drive-thru clearance; the widest setting adds a foot, taking overall width to 12' 5 5/8" and drive-thru to 114 1/2" for wide vehicles.
The Shockwave build stands taller than the standard-power SPO10, so check your ceiling before ordering. Rotary publishes 12' 4 1/2" overall height and a 12' 6" minimum ceiling height for Shockwave, against 11' 10 1/2" and 12' for standard power.
The Right Two-Post Lift for Your Shop
The SPO10 puts 10,000 lbs of ALI Gold Certified symmetric lifting on proven Double-S columns, with 5 HP Shockwave DC power to halve every cycle. Don't wait — scroll back up and click the orange Add to Cart button to get this two-post lift on its way to your shop.
