Rotary S100077KIT Rolling Jack Pair with Airline Kit 7,000 lb. Each

Rotary Rolling Jack and Airline Kit for SM14 / SMO14 4-Post Lifts — Two 7,000 lb Jacks

One rolling jack means working one end of the car at a time. Jobs that need all four wheels off turn into two setups on the same lift.

The Rotary S100077KIT puts two 7,000 lb RJ7100Y rolling jacks on an SM14 / SMO14 4-post lift, together with an internal airline kit that feeds air to the jacks. Each jack telescopes to fit runways from 36 3/4" to 46 1/16" apart and locks at full rise.

Why Choose the S100077KIT

It gives an SM14 / SMO14 lift a rolling jack at each end, plus the airline to run them.

• Two 7,000 lb jacks — lift the front and rear of the vehicle off the runways
• Internal airline kit (FC5760 airline assembly) for the jack air supply
• Locking latch at full rise on each jack

What's Included

• Two RJ7100Y 7,000 lb rolling jacks
• FC5760 internal airline assembly
• Per jack: rubber pads in 1 1/2" and 3" sizes, two truck adapters, two 3" and two 5" adapter extensions

Made For

The S100077KIT is for shops running an SM14 or SMO14 4-post lift that want wheels-free work at both ends.

• General repair shops doing brake and suspension work on a 4-post lift
• Tire shops that need the wheels hanging free for rotations and tire service
• Fleet garages servicing vans and pickups on drive-on lifts
• Dealership service departments running 4-post bays
• Home-garage enthusiasts with a 4-post lift who want to pull wheels without a floor jack

Features

• 2 x 7,000 lbs (3,175 kg) capacity — one RJ7100Y jack for each end of the vehicle
• Internal airline kit — an FC5760 airline assembly supplies air to the jacks
• Made for SM14 / SMO14 lifts — the kit is matched to Rotary's 14,000 lb 4-post lifts

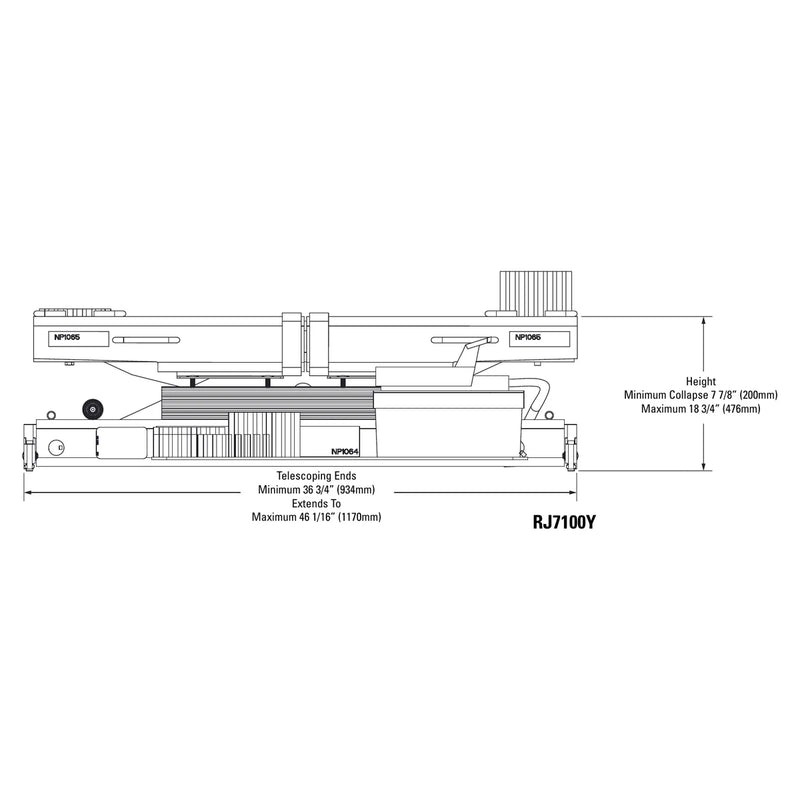

• Telescoping ends, 36 3/4"–46 1/16" — each jack adjusts to the inside width of the runways
• 18 3/4" maximum height — lifts the tires clear of the runways for wheel removal
• Air-over-hydraulic pump — each jack raises on 100–120 psi regulated shop air
• Locking latch at full rise — each jack sits on a mechanical latch, not just hydraulic pressure
• Four urethane wheels per jack — each jack rolls along the runways to the lift points

Two Jacks, Both Ends of the Car

With one jack under the front lift points and one under the rear, all four wheels can hang free for brake, suspension and tire service.

Each jack raises and locks on its own, so you lift only the end the job needs.

Air Where the Jacks Need It

The FC5760 airline assembly is the internal airline kit that supplies air to the rolling jacks on the lift.

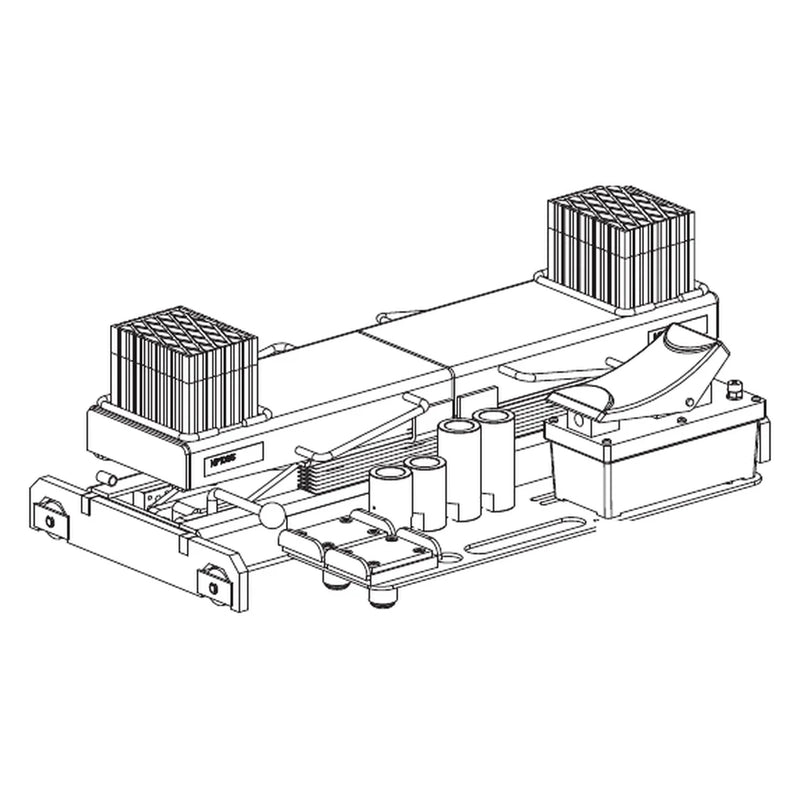

Each RJ7100Y comes with rubber pads in 1 1/2" and 3" sizes, two truck adapters and 3" and 5" adapter extensions for car and truck lift points.

The Right Rolling Jack for Your Shop

The S100077KIT adds two 7,000 lb rolling jacks and an internal airline kit to an SM14 / SMO14 4-post lift. Don't wait — scroll back up and click the orange Add to Cart button to get this rolling jack kit on its way to your shop.

Technical Specifications
