Heavy-Duty Mobile Tire Changer for Truck, Commercial and Agricultural Wheels
Commercial and agricultural tire work doesn't happen in a comfortable bay. Roadside service calls and cramped mobile workshops demand a changer that handles wheel assemblies weighing over a ton — in the back of a closed van, with controls that survive the environment.
The Rotary R560 is built for exactly that job. Its hydraulic clamping and chucking table handles steel and alloy rims from 11" to 27" — including agricultural tires up to 51" in diameter — while center-locking and console-protected controls keep it fast and dependable in the field or the workshop.
What's Included

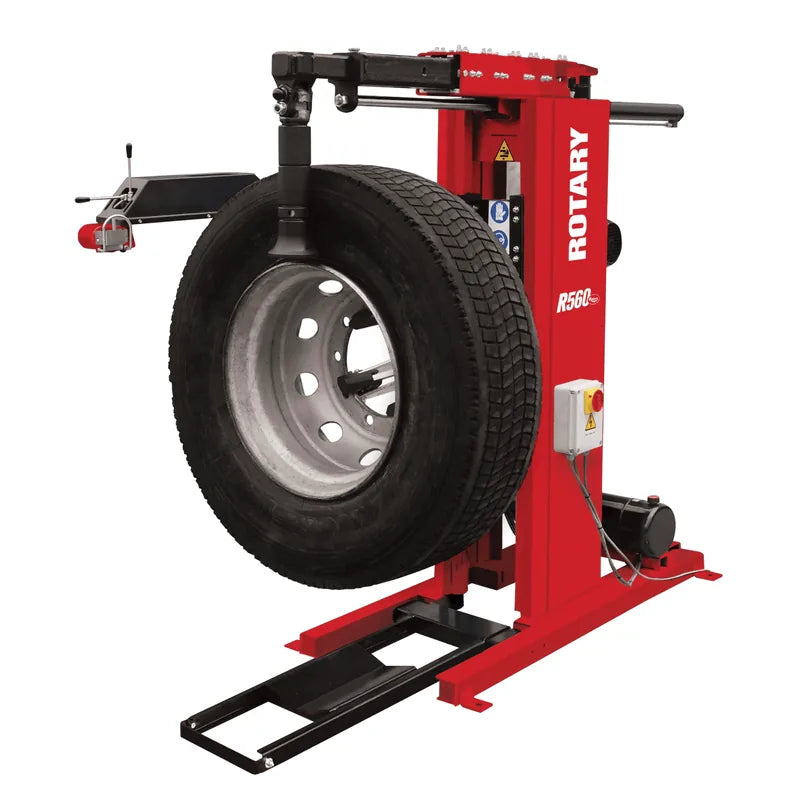

Rotary R560 heavy-duty mobile tire changer with hydraulic clamping and chucking table
Standard clamp protections for alloy rims (4-piece kit)
Tire paste lubricant and application brush
NEMA L6-20P power plug
Made For
The R560 earns its keep wherever big wheels meet limited space and hard use.
Mobile tire service and roadside assistance operators
Commercial truck and trailer fleets
Agricultural equipment and farm service operations
Small workshops servicing commercial wheels
Features
Hydraulic clamping and chucking table — powered clamping handles heavy commercial assemblies that manual changers can't touch
2,645 lb maximum wheel weight — services complete truck and agricultural wheel assemblies up to 1,200 kg
11"-27" rim capacity with 51" max wheel diameter — covers light truck through agricultural sizes on one machine
16,000 N bead breaker — breaks stubborn commercial beads without hammering or hand tools
1,253 ft/lbs maximum chuck torque — turns the largest assemblies at a controlled 6.5 RPM
Console-protected controls — switchgear is mounted on a protected changer console, built for van and field duty
Center-locking design — secure chucking that reduces the risk of rim damage on expensive commercial wheels
Compact closed-van footprint — designed to work inside service vans and small workshops
A Full Commercial Tire Bay That Fits in a Van

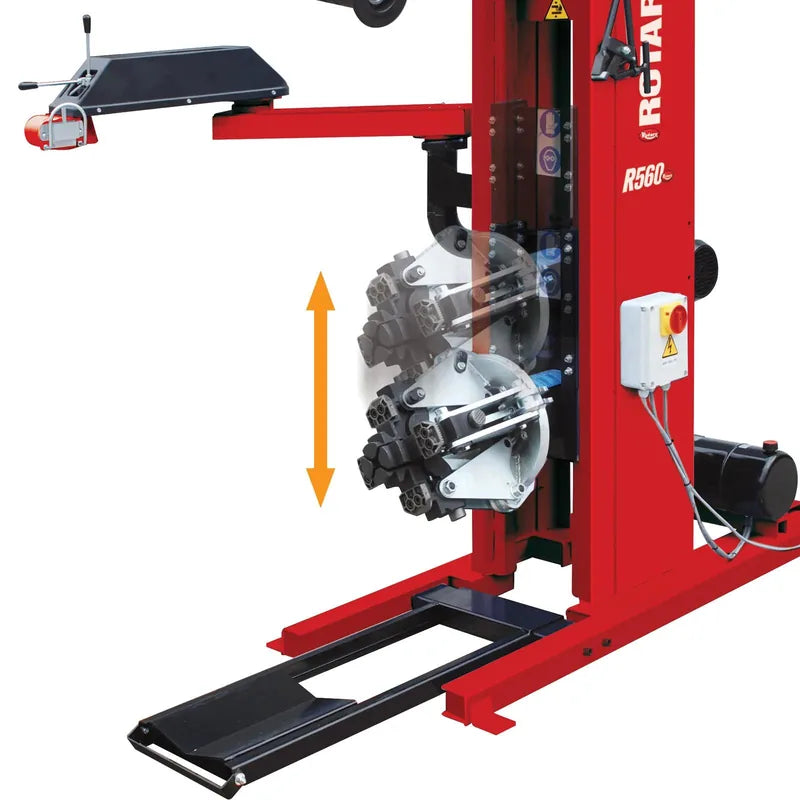

The R560's hydraulic clamping and chucking table is the heart of the machine: a 2 kW hydraulic drive unit does the gripping and positioning work that would otherwise take two techs and a lot of risk. Wheels up to 37.4" wide and 2,645 lbs are clamped, chucked, and rotated under power.
Because the controls sit on a protected console, the R560 keeps working through the knocks of mobile service life. For operators running closed service vans, it turns a roadside call into a controlled, repeatable job instead of an improvisation.
From Light Truck to Agricultural Rubber
With an 11"-27" rim range and 51" maximum wheel diameter, the R560 covers the spread most commercial operations actually see — box truck wheels one call, tractor tires the next. The 16,000 N bead breaker and 1,253 ft/lbs of chuck torque mean aged, rusted-on commercial beads come off under hydraulic power.
The included 4-piece alloy rim protection kit extends that same capability to polished and aluminum wheels, so one machine services the whole mixed fleet.
Watch the R560 in Action
Rotary's own demonstration shows the hydraulic chucking table clamping and turning a full commercial assembly, and how the machine works inside the tight footprint of a service van.
The Right Tire Changer for Your Shop
The Rotary R560 packs hydraulic clamping, a 2,645 lb wheel capacity, and 51" maximum wheel diameter into a changer that works out of a closed van — commercial tire capability wherever the job is.
It comes ready for the road with alloy rim protections, tire paste and brush included, backed by Rotary's dealer and service network that has been serving shops since 1925.
Don't wait — scroll back up and click the orange Add to Cart button to get this tire changer on its way to your shop.
Specs
Technical Specifications
Chucking Unit Rotation Motor
1.5 HP / 1.1 kW
Hydraulic Drive Unit Motor
2.7 HP / 2 kW
Rim Diameter
11" - 27"
Maximum Wheel Diameter
51" (1300 mm)
Maximum Wheel Width
37.4" (950 mm)
Maximum Wheel Weight
2,645 lbs (1,200 kg)
Bead Breaker Power
3,597 ft/lbs / 16,000 N
Maximum Torque to Chuck
1,253 ft/lbs (1,700 Nm)
Chuck Rotation Speed
6.5 rev/min
Machine Weight
833 lb (378 kg)
Power Supply
220V / 1 Ph / 60 Hz (ships with NEMA L6-20P plug)
