Automatic Tiltback Tire Machine with Variable Speed Inverter and Fast Inflation
Alloy wheels and stiff low-profile sidewalls have turned routine tire swaps into careful work. A conventional single-speed changer gives the tech no margin: too much rotation force at the wrong moment and a bead tears or a rim gets scarred.

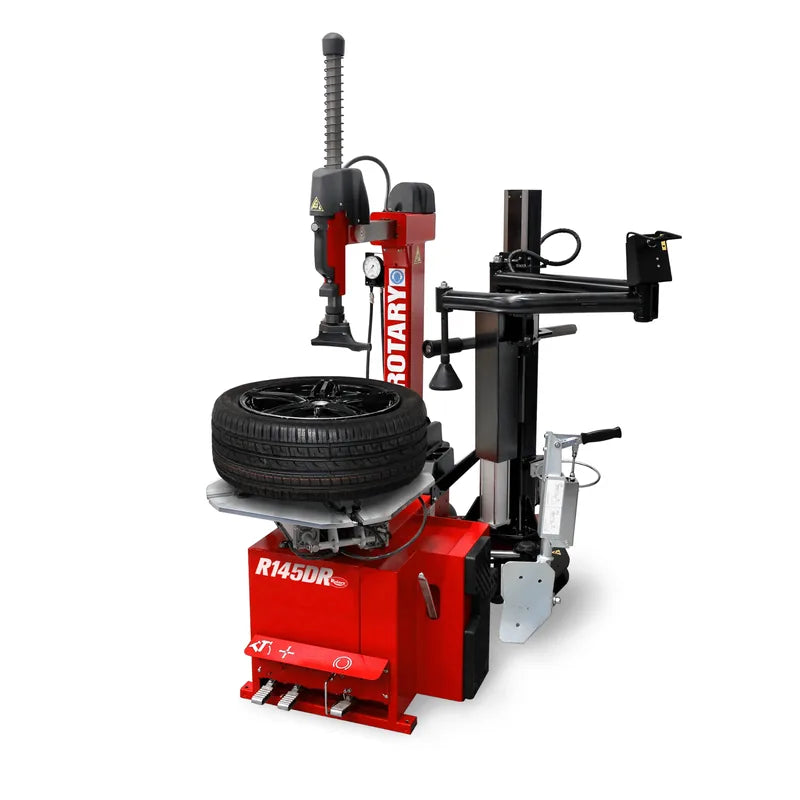

The Rotary R145DR is an automatic tiltback tire changer built around an innovative electric motor inverter that regulates chucking table rotation speed, reducing stress on the bead and avoiding damage to the tire. Its Fast Inflation configuration with included inflater valve seats and airs up tires in the same cycle.
What's Included
- Rotary R145DR tiltback tire changer with variable speed control inverter
- Plastic tool head kit (2 pieces) for the metal mount/demount head
- Integrated helper arm
- Lower bead lifting roller and pneumatic top bead pressing tool
- Inflater valve for the Fast Inflation configuration
- Filter, tire paste lubricant, and application brush
Made For
The R145DR fits shops that want automatic-changer productivity with alloy-safe control.
- Independent auto repair shops
- Tire shops and tire retailers
- Dealership service departments
- Fleet maintenance facilities
Features
-
Variable speed control inverter — regulates chucking table rotation to reduce stress on the bead and avoid tire damage
-

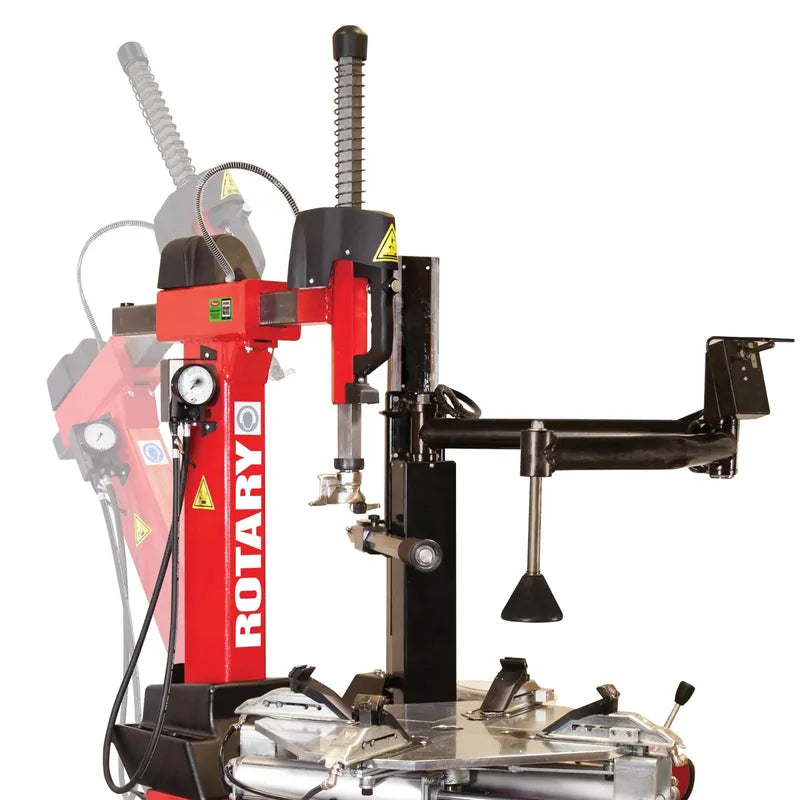

Tiltback column design — the tool column tilts back for wheel loading, then returns to the identical working position for repeatable accuracy
-

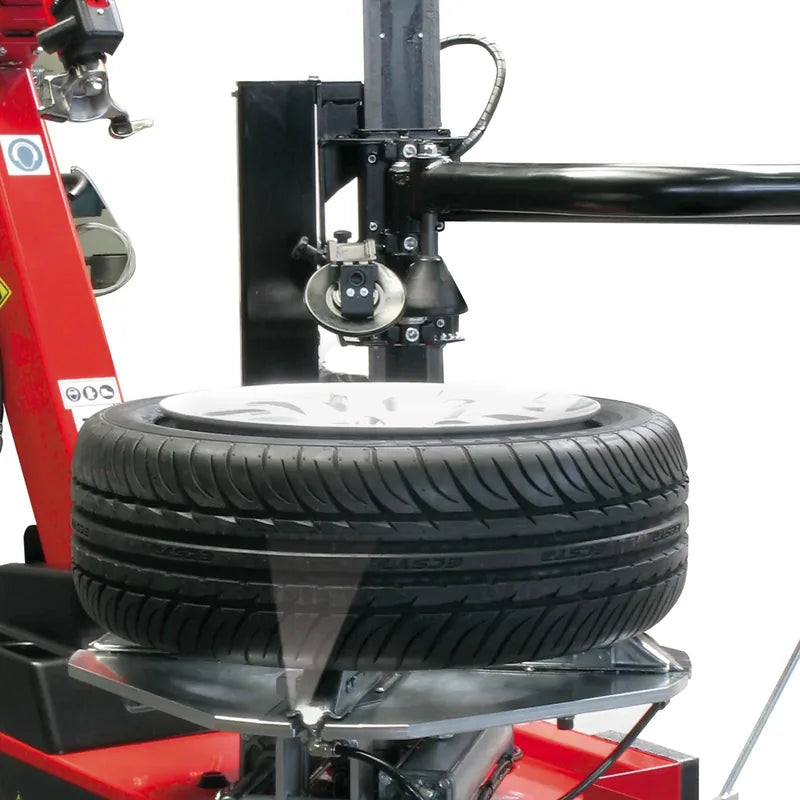

Fast Inflation configuration — included inflater valve airs the tire straight from the machine, cutting a separate inflation step
-
Integrated helper arm — presses stiff sidewalls during mount and demount, standard rather than an add-on
-

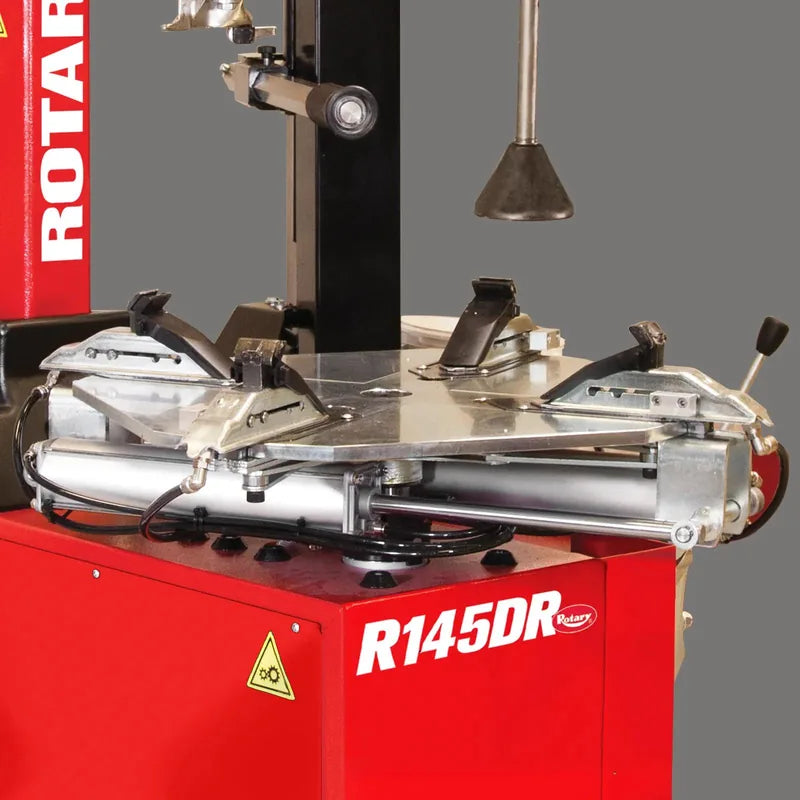

Double synchronization — distributes load evenly across the mechanism for consistent performance on heavy assemblies
-
Adjustable tool guide — sets tool clearance for alloy rim protection on every wheel
-
Hand-controlled bead breaker — 6,745 lbs of cylinder force at 145 PSI with an adjustable-inclination blade to break beads at the correct angle
-
Bolt caps on controls — prevent air hoses from hooking during operation
An Inverter Motor That Feels the Bead
The R145DR's electric motor inverter is the feature that separates it from single-speed machines in its class. Rotation speed is continuously regulated, and as stress on the bead increases the table slows — automatically, without the tech lifting off the pedal.
With the adjustable tool guide dialed in for alloy protection and the plastic tool head kit fitted, the machine handles painted and polished rims with the same pace as steel wheels.
Load, Mount, Inflate — One Station
The tiltback column swings clear for loading, then returns to its exact working position, so tool setup survives from wheel to wheel. The integrated helper arm and pneumatic top bead pressing tool manage stiff sidewalls that would otherwise need a second pair of hands.
The Fast Inflation configuration finishes the job in place: the included inflater valve seats and inflates the tire on the table, keeping the whole cycle at one station with self-centring locks spanning external 10"-26" and internal 12"-28.5".
The Right Tire Changer for Your Shop
The Rotary R145DR delivers a variable speed inverter motor, 45" maximum tire diameter, and an 8"-32" tool working span with helper arm and Fast Inflation as standard equipment — an automatic changer specced for daily professional use.
It arrives ready for the bay with the plastic tool head kit, bead lifting roller, top bead tool, inflater valve, and tire paste included, backed by Rotary's dealer and service network that has been serving shops since 1925.
Don't wait — scroll back up and click the orange Add to Cart button to get this tire changer on its way to your shop.
