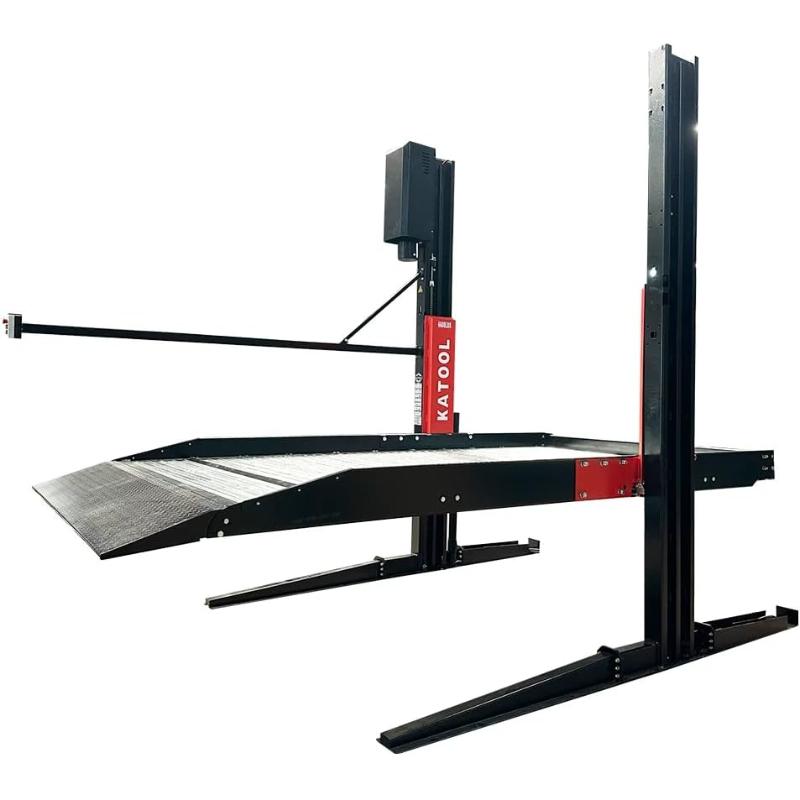

Katool KT‑P2700 Double Deck 2 Post Car Lift – 6,600 lb Capacity
The Katool KT‑P2700 Double Deck 2 Post Car Lift is a smart vertical parking and auto hoist system designed to maximize available space by converting a single parking area into a double‑deck configuration. With a 6,600 lb load capacity and fully automatic operation, it delivers reliable lifting performance for both vehicle storage and service applications.
Built with a galvanized steel platform, dual hydraulic cylinders, and an electromagnetic locking system, the KT‑P2700 is engineered for long‑term durability and consistent daily use in residential garages, dealerships, and commercial parking facilities.
Made for:
Residential garages, commercial parking facilities, dealerships, and service centers looking to increase vehicle capacity without expanding floor space.
- Residential garage vehicle storage
- Commercial and multi‑vehicle parking facilities
- Dealership vehicle storage and display
- Service centers needing additional parking capacity

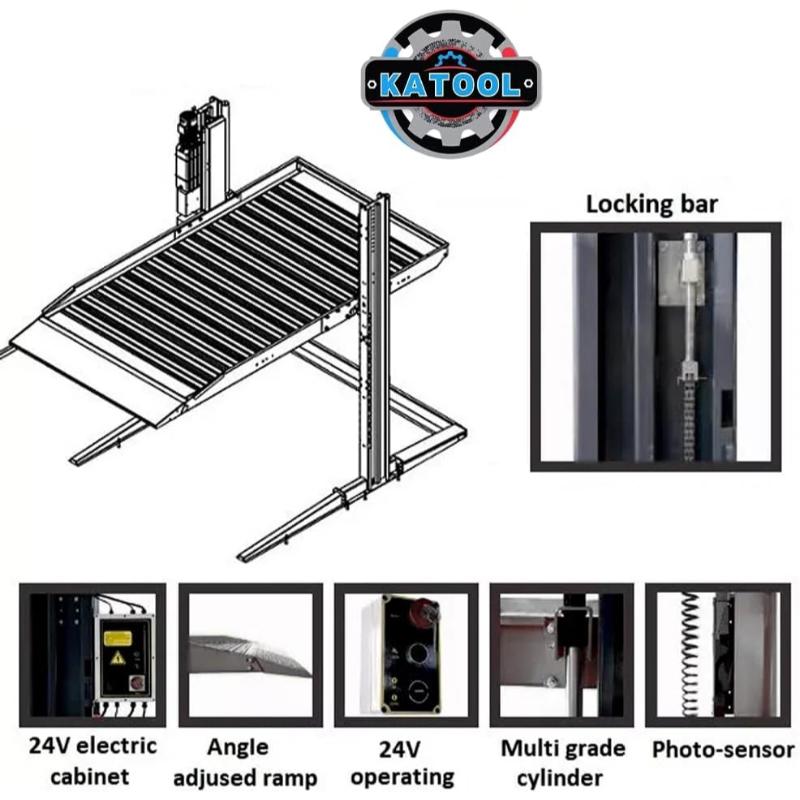

Key Features
-
6,600 lb Capacity — Suitable for most passenger vehicles, SUVs, and light trucks.
-
Double Deck Design — Converts one parking space into two stacked positions.
-
Dual Hydraulic Cylinders — Smooth and balanced lifting performance.
-
Electromagnetic Locking System — Automatic platform security without air pressure.
-
Infrared Sensors and Roll‑Off Protection — Enhanced operational safety during use.
-
Galvanized Steel Platform — Durable and corrosion‑resistant construction.
-
Expandable System — Multiple units can be connected side by side for larger facilities.

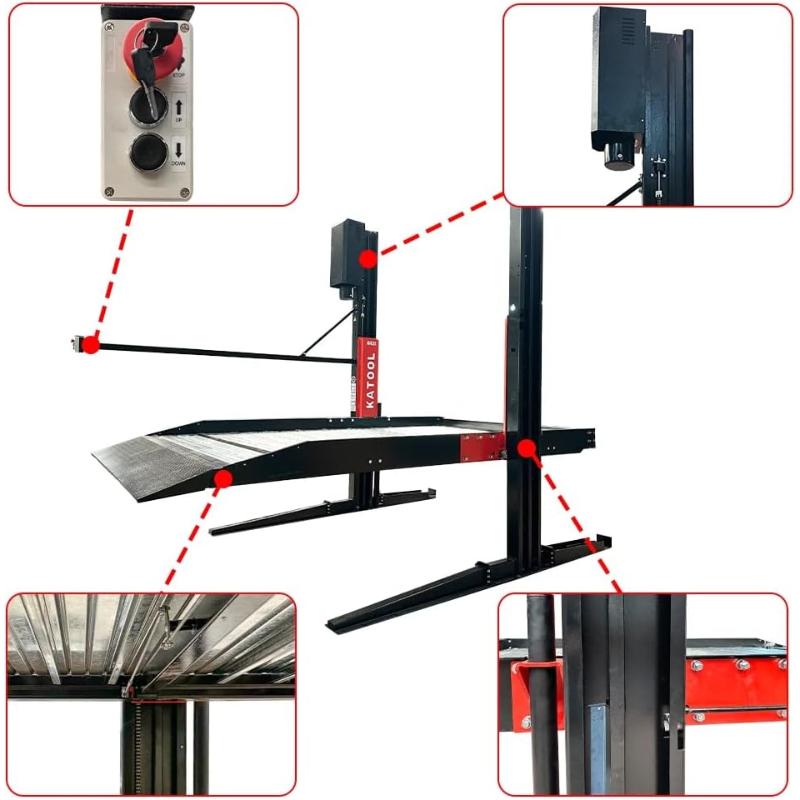

Engineered for Strength and Stability
The KT‑P2700 is built with a reinforced two‑column structure and galvanized steel platform designed for durability and long‑term performance. The dual hydraulic cylinder system ensures smooth, balanced lifting, while the electromagnetic locking mechanism secures the platform automatically throughout operation.
Its fully enclosed platform design enhances stability at height, making it dependable for daily use in both residential and high‑traffic commercial environments without compromising structural integrity.
Smart, Fully Automatic Operation
Push‑button automatic controls manage all lifting and lowering functions with ease. Integrated infrared sensors detect obstacles during operation, roll‑off protection secures vehicles at height, and an audio and visual descent warning keeps operators informed throughout every cycle.
Powered by a 2.2kW motor operating at a minimum working pressure of 200 kg/cm², the KT‑P2700 delivers consistent lifting performance with a 60–80 second raise time and a smooth, controlled 40–60 second lowering time.
Efficient Vertical Parking Solution

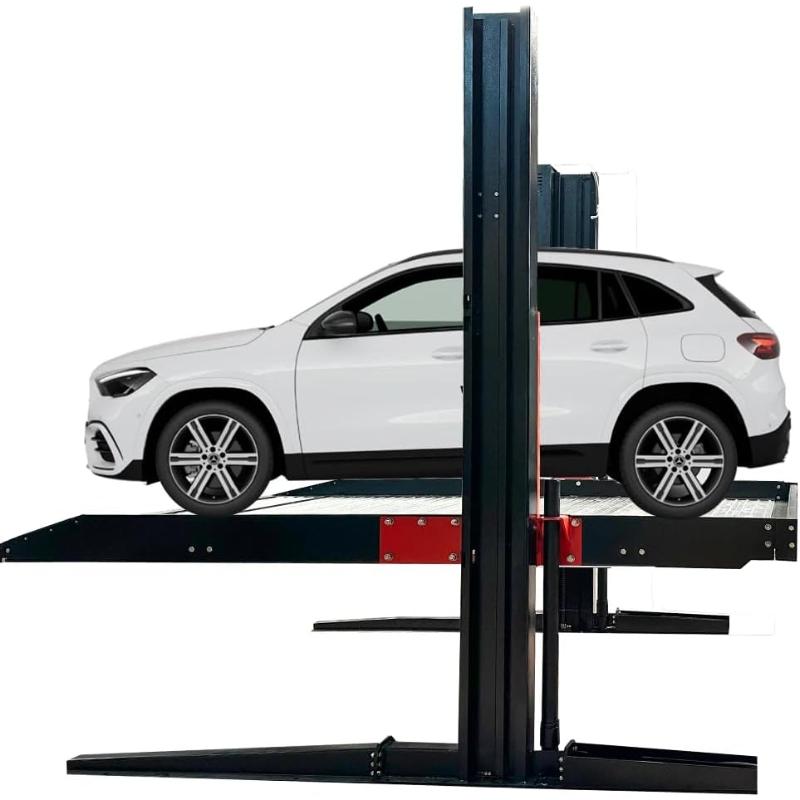

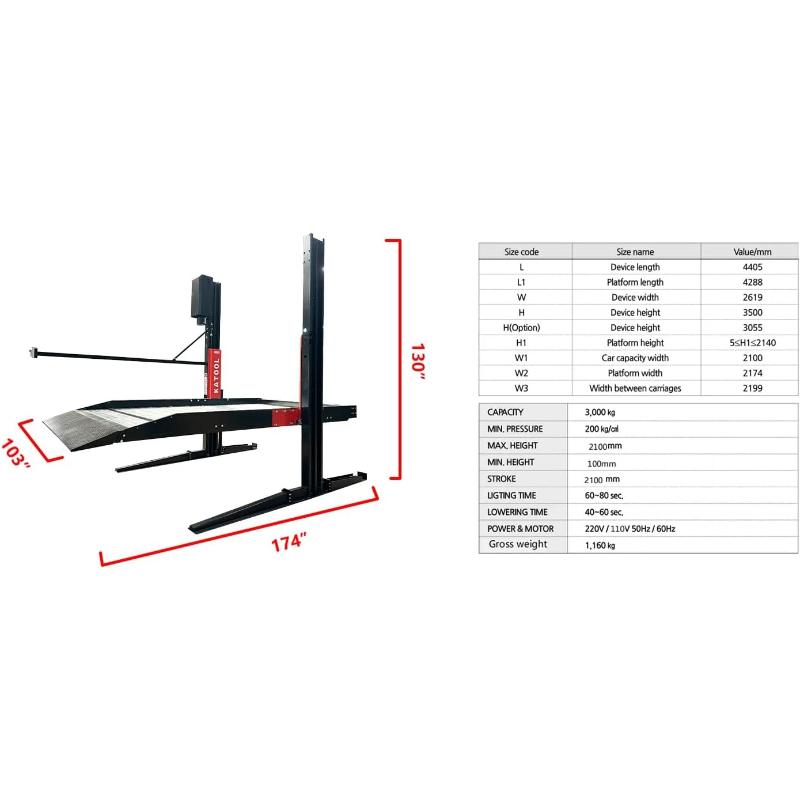

With a platform size of 418 cm by 220 cm, a lifting height of 217 cm, and 205 cm of clearance height, the KT‑P2700 allows two vehicles to be stacked securely while maintaining practical spacing for most standard passenger vehicles and SUVs.
Its modular design allows multiple units to be installed side by side, making it fully scalable for larger dealerships, commercial parking garages, or multi‑vehicle residential setups requiring additional capacity.
Upgrade Your Parking and Lifting Efficiency
The Katool KT‑P2700 combines heavy‑duty galvanized steel construction with fully automatic operation to deliver safe, space‑saving vehicle storage built for reliability. Its 6,600 lb capacity and smooth dual‑cylinder hydraulic system maximize vertical space while maintaining consistent stability and control.
Increase parking capacity, improve organization, and enhance operational safety with a proven double‑deck solution. Click the add to cart button now!
