Lockable Under-Body Ramp Carrier — Fits 16' Slider Walk Ramps, 17' 11-1/4" Powder-Coated Aluminum
A walk ramp stored in the cargo area eats floor space and has to be lifted out at every stop. Store it under the body instead and the driver stops fighting it.

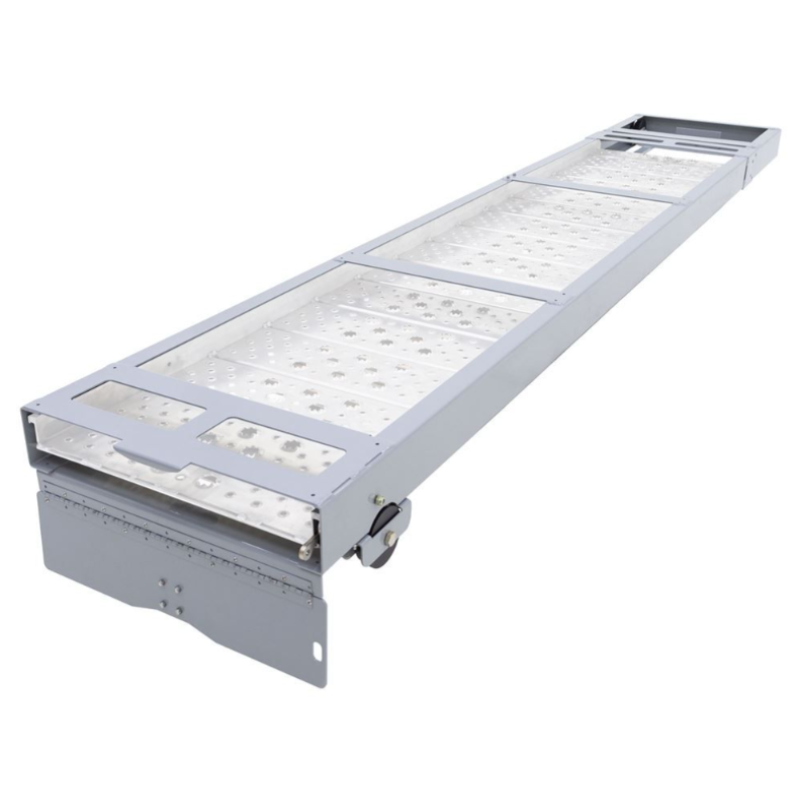

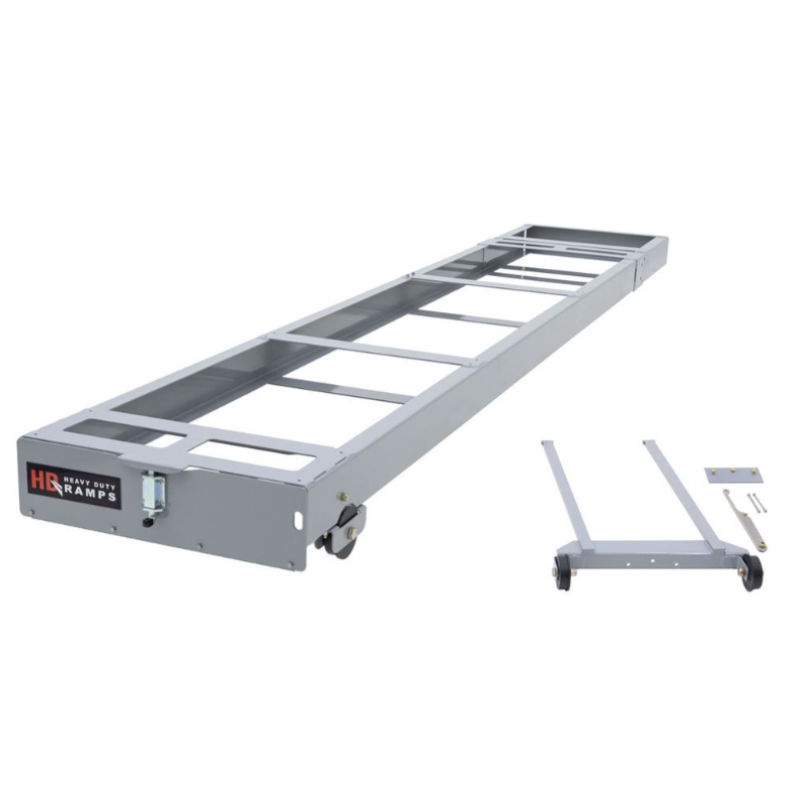

This bracket bolts under the truck and carries a 16' slider walk ramp on its own track. It measures 17' 11-1/4" long, 28" wide and 5-1/4" tall, weighs 207.55 lbs, and is powder-coated for the environment it lives in.
Why Choose This 16' Ramp Storage Bracket
It moves the walk ramp out of the cargo area and onto a track the driver can work one-handed.
-
Frees the cargo floor — the ramp rides outside the body, not inside it.
-
Track and wheels built in so the ramp slides out rather than being carried.
-
Lockable door closes over the stored ramp and takes a padlock.
-
Aluminum powder-coated — it sits in the spray off the rear wheels and does not rust.
Made For
Built for straight trucks and step vans that already run a slider walk ramp.
- Beverage and food service routes
- Furniture and appliance delivery fleets
- Box truck operators short on cargo floor
- Building supply delivery crews
- Fleet shops retrofitting existing bodies
Features
-
17' 11-1/4" length — matched to the ramp it stores, so the door closes without adjustment.
-
28" width — sized to the ramp body and to standard under-body clearance.
-
5-1/4" height — kept shallow so the bracket does not cut into ground clearance.
-
207.55 lbs — light enough to mount without cutting into payload.
-
Powder-coated finish — the coating is what keeps road salt off the track and the door hinge.
-

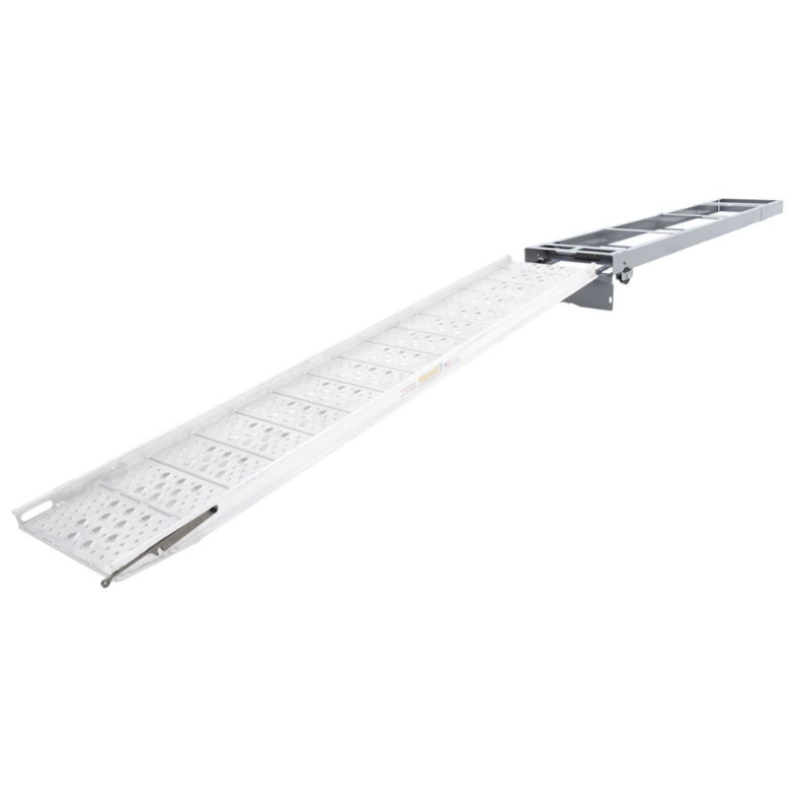

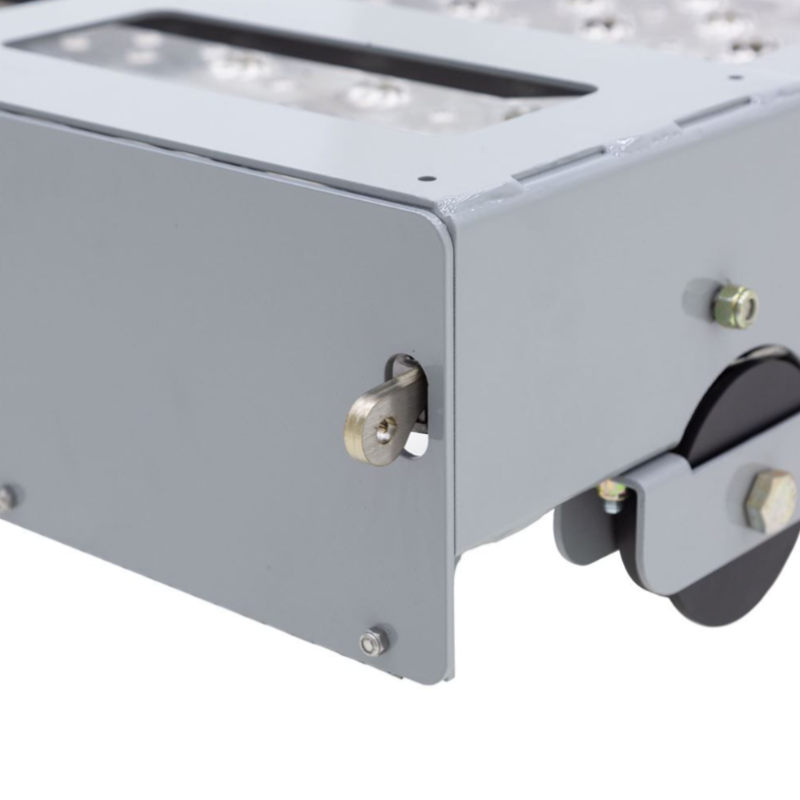

Track wheel system — the ramp rolls out under its own weight.
-
Anti-theft stop plate — the ramp reaches full extension and stays on the track.
-

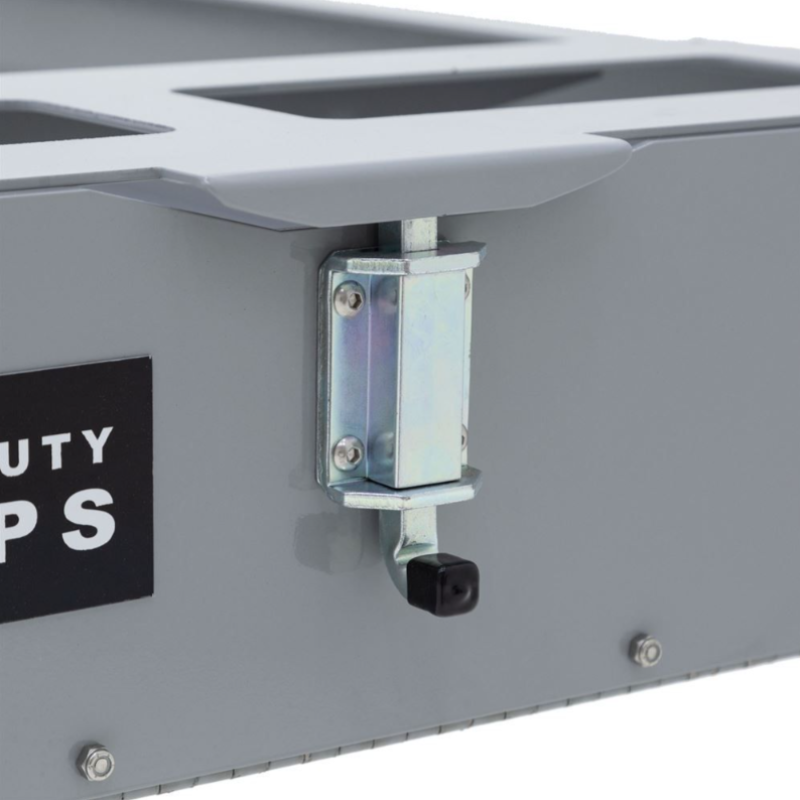

Lockable door — the ramp stays on the truck overnight.
Where It Mounts
The bracket bolts to the underside of the truck body, behind the rear wheels where the ramp is closest to where it gets used. Nothing goes through the floor and nothing takes up cargo space.
Mounted height is 5-1/4", so it does not hang into the departure angle on a loading dock approach.
The whole assembly weighs 207.55 lbs, light enough that it does not eat meaningfully into what the truck can carry.
Built for Under the Truck
Everything under a box body gets road spray, salt, and whatever the rear tires throw. That is why this bracket is aluminum and why it is powder-coated rather than left bare.
The track and wheels are the part that has to keep working. Grit in a track is what turns a five-second slide into a two-minute fight, so the door closes over the whole opening.
The stop plate is the small detail that matters: it lets a driver pull the ramp to full extension in one motion without watching for the end of the track.
The Right Ramp Storage Bracket for Your Body
If you already run a 16' slider walk ramp, this is the bracket built to carry it — 17' 11-1/4" long, 207.55 lbs, powder-coated, and lockable.
