10' x 16" Aluminum Heavy Equipment Ramps — 10,000 lbs. per Axle Capacity
A ramp that shifts under the first wheel is the fastest way to put a machine on its side. Once it walks, nothing stops it.
This set runs 10' long and 16" wide, rated at 10,000 lbs. per axle and built from aircraft-grade aluminum. Each ramp weighs 73 lbs, so one person sets the pair without help. The pin-on end drops into the matching skid seat on the trailer, locking the ramp to the deck before the first wheel touches it.
Why Choose These 10' x 16" Ramps
At 73 lbs per ramp this pair moves by hand, and it still takes 10,000 lbs. per axle.
-
10,000 lbs. per axle — enough for the heaviest thing on the yard trailer.
- Sized for a 36" - 42" load height.
- Serrated aluminum deck — the serrated deck gives the tire a bite point and lets water and grit fall away instead of collecting underfoot.
-
Stub foot holds the ground end where you set it instead of skating on gravel.
Made For

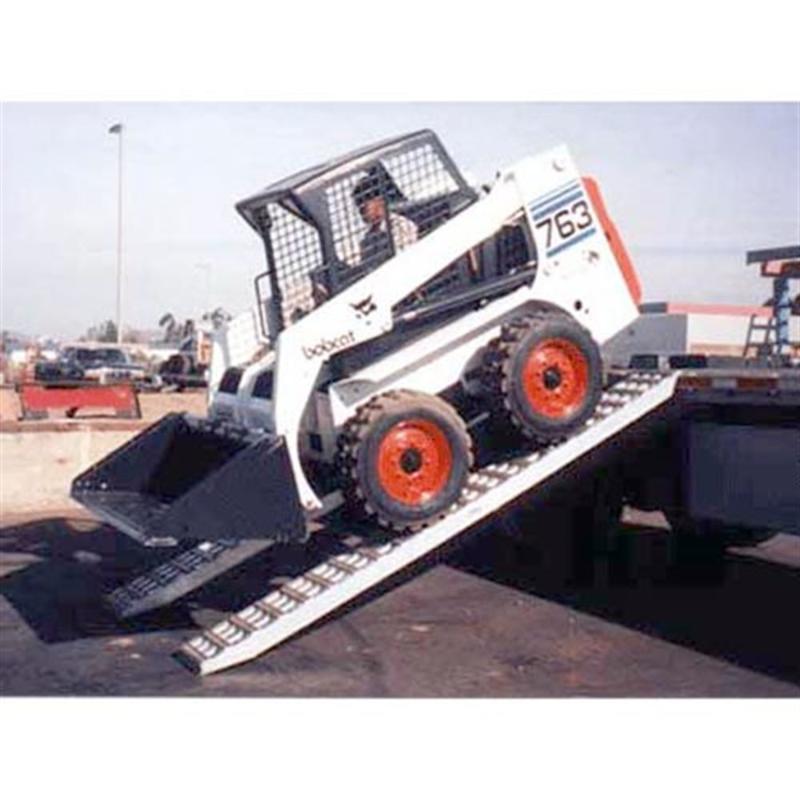

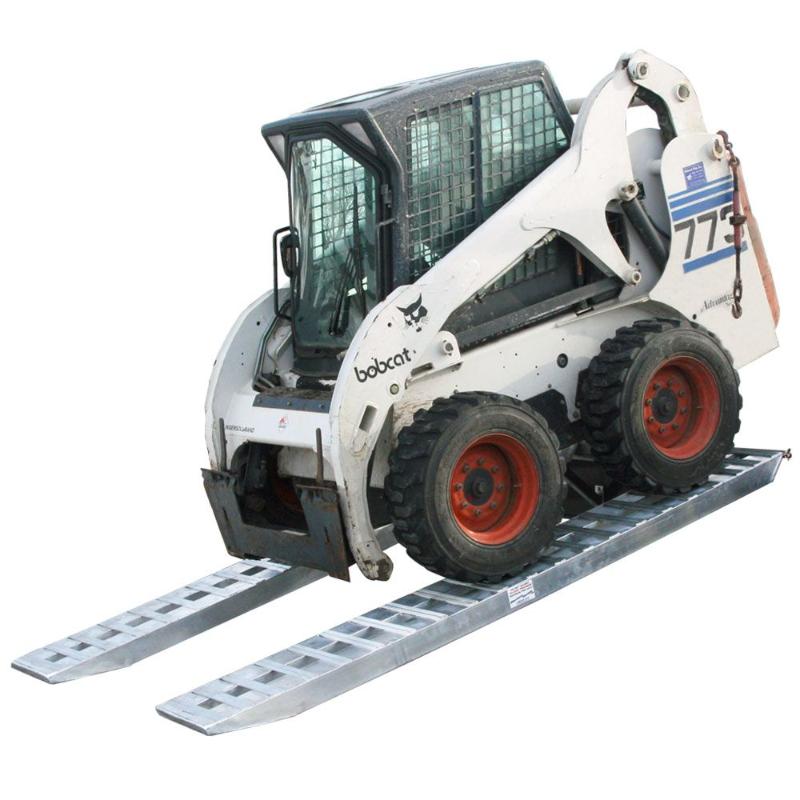

This set is sized for compact construction equipment going onto a step deck or flatbed.
- Excavator and skid steer operators
- Equipment dealers loading demo machines
- Municipal and utility fleets
- Rental yards moving compact machines
- Site and pipeline crews hauling attachments
Features
-
10,000 lbs. per axle — the rated load per axle, carried at mid-span.
-
10' length — a longer run means a shallower angle and less scraping at the break-over.
-
16" width — wide enough for the driver to line up without a spotter on every load.
-
4.25" deck thickness — keeps the transition at the bottom short so low vehicles clear it.
-
Serrated aluminum deck — the serrated deck gives the tire a bite point and lets water and grit fall away instead of collecting underfoot.
-

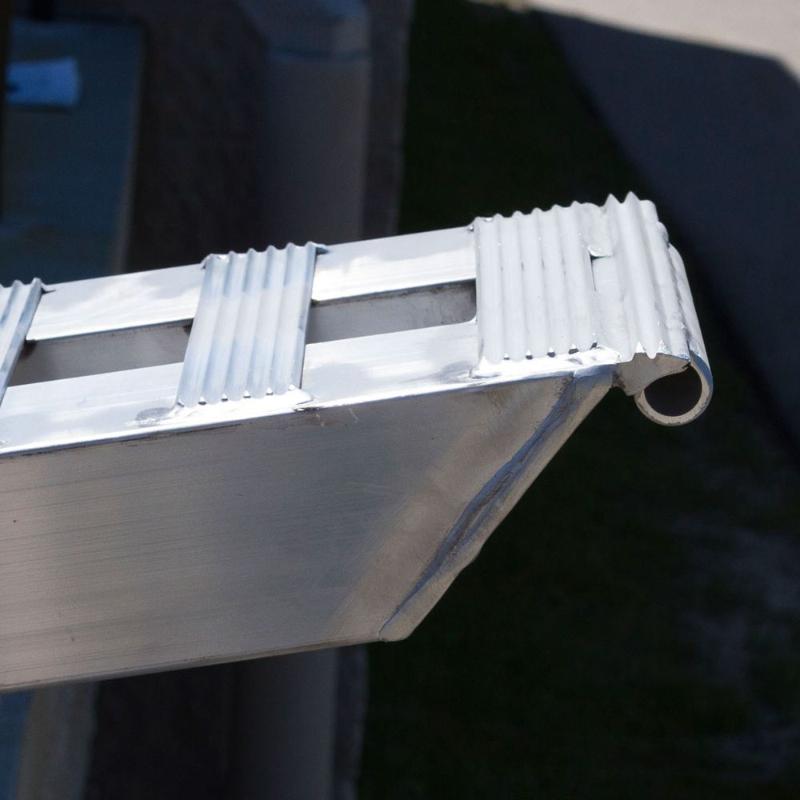

Pin-on End — the pin-on end drops into the matching skid seat on the trailer, locking the ramp to the deck before the first wheel touches it.
-

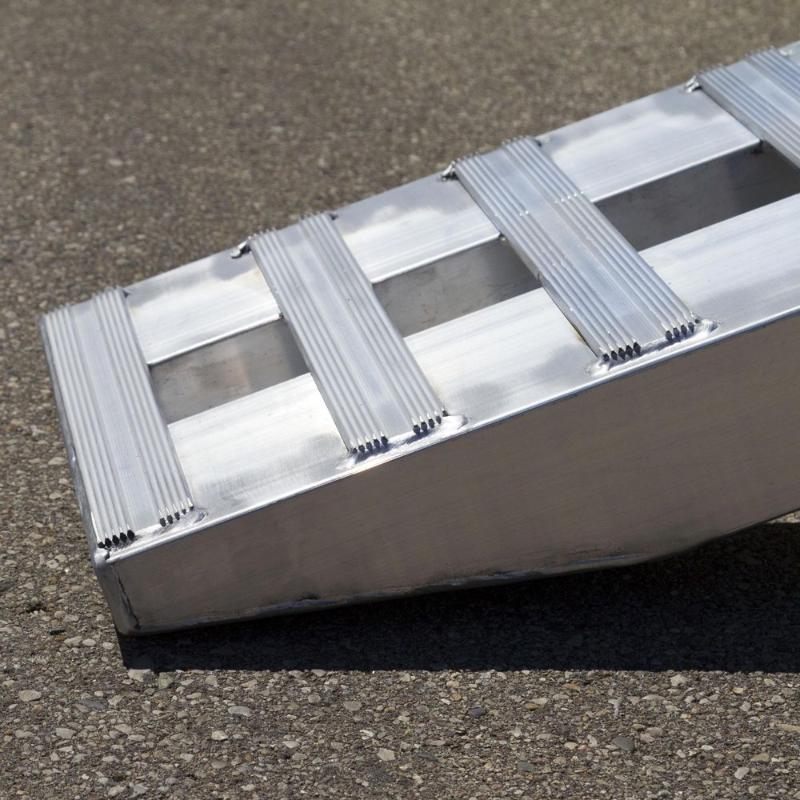

Stub foot — concentrates the ground contact so the ramp does not creep on loose surfaces.
-
73 lbs per ramp — light enough to carry one-handed and hang on the trailer when the job is done.
Aluminum That Earns Its Rating
A capacity figure only means something if it holds at the point of highest stress, which is the middle of the span with a wheel sitting on it. 10,000 lbs. per axle is the number for this set per axle.
The extrusion is aircraft-grade aluminum. It does not rust, it needs no paint, and it does not put on weight after a wet week outside. The serrated deck gives the tire a bite point and lets water and grit fall away instead of collecting underfoot.
Each ramp weighs 73 lbs, which is the difference between a pair one person can set and a pair that needs two people and a bad back.
Setting Up on Your Deck
Approach angle is the whole game with a low vehicle. At 10' of run this set spreads the climb over more distance than a short ramp, and that is what keeps the front lip off the ground on the way up.
The pin-on end drops into the matching skid seat on the trailer, locking the ramp to the deck before the first wheel touches it. Check the seat before the first wheel touches — most ramp failures start with an end that was never fully engaged.
Set both ramps square to the trailer and space them to the vehicle track. Walk the ends once before loading, and keep the ground under the feet firm and level.
The Right Heavy Equipment Ramps for Your Trailer
If you are loading heavy equipment onto a deck at trailer height, this set is sized for it: 10' x 16", 10,000 lbs. per axle, pin-on end.
