HD Ramps Hook-End Car Trailer Ramps 10' x 20" Aluminum, 5,000 lb per Axle - Low Profile

10' x 20" Aluminum Car Trailer Ramps — 5,000 lbs. per Axle Capacity

Wood planks split. Steel ramps rust and weigh a ton. Either way you are dragging something heavy across the yard before the load even starts moving.

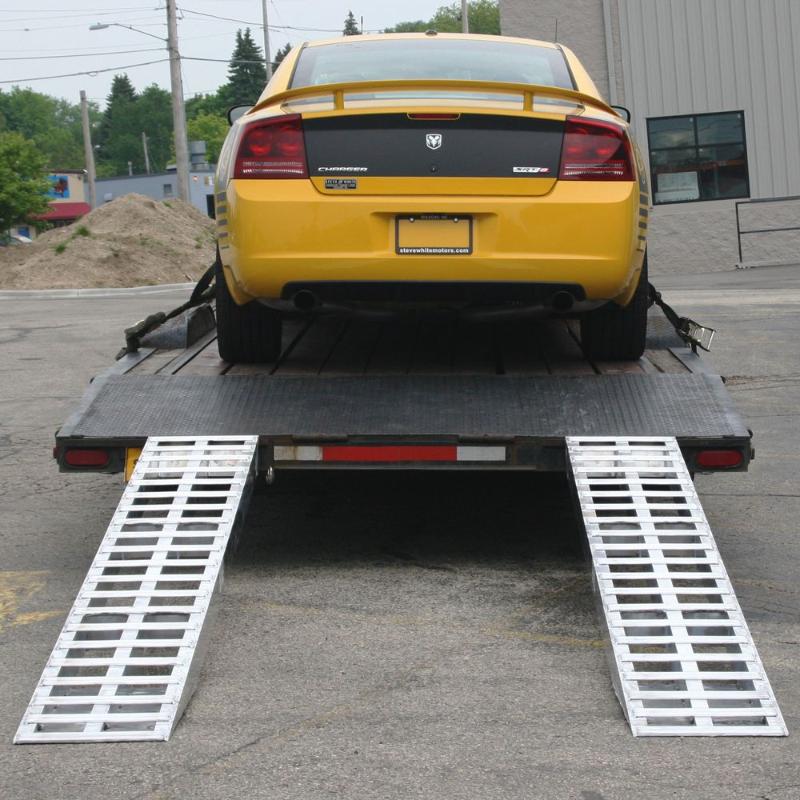

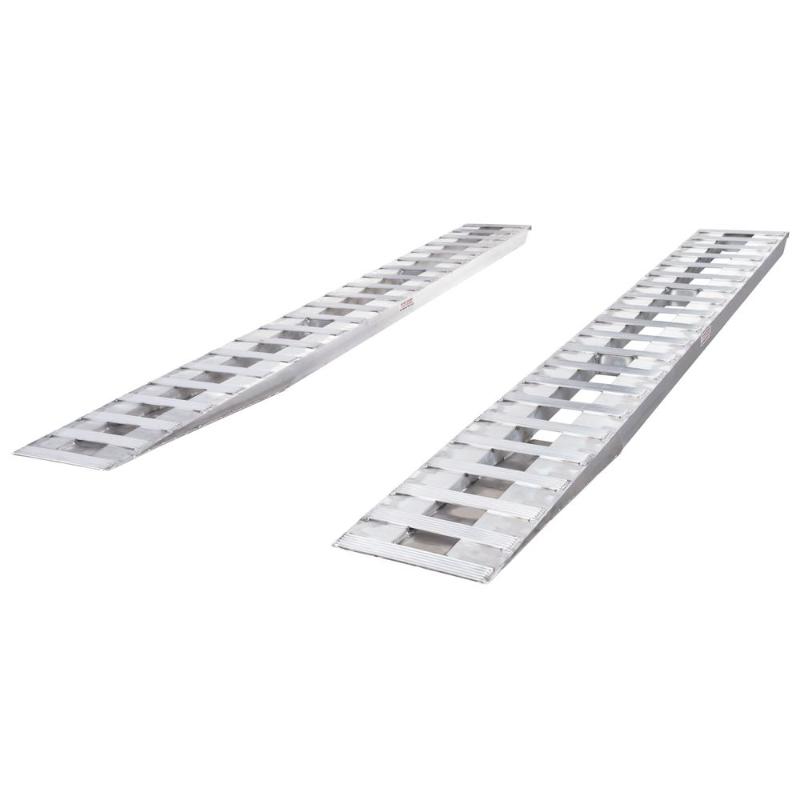

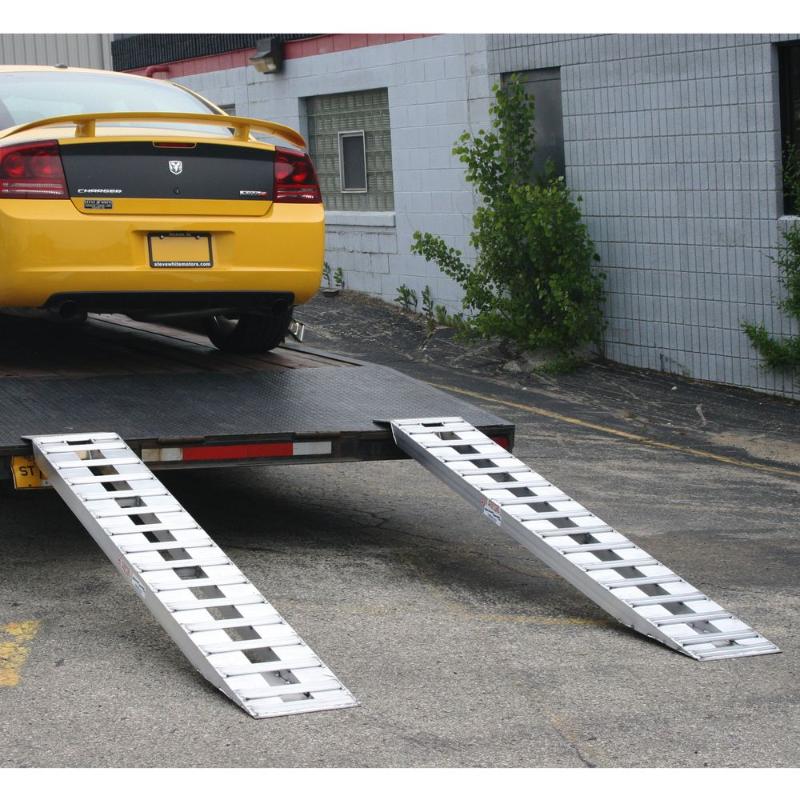

This set runs 10' long and 20" wide, rated at 5,000 lbs. per axle and built from aircraft-grade aluminum. Each ramp weighs 68 lbs, so one person sets the pair without help. The hook end drops over the trailer rail and stays put, so the ramp does not walk sideways under a wheel.

Why Choose These 10' x 20" Ramps

At 68 lbs per ramp this pair moves by hand, and it still takes 5,000 lbs. per axle.

• 5,000 lbs. per axle — enough for a loaded car on a tandem trailer.
• Wide serrated rungs deck — wide serrated rungs give the tire something to grip and let rain and grit fall through the gaps rather than pool on the surface.

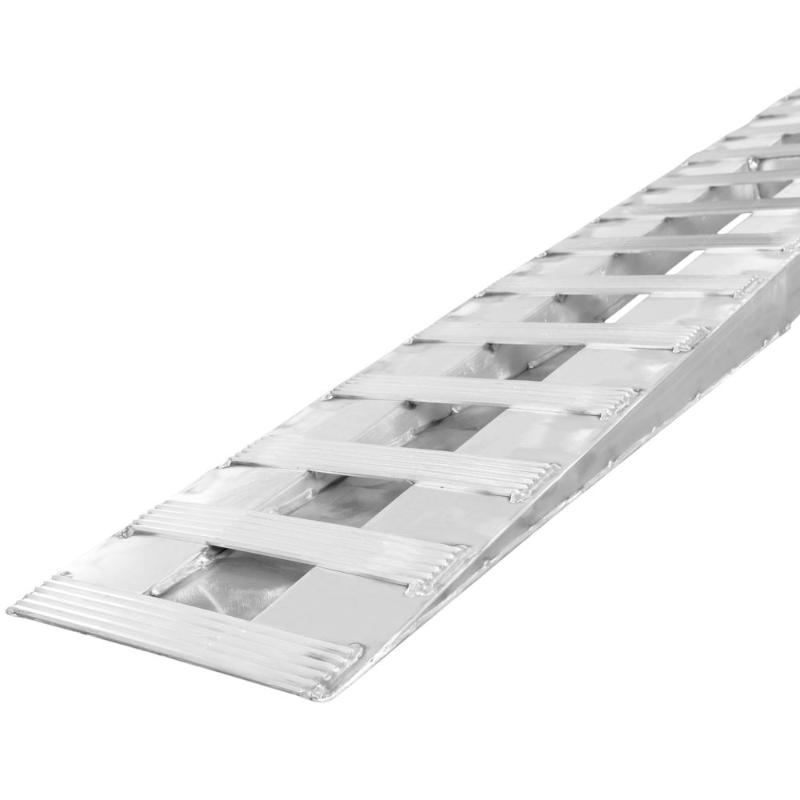

• Knife foot holds the ground end where you set it instead of skating on gravel.

Made For

These ramps suit anyone loading wheeled or tracked equipment onto a deck that has no built-in tail.

• Landscapers and contractors moving mowers, skids and compactors
• Fleet yards loading the same trailers every day
• Racers and enthusiasts hauling low cars to the track
• Rental yards handing equipment over to customers
• Farm and ranch operations moving implements between fields

Features

• 5,000 lbs. per axle — the rated load per axle, carried at mid-span.

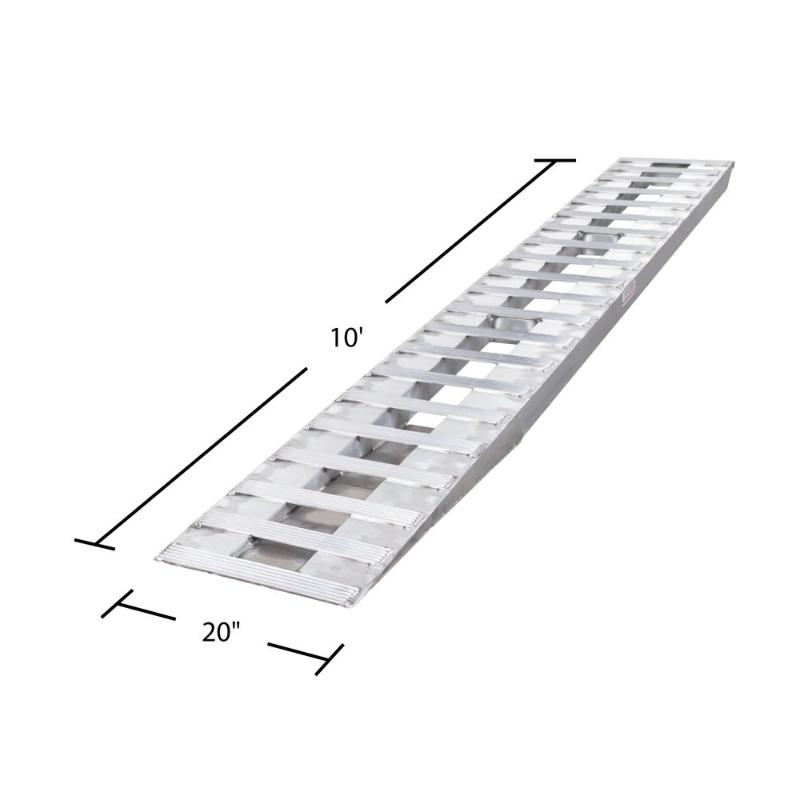

• 10' length — a longer run means a shallower angle and less scraping at the break-over.
• 20" width — wide enough for the driver to line up without a spotter on every load.
• 3.25" deck thickness — keeps the transition at the bottom short so low vehicles clear it.
• Wide serrated rungs — wide serrated rungs give the tire something to grip and let rain and grit fall through the gaps rather than pool on the surface.

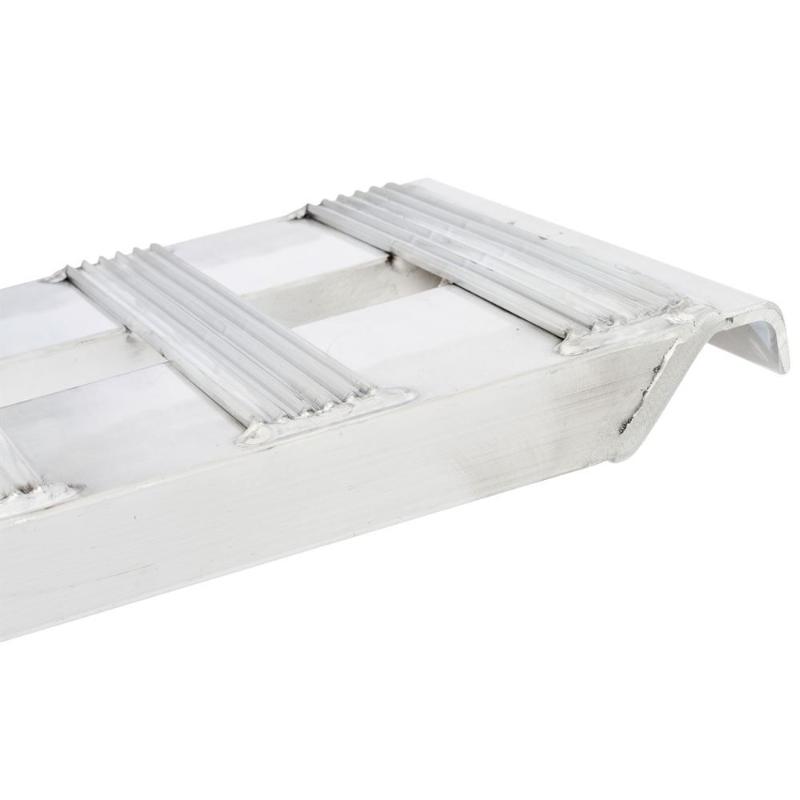

• Hook End — the hook end drops over the trailer rail and stays put, so the ramp does not walk sideways under a wheel.
• Knife foot — concentrates the ground contact so the ramp does not creep on loose surfaces.
• 68 lbs per ramp — light enough to carry one-handed and hang on the trailer when the job is done.

Where the Strength Comes From

A capacity figure only means something if it holds at the point of highest stress, which is the middle of the span with a wheel sitting on it. 5,000 lbs. per axle is the number for this set per axle.

The extrusion is aircraft-grade aluminum. It does not rust, it needs no paint, and it does not put on weight after a wet week outside. Wide serrated rungs give the tire something to grip and let rain and grit fall through the gaps rather than pool on the surface.

Each ramp weighs 68 lbs, which is the difference between a pair one person can set and a pair that needs two people and a bad back.

Getting the Angle Right

Approach angle is the whole game with a low vehicle. At 10' of run this set spreads the climb over more distance than a short ramp, and that is what keeps the front lip off the ground on the way up.

The hook end drops over the trailer rail and stays put, so the ramp does not walk sideways under a wheel. Check the seat before the first wheel touches — most ramp failures start with an end that was never fully engaged.

Set both ramps square to the trailer and space them to the vehicle track. Walk the ends once before loading, and keep the ground under the feet firm and level.

The Right Car Trailer Ramps for Your Trailer

If you are loading vehicles onto a deck at trailer height, this set is sized for it: 10' x 20", 5,000 lbs. per axle, hook end.

Don't wait — scroll back up and click the orange Add to Cart button to get this pair of ramps on its way to your shop.

Technical Specifications
