HD Ramps Diamond Plate Cab Rack with Full-Size Lower Chain Box and 22-Chain Capacity

Diamond Plate Aluminum Cab Rack with Full-Size Lower Chain Box — Up to 22 chains Chain Capacity

Chains loose behind the cab move, rattle and eventually find their way onto the road. A load that shifts forward has nothing to stop it either.

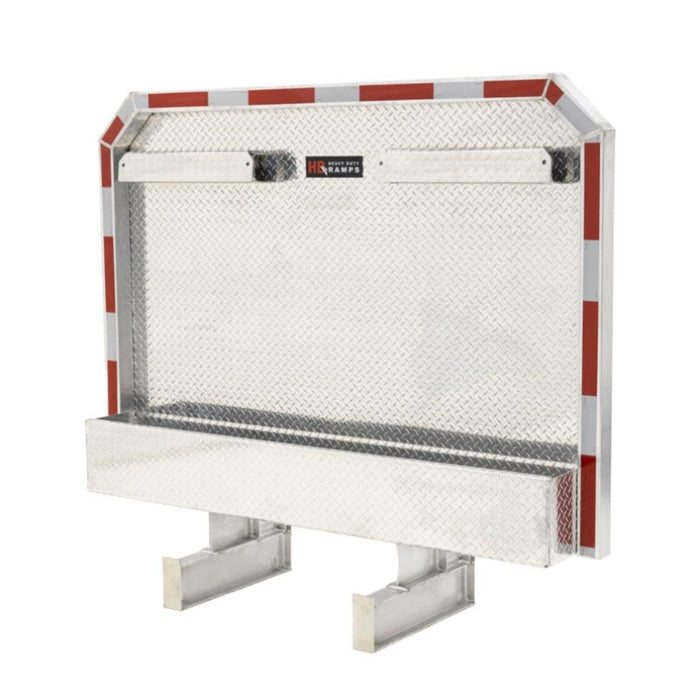

This rack does both jobs. It stands 68" high and 80" wide, weighs 165 lbs, holds Up to 22 chains, and has a full-size lower chain box plus hi-visibility reflective tape.

Why Choose This Diamond Plate Cab Rack

Up to 22 chains of storage in a full-size lower box, behind a diamond plate barrier.

• Up to 22 chains — a working set of securement stored where it is used.
• Full-size lower chain box, not a token tray.
• Diamond plate aluminum — the finish that does not rust and does not need painting.
• Hi-visibility reflective tape is built in rather than added afterwards.

Made For

Built for flatbed and step deck tractors carrying a full chain set.

• Flatbed and step deck carriers
• Machinery and equipment movers
• Steel, pipe and lumber haulers
• Owner-operators specifying a new tractor
• Fleet shops standardizing securement storage

Features

• Up to 22 chains — the working set of chains this rack is built to hold.
• 80" wide — sized to sit behind a standard tractor cab.
• 68" high — the barrier height between the load and the cab.
• 165 lbs — aluminum, so a permanent fitting is not a payload penalty.
• Diamond plate aluminum — the traditional finish, and the one that survives without paint.

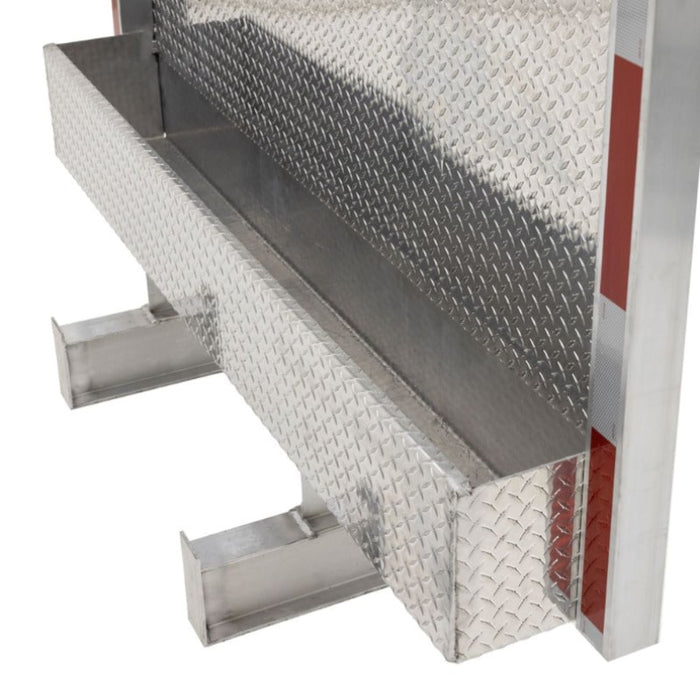

• Full-size lower chain box — the chains live in a box rather than hooked over a rail.

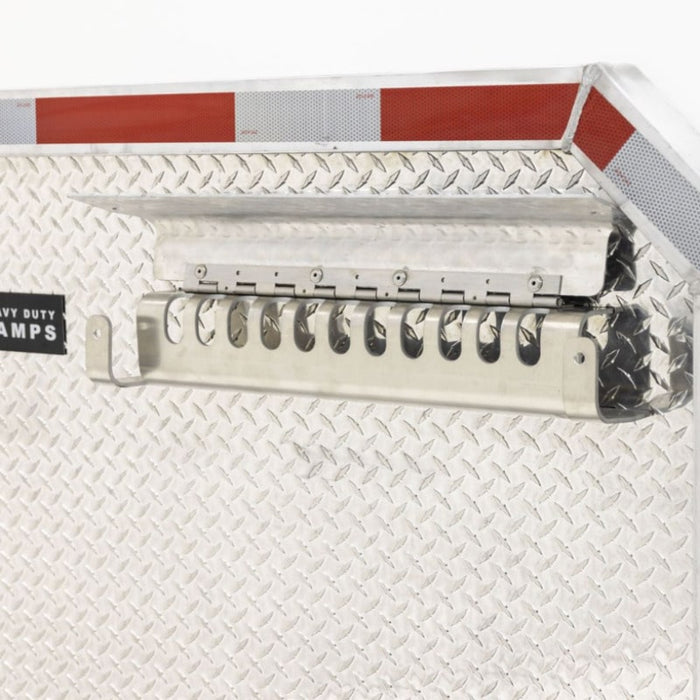

• Hi-visibility reflective tape — built in, so the rack is visible from behind at night.
• Made in the USA — built in an American plant.

Storage and Protection in One

A headache rack has two jobs: keep the load out of the sleeper and keep the securement gear in one place. Most do one well.

This one holds Up to 22 chains in a full-size lower box. That is a working set, not an overflow tray, and it means the chains are behind the cab where they are used.

The rack itself stands 68" high and 80" wide, which is the barrier the load meets if it moves forward.

Diamond Plate and Weight

Diamond plate aluminum is the finish this part has always been made in, and for good reason — it does not rust, it does not need painting, and it hides working marks.

At 165 lbs the rack is a permanent fitting that does not cost meaningful payload. A steel equivalent at this size does.

The reflective tape is applied as part of the build. It is what makes a loaded flatbed visible from behind on an unlit road.

The Right Cab Rack for Your Tractor

If your chains ride loose behind the cab, this rack fixes it — Up to 22 chains, full-size lower box, diamond plate.

Don't wait — scroll back up and click the orange Add to Cart button to get this cab rack on its way to your shop.

Technical Specifications

Owner's Manual

The instruction manual covers assembly, correct set-up and the safe working limits for this cab rack. Read it before the first use.

Download the Instruction Manual (PDF)
