HD Ramps Car Trailer Ramps 10'x16" EZ Traction Plate End, 5,000 lb per axle, Aluminum

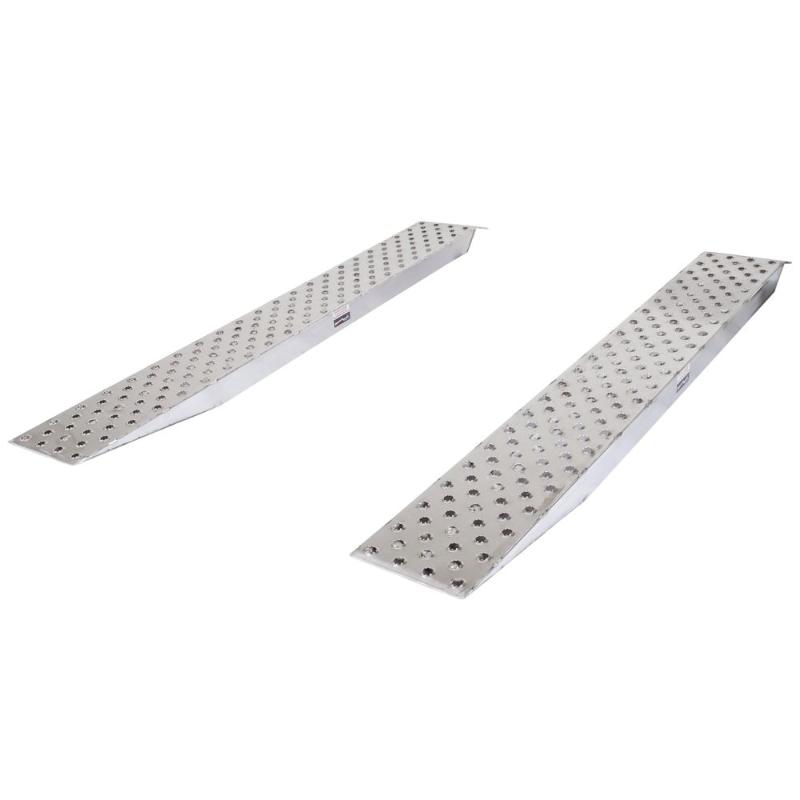

10' x 16" Aluminum Car Trailer Ramps — 5,000 lbs. per Axle Capacity

Loading off a short ramp is how bumpers get torn off and oil pans get punched. The angle is wrong and the car bottoms out halfway up.

This set runs 10' long and 16" wide, rated at 5,000 lbs. per axle and built from high-strength aluminum. Each ramp weighs 61 lbs, so one person sets the pair without help. The flat plate end lies on the deck and spreads the load across the edge instead of hanging off a rail.

Why Choose These 10' x 16" Ramps

At 61 lbs per ramp this pair moves by hand, and it still takes 5,000 lbs. per axle.

• 5,000 lbs. per axle — enough for the machines that actually come through the gate.
• EZ Traction punch plate deck — the punch plate surface is stamped full of raised openings, so water, mud and snow fall straight through instead of sitting under a tire.

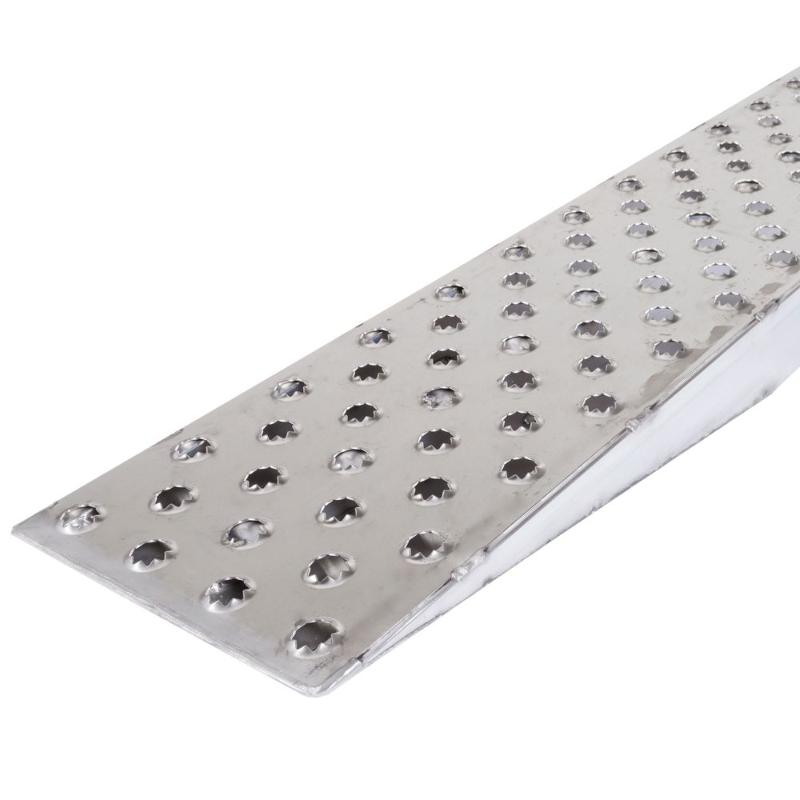

• Knife foot holds the ground end where you set it instead of skating on gravel.

Made For

These ramps suit anyone loading wheeled or tracked equipment onto a deck that has no built-in tail.

• Car haulers and open trailer operators
• Independent repair shops loading non-runners
• Landscapers and contractors moving mowers, skids and compactors
• Fleet yards loading the same trailers every day
• Racers and enthusiasts hauling low cars to the track

Features

• 5,000 lbs. per axle — the rated load per axle, carried at mid-span.
• 10' length — a longer run means a shallower angle and less scraping at the break-over.
• 16" width — wide enough for the driver to line up without a spotter on every load.
• 4.5" deck thickness — keeps the transition at the bottom short so low vehicles clear it.

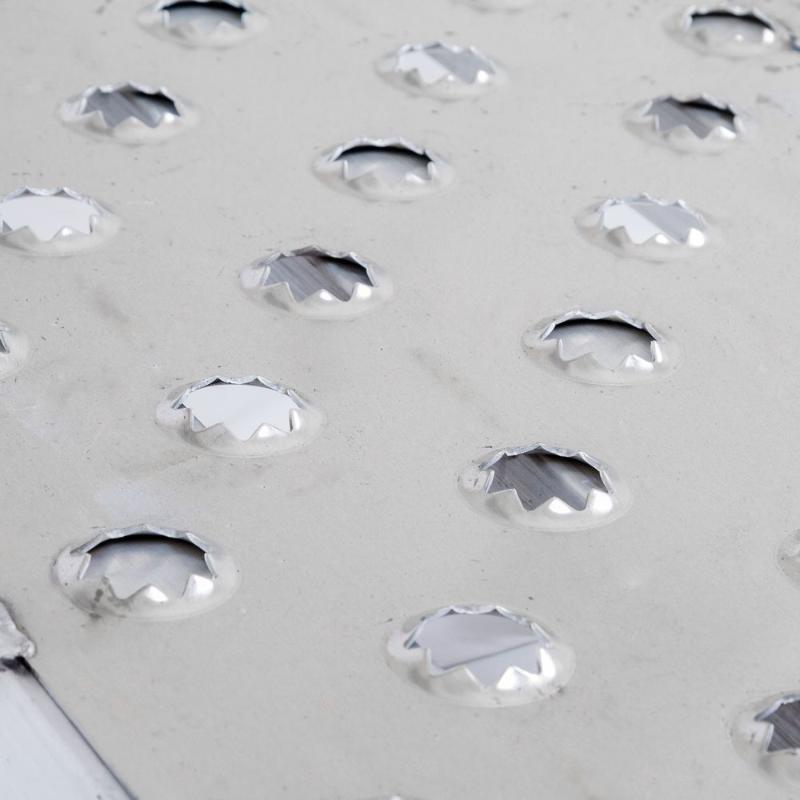

• EZ Traction punch plate — the punch plate surface is stamped full of raised openings, so water, mud and snow fall straight through instead of sitting under a tire.

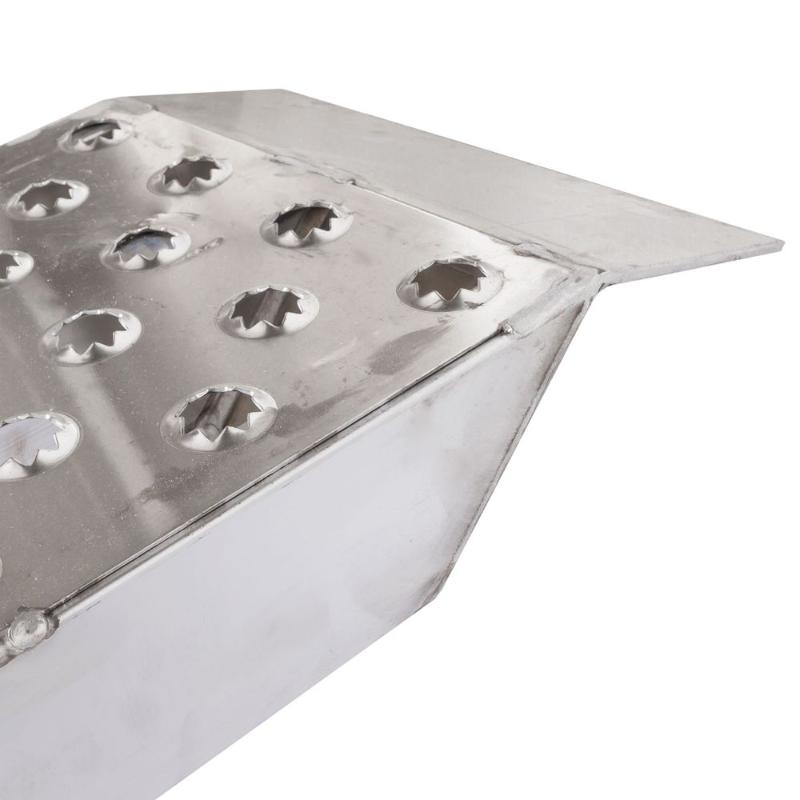

• Plate End — the flat plate end lies on the deck and spreads the load across the edge instead of hanging off a rail.
• Knife foot — concentrates the ground contact so the ramp does not creep on loose surfaces.
• 61 lbs per ramp — light enough to carry one-handed and hang on the trailer when the job is done.

Built to Take the Load

A capacity figure only means something if it holds at the point of highest stress, which is the middle of the span with a wheel sitting on it. 5,000 lbs. per axle is the number for this set per axle.

The extrusion is high-strength aluminum. It does not rust, it needs no paint, and it does not put on weight after a wet week outside. The punch plate surface is stamped full of raised openings, so water, mud and snow fall straight through instead of sitting under a tire.

Each ramp weighs 61 lbs, which is the difference between a pair one person can set and a pair that needs two people and a bad back.

Setting Up on Your Deck

Approach angle is the whole game with a low vehicle. At 10' of run this set spreads the climb over more distance than a short ramp, and that is what keeps the front lip off the ground on the way up.

The flat plate end lies on the deck and spreads the load across the edge instead of hanging off a rail. Check the seat before the first wheel touches — most ramp failures start with an end that was never fully engaged.

Set both ramps square to the trailer and space them to the vehicle track. Walk the ends once before loading, and keep the ground under the feet firm and level.

The Right Car Trailer Ramps for Your Trailer

If you are loading vehicles onto a deck at trailer height, this set is sized for it: 10' x 16", 5,000 lbs. per axle, plate end.

Don't wait — scroll back up and click the orange Add to Cart button to get this pair of ramps on its way to your shop.
