Black Widow AF-9034-HD Arched Three-Piece Motorcycle Ramp — 1,500 lb Per Section
Most three-piece ramp sets publish one number for the whole assembly and leave you to guess what any single piece will take. That guess matters when the centre section is carrying a front wheel and a person at the same time.

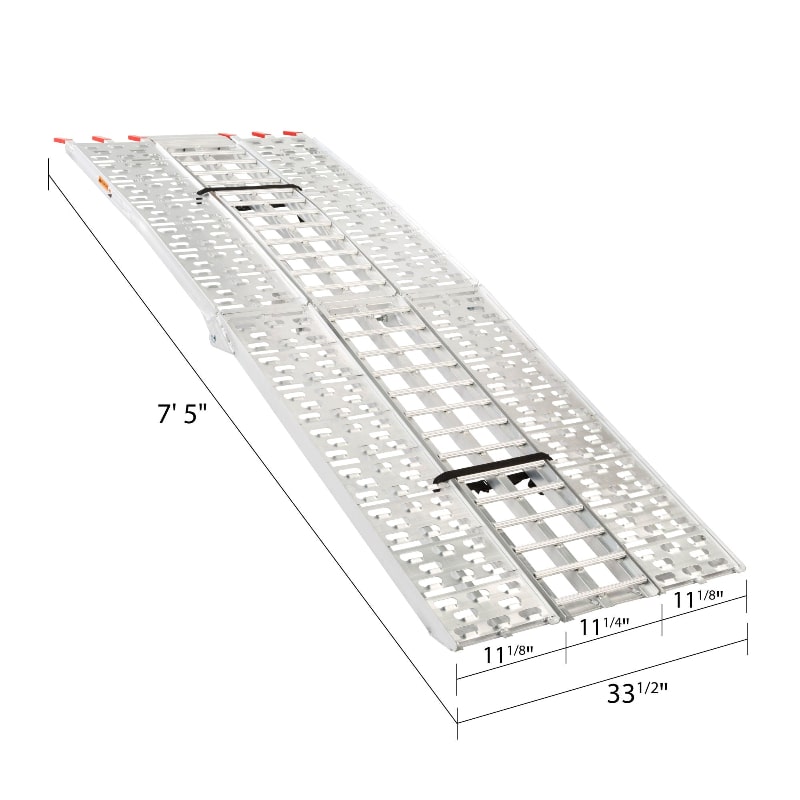

The AF-9034-HD states it plainly: 1,500 lbs for the set, 1,500 lbs on the centre ramp, 1,500 lbs on the side ramps. It is 7 ft 5 in long, 33-1/2 inches wide, arched.
Why Choose the AF-9034-HD
Every section rated the same.
-
1,500 lbs on each section — centre and sides carry the same figure, so nothing is the weak link.
-
Arched profile — lifts the middle of the climb and flattens the ends for low exhausts.
-
Folds to 3 ft 10 in — the whole set halves for storage.
-
56.5 lbs total — light for a three-piece arched set.
What's Included
- Black Widow AF-9034-HD centre ramp section
- Two side ramp sections
- Safety straps
- Attachment hardware
Made For
Built for loading a bike with somewhere solid to walk on either side.

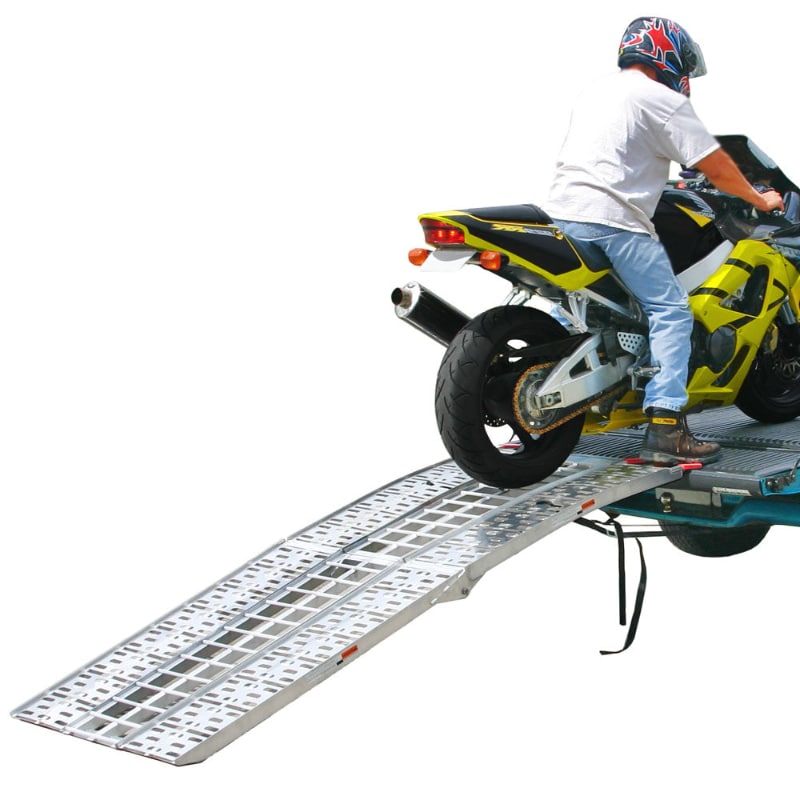

- Motorcycles loaded onto a trailer or truck bed
- Low-slung customs with exhausts close to the ground

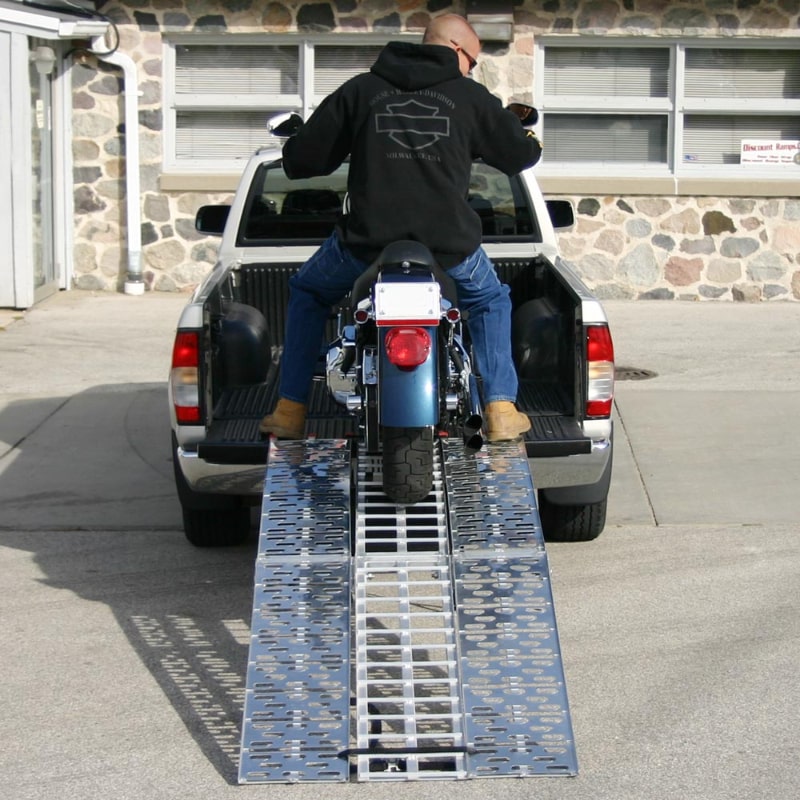

- Riders walking the bike up rather than riding it
- Trailer setups where stowed length is tight
- Anyone who wants side sections as well as a centre track
Features
-
1,500 lb capacity — stated for the set and each section
-
7 ft 5 in length — a shallow angle to a trailer or tailgate
-
33-1/2 in overall width — centre track plus side ramps
-
Arched design — clearance at the transition point
-
Three-piece construction — centre ramp and two sides
-

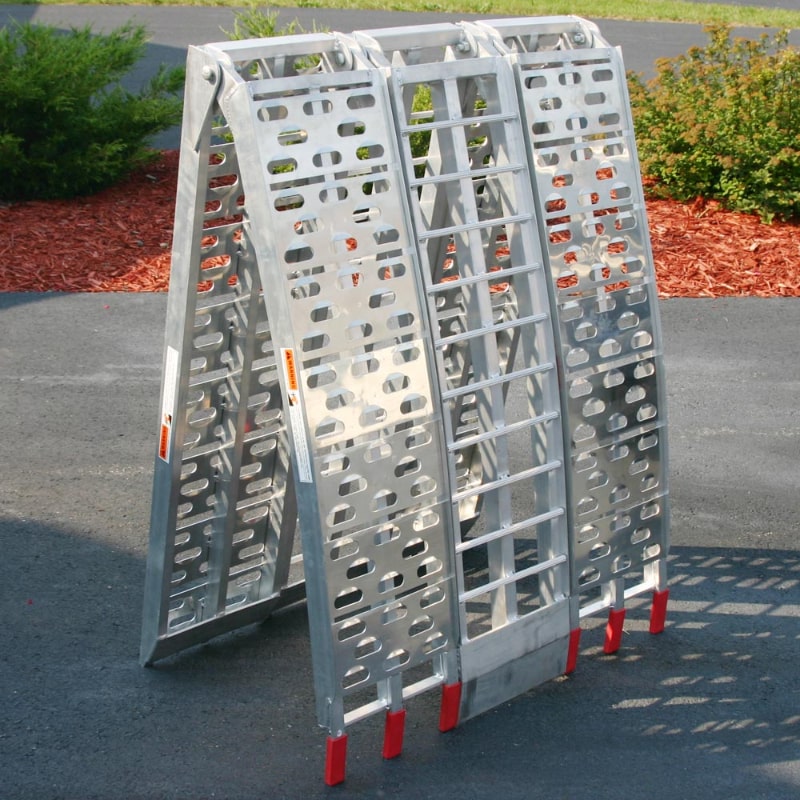

Folds to 3 ft 10 in x 6 in — halves for storage
-
56.5 lb total weight — aluminum throughout
-

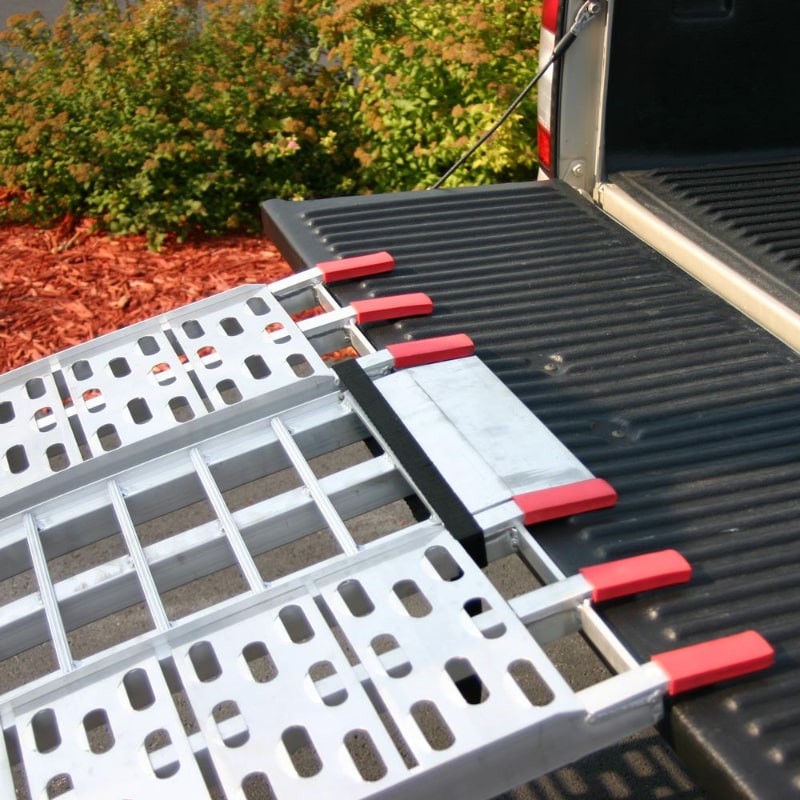

3 in profile — low lip where it meets the ground
-
Safety straps included — ties the set to the vehicle
Why the Per-Section Rating Is the Useful One
A set rated only as a whole tells you nothing about how the load may be distributed. If the centre section is rated lower than the total, the number that governs your load is the lower one — and it is often not published.
Here all three sections carry 1,500 lbs. A bike tracking up the centre, a rider on a side ramp, or weight shared across all three — every case is inside the same figure.
That removes the guesswork, which on a ramp is the part that gets people hurt.
The Arch Does the Clearance Work
Low customs and cruisers scrape at the top of a straight ramp, where the ramp meets the deck at an angle. The arch moves the high point into the middle of the span and flattens both ends.
Over 7 ft 5 in that shallow transition is enough for most low-pipe bikes to walk on and off without contact.

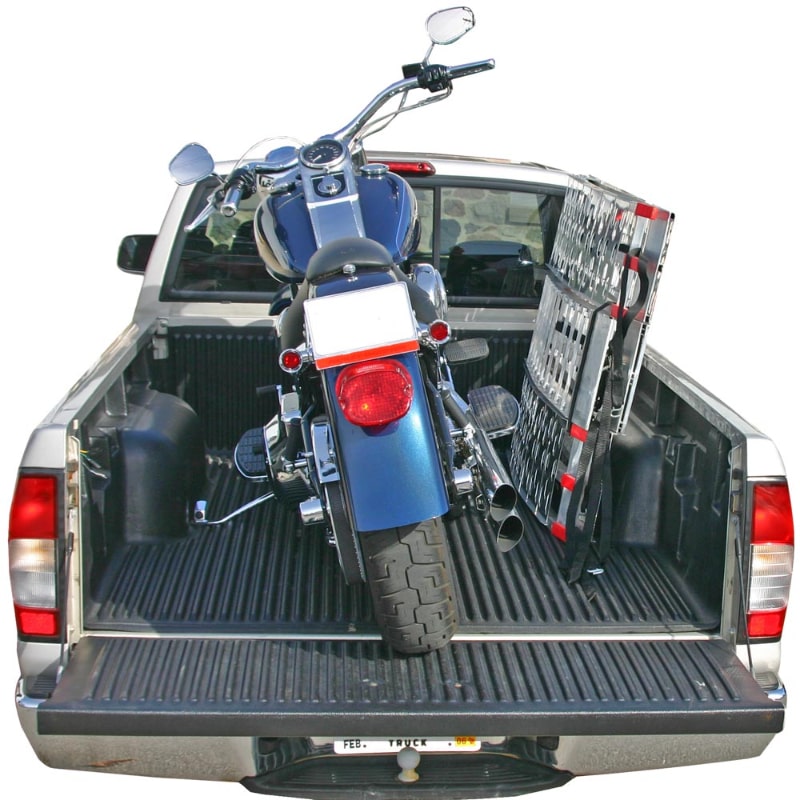

Folded, the set is 3 ft 10 in long and 6 inches thick at 56.5 lbs — which fits inside a trailer or across a truck bed rather than lying diagonally across everything else.
The Right Motorcycle Ramp for Your Trailer
To load a low bike with side ramps to stand on, the AF-9034-HD is the set: 1,500 lbs everywhere, 7 ft 5 in arched, folding to 3 ft 10 in.
Don't wait — scroll back up and click the orange Add to Cart button to get this motorcycle ramp set on its way to your shop.
