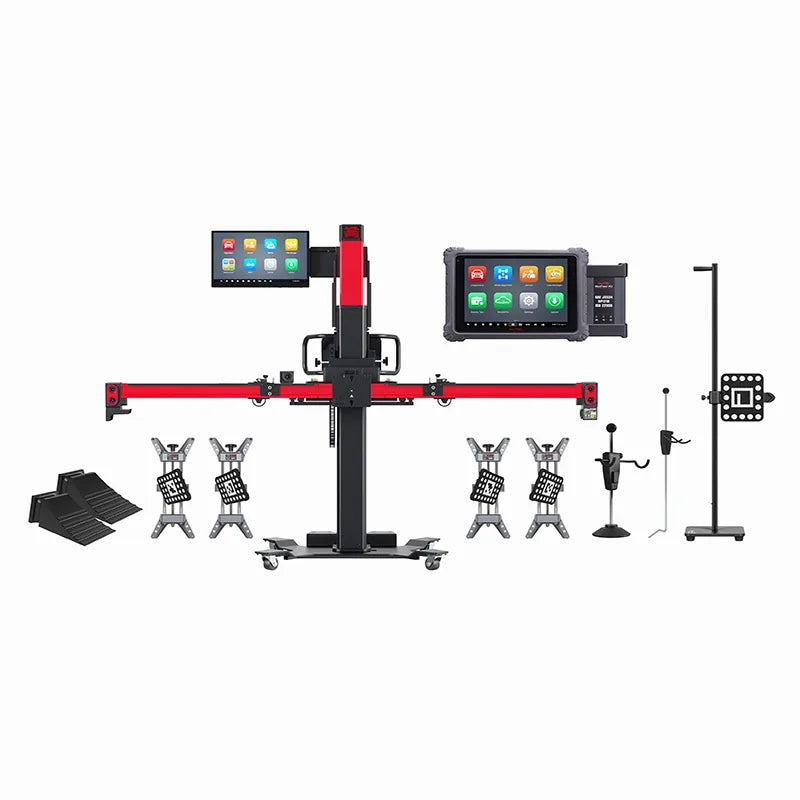

Autel MaxiSYS IA900WAT alignment and ADAS frame with Ultra ADAS tablet
Autel IA900WA calibration frame angle view
Autel IA900WA calibration frame front view
Autel MaxiSYS IA900WAT alignment and ADAS frame with Ultra ADAS tablet
Autel IA900WA calibration frame angle view

Autel MaxiSYS IA900WAT Wheel Alignment & ADAS Calibration Frame with Ultra ADAS Tablet

by Autel
$23,219.00 - $23,219.00
$23,219.00
$23,219.00 - $23,219.00
$23,219.00

+ FREE SHIPPING

5.0/5 store rating · 47 Access Division customer reviewsNo reviews for this product yet · Be the first to review it
  • 4-wheel alignment and ADAS calibration on one frame
  • 0.02° accuracy from 6 HD cameras
  • MaxiSYS Ultra ADAS tablet included
Zed Valenzuela, product expert at Access Division

Zed Valenzuela · Product Expert

Questions on specs, fit or install? Ask before you buy.

+1 (855) 559-5589

Call or text · Weekdays 9–5 EST

- Call us for the best price +1 (855) 559-5589

- Authorized Autel Dealer | Covered by the manufacturer warranty

- Usually arrives in 3-10 business days | ships LTL freight

- Eligible for our 30-day easy returns

- Request a free quotation
SKU AULIA900WAT
Availability:
in stock, ready to be shipped
Description

3-in-1 Wheel Alignment, ADAS Calibration and Diagnostics Frame with Ultra ADAS Tablet

Measuring a calibration frame into position with tape and plumb lines is slow. Miss by a little and the ADAS calibration fails. And the alignment still needs a separate machine in another bay.

The Autel MaxiSYS IA900WAT does alignment and ADAS calibration from one frame. Six HD cameras on the crossbar read the wheel targets and tell you exactly where to move the frame. This package includes the MaxiSYS Ultra ADAS tablet and ADAS activation card, so it is ready to run.

Why Choose the IA900WAT

Optical target placement replaces the tape measure for frame setup.

  • 0.02° alignment accuracy from six 3072 × 2048 HD cameras
  • Optical frame positioning — Autel rates it 6x faster than mechanical measuring
  • Automatic crossbar height — tracks the vehicle on the lift, down to as low as 6 in
  • MaxiSYS Ultra ADAS tablet included — diagnostics, alignment and ADAS calibration from one tablet

What's Included

  • IA900WA calibration frame (AUTEL-CSC9000) with 24 in touchscreen display
  • MaxiSYS Ultra ADAS diagnostic tablet
  • ADAS activation card
  • 4 wheel clamps, 4 wheel targets and distance target
  • Steering wheel lock, brake lock and 2 wheel chocks

Made For

Built for shops that want alignment and ADAS calibration work in their own bay.

  • Auto repair shops adding ADAS calibration to alignment work
  • Collision repair shops recalibrating cameras and radar after repairs
  • Tire and alignment shops
  • Dealership service departments
  • Glass shops recalibrating forward cameras after windshield replacement

Features

  • 6 HD cameras, 3072 × 2048 each — read the wheel targets and frame position
  • 0.02° accuracy — alignment readings you can stand behind
  • 24 in touchscreen — live readings, required tools and adjustment points on one screen
  • Robotic crossbar height — 325–2,175 mm range at 50 mm/s
  • 108.66 in crossbar — folds to 48.82 in for storage
  • Advanced alignment data — thrust angle, SAI, toe-out on turns, bump steer diagnosis
  • Pre/post scan reports — document every calibration for insurance
  • 100–264V, 260 W — runs on a standard grounded outlet

Optical Frame Placement

The frame cameras recognize the targeted wheel clamps and calculate the frame's angle, distance and offset to the vehicle. On-screen prompts tell you which way to move or turn the frame. A green check appears for each value once it is in position.

Press a button and the crossbar drives to the correct calibration height. It keeps tracking the vehicle on the lift, from full alignment height down to 6 in. Unlevel floor compensation covers shop floors with drains and slopes.

Alignment and Diagnostics in One System

The same six cameras run a 4-wheel alignment for U.S., Asian and European vehicles, 1996 and newer. Wheelbases from 80 to 220 in and tires from 19 to 37 in are supported.

The included MaxiSYS Ultra ADAS tablet runs the pre-scan, the alignment and the calibration. Network topology shows module health right after the pre-scan, and the post-scan report documents every calibration performed.

The Right Wheel Aligner for Your Shop

The Autel IA900WAT puts 0.02° 3D wheel alignment, optical ADAS frame placement and the Ultra ADAS tablet in one package.

Don't wait — scroll back up and click the orange Add to Cart button to get this alignment and ADAS system on its way to your shop.

Specs

Technical Specifications

Package Part Number IA900WAT
Calibration Frame Model AUTEL-CSC9000
Cameras 6
Single Camera Resolution 3072 × 2048 pixels
Alignment Accuracy 0.02°
Supported Wheelbase 80–220 in (2,032–5,588 mm)
Supported Wheel Distance 50–98.03 in (1,270–2,490 mm)
Rim Diameter (Rim Clamp) 11–24 in
Tire Diameter (Tire Clamp) 19–37 in
Measurement Frequency 9 times/s (typ.)
Recommended Working Distance 105 in (2,667 mm)
Crossbar Length 108.66 in unfolded / 48.82 in folded
Crossbar Height Range 325–2,175 mm
Crossbar Lift Speed 50 mm/s
Frame Height Range 74.02–101.57 in (1,880–2,580 mm)
Folded Frame Dimensions (W × H × D) 33.86 × 48.82 × 78.54 in
Display 24 in LCD touchscreen
Rated Power 260 W
Power Supply 100–264V, 50/60 Hz
Operating Temperature 14–122 °F
Work Area for Alignment + ADAS 32.8 × 16.4 ft (10 × 5 m)
Diagnostic Tablet MaxiSYS Ultra ADAS (included)
Shipping Weight 700 lb
Manual

Owner's Manual

Download the Autel MaxiSYS IA900WA User Manual (PDF)
