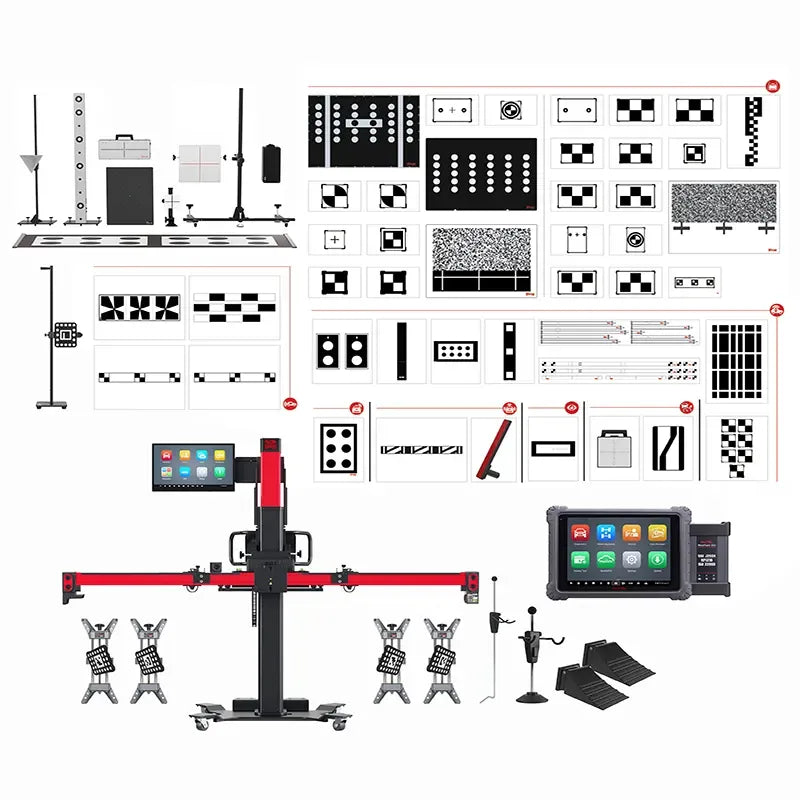

Autel MaxiSYS IA900AST Wheel Alignment & All Systems ADAS Package with Ultra ADAS Tablet

Complete ADAS Calibration and 3D Wheel Alignment Package with Ultra ADAS Tablet

Subletting every radar and camera calibration costs you the job and the customer's time. Setting targets by hand is slow, and one bad measurement fails the procedure. Then the alignment still needs its own machine.

The Autel MaxiSYS IA900AST brings alignment and full ADAS calibration in-house on one frame. Six HD cameras read the wheel targets and guide frame placement. The All Systems kit adds targets, patterns and calibrators for cameras, radar, LIDAR and night vision units, and the MaxiSYS Ultra ADAS tablet and activation card are included.

Why Choose the IA900AST

Frame, full calibration kit and tablet in one package.

• All Systems calibration equipment — cameras, radar, LIDAR and night vision units
• MaxiSYS Ultra ADAS tablet included — diagnostics, alignment and calibration from one tablet
• 0.02° alignment accuracy from six 3072 × 2048 HD cameras
• Optical frame positioning — Autel rates it 6x faster than mechanical measuring

What's Included

• IA900WA calibration frame (AUTEL-CSC9000) with 24 in touchscreen display
• MaxiSYS Ultra ADAS diagnostic tablet
• ADAS activation card
• Autel LDW target package
• All Systems calibration equipment: targets, patterns and calibration components for cameras, radar, LIDAR and night vision units
• 4 wheel clamps, 4 wheel targets, distance target, steering wheel lock, brake lock and 2 wheel chocks

Made For

Built for shops that want every ADAS calibration done in their own bay.

• Collision repair shops recalibrating cameras and radar after repairs
• ADAS calibration centers
• Auto repair shops adding ADAS calibration to alignment work
• Dealership service departments
• Glass shops recalibrating forward cameras after windshield replacement

Features

• 6 HD cameras, 3072 × 2048 each — read the wheel targets and frame position
• 0.02° accuracy — alignment readings you can stand behind
• 24 in touchscreen — live readings, required tools and adjustment points on one screen
• Robotic crossbar height — 325–2,175 mm range at 50 mm/s
• 108.66 in crossbar — folds to 48.82 in for storage
• Unlevel floor compensation — level floor, unlevel floor or on a rack
• Pre/post scan reports — document every calibration for insurance
• 100–264V, 260 W — runs on a standard grounded outlet

Optical Frame Placement

The frame cameras recognize the targeted wheel clamps and calculate the frame's angle, distance and offset to the vehicle. On-screen prompts tell you which way to move or turn the frame. A green check appears for each value once it is in position.

Press a button and the crossbar drives to the correct calibration height. It keeps tracking the vehicle on the lift, from full alignment height down to 6 in.

Full ADAS Coverage Plus Alignment

The All Systems kit covers forward cameras, radar, LIDAR and night vision. Autel's LDW targets and patterns cover brands including Mercedes-Benz, Nissan, Hyundai, Kia, Toyota, Lexus, Mazda, Subaru, Volkswagen and Audi.

The included Ultra ADAS tablet runs the pre-scan, the 4-wheel alignment and the calibration. Wheelbases from 80 to 220 in and tires from 19 to 37 in are supported, and the post-scan report documents every calibration performed.

The Right Wheel Aligner for Your Shop

The Autel IA900AST puts 0.02° 3D wheel alignment, the full All Systems ADAS kit and the Ultra ADAS tablet in one package.

Don't wait — scroll back up and click the orange Add to Cart button to get this ADAS calibration package on its way to your shop.

Technical Specifications

Owner's Manual

Download the Autel MaxiSYS IA900WA User Manual (PDF)
