Autel MaxiSYS IA700T ADAS Calibration Frame with MS909 Tablet and Alignment Pre-Check

ADAS Calibration Frame and MS909 Diagnostic Tablet With Optical Target Positioning and Alignment Pre-Check

ADAS calibration starts with a straight car and a target in exactly the right spot. Measure it by hand, get it a little off, and the camera fails calibration.

The Autel MaxiSYS IA700T uses a robotic crossbar and 6 HD positioning and tracking cameras to place the target, run a wheel alignment pre-check and compensate for an unlevel floor. This package adds the MaxiSYS MS909 tablet and the ADAS calibration software upgrade card, so the frame is ready to work out of the box.

Why Choose the IA700T

Frame, tablet and ADAS software in one package, with optical target positioning.

• MaxiSYS MS909 tablet with wireless VCI and J2534 pass-thru device included
• ADAS calibration software upgrade card for static and dynamic calibration on most U.S., Asian and European ADAS-equipped vehicles
• Robotic crossbar with 6 HD cameras positions the target optically, no tape measure
• Wheel alignment pre-check before every calibration

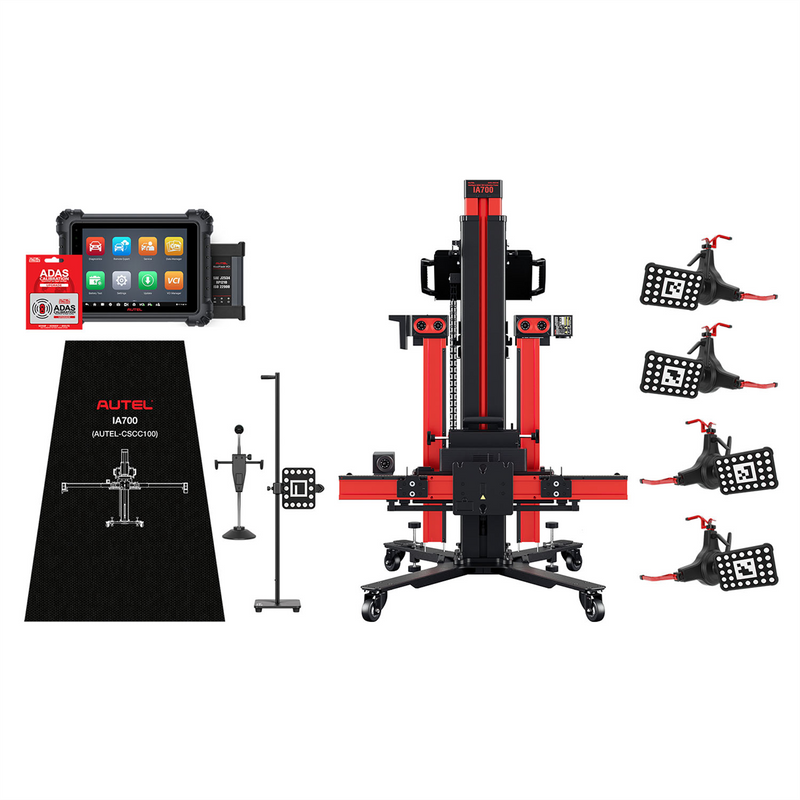

What's Included

• IA700 modular ADAS calibration frame with robotic crossbar
• MaxiSYS MS909 diagnostic tablet with wireless VCI and J2534 pass-thru device
• ADAS calibration software upgrade card
• 4 tire clamps with camera targets
• Steering wheel lock, brake chocks, power supply, alignment aid and frame cover

Made For

Built for shops that want ADAS calibration in-house instead of subletting it.

• Collision repair shops recalibrating cameras after repairs
• Auto repair shops adding ADAS calibration to their services
• Tire and alignment shops
• Dealership service departments
• Glass shops recalibrating forward cameras after windshield replacement

Features

• 6 HD positioning and tracking cameras — optical target positioning
• Robotic crossbar — sets the vertical calibration position automatically
• Wheel alignment pre-check — confirms the vehicle is within OE tolerance before you calibrate
• Unlevel floor compensation — the system prompts the correction
• MaxiSYS MS909 tablet — runs diagnostics and the calibration procedures
• Wireless VCI and J2534 pass-thru — supports the latest vehicle protocols

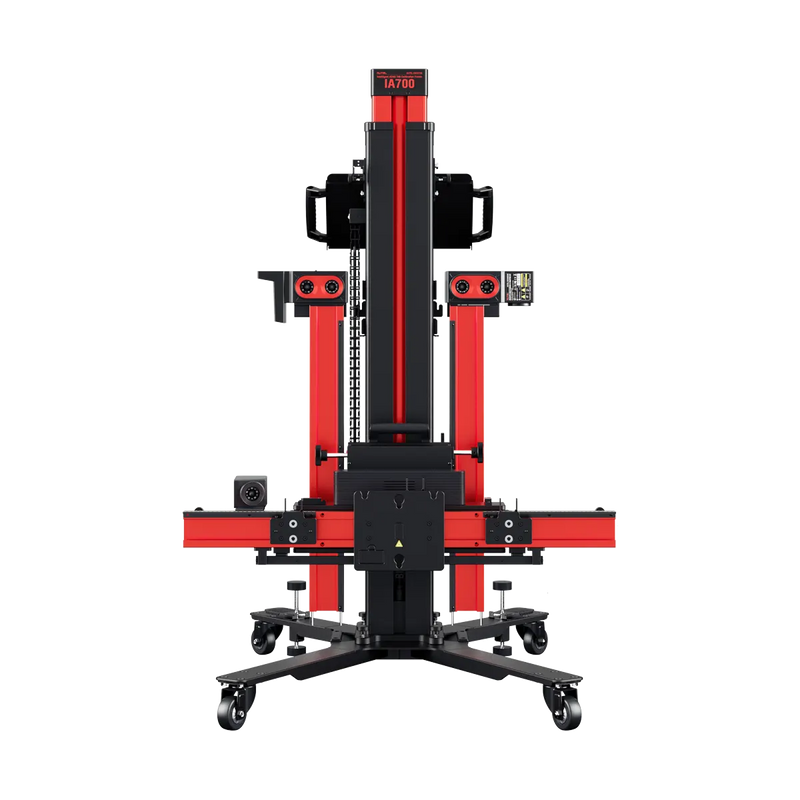

• Modular frame — disassembles quickly for transport or storage

Optical Positioning Instead of a Tape Measure

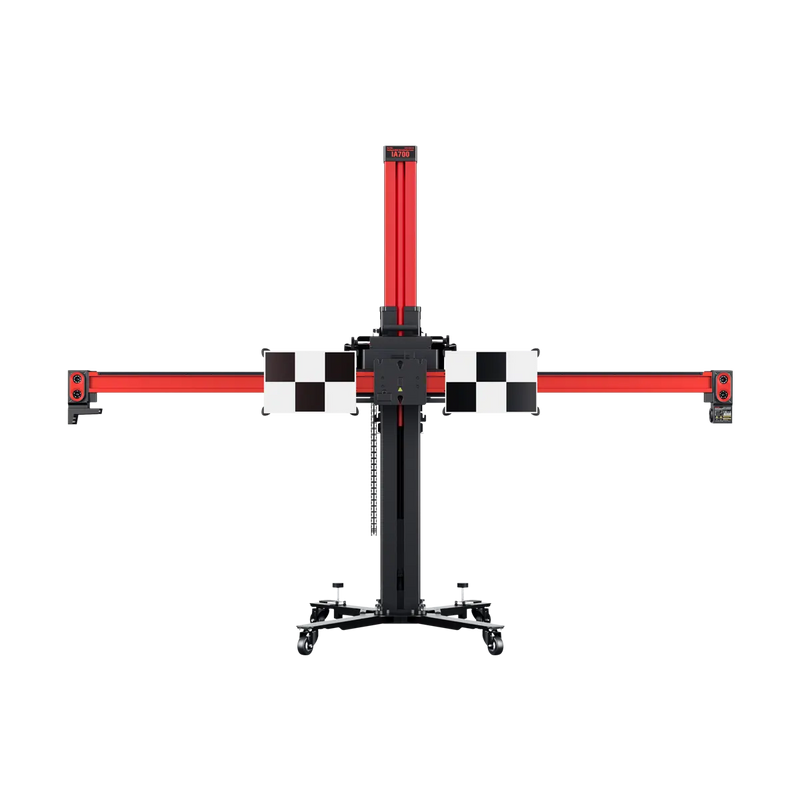

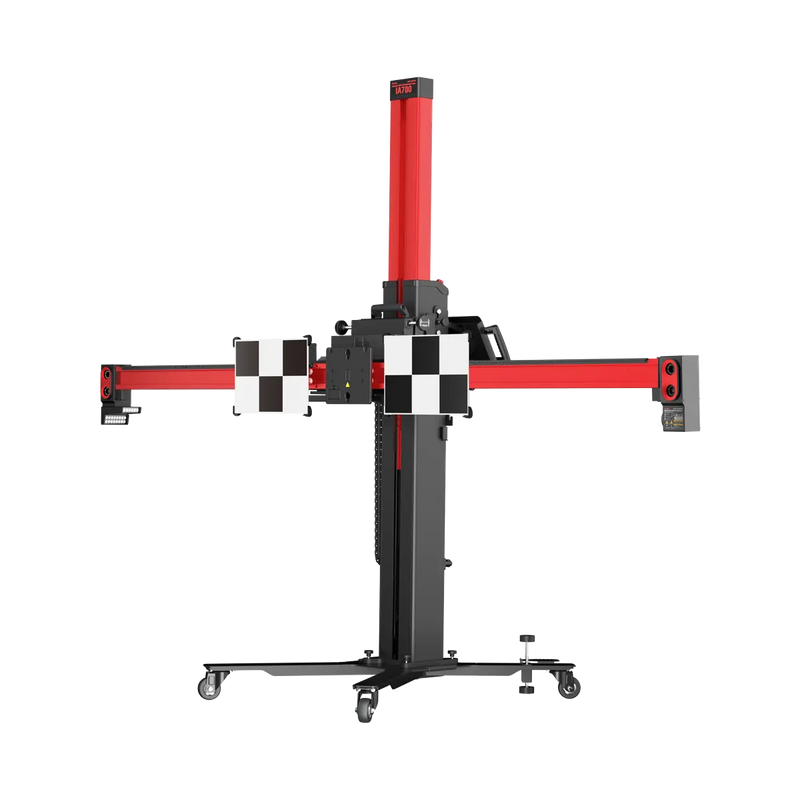

Six HD cameras on the IA700 frame track the camera targets on the 4 tire clamps and calculate the angle, distance and offset of the frame to the vehicle. On-screen prompts tell you how to move the frame until every value checks green.

The robotic crossbar sets the vertical calibration position with 0.02° accuracy, and the system prompts you to correct for an unlevel floor or a rack.

Tablet and Software in the Box

The MaxiSYS MS909 tablet comes with a wireless VCI and J2534 pass-thru device, plus the ADAS calibration software upgrade card. One tool handles the pre-scan, the alignment pre-check, the calibration and the report.

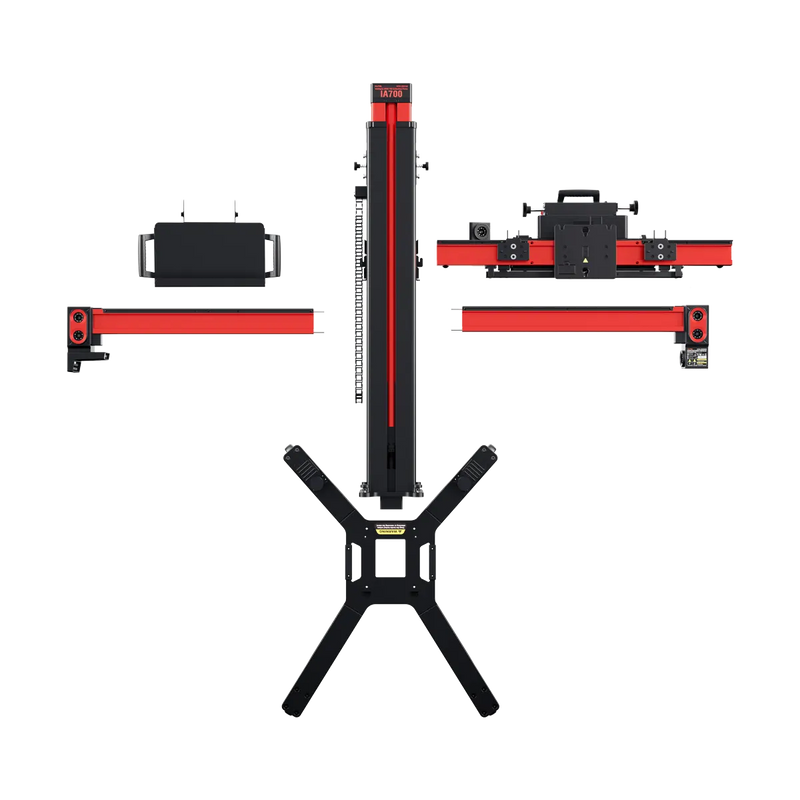

The frame takes MA600 and IA900 targets, patterns and calibration components. Add the target packages your work calls for. When the job is done, the frame breaks down into 5 primary parts in under 90 seconds for transport or storage.

The Right ADAS Calibration System for Your Shop

The Autel MaxiSYS IA700T gives you optical target positioning, a robotic crossbar, a wheel alignment pre-check and the MaxiSYS MS909 tablet with ADAS software in one package.

Don't wait — scroll back up and click the orange Add to Cart button to get this ADAS calibration system on its way to your shop.

Technical Specifications
