Autel AULS14ALOR1 Alignment Scissor Lift 14,000 lb. Capacity

14K Alignment Scissor Lift with Jacking Beams for Service and Alignment

An alignment rack that only does alignments sits empty half the day. And every time a car has to come off the rack for brakes or suspension work, you lose time moving it to another bay.

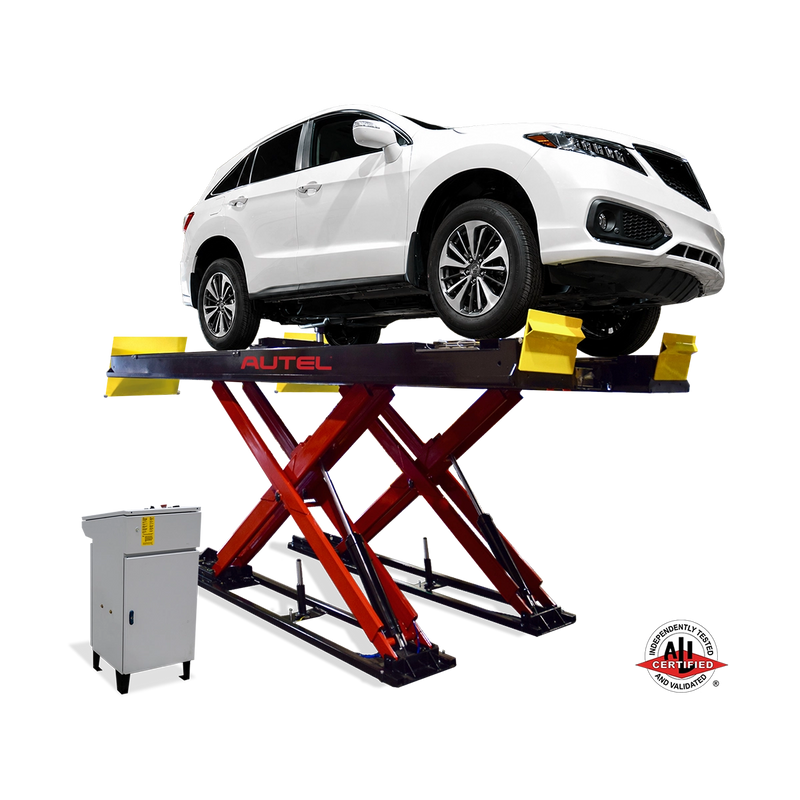

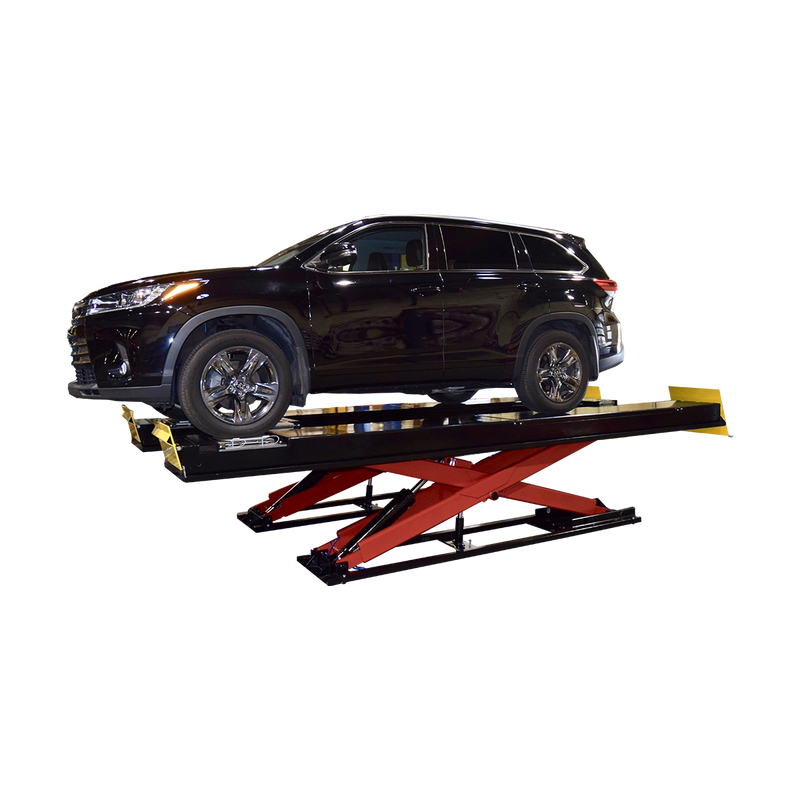

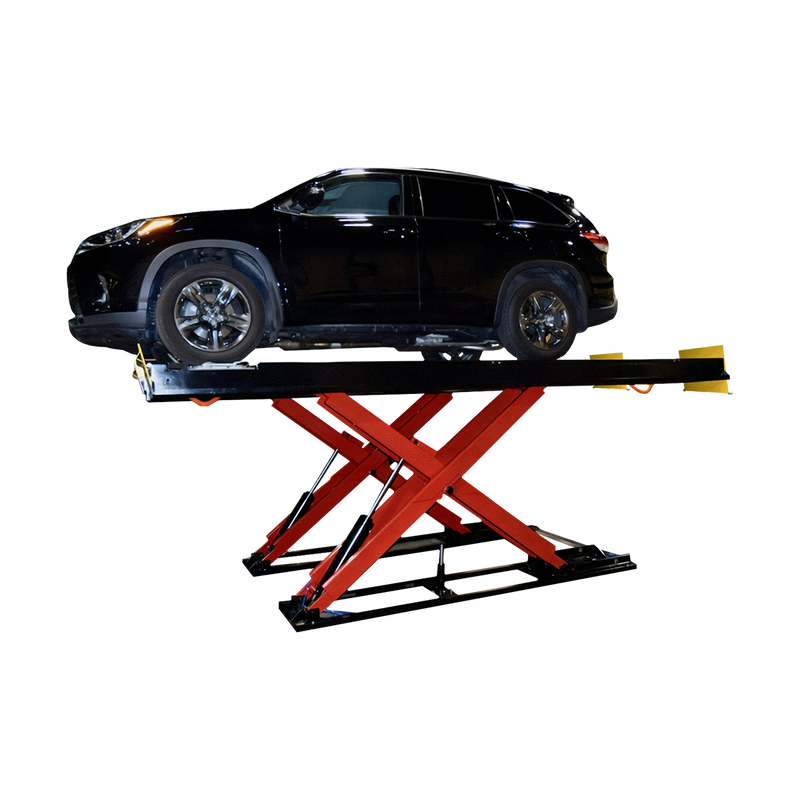

The Autel AULS14ALOR1 is a 14,000 lb alignment scissor lift for passenger cars and light trucks. It comes with two 7,000 lb jacking beams for wheels-free work, stainless steel radius and slip plates, and air and LED lighting built into the runways.

Why Choose the AULS14ALOR1

One lift for alignment and general service, rated for 14,000 lb.

• Two 7,000 lb jacking beams included — lift the wheels off the runways for brake, suspension and tire work
• Stainless steel front radius plates and rear slip plates with turn plate pocket protectors
• Air tire inflation at each wheel and shatterproof LED lighting with automatic shut-off
• ALI certified and made in North America

What's Included

• Autel AULS14ALOR1 alignment scissor lift
• Two 7,000 lb jacking beams
• Stainless steel front radius plates and rear slip plates
• Approach ramps
• Runway air tire inflation kits and LED light kits

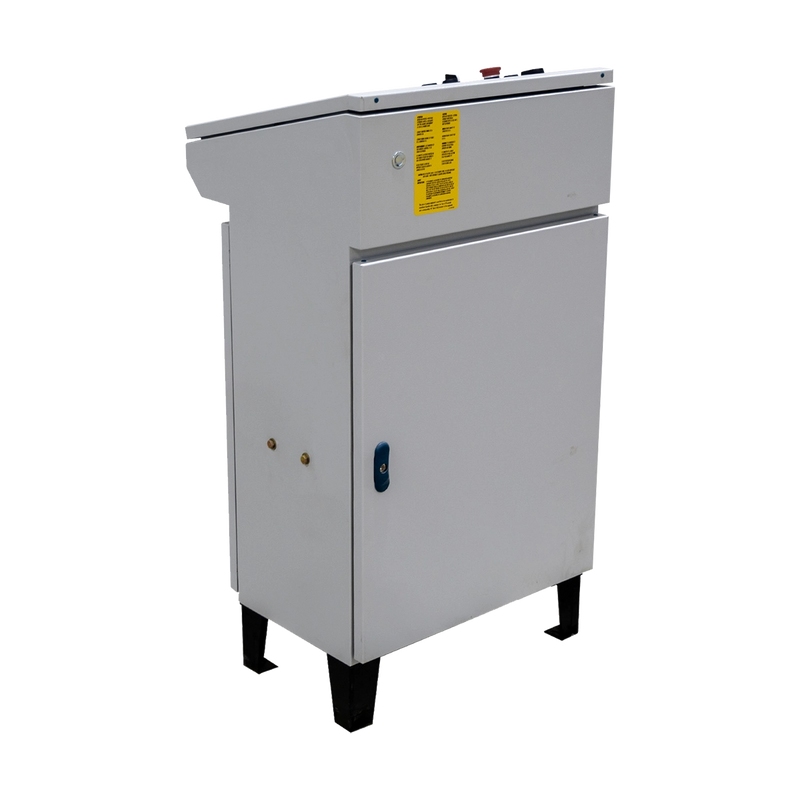

• Enclosed console control power unit

Made For

Built for shops that do alignments and want the same bay for undercar work.

• Auto repair shops adding or upgrading an alignment bay
• Tire shops doing alignments on every set of tires
• Dealership and fleet service departments
• Collision repair shops checking alignment after repairs
• Light truck and SUV service shops

Features

• 14,000 lb lifting capacity — passenger cars and light trucks
• Two 7,000 lb jacking beams — wheels-free service on the same lift
• 203 in long, 23 in wide runways — double-wide design with built-in Z rails for a rigid, flat deck
• 74 in raised height — room to work standing under the vehicle
• 58 second lift time — fast up and down between jobs
• Stainless steel radius and slip plates — with pocket protectors to protect paint
• Front and rear opening runways — flip-down wheel stops and low-angle approach ramps
• Double-baked powder coat and industrial rust proofing — finish built for shop conditions

Alignment-Ready Runways

The 203 in runways are double-wide with built-in Z rails, which keeps the deck from sagging or flexing. A flat deck is what you need for accurate alignment readings.

Stainless steel front radius plates and rear slip plates sit in pockets with protectors to guard the paint. The stainless steel air lock release means longer life and less maintenance.

Four-wheel alignments fit wheelbases from 84 in up to 164-1/2 in.

Built-In Air, Light and Jacking Beams

Each wheel position has a built-in air tire inflation kit, so tire pressures get set without dragging a hose across the bay. Shatterproof LED lights under the runways shut off automatically.

The two 7,000 lb jacking beams lift the vehicle off its wheels for brake, suspension and tire work. Controls sit in an enclosed console power unit running on 230V single phase.

The Right Scissor Lift for Your Shop

The Autel AULS14ALOR1 gives you a 14,000 lb alignment lift with two jacking beams, stainless steel plates, and air and lighting built into the runways — alignment and service in one bay.

Don't wait — scroll back up and click the orange Add to Cart button to get this alignment lift on its way to your shop.

Technical Specifications
