15,000 lb Overhead 2-Post Lift — Extra Tall, Extra Wide, Built for Heavy-Duty Service
When your shop services box trucks, heavy-duty pickups, and commercial vehicles, a standard 10,000 lb lift won't cut it. You're either turning away work or running equipment past its rated capacity — neither is acceptable when safety and revenue are on the line.

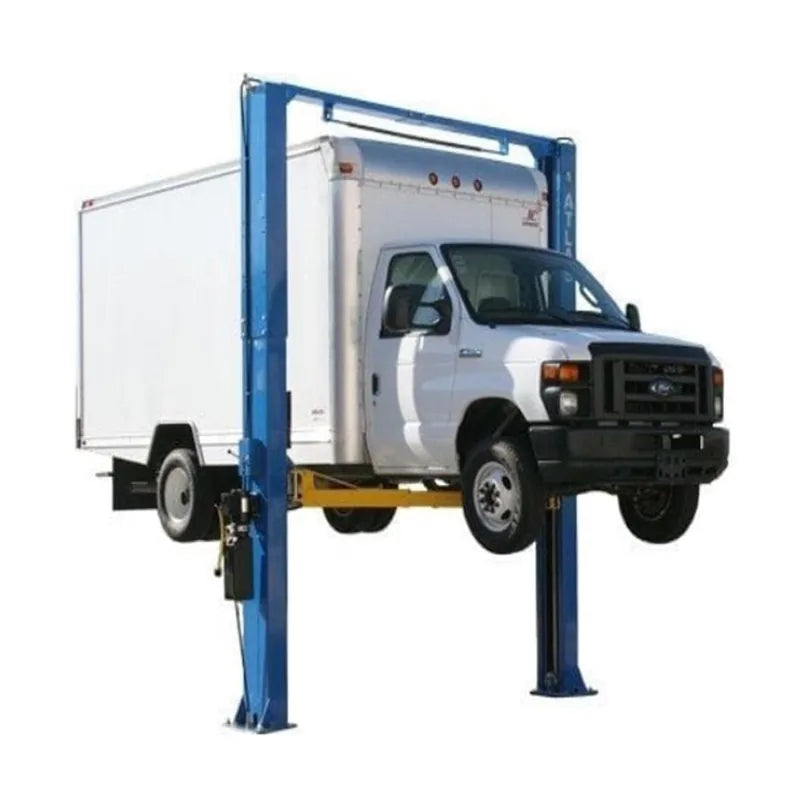

The Atlas PV15PX delivers 15,000 lbs of lifting capacity in an extra-tall, extra-wide overhead 2-post design with symmetric arms, direct-drive cylinders, and three adjustable height settings up to 177". It's built for shops that need to lift the heaviest vehicles in their bay without compromise.
What's Included
- Atlas PV15PX 15,000 lb overhead 2-post lift
- 12-piece truck adapter set
- Mounting hardware
Made For
Built for commercial shops servicing heavy-duty trucks, vans, box trucks, and fleet vehicles that demand a high-capacity, extra-clearance lift.
- Heavy-duty truck and fleet service centers
- Commercial vehicle maintenance shops
- Municipal and government fleet facilities
- Dealership service departments handling full-size trucks
- Body shops and collision centers working on large vehicles
Features
-
15,000 lb. lifting capacity — handles box trucks, heavy-duty pickups, commercial vans, and fleet vehicles without approaching the limit
-
Adjustable column height (165" / 177" / 150") — three height settings to match your ceiling clearance, with a special low-height 150" option available with extra cables
-
Extra-wide column spacing — 123 1/2" inside column distance and 109 1/2" drive-through clears wide-body trucks and vehicles with extended mirrors
-

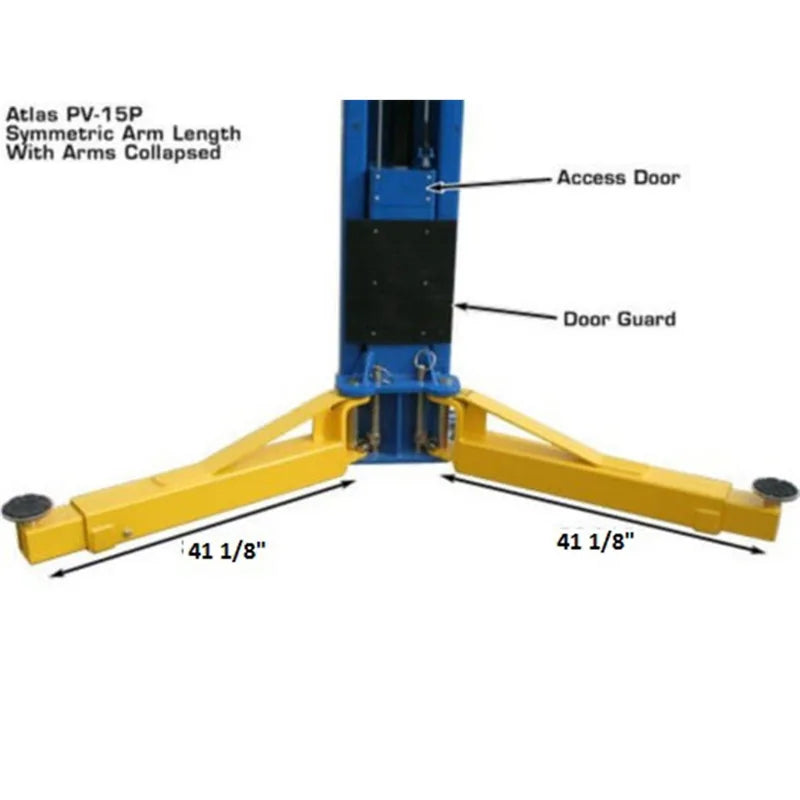

Symmetric arms — centers the vehicle between columns for balanced, stable lifting on heavy loads
-
Direct-drive cylinders — no chains to maintain, smoother operation, and fewer wear points over the life of the lift
-
Automatic arm restraints — arms lock into position for consistent, safe placement every time
-

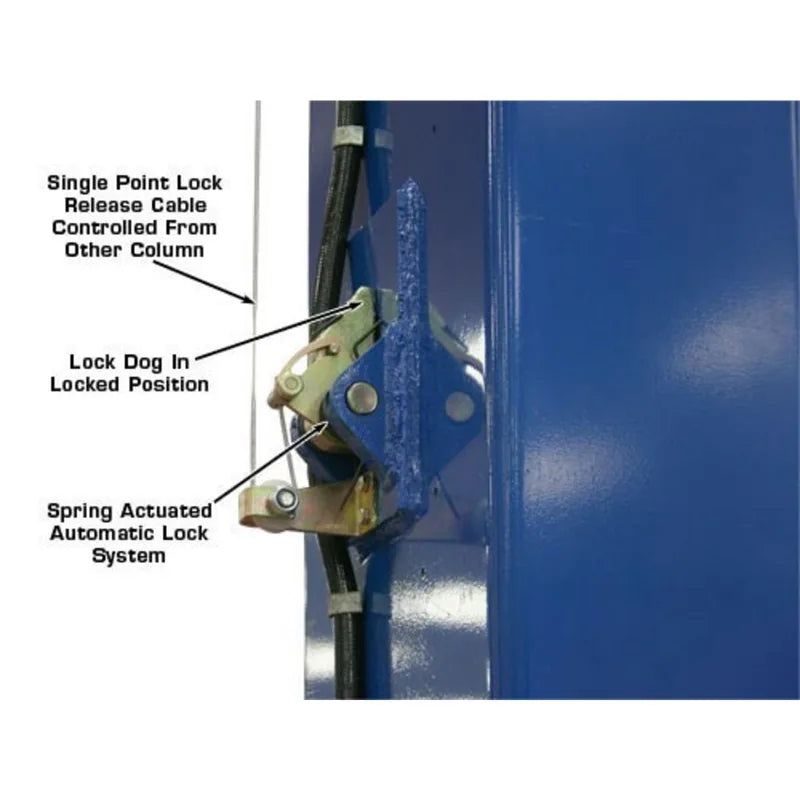

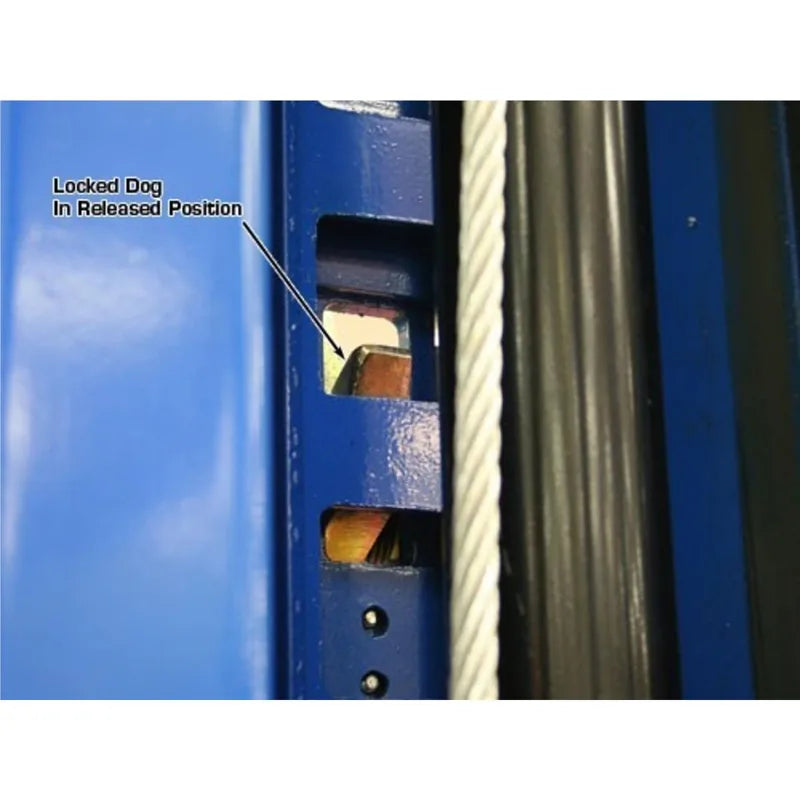

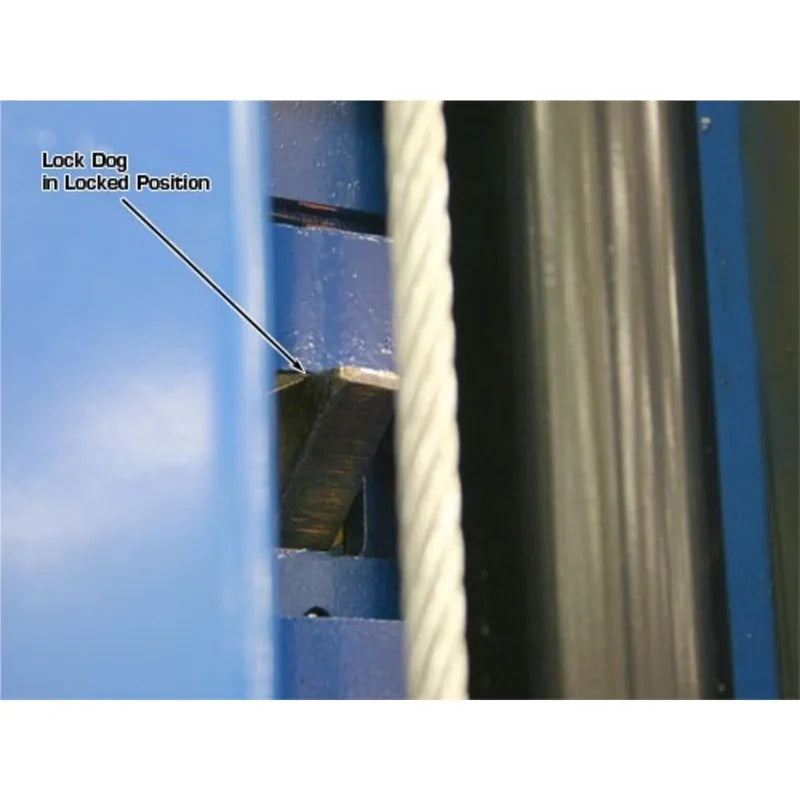

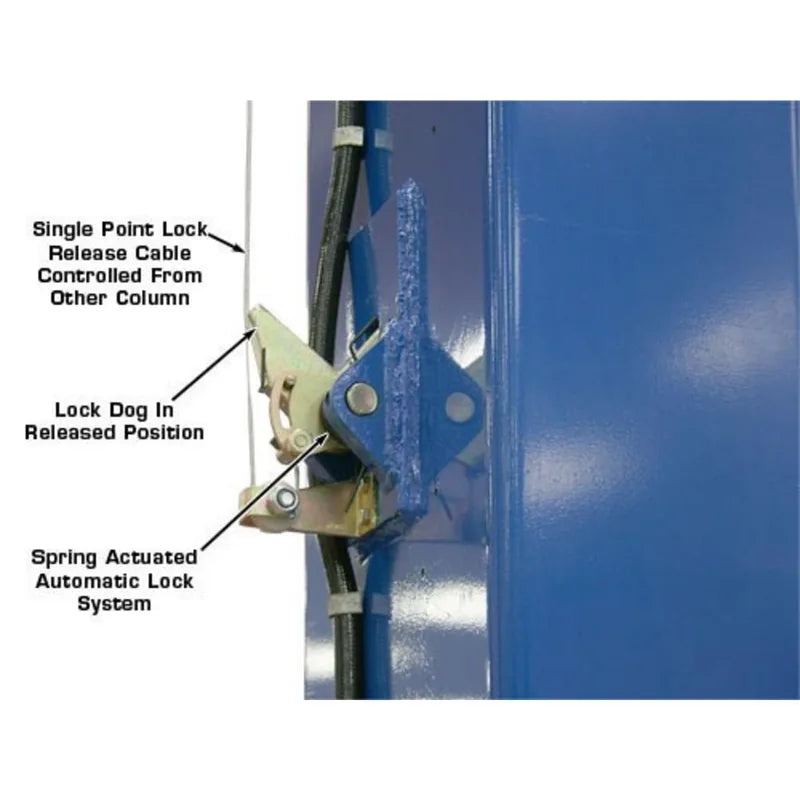

Single-point lock release — lower the lift from one location instead of releasing each arm individually
-
Door guards on carriages — protect vehicle doors from contact with the lift columns during positioning
-
Padded shut-off bar — prevents over-travel and protects vehicle underbodies
-
Powder coat finish — resists chips, corrosion, and shop chemicals for long-term durability
Extra-Wide Drive-Through for Large Vehicles
Standard 2-post lifts force you to fold mirrors and hold your breath driving wide-body trucks between the columns. The PV15PX's 109 1/2" symmetric drive-through and 123 1/2" inside column spacing give you the clearance to drive in full-size trucks, vans with extended mirrors, and commercial vehicles without repositioning or risking contact.
That extra width also means more room to work once the vehicle is up. Technicians can move freely around the vehicle without bumping into columns — which translates directly into faster service times and fewer frustrations during the workday.
Three Height Settings for Maximum Flexibility
Not every shop has the same ceiling height, and not every vehicle needs the same overhead clearance. The PV15PX offers three column height configurations: 165" (13' 9"), 177" (14' 9"), and a special low-height option at 150" (12' 6") with the purchase of extra cables.
This means you can install the PV15PX in buildings that other 15,000 lb lifts won't fit — and still get the full 72 1/4" of lift height (81" with adapters) regardless of which column setting you choose. The included 12-piece truck adapter set handles the full range of lift point configurations you'll encounter on heavy-duty vehicles.
The Right Heavy-Duty 2-Post Lift for Your Shop
The Atlas PV15PX gives you 15,000 lbs of capacity, extra-wide symmetric columns, adjustable height up to 14' 9", and direct-drive cylinders in a commercial-grade package. With the included truck adapter set and mounting hardware, you're ready to install and start lifting on day one. Don't wait — scroll back up and click the orange Add to Cart button to get this heavy-duty 2-post lift on its way to your shop.
