10,000 lb 2-post car lift — adjustable height, asymmetric and symmetric arms
When your shop handles everything from sedans to full-size trucks, you need a lift that doesn't force you to choose between capacity and versatility. An undersized lift limits the vehicles you can take on. An oversized one wastes floor space and budget on capacity you rarely use.

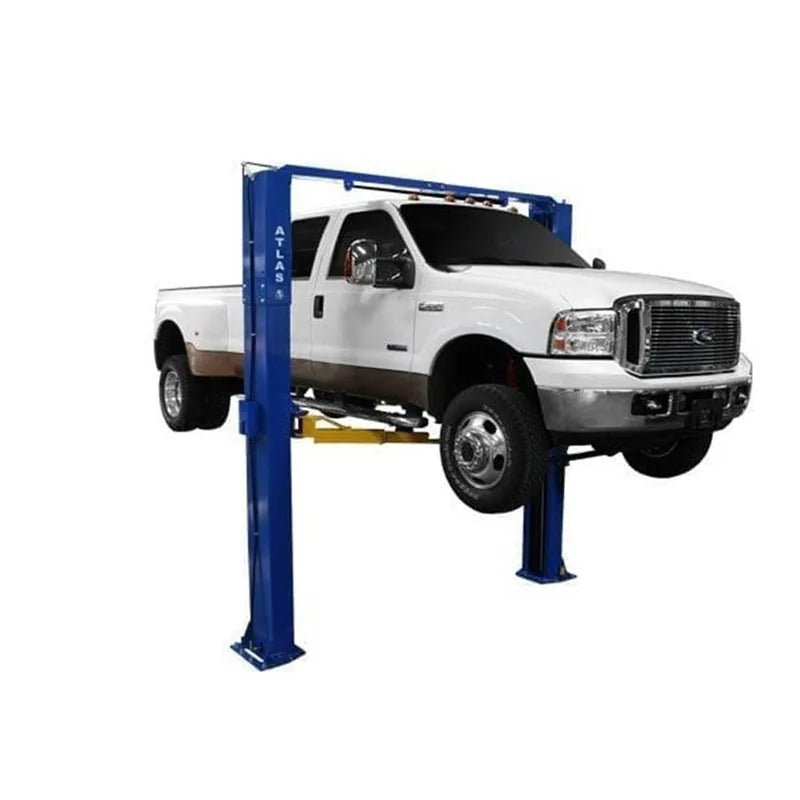

The Atlas PV10PX gives you 10,000 lbs of lifting capacity with both asymmetric and symmetric arm configurations, adjustable column height, and direct-drive cylinders — all in a commercial-grade overhead 2-post design built for daily shop use.
What's Included
- Atlas PV10PX 10,000 lb overhead 2-post lift
- 12-piece truck adapter set
- Mounting hardware
Made For
Built for shops running a mixed workload of cars, trucks, and SUVs that need a reliable 10,000 lb lift.
- Independent auto repair shops
- Dealership service departments
- Fleet maintenance facilities
- Body shops and collision centers
- Serious home garages and hobby builders
Features
-
10,000 lb. lifting capacity — handles full-size trucks, SUVs, and commercial vehicles
-
Asymmetric and symmetric arm positions — switch configurations to fit different vehicle types and lift point layouts
-
Adjustable column height — set to 143 1/8" or 147" to match your ceiling clearance
-
Direct-drive cylinders — no chains to maintain, smoother operation, and fewer wear points
-

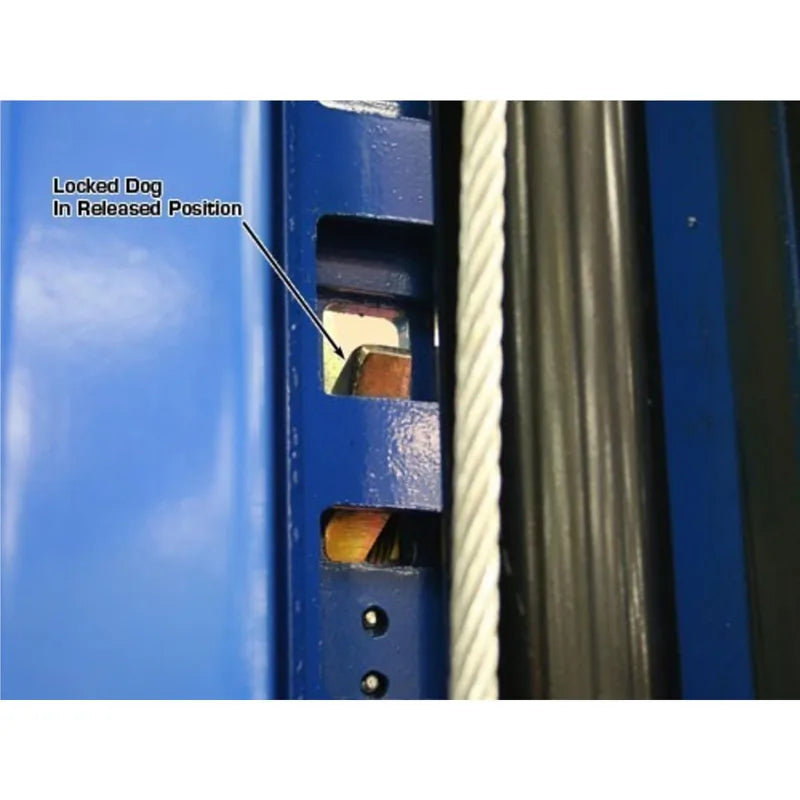

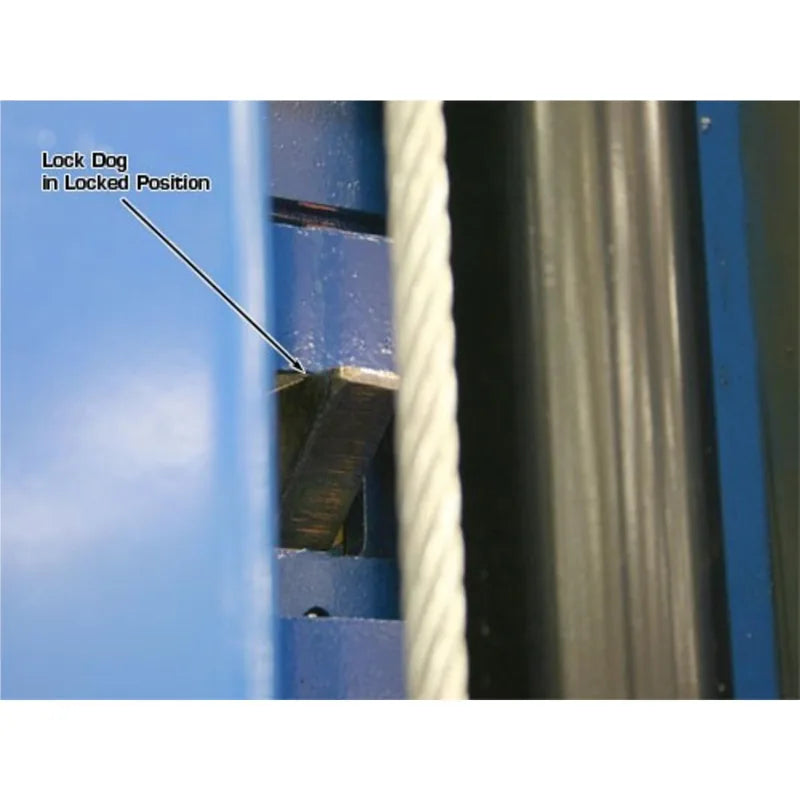

Automatic arm restraints — arms lock into position for consistent, safe placement every time
-

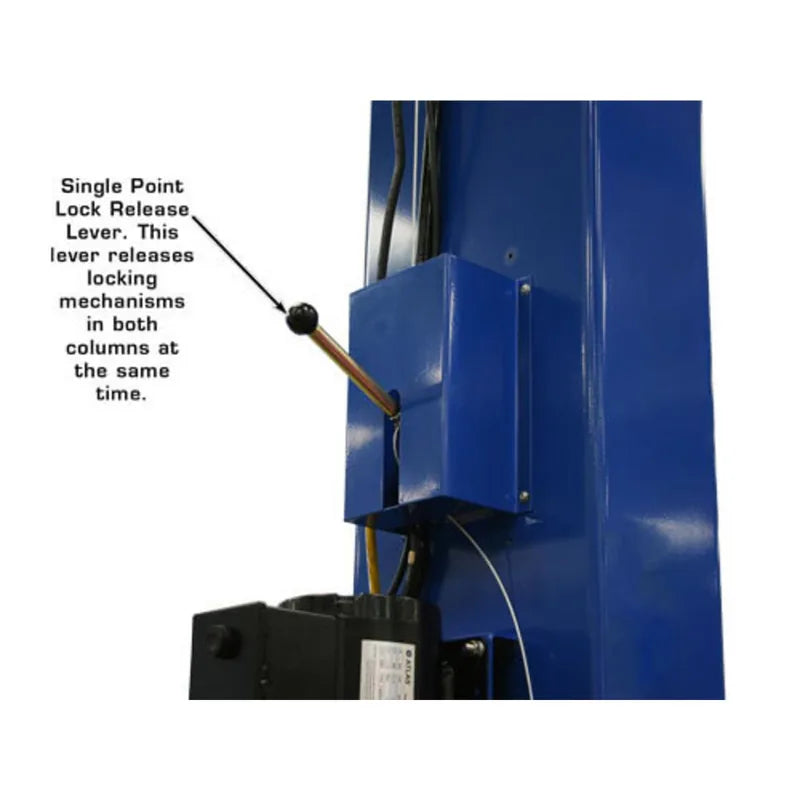

Single-point lock release — lower the lift from one location instead of releasing each arm individually
-

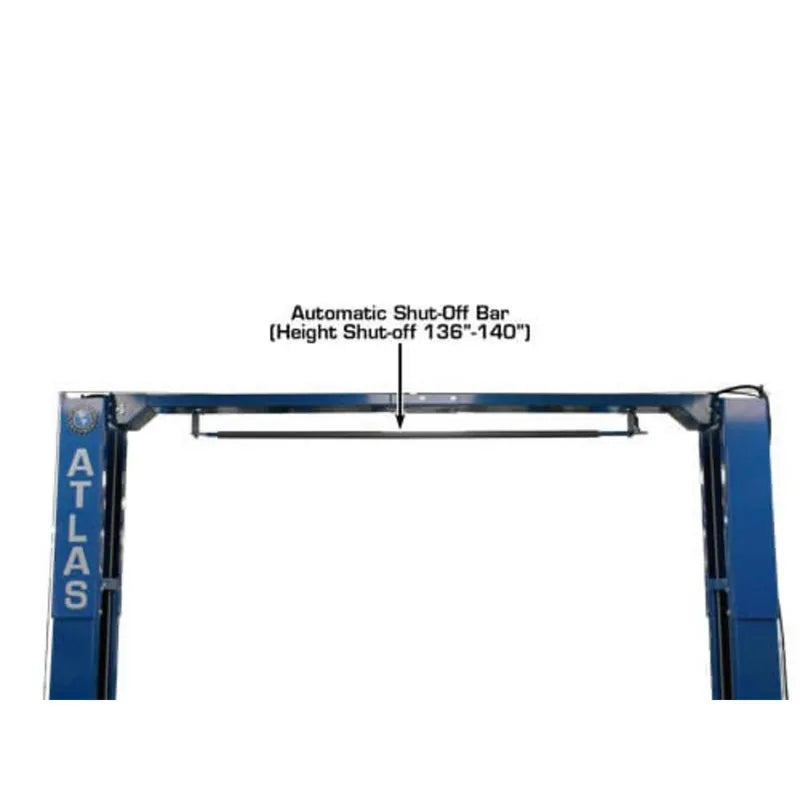

Padded carriages and shut-off bar — protect vehicle underbodies and prevent over-travel
-
Powder coat finish — resists chips, corrosion, and shop chemicals for long-term durability
Asymmetric and symmetric arms for maximum vehicle coverage
Most 2-post lifts lock you into one arm configuration. The PV10PX lets you run both asymmetric and symmetric positions, so you can optimize arm placement for everything from compact cars to long-wheelbase trucks.
Asymmetric positioning rotates the vehicle slightly so the driver's door clears the column — giving you better access without repositioning. Symmetric mode centers the vehicle for balanced lifting on heavier loads. Having both options means one lift handles your entire workload.

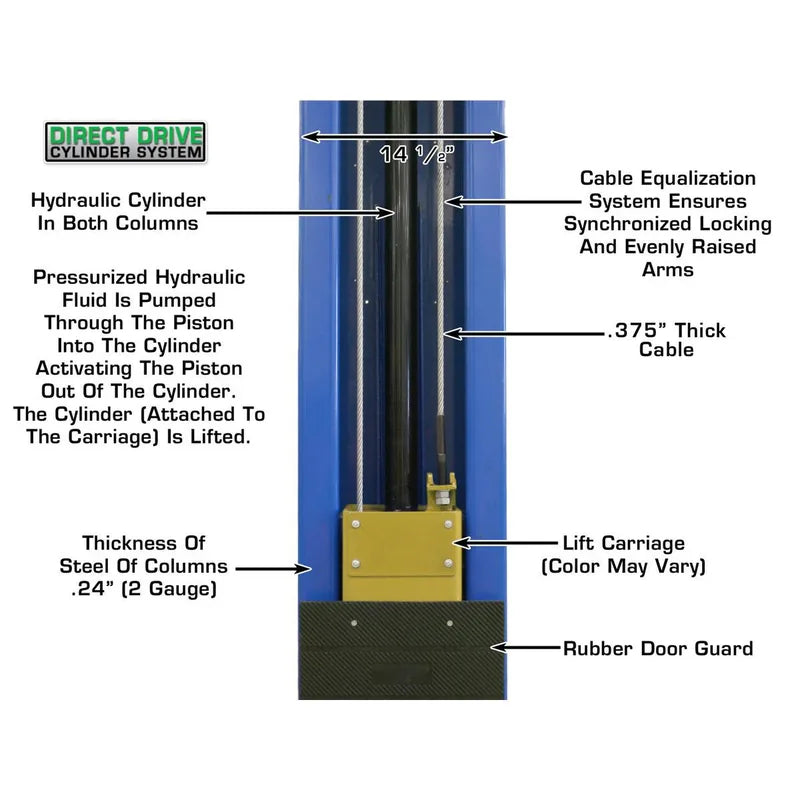

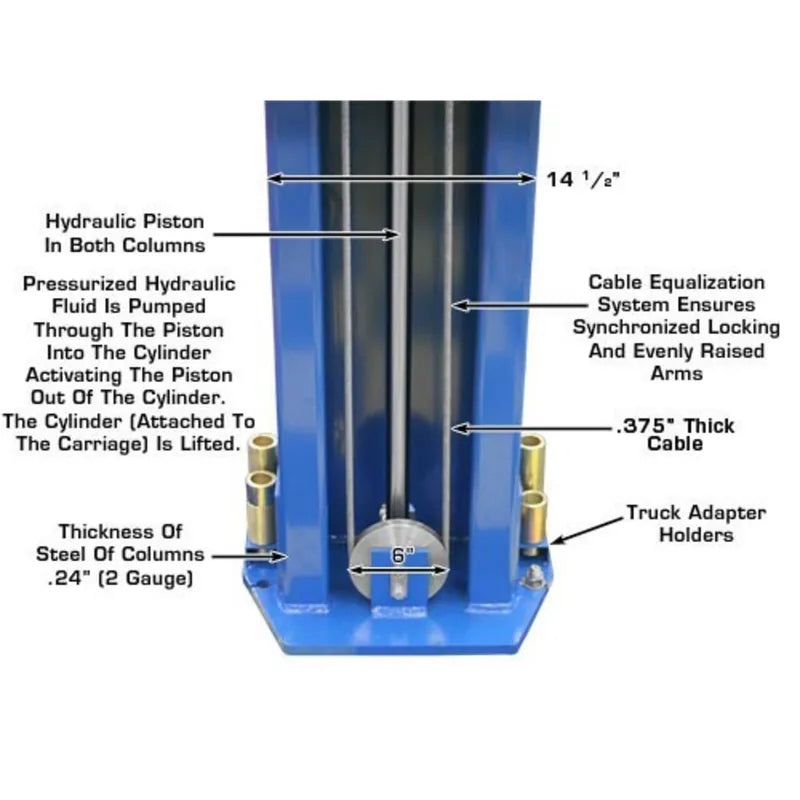

Direct-drive cylinders — no chains to maintain
Chain-drive systems work, but they add maintenance and wear points. The PV10PX uses direct-drive cylinders that connect hydraulic power straight to the carriages. Fewer moving parts means smoother lifting, less maintenance, and longer service life.

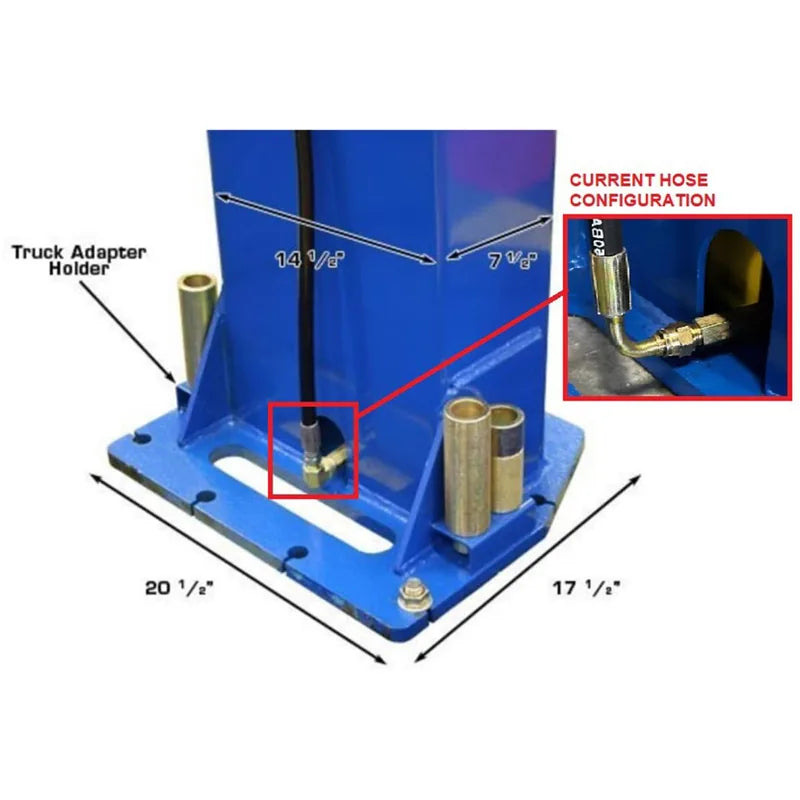

Combined with the 7 1/2" x 14 1/2" column footprint and 17 1/2" x 20 1/2" base, the lift delivers stable, even lifting through the full range of travel.
The right 2-post lift for your shop
The Atlas PV10PX gives you 10,000 lbs of capacity, dual arm configurations, adjustable height, and direct-drive cylinders in a commercial-grade package. With 72 1/2" max lift height (81 1/4" with adapters) and a 96 1/4" symmetric drive-through, it handles the full range of daily service work.
The included 12-piece truck adapter set and mounting hardware mean you're ready to install and start lifting on day one — no extra purchases needed.
Don't wait — scroll back up and click the orange Add to Cart button to get this 2-post lift on its way to your shop.
