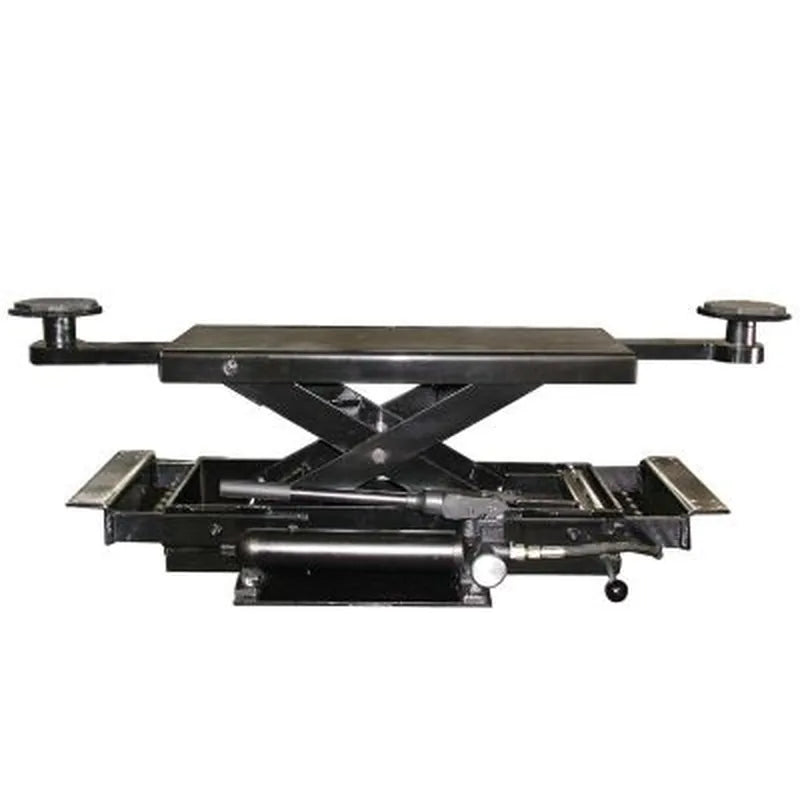

Atlas ProJack 35 3,500 lb Sliding Rolling Bridge Jack

by Atlas Automotive Equipment
$899.00 - $899.00
$899.00
$899.00 - $899.00
$899.00

Found a better price? We'll beat it! Call us now at +1 (855) 559-5589

Authorized Atlas Dealer | Covered by the manufacturer warranty

Ships free via freight curbside delivery to commercial addresses (lift gate available)

Estimated lead time: 1-3 business days

Eligible for our 30-day easy returns
SKU ATEXH-PROJACK35-FPD
Description

Add-on rolling bridge jack for the Atlas Garage PRO8000, PRO8000EXT, and PRO9000 8k–9k 4-post lifts.

3,500 lb Sliding Rolling Bridge Jack for Hobbyist 4-Post Lift Bays

A 4-post lift parks the vehicle by its tires. Anything that requires removing the wheels — brake rotors, tires, wheel bearings, shocks — means you need a jack that lives on the lift itself. The ProJack 35 is the matched sliding bridge jack for the Atlas Garage PRO line of 4-post lifts.

The ProJack 35 is a 3,500 lb capacity manual hydraulic sliding bridge jack that drops onto the runways of a hobbyist 4-post lift and lifts the vehicle off the runway at any point along the lift's length. Scissor mechanism for level lifting, multiple safety lock positions, and a 4-piece truck adapter set included — no shop air required, hand-pump operation.

What's Included

  • Atlas ProJack 35 sliding bridge jack with hand pump
  • 4-piece truck adapter set (2 each at 1-1/2" and 5")
  • Scissor lifting mechanism with multiple safety lock positions
  • Sliding bridge with adjustable arms

Made For

Built for hobbyist 4-post lift owners who want wheels-free service in their garage without running shop air to the lift.

  • Home garages with an Atlas Garage PRO8000, PRO8000EXT, or PRO9000
  • Small shops without compressed air at every lift
  • Compatible with APEX8, APEX9, 408SL, 409HP 4-post lifts

Features

  • 3,500 lb Capacity — Lifts the front or rear axle of vehicles up to roughly 7,000 lb gross.

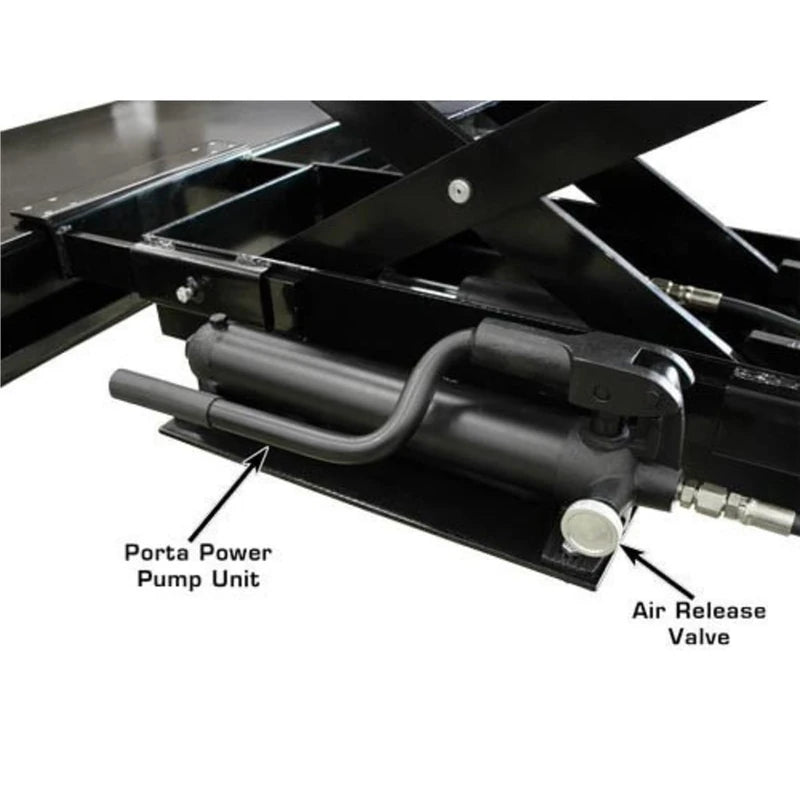

  • Manual Hydraulic Hand Pump — No shop air required. Hand-pump operation makes this the right jack for garages without compressed air at the lift.

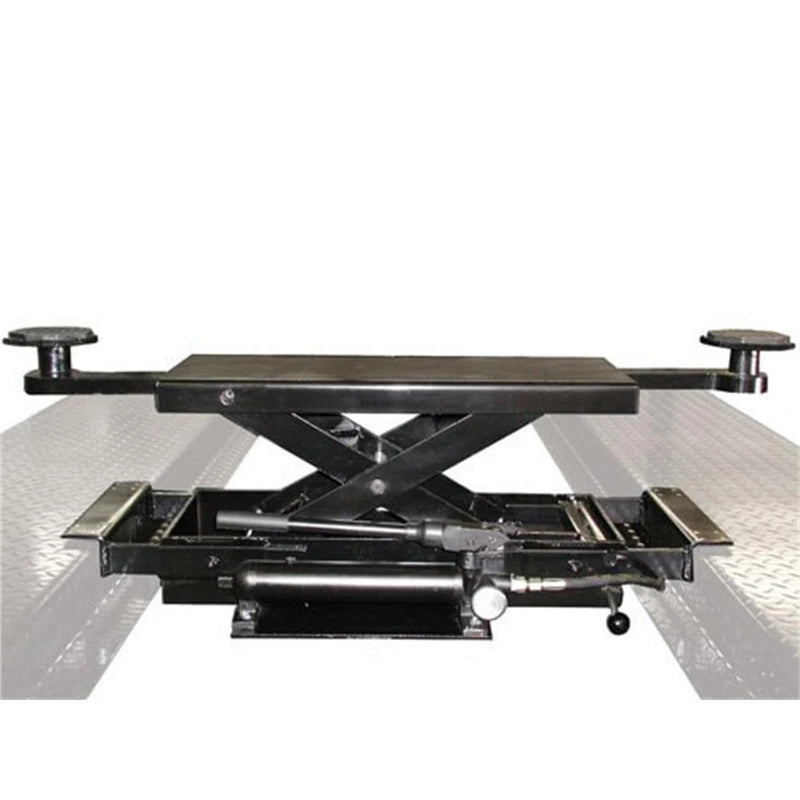

  • Sliding Bridge Design — The bridge slides along the runways to any working position.

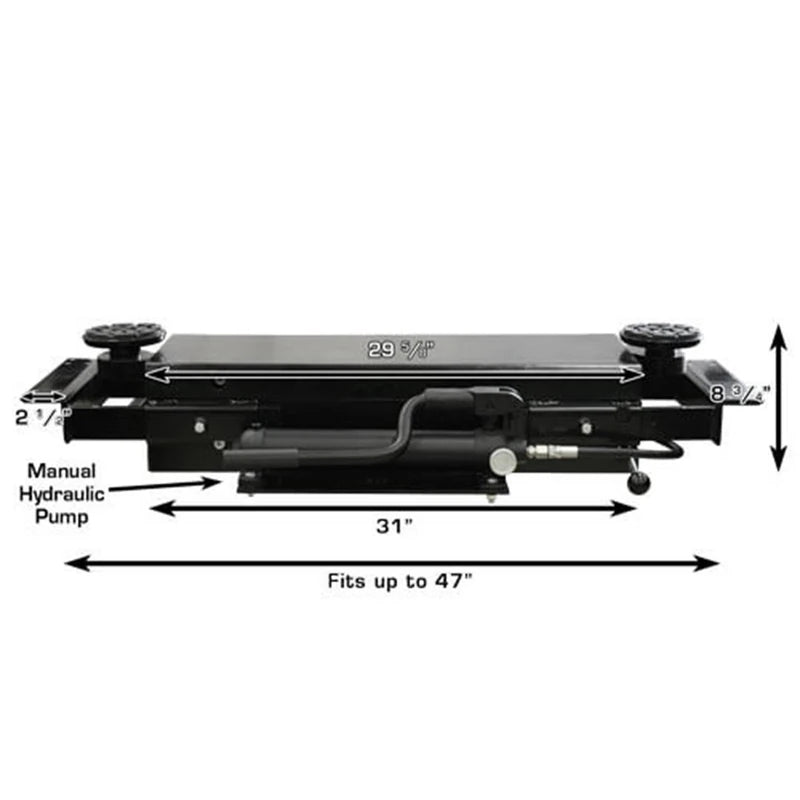

  • 20-1/2" to 47" Lower Extension Width — Fits the runway gap on most hobbyist 4-post lifts.

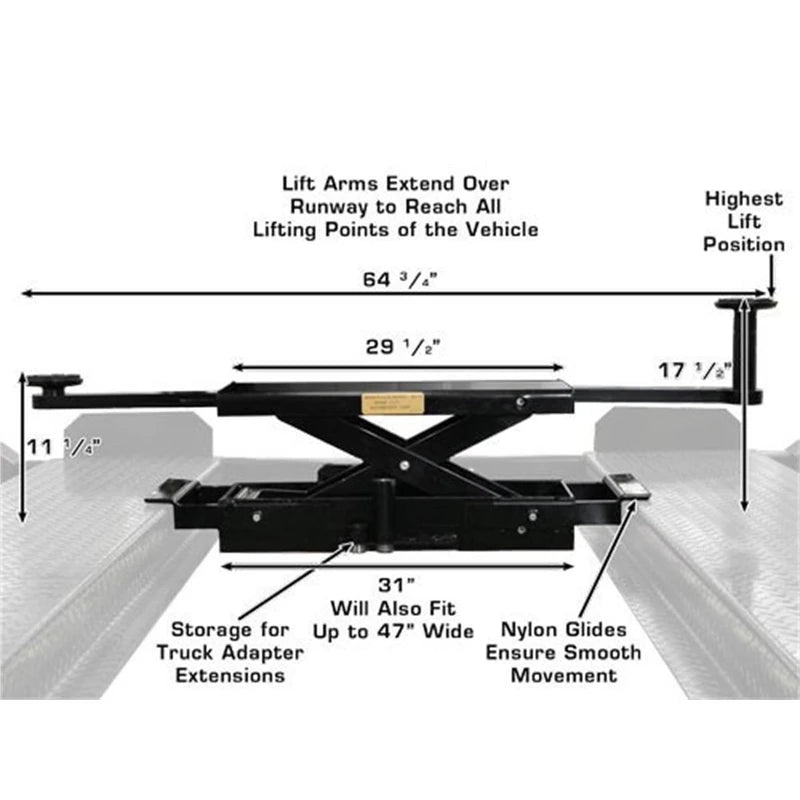

  • 39-1/2" to 64-3/4" Top Width — The lifting pads themselves adjust to span both narrow sedans and full-size trucks.
  • Scissor Mechanism for Level Lifting — Keeps the lifting pads level throughout travel.
  • Multiple Safety Lock Positions — Mechanical safety locks engage at multiple heights.

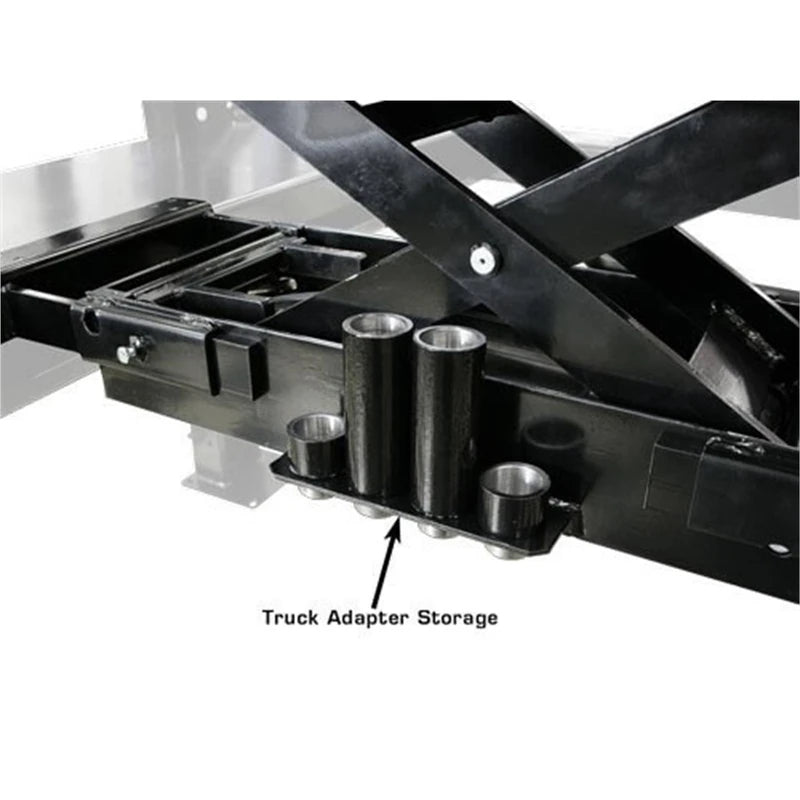

  • 4-Piece Truck Adapter Set Included — Two 1-1/2" and two 5" adapters in the box.
  • 17-1/4" Max Lift Height with Adapters — Enough working clearance for wheel removal and brake service.
Specs

Technical Specifications

Capacity 3,500 lb
Operation Manual hydraulic hand pump (no air required)

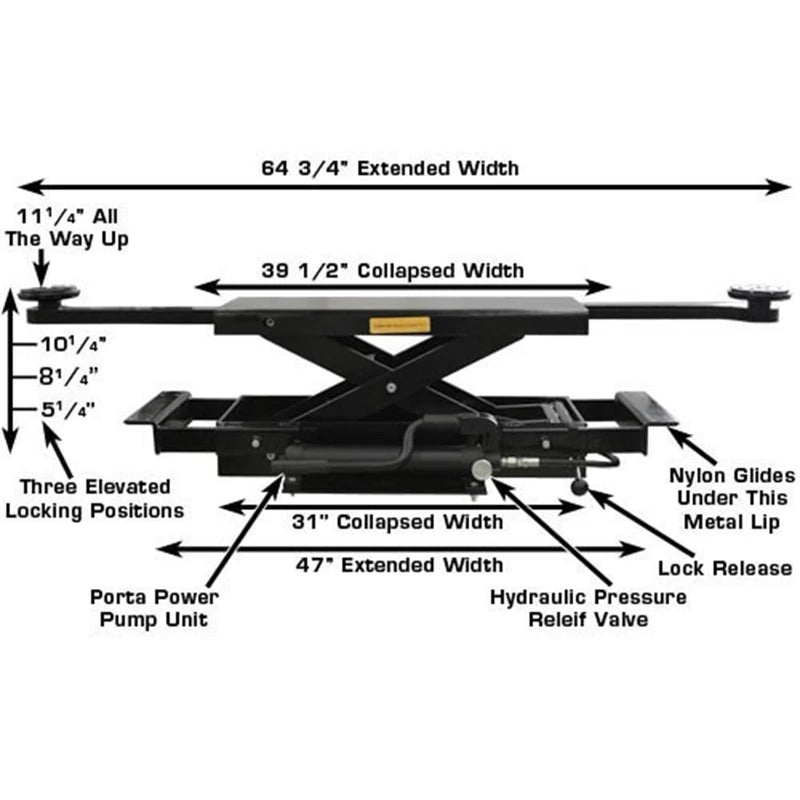

Lower Extension Width 20-1/2" to 47"
Top Width (Arms) 39-1/2" to 64-3/4"

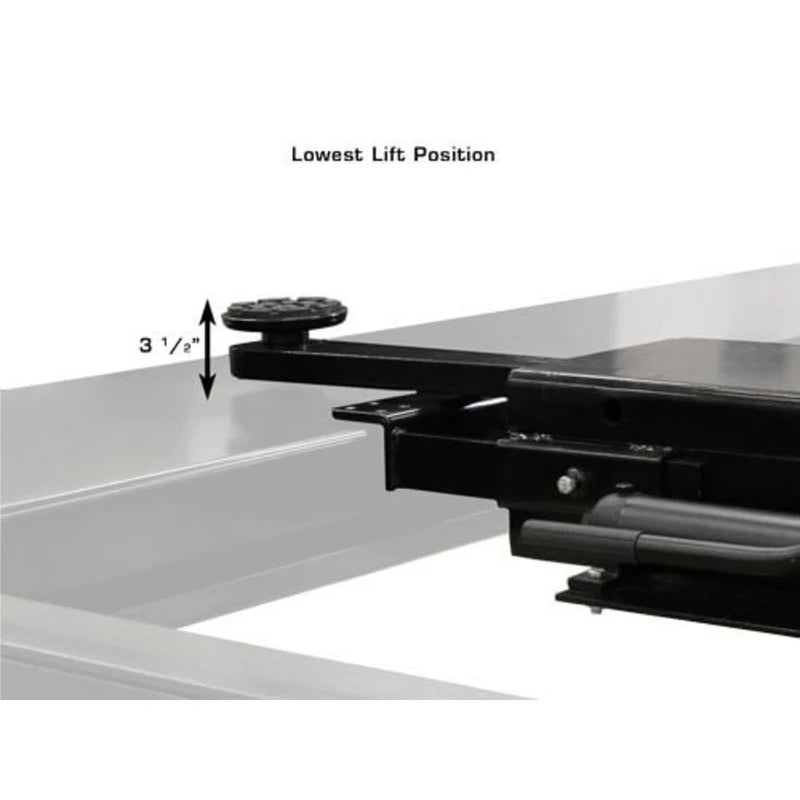

Min Pad Height Above Runway 3-1/2"
Max Height w/o Adapter 11"
Max Height w/ Adapters 17-1/4"

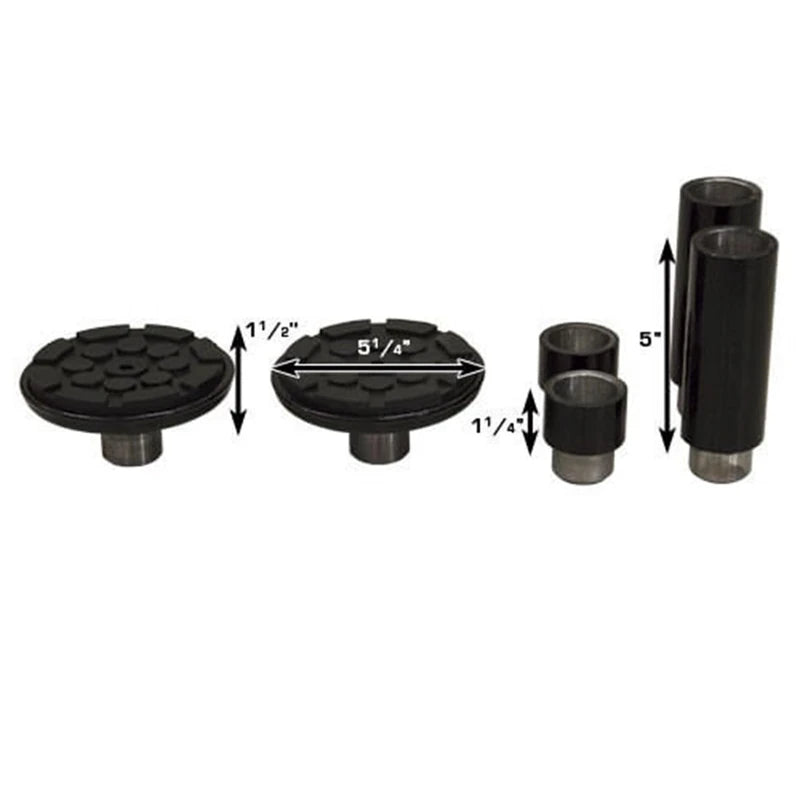

Adapter Heights 2 each at 1-1/2" and 5"
Arm Hole / Adapter Peg Size 1-1/2"
Shipping Weight 350 lb
UPC 810524020350
SKU ATEXH-PROJACK35-FPD
