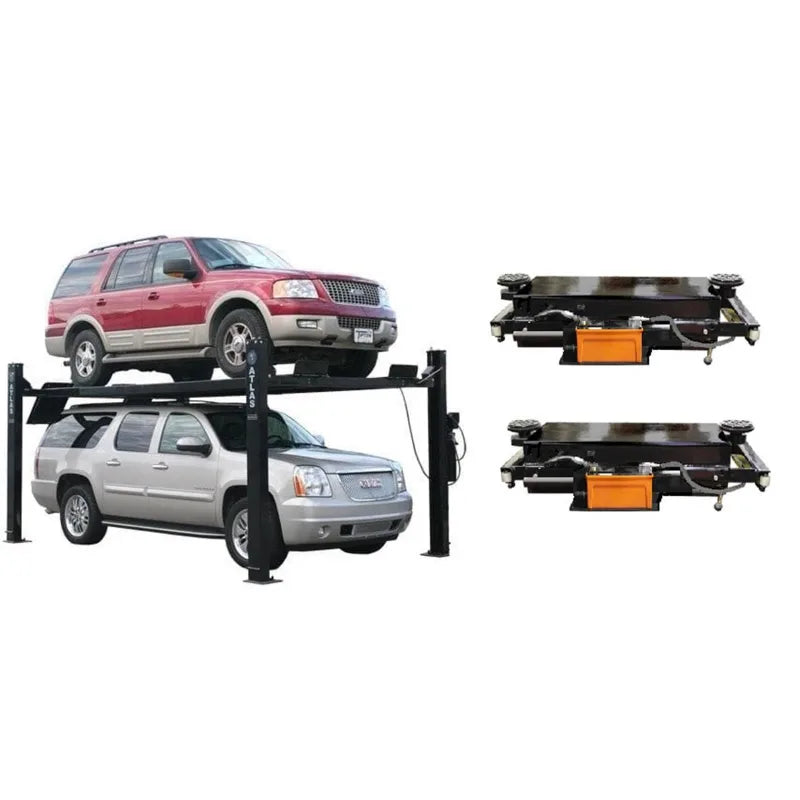

Atlas Garage PRO9000 9,000 lb 4-Post Lift + RJ45A Air-Hydraulic Rolling Jack Combo
A 4-post lift handles oil changes, alignments, and exhaust work cleanly, but the moment a tire job, brake service, or suspension R&R comes through the bay, the runways are in the way. Adding a rolling bridge jack to the lift solves that without bolting anything to the floor — wheels go up, wheels stay free, work proceeds.
This combo bundles the Atlas Garage PRO9000 9,000 lb capacity 4-post lift with the RJ45A "ProJack 45" air-over-hydraulic rolling bridge jack rated at 4,500 lb. The lift runs on a 110V single-phase circuit, the jack actuates off shop air, and the package includes the steel ramps, caster kit, jack tray, drip trays, and wheel chocks to put the lift into service on installation day.
What's Included
- Atlas Garage PRO9000 9,000 lb 4-post lift
- RJ45A ProJack 45 air-over-hydraulic rolling bridge jack
- RJ45A height adapters
- Steel approach ramps
- Steel jack tray
- Four plastic drip trays
- Two rubber wheel chocks
- Caster kit with polyurethane wheels
Made For
Built for home garages and small shops that want a serviceable, full-feature 4-post lift with wheels-free capability in a single bay.
- Serious home garages and hobby builders
- Small independent repair shops
- Restoration and project-car builders
- Fleet maintenance for light-duty vehicles
- Detail shops handling brake and tire work
Features
-
9,000 lb lift capacity — covers passenger cars, light trucks, and most full-size SUVs
-
Caster kit with polyurethane wheels — relocate the lift between bays without tearing up the floor
-
Steel approach ramps included — drive-on ready out of the crate
-
Steel jack tray + four drip trays — staging surface for the bridge jack and oil catchment
-
RJ45A 4,500 lb air-hydraulic jack — pneumatic actuation off shop air, no separate pump
-
RJ45A arm adjustment 39 1/2" to 64 3/4" — fits a wide range of vehicle wheelbases
-
110V / 30A electrical — installs on a single dedicated circuit
-
Two rubber wheel chocks included — runway safety on drive-on

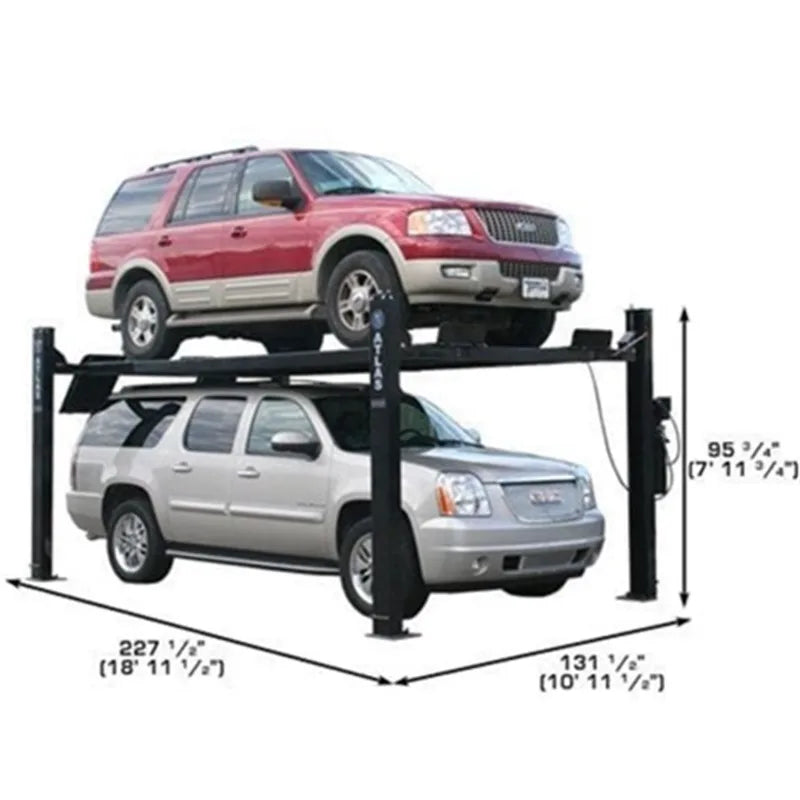

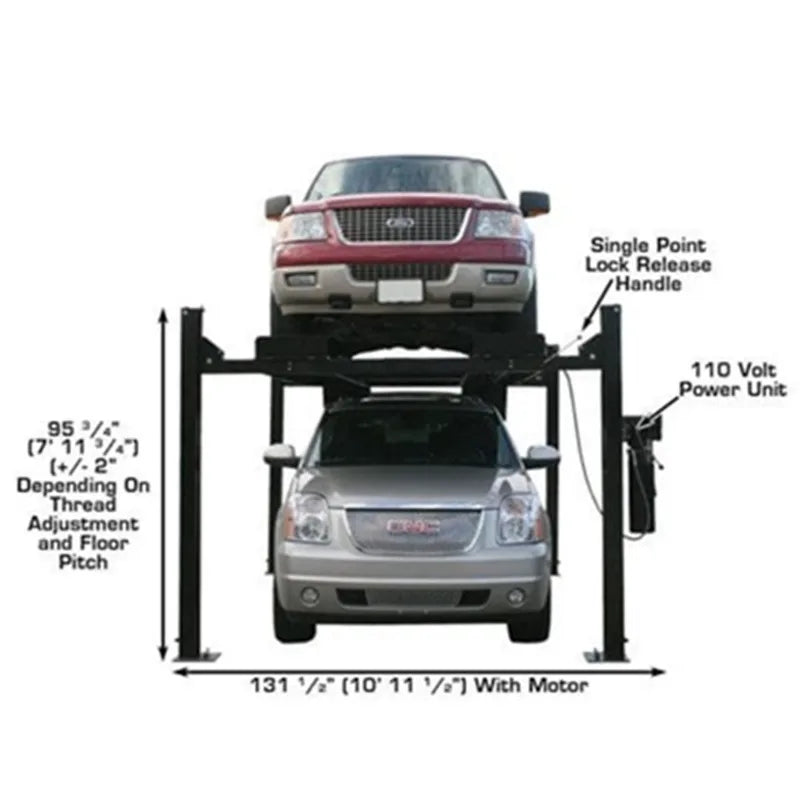

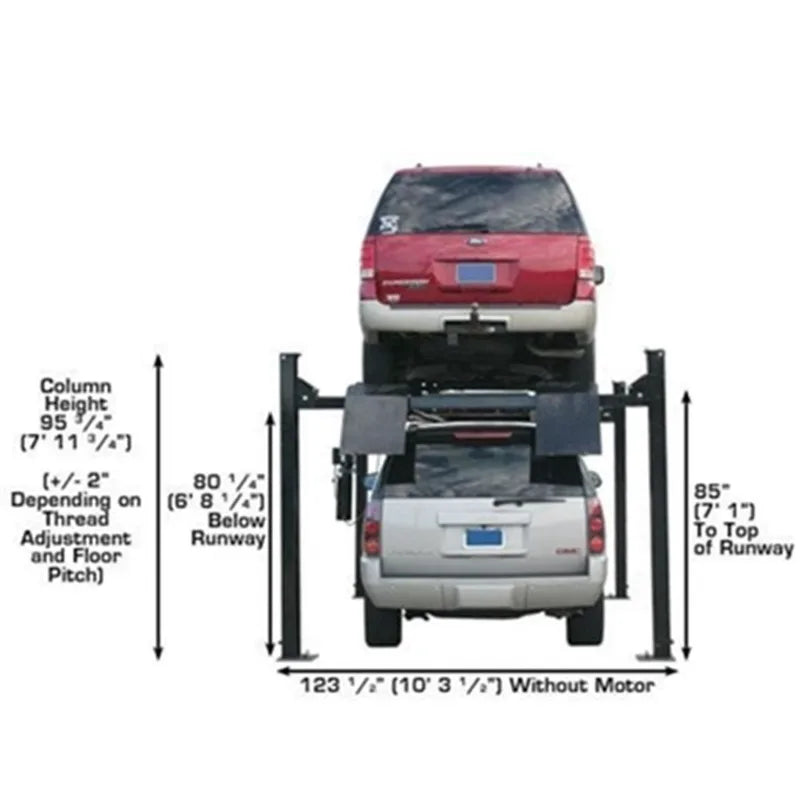

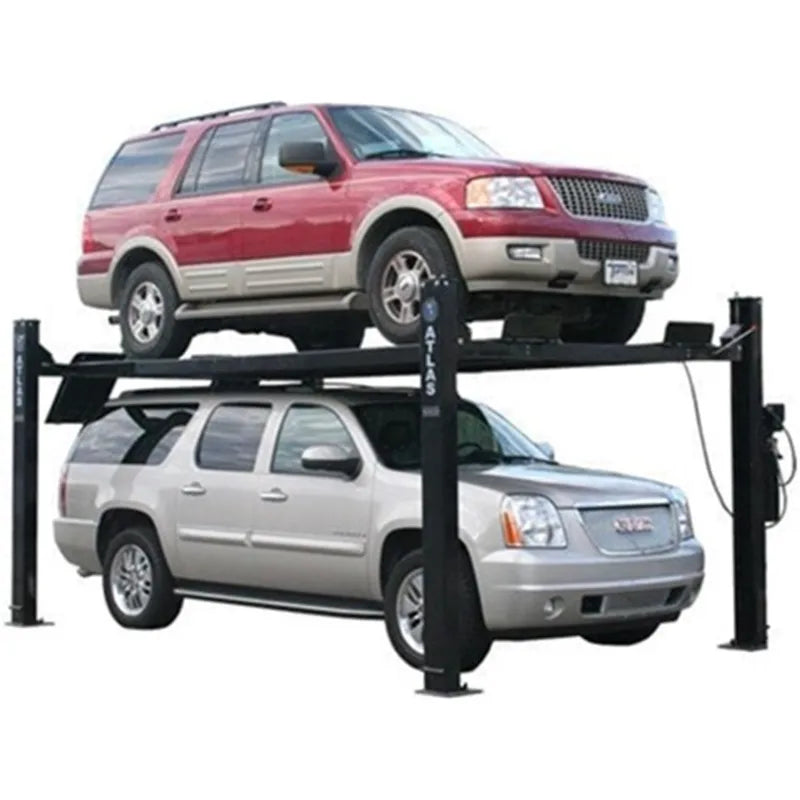

PRO9000 9,000 lb 4-Post Lift
The PRO9000 is Atlas's home-garage / small-shop 4-post platform at 9,000 lb capacity. The lift takes 110V single-phase power on a 30-amp breaker, which means most home garages can install it without an electrical service upgrade and most shops can run it on a single dedicated circuit.
The included caster kit lets the lift be repositioned between bays — useful in a home garage where one stall serves multiple purposes, or in a small shop that needs to free up the bay for other equipment occasionally. Steel approach ramps and four plastic drip trays come in the box, so the lift is drive-on ready as soon as it's anchored.
RJ45A ProJack 45 Air-Over-Hydraulic Bridge Jack
The RJ45A jack rolls between the runways on demand, then air-over-hydraulic lift the vehicle off the lift surface so wheels hang free. Air pressure does the work — connect shop air, hit the valve, and the jack extends. No external hydraulic power unit to maintain, no separate pump.
The jack carries 4,500 lb, arm spread adjusts from 39 1/2" to 64 3/4", and minimum height above the runway is 3 3/4" with the included adapters. The jack fits runways spaced 35" to 54 1/2" apart, which covers the PRO9000's runway-to-runway dimension and most other Atlas 4-post lifts.
The Right 4-Post Lift Combo for Your Shop
At 9,000 lb lift capacity plus a 4,500 lb air-hydraulic rolling jack, this combo turns a single bay into a multi-service stall — oil changes, alignments, tires, brakes, and suspension all live in the same lift station. The included accessory pack (steel ramps, caster kit, jack tray, drip trays, wheel chocks) means no extra purchases on day one.
The 110V single-phase electrical and air-actuated jack make this the right pairing for a home garage or a small shop where 220V three-phase is not assumed.
