8,000 lb Extra Tall 4-Post Storage Lift Bundled with an 8-Piece Floor Panel Set
A hobbyist storage lift's purpose is parking a car on top and a daily driver underneath — but every inch of dead space between the runways is wasted storage. A standard 4-post lift gives you two runways and air; what you really want is a full storage platform that holds tool boxes, totes, or seasonal tires above the vehicle, not just two strips of diamond plate.

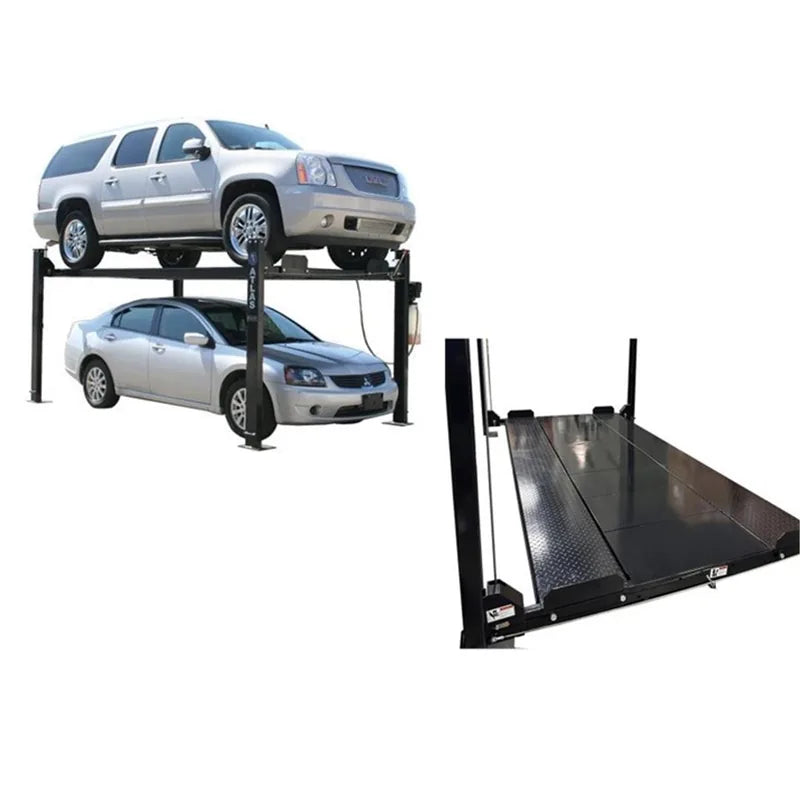

This combo bundles the Atlas Garage PRO8000EXT extra-tall 8,000 lb 4-post lift with the Atlas Pro-Floor 8-piece floor panel set. The lift gives you 79" of under-runway clearance on an 8,000 lb capacity portable 4-post; the floor panels close the gap between the runways with 6 middle sections + 2 end caps, each 37.25" x 19.5" x 4" at 400 lb capacity per section, turning the lift's top side into a usable storage deck.
What's Included
- Atlas Garage PRO8000EXT extra-tall 4-post lift
- Caster kit with polyurethane wheels (lift moves bay-to-bay)
- Steel approach ramps
- Steel jack tray
- 4 plastic drip trays
- 4 wheel stops
- 2 rubber wheel chocks
- Atlas Pro-Floor 8-piece floor panel set (6 middle + 2 end pieces)
- Mounting hardware
Made For
Built for homeowners and restoration shops that need to park one car over another and turn the top deck into usable storage — not for commercial repair bays that cycle the lift up and down all day.
- Serious home garages and hobby builders
- Restoration shops with limited bay footprint
- Show-car and project-car owners storing seasonal vehicles
- Detail centers using the lift as a fixed elevated workstation
- Collectors stacking two vehicles in a single bay
Features
-
8,000 lb Lift Capacity — Handles full-size SUVs, half-ton pickups, and most light-duty trucks — well above the typical sedan and crossover storage application.
-
79" Under-Runway Clearance — Tall enough to park a daily-driver SUV or truck under a stored vehicle on top — the original Garage PRO8000 gives less; this is the EXT advantage.
-
Free-Standing Portable Design — Doesn't bolt to the floor. The included caster kit drops in and the lift rolls to a different bay or out into the driveway in minutes.
-
Pro-Floor 8-Piece Panel Set — 6 middle panels + 2 end caps close the gap between the runways, turning the top of the lift into a continuous platform for tool storage, seasonal tires, or workbench space.
-
400 lb Per Floor Panel Section — Each floor panel section holds 400 lb individually — distribute the load across all 8 and you have a working storage deck, not a display shelf.
-
Single-Point Lock Release + Double Lock Safety — All four columns release together from a single handle, and a redundant secondary safety holds the runways at the active lock position.
-
110V Electric Operation — Runs on a single 110V circuit (30-amp breaker required) — no 220V wiring needed in the garage.
-
Diamond-Plate Runways with 4 Drip Trays — The runways are diamond-plate steel for grip on rubber tires; the included drip trays catch oil and coolant from the parked vehicle so the bay floor stays clean.
Why the EXT Instead of the Standard PRO8000
The standard Atlas Garage PRO8000 gives roughly 65" of clearance under the bottom of the raised runway — enough for a small sedan or compact SUV underneath, but not for a full-size SUV or truck. Customers who park a daily-driver truck or SUV under their stored car asked Atlas for the extra height without the extra runway length that the PRO9000 adds for duallys.
The EXT answers that question: 79" of under-runway clearance — about 14 inches more than the base PRO8000 — without the longer 4-post footprint of the PRO9000. The result is a portable storage lift that fits in a standard residential garage and still parks a truck-class vehicle underneath the lifted car.
Atlas Pro-Floor Turns the Lift Into a Storage Deck
An 8,000 lb 4-post lift has a useful gap of roughly 38 inches between the two runways — fine when the lift is in service mode, wasted when it's used for storage. The Pro-Floor panel set closes that gap with 6 middle sections (each 37.25" wide x 19.5" deep x 4" thick) and 2 end-cap sections, so the top of the lift becomes a continuous storage surface from front bumper to rear bumper of the vehicle on top.
Each section carries 400 lb on its own, lightweight enough for one person to lift into place, and matches the runway profile so the storage deck sits flush with the diamond-plate driving surface. Use it for seasonal tires, tool boxes, totes of car parts, or as a flat work surface when the lift is parked.
The Right Storage Lift Combo for Your Shop
Buying the PRO8000EXT and the Pro-Floor panel set together gets you an extra-tall 8,000 lb 4-post that's actually configured for storage — not just a lift with a bunch of accessories you have to source separately. The 79" of under-runway clearance handles a daily-driver SUV underneath; the 8-piece floor set turns the top into a usable deck.
Everything you need for a portable storage lift is in the combo: caster kit, approach ramps, jack tray, drip trays, wheel stops, wheel chocks, and the full 8-piece Pro-Floor set. Install it, roll it where you want it, and load it.
