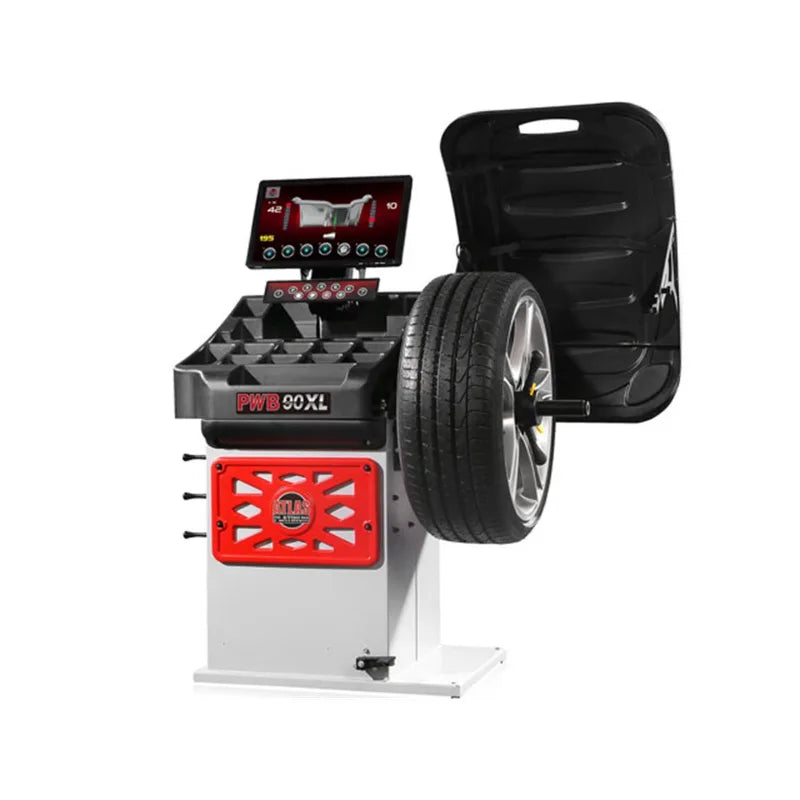

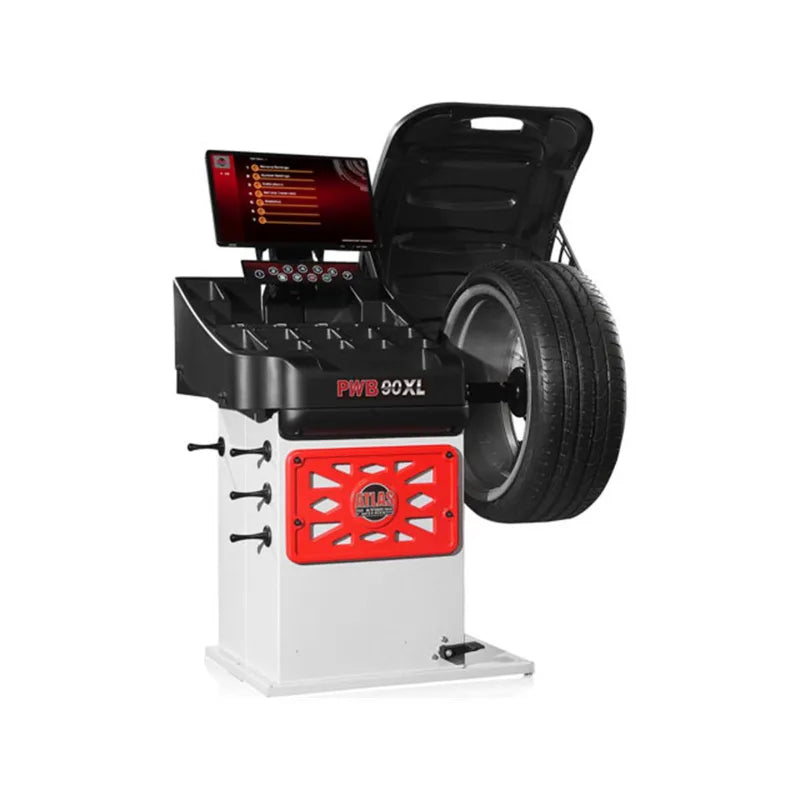

3D Video Wheel Balancer with Laser Spot Pointer — 24 in Rim Capacity
Most shop wheel balancers force a trade-off — either you pay $8,000+ for a premium brand with all the touchless data entry and 3D video features, or you settle for a stripped-down unit that still relies on a manual measuring arm. The Atlas Platinum PWB90XL closes that gap.
The PWB90XL pairs Italian engineering and componentry with Super Automatic 3D data entry — a single gauge captures offset and diameter, touchless sonar measures rim width, and a laser line guides the operator back to the exact weight-placement position after every spin. The result is the speed, accuracy, and ergonomics of a premium-brand balancer at the Factory Direct price Atlas is known for.
What's Included
- Atlas Platinum PWB90XL motorized spin balancer
- Plastic quick-release nut
- 4 centering cones
- Wheel weight pliers
- Measuring calipers
Made For
Built for high-volume tire and wheel shops that want premium-brand balancing accuracy without the premium-brand price tag.
- Independent tire and wheel shops
- High-throughput service departments
- Custom wheel and aftermarket alignment shops
- Performance and motorsport shops handling sensitive assemblies
- Dealership service bays
Features
-
Super Automatic 3D data entry — single gauge captures offset and diameter; touchless sonar measures rim width.
-
Laser line weight placement — guides the operator back to the exact location after the spin cycle.
-

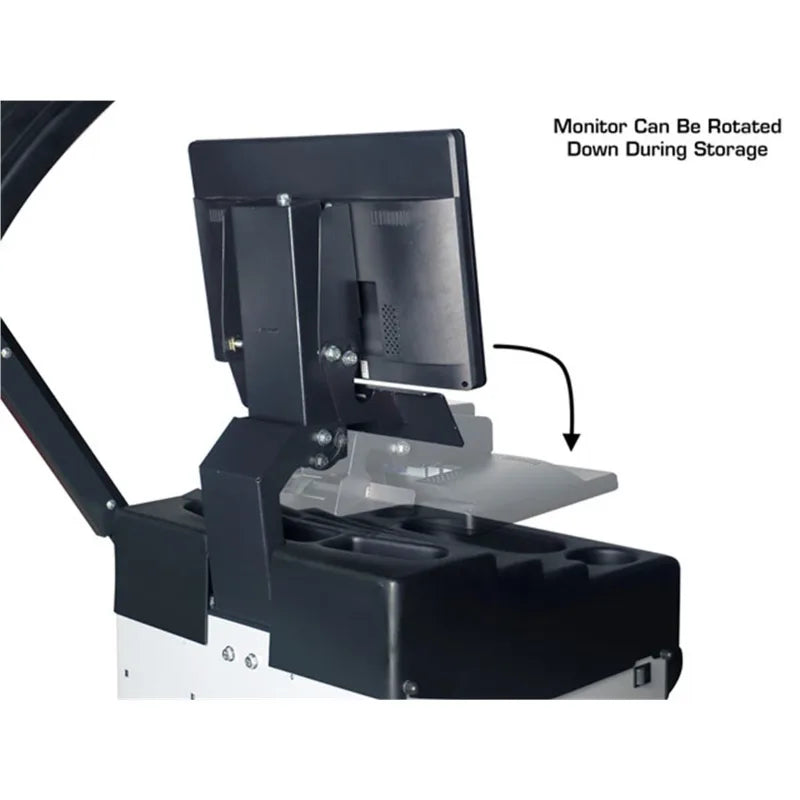

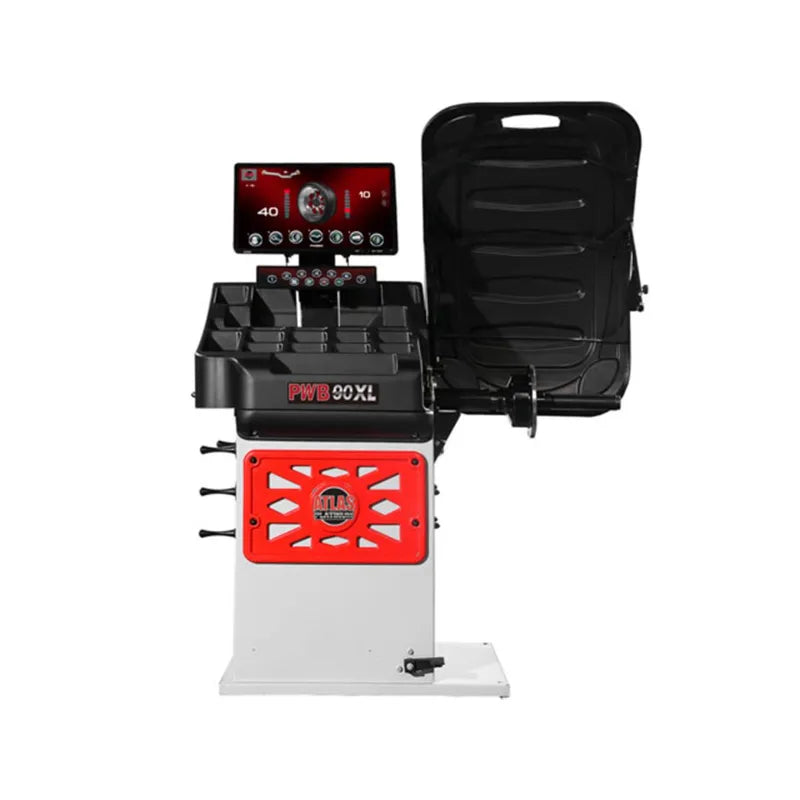

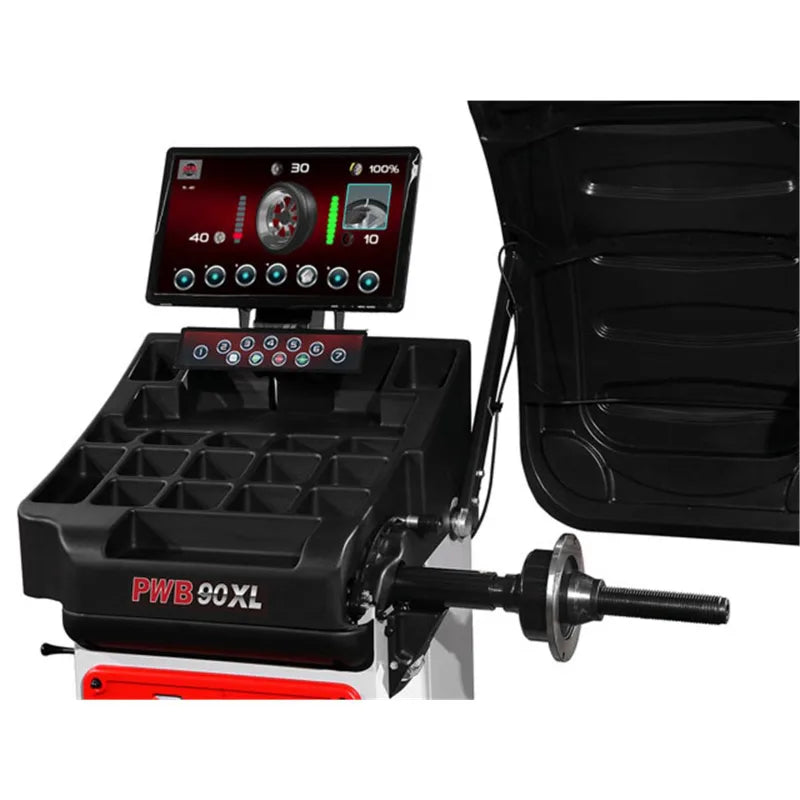

High-resolution 3D video monitor — clear, intuitive display with graphical guidance.
-
OPTIMATCH match-mounting — optimize tire and wheel unbalance even on difficult assemblies.
-
FES split function — fast & easy split for hiding adhesive weights behind spokes.
-
Opposite Weight Function (OWF) — flip the weight application position from 12 o'clock to 6 o'clock for easier access.
-
ALU-S and other ALU programs — handles every common weight placement scheme.
-
NWN (No Wheel Need) system — calibrate and diagnose without mounting a wheel.
-

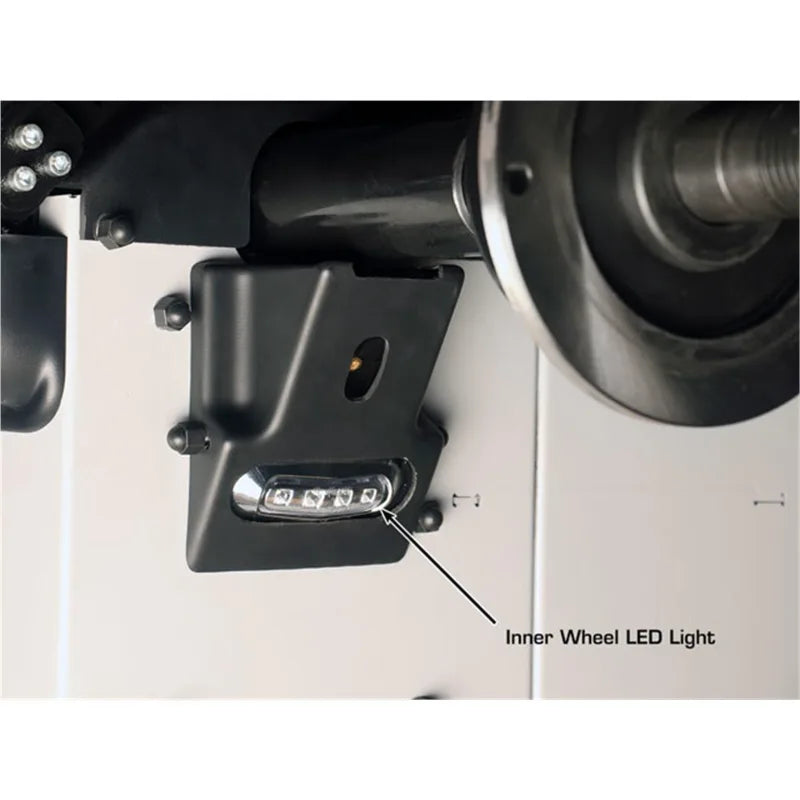

LED wheel-interior light — illuminates the rim for precise adhesive weight placement.
-
Self-diagnosing and self-calibrating — error codes and on-board calibration cut service-tech callouts.
-
USB firmware updates — keep the balancer current via PC/laptop without a tech visit.
-
43" max tire diameter, 165 lb max wheel weight — handles full-size truck and SUV assemblies.
-
No anchor-down installation — drop the balancer on a level slab and plug it in.
Super Automatic 3D Data Entry, Done in Seconds
Most wheel balancers under $10,000 still ask the operator to swing out a manual width caliper and key in numbers. The PWB90XL skips that whole step. A single data-entry gauge captures both offset and diameter automatically, and a touchless sonar sensor reads rim width across the bead — no contact, no manual measurement, no transcription errors.
That matters because every manual entry is an opportunity for human error. On a balancer that resolves weight placement to 1.4°, a 1/4-inch error on rim width is the difference between zero/zero on the first spin and a second cycle. Super Automatic 3D data entry is what makes the PWB90XL match the throughput of balancers costing twice as much.
Laser-Guided Weight Placement
After the spin, the PWB90XL projects a laser line directly onto the rim at the exact location the weight needs to be placed. The operator follows the line back to the placement point — no rotating the wheel by hand, no guessing where 12 o'clock is, no second spins to fix a mis-placed weight.
Combined with the LED interior light and the FES split / OWF opposite-weight functions, this is the difference between a 7-second cycle that ends with a perfectly balanced wheel and a 14-second cycle that ends with a partial rebalance. Over a shift, those seconds add up to several extra wheels through the bay.
The Right Wheel Balancer for Your Shop
The Atlas PWB90XL is the wheel balancer for shops that want premium-brand performance without paying premium-brand prices.
