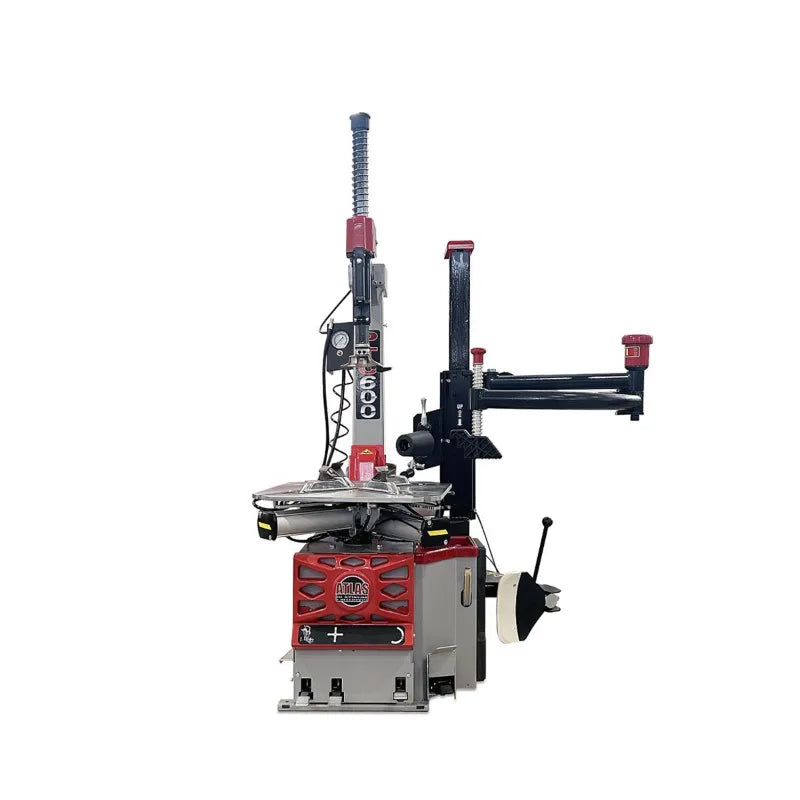

Atlas Platinum PTC600 Italian-Engineered Tilt-Back Rim-Clamp Tire Changer
Swing-arm tire changers work great until the wheel doesn't quite fit the geometry. With a fixed column, the operator has to dodge the arm on every mount, and on wider wheels the column gets in the way of the M/D head. Tilt-back machines solve the geometry but tend to cost double — and most don't come with the assist arm that does the real work on stiff sidewalls.
The Atlas Platinum PTC600 is a true tilt-back rim-clamp changer at a Platinum-line price. The column tilts back to clear the wheel for mounting, then locks vertically for the cycle. A right-hand bead-pressing and bead-rolling assist arm is included standard. The M/D head uses pneumatic locking — dramatically lowering the risk of the head shifting during use and gouging a rim. 29 in internal clamping range and a 16 in bead breaker handle wider wheels than the rest of the PTC line.
What's Included
- Atlas Platinum PTC600 tilt-back rim-clamp tire changer
- Right-hand bead-pressing / bead-rolling assist arm
- Metal M/D head with replaceable plastic inserts
- Column-mounted inflator box with gauge
- Filter / regulator / lubricator
- Tire tool and lube bucket with brush
- Large plastic jaw protectors + bead breaker shovel cover
- Multiple replacement plastic inserts for M/D head
Made For
Built for the professional tire dealer and the large car dealership working a high mix of premium-finish wheels and stiff-sidewall tires.
- Professional tire dealers handling daily volume
- Large car dealership service departments
- Custom wheel and detail shops working alloy and chrome rims
- Shops with a mix of passenger, SUV, and light-truck work
Features
-
Tilt-back column design — clears the wheel for mounting — no column to dodge.
-
Pneumatic locking M/D head — head doesn't shift mid-cycle, so it doesn't gouge rims.
-

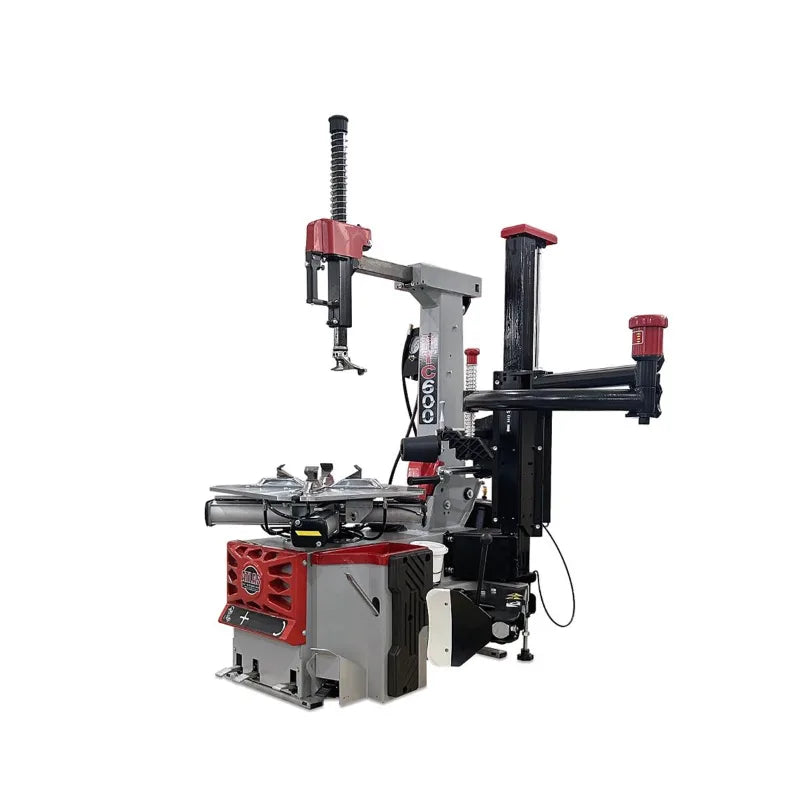

Right-hand assist arm — presses and rolls beads on stiff sidewall tires.
-
29 in internal / 27 in external clamping — fits wider wheels than the PTC300 / PTC400.
-
16 in bead breaker capacity — handles wider tire widths.
-
Built-in Beadblaster — seats stiff sidewalls without auxiliary equipment.
-
6,924 lb bead breaker force — anodized aluminum cylinder, Italian-built.
-
High-torque 110V electric turntable — consistent 7 RPM under load.
-
Italian engineering and componentry — Platinum-line build at Factory Direct pricing.
Tilt-Back Geometry Solves the Wheel-Clearance Problem
A standard swing-arm changer pivots the column out of the way once the wheel is clamped — but that pivot still leaves the column standing vertical over the turntable. On extra-wide rims and deep-offset alloys, the operator ends up fighting that column geometry on every mount. The PTC600's tilt-back column lays down to clear the wheel entirely, then locks back vertical for the cycle.

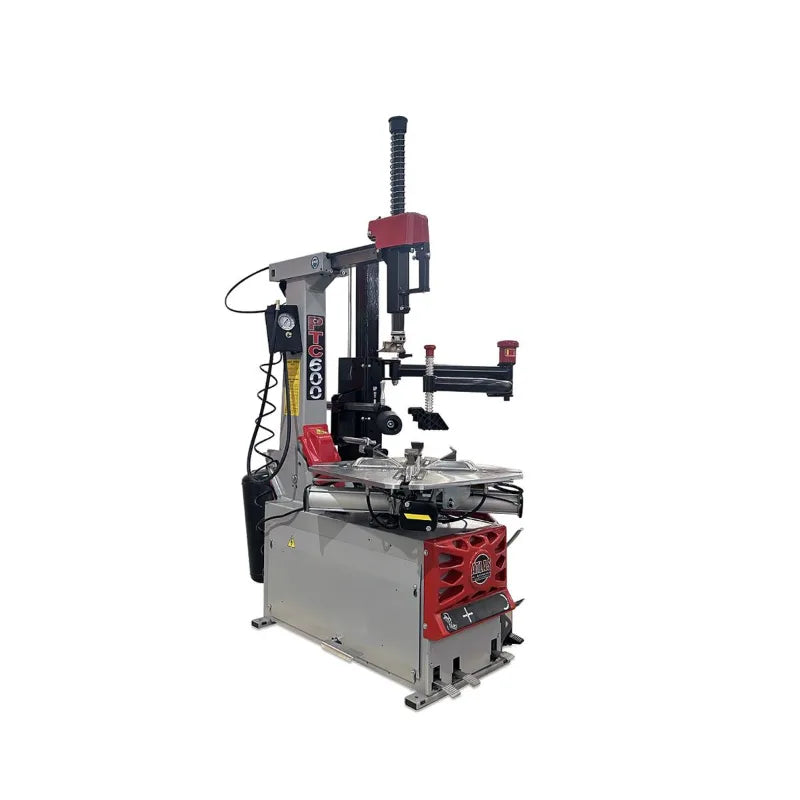

The downstream benefit is the pneumatic locking M/D head. With the column tilted, the head can be lowered onto the rim with zero offset, then locked pneumatically in position. It doesn't shift mid-cycle, which is the most common cause of rim gouging on conventional swing-arm changers.
29 in Clamping for the Bigger Wheels
The PTC600 has the widest clamping range of the Platinum rim-clamp line: 12 in to 29 in internal, 10 in to 27 in external. That covers the full range of modern car, SUV, and light-truck wheels — including the 26 in dually rims and the 28 in custom alloys that the PTC300 / PTC400 can't fit.
The 16 in bead breaker capacity matches the wider rim range. Combined with the 6,924 lb breaker force and the built-in Beadblaster, the PTC600 handles the wide stiff-sidewall tires that come with those bigger wheels without auxiliary tanks or strap tricks.
The Right Tire Changer for Your Shop
The PTC600 is the answer when the shop needs tilt-back geometry, pneumatic head locking, and the widest clamping range in the rim-clamp Platinum line — without paying European-brand prices for those features.
Don't wait — scroll back up and click the orange Add to Cart button to get this tire changer on its way to your shop.
