Atlas Maxima 6045BC ALI-Certified Battery-Powered Mobile Column Lift System — 99,000 lb Capacity for Heavy Commercial Vehicles
For shops working on heavy-duty trucks, transit buses, fire apparatus, refuse trucks, and class 8 commercial vehicles, a permanent inground or 4-post lift isn't an option — the vehicles are too long, too heavy, or both. Mobile column lifts are the solution: independent columns that position around the vehicle and lift simultaneously under electronic synchronization.

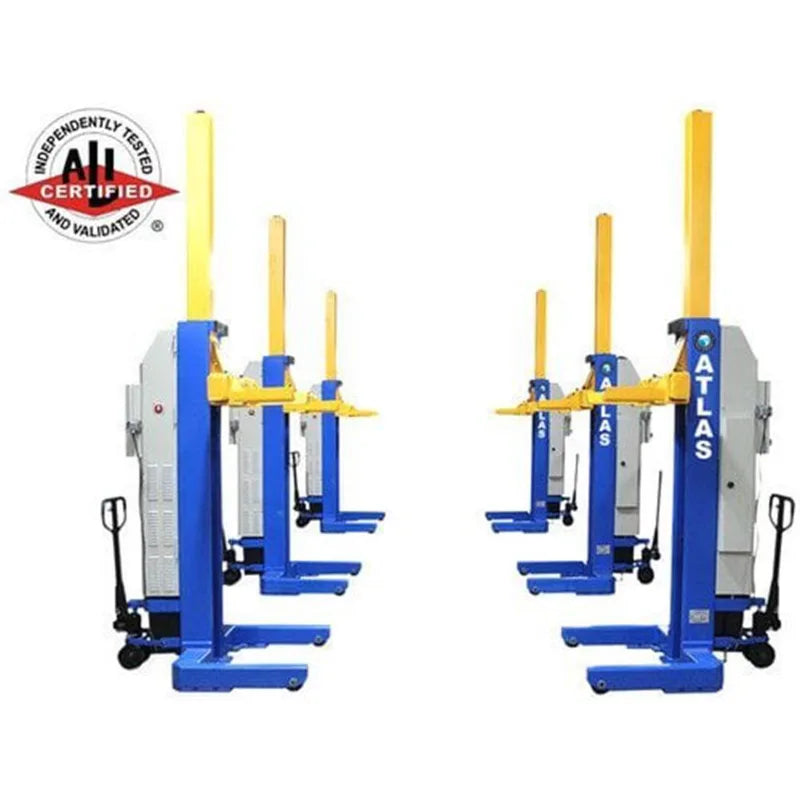

The Atlas Maxima 6045BC is a 4-column set rated at 99,000 lb (4 × 24,750 lb per column). ALI certified for safety and performance, battery-powered for full cordless mobility, with built-in hydraulic pallet jacks for column positioning. Synchronized electronic controls ensure all four columns lift in lock-step. Adjustable forks fit tire diameters from 19 in to 44 in — passenger cars through class 8 trucks.
This is professional fleet and heavy-duty service equipment. For the right shop, it replaces the need for a permanent heavy-vehicle lift bay entirely.
What's Included
- Atlas Maxima 6045BC mobile column lift system (4 columns)
- 4 × 2.2 kW 24V DC motors
- 4 sets of dual rechargeable batteries
- 4 built-in battery chargers
- 4 built-in hydraulic pallet jack systems
- Adjustable forks (fits 19"–44" tire diameters)
- Electronic synchronized control system
- LCD height display per column
- Double safety system (hydraulic flow + mechanical lock)
- ALI certification documentation
Made For
Built for heavy-duty commercial vehicle service operations that need to lift trucks, buses, and large commercial vehicles without dedicated permanent lift infrastructure.
- Commercial truck service shops (Freightliner, Volvo, Kenworth, Peterbilt service centers)
- Transit bus maintenance operations
- Fire / emergency vehicle apparatus shops
- Refuse truck fleet maintenance
- Class 8 truck dealerships
- Military vehicle maintenance operations
- Heavy equipment / construction vehicle shops
Features
-
99,000 lb total capacity — 4 × 24,750 lb per column. Handles class 8 trucks, transit buses, fire apparatus.
-
ALI certified — meets ALI safety and performance standards.
-
Battery-powered cordless operation — 24V DC motors with dual rechargeable batteries per column.
-
2.2 kW motor per column — commercial-duty power.
-

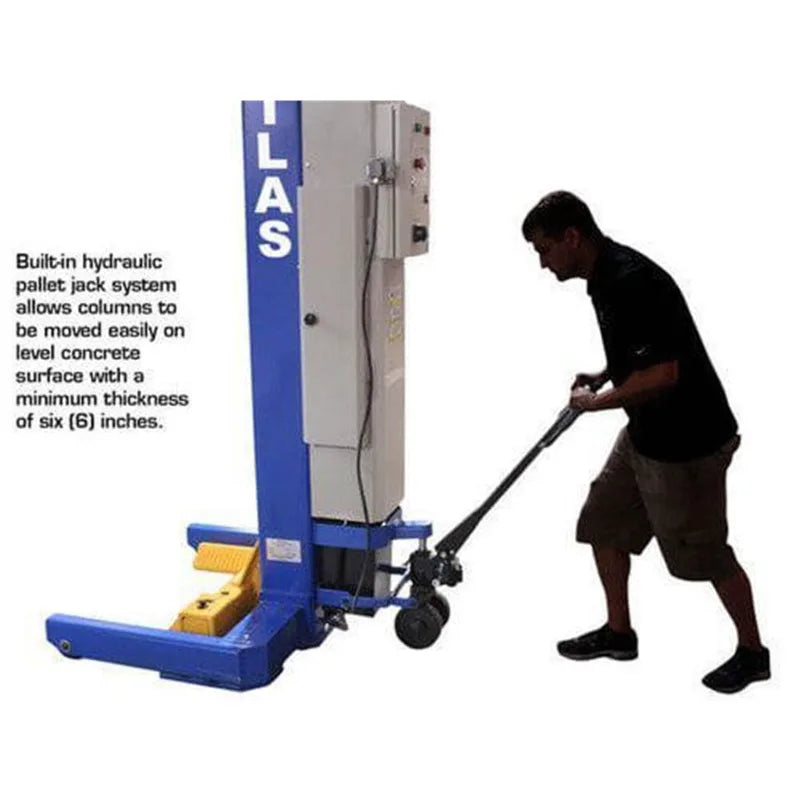

Built-in hydraulic pallet jack — position each column without external equipment.
-
Electronic synchronized control — all four columns lift in lock-step, no leveling issues.
-
Simultaneous operation — single control commands the entire set.
-
LCD screen per column — exact lifting height visible at each column.
-
Double safety system — hydraulic flow control + mechanical lock ladder. Redundant safety.
-
Adjustable forks 19"–44" — fits passenger tires through class 8 truck tires.
-
Wireless operation — no cables between columns.
-
Maxima series (Italian) — premium Atlas commercial-grade construction.
Mobile Column vs Permanent Heavy-Vehicle Lift
A permanent inground or 4-post heavy-vehicle lift commits a bay 24/7 to one type of work. For a shop with a single dedicated truck bay, that may be the right call.
Mobile columns like the 6045BC let a single shop serve trucks, buses, and large commercial vehicles using whatever bay is available at the time. The columns store in a smaller footprint when not in use, then position around the vehicle when needed. For shops where heavy-vehicle work is a meaningful share of business but not the only business, mobile columns provide flexibility a permanent lift can't.
The battery-powered, cordless design also matters: no extension cords or pneumatic lines running across the bay floor during operation.
ALI Certification — What It Means
ALI (Automotive Lift Institute) certification means the lift has been tested by an independent third party against structural, functional and safety standards — rather than measured against the manufacturer's own claims.
For a commercial shop that matters twice over. Insurers frequently ask for it, and a number of commercial and municipal service contracts list ALI certification as a condition of bidding, fleet, transit and emergency-vehicle work in particular.
The 6045BC carries that certification as a four-column set at its full 99,000 lb rating, so the paperwork matches the way the lift is actually used rather than a single-column figure. Certification documentation comes with the system.
The Right Mobile Column Lift for Heavy-Duty Commercial Work
The Atlas Maxima 6045BC is the high-end mobile column lift for shops that handle real commercial vehicles. Real capacity, real ALI certification, real cordless mobility.
