9,000 lb Flush-Mount Full-Rise Scissor Lift — Zero Above-Ground Obstruction
Above-ground lifts eat real estate. Posts, base plates, cross-members, and drive-on ramps shrink the working area around the vehicle and force techs to walk around steel. In a busy service department, that wasted space adds up to one or two fewer bays per building.

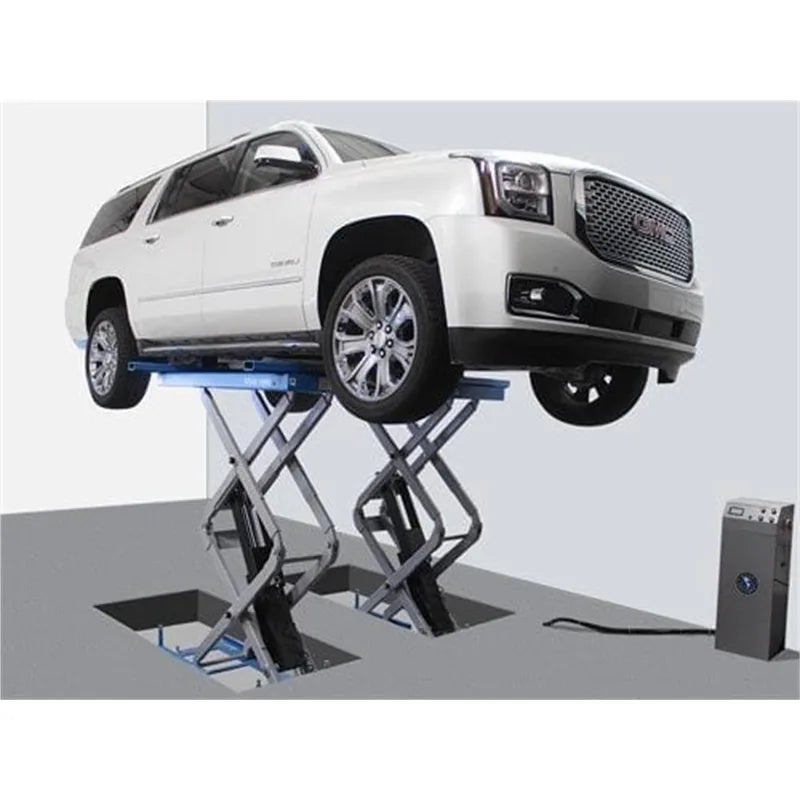

The Atlas FM9SL is a 9,000 lb full-rise scissor lift designed to sit flush with the shop floor. No posts, no overhead beams, no cross-bars — a clean floor when lowered and a vehicle at working height when raised. Drive over from any direction, position the vehicle in tight bays, and lift to over six feet (73 3/4" with blocks) on the 220V single-phase power unit. When the job's done, the FM9SL drops back into the floor and the bay is open again.
What's Included
- Atlas FM9SL scissor lift platforms (one pair)
- Front and rear platform extensions
- Heavy-duty rubber lifting blocks (standard)
- Self-contained 220V electric / hydraulic power unit
- Mounting hardware
- Owner's manual and parts breakdown
Made For
Built for service departments that need the clean-floor look of an in-ground lift without the maintenance penalty of old-school buried hardware.
- Dealerships and quick-service shops maximizing bay count
- Tire and alignment shops needing full-rise clearance
- Detail and ceramic-coating shops where a clean floor matters
- Modern service bays where overhead lift hardware isn't an option
- Showroom-adjacent service departments
Features
-
9,000 lb. Capacity — handles passenger cars, SUVs, half-ton pickups, and most full-size trucks.
-

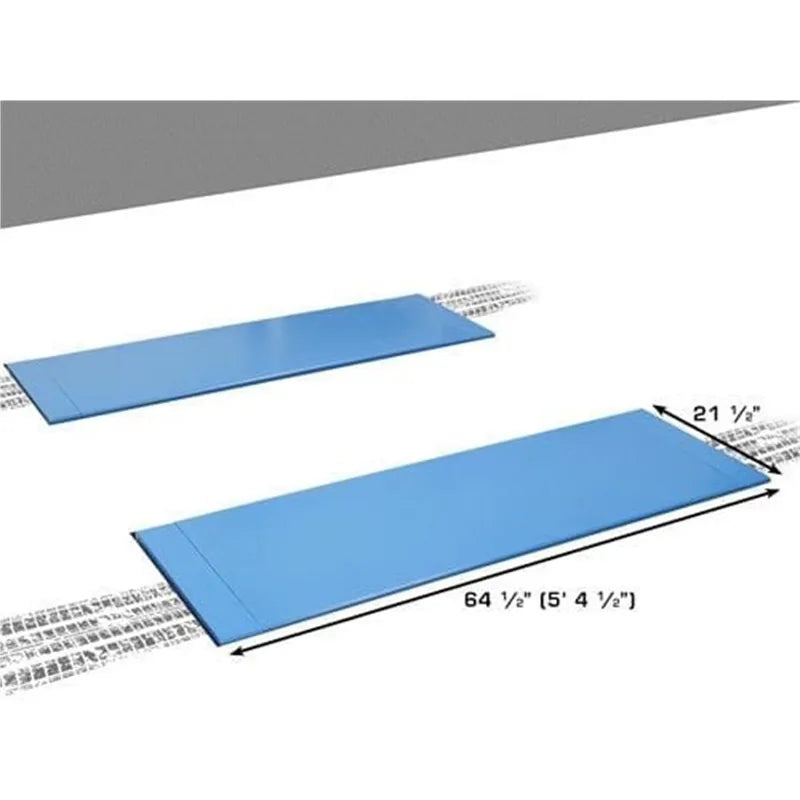

Flush-Mount Design — platforms recess into the floor when fully lowered; drive over from any direction.
-
Full Rise: 73 3/4" with Blocks, 71" Without — stand under the vehicle and work upright.
-

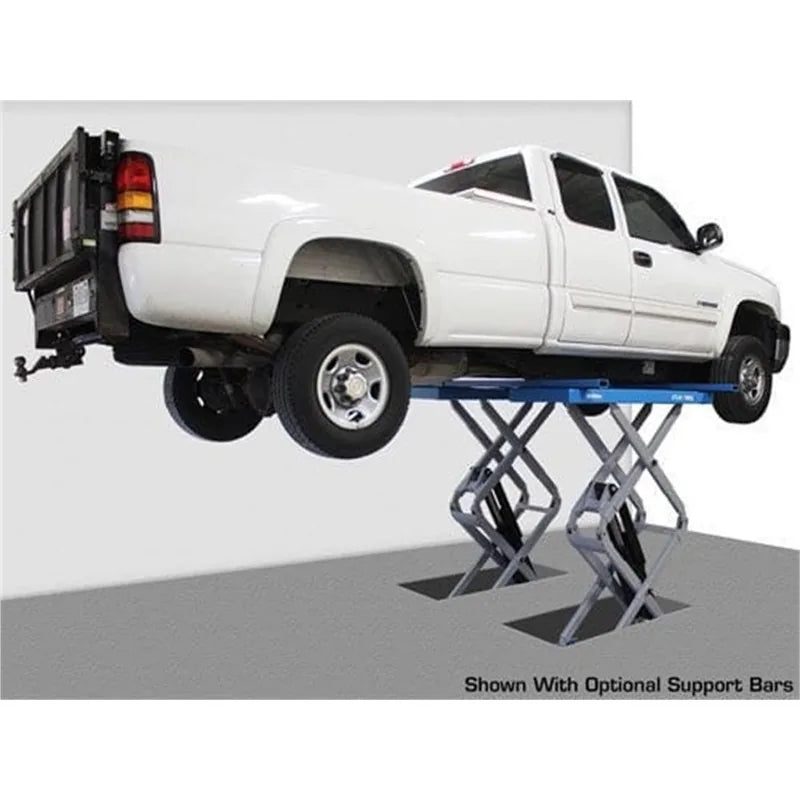

Front and Rear Platform Extensions — extend for long-wheelbase pickups; retract for short sedans and compact bays.
-
Adjustable Width Up to 31" Between Platforms — match the vehicle's lift points instead of fighting fixed geometry.
-
Open Center Design — no cross bars between the platforms; full access to the drivetrain, exhaust, and undercarriage.
-
Air-Operated Single-Point Lock Release — one lever drops all mechanical locks at once (requires 90–120 PSI shop air).
-

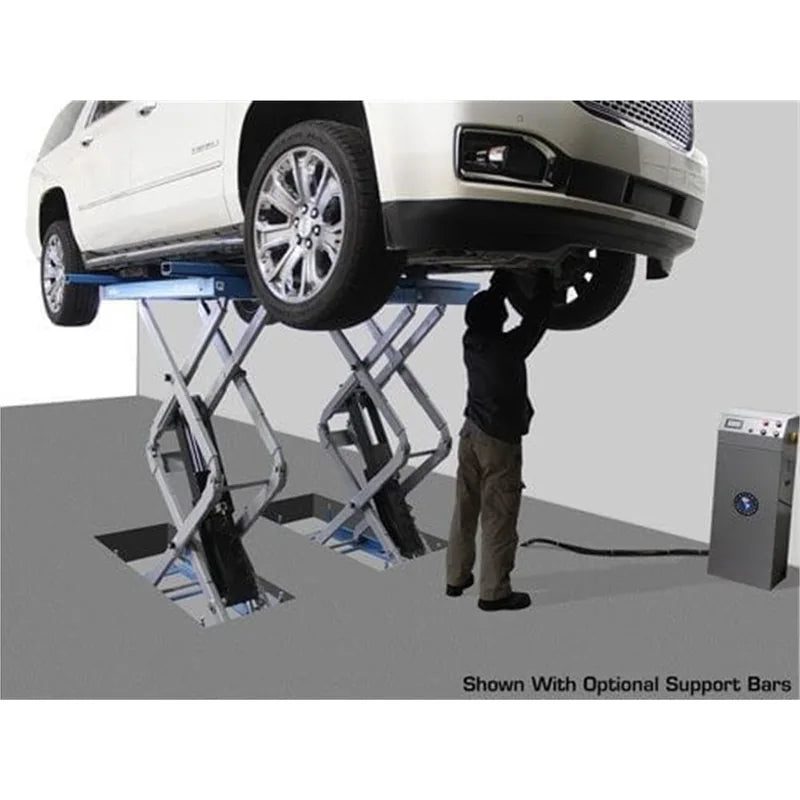

Separate Self-Contained Control Unit — power unit sits clear of the platforms for easy maintenance access.
-
Grease Zerk Fittings at Each Hinge — standard PM points keep the lift moving smoothly for years.
-
CE Certified — built to international safety standards.
-
220V / 1-Phase Operation — single-phase service on a 30A breaker; no three-phase required.
-
Mounting Hardware Included — anchors and fasteners ship with the lift.
Why Flush-Mount Beats Old-School In-Ground
Traditional in-ground lifts mean a deep pit, cast cylinders sunk below grade, and a power unit buried somewhere only the original floor-plan engineer remembers. When something breaks, you're tearing up concrete to fix it — and modern shops won't touch them.

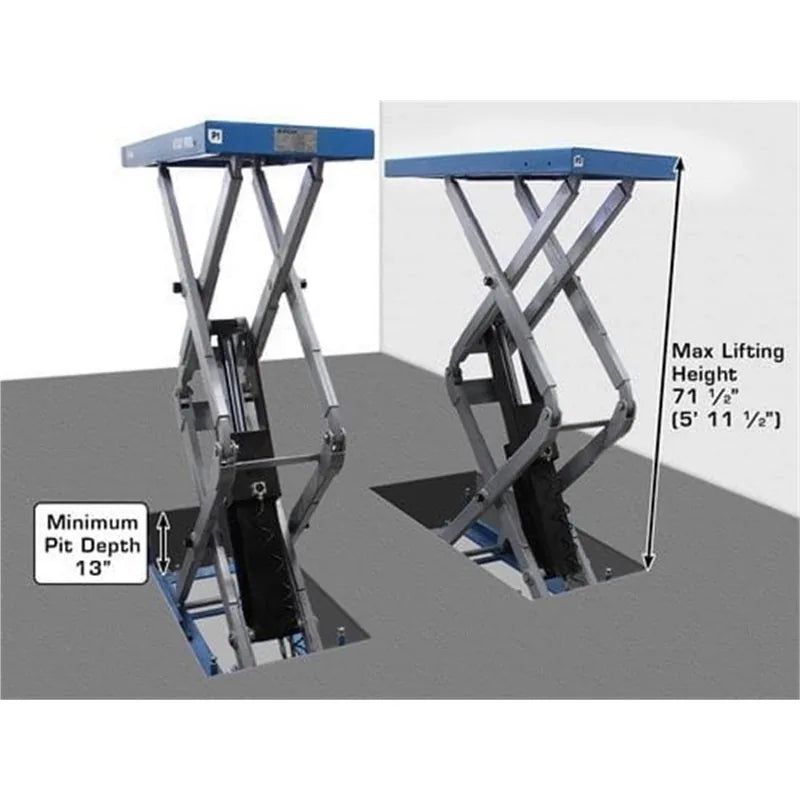

The FM9SL flush-mount design needs only a shallow pit deep enough to recess the platforms — roughly 13" of lowered height. The electric/hydraulic power unit sits above ground in a self-contained box that's easy to access for fluid checks, hose inspection, and component service. You get the clean-floor look without the buried-equipment headache.
Adjustable Geometry for Real-World Vehicles
The platforms slide between 0" and 31" of separation, and the front and rear extensions add up to 16" of length when needed. That means the same lift handles a short-wheelbase sports car and a long-bed full-size truck without compromise.

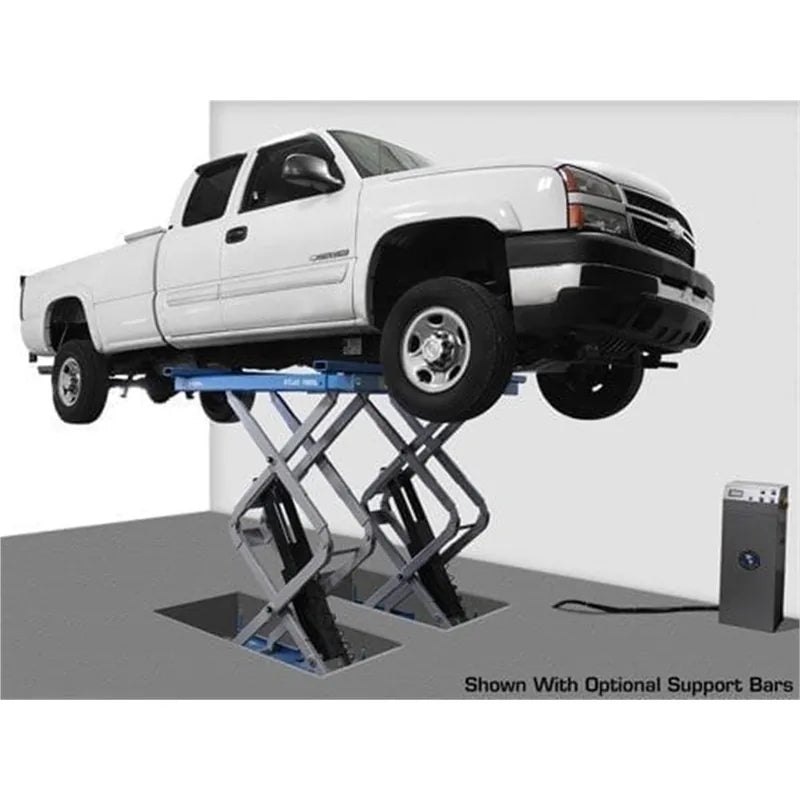

Important loading note: this is an open-center scissor lift with no cross support bar. The vehicle's frame must sit at least 6 inches from the inside edge of each platform. Narrow-frame vehicles (sports cars, some imports) may need an accessory support bar kit (sold separately) to prevent the platforms from going "pigeon toed" under uneven loading. Hydraulic oil is not included — plan for 3–5 gallons of AW32 or AW46 on setup.
The Right Flush-Mount Scissor Lift for Your Shop
With 9,000 lb capacity, full-rise lifting height, drive-over-from-any-direction access, and CE certification, the Atlas FM9SL brings the open-bay layout of an in-ground lift with a fraction of the install effort.
