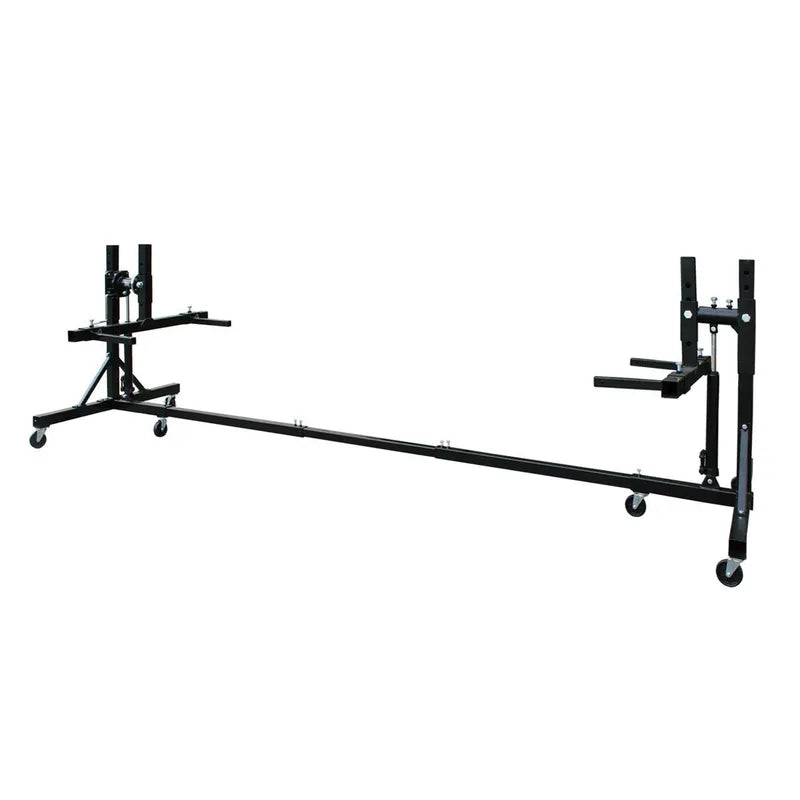

360-Degree Auto Body Rotisserie with Balance Bolt Center-of-Gravity Adjuster
Restoration work on car and truck bodies means getting underneath, on top of, and inside seams and frame rails that are hard to reach when the body sits flat. Lying on a creeper to weld floor pans or grind frame rust is slow, uncomfortable, and unsafe.
The Atlas Auto SPINS — Simple Position In Seconds — is a 360-degree hand-cranked rotisserie that mounts to the front and rear of a bare body or frame and spins it through a full rotation. Its Balance Bolt threaded-rod adjuster makes finding the center of gravity quick, so the body rotates smoothly with controlled effort.
What's Included
- Atlas Auto SPINS rotisserie (front and rear stands)
- Balance Bolt threaded-rod center-of-gravity adjuster
- Two hydraulic rams for height adjustment
- Polyurethane swivel caster wheels (6" diameter, 1-1/2" wide)
- Adjustable width, height, and centering hardware
Made For
Designed for shops and builders who work on bare bodies and frames where 360-degree access and a controllable center of gravity make the difference between fast work and frustrating work.
- Restoration shops doing body and frame work
- Hot rod and classic car builders
- Custom truck and chassis fabricators
- Race car prep shops
- Serious hobbyist restorers with garage space
Features
-
Full 360-degree hand-cranked rotation — access every panel, seam, and frame member without crawling
-
Balance Bolt center-of-gravity adjuster — threaded-rod adjuster makes finding balance fast, even on awkward bodies
-
Two hydraulic rams for height — raises and lowers the work to comfortable standing height
-
Adjustable width, height, and centering — fits everything from sports cars to full-size truck bodies
-
6" polyurethane swivel casters — roll a loaded body around the shop without damaging the floor
-
Heavy-duty welded steel construction — 3" x 3" square tubing in 9-gauge / 1/8" steel
-
Powder coat finish — chip and corrosion resistant for a long working life
-
3,000 lb load rating — handles full body shells and stripped frames with margin
Why the Balance Bolt Changes Restoration Work
Rotating a 1,500-pound body around an off-center axis is dangerous — it accelerates as it passes horizontal and forces the operator to fight the load. The Balance Bolt is a threaded rod adjuster that lets you fine-tune the rotational axis until the body's center of gravity sits right at the pivot.
Once balanced, a single hand-crank turn rotates the body smoothly through any position — and it stays put when you stop cranking. That's how you weld floor pans overhead with confidence, or grind rust off a frame rail at chest height without strain.
Adjustable for Anything from Sports Cars to Trucks
Mounting bracket width adjusts from 14-1/4" to 48-3/4", accommodating body widths up to 85". Working height runs from 20-1/2" to 48-1/2", and working length covers projects up to 19 feet (with decreased capacity at full extension).
Mount it to a stripped sports car shell for media blasting access, then reconfigure the same unit for a full-size truck cab on the next job. Specialty adapters are available for non-standard mounting points, sold separately.
The Right Rotisserie for Your Shop
The Auto SPINS is built around the realities of body restoration: heavy welded-steel frames, powder coat that survives sparks and grinder dust, hydraulic height adjustment for working position, and casters that let you push a loaded rotisserie across the shop without lifting equipment.
At 3,000 lb capacity and a 19-ft working length, it's sized for real restoration work — not a hobby toy, but a tool that earns its bay space over years of projects.
