9,000 lb ALI-Certified 4-Post Lift + Two RJ45A Air-Hydraulic Rolling Jacks
A 4-post lift handles full-vehicle work — alignments, oil changes, exhaust — but the moment a tire job, brake service, or suspension R&R comes through the bay, you need a way to take the wheels off the runways. Pneumatic rolling bridge jacks do that without bolting anything to the floor.

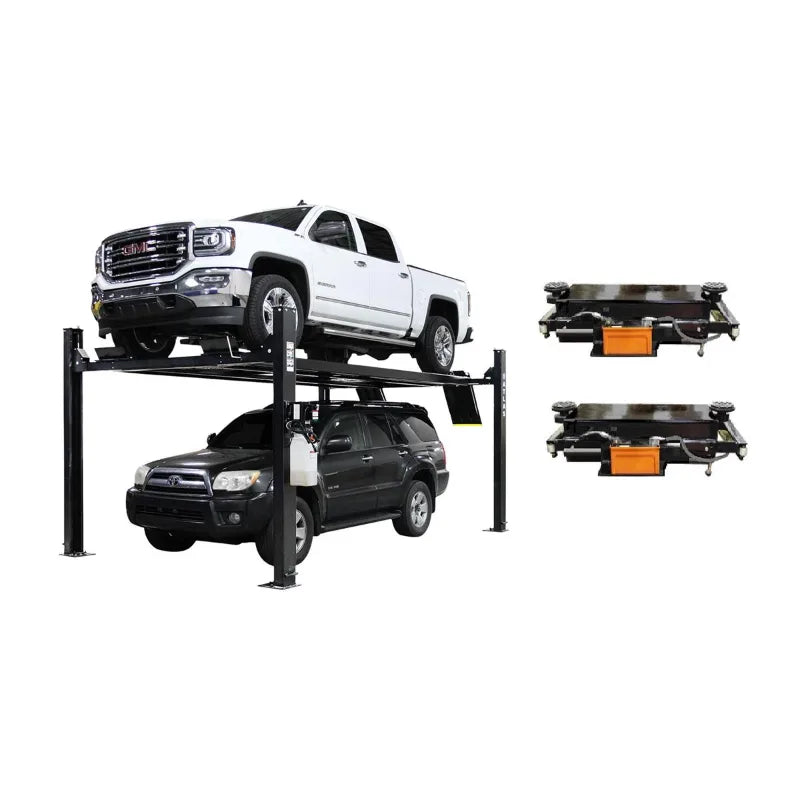

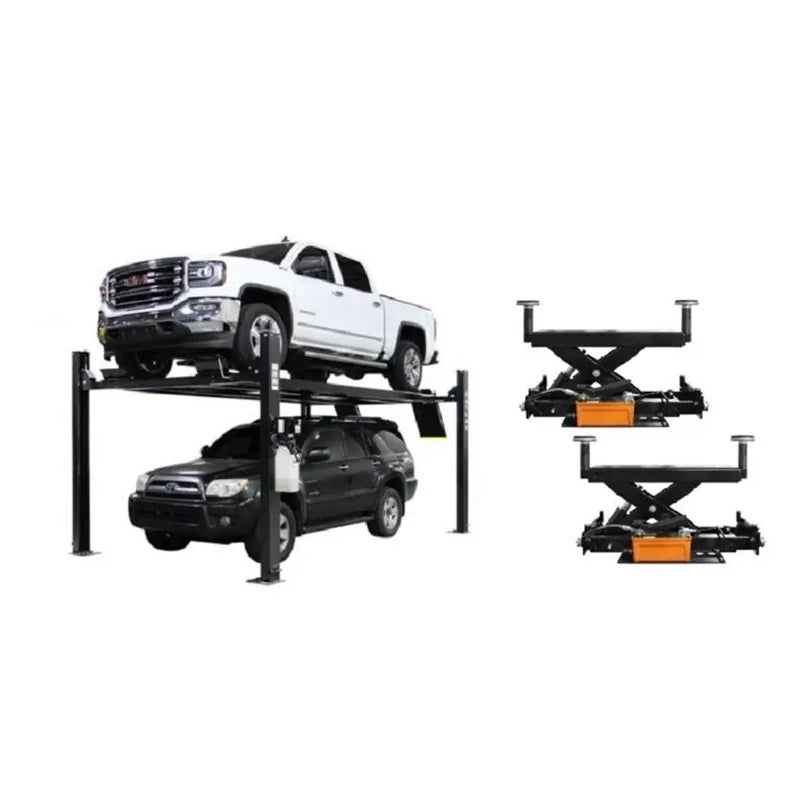

This combo bundles the Atlas APEX9 ALI-certified 9,000 lb capacity 4-post lift with two RJ45A "ProJack 45" air-over-hydraulic rolling bridge jacks rated at 4,500 lb each. The lift carries the ALI Gold Label, the jacks roll along the runways on demand, and the package includes the steel ramps, caster kit, jack tray, drip trays, and wheel chocks needed to put the lift into service on installation day.
What's Included
- Atlas APEX9 ALI-certified 9,000 lb 4-post lift with diamond-plated runways
- Two RJ45A ProJack 45 air-over-hydraulic rolling bridge jacks
- RJ45A height adapters
- Steel approach ramps
- Steel jack tray
- Four plastic drip trays
- Two rubber wheel chocks
- Caster kit with polyurethane wheels
Made For
Built for shops that need ALI-certified vehicle lifting plus pneumatic wheels-free service in a single bay.
- Independent auto repair shops doing brake, tire, and suspension work
- Dealership service departments
- Fleet maintenance facilities with mixed work types
- Performance and restoration shops
- Serious home garages with shop air available
Features
-
9,000 lb lift capacity — covers passenger cars, light trucks, and full-size SUVs
-
ALI Gold Label — independently tested to ANSI/ALI ALCTV-2017 safety standards
-
Diamond-plated runways — traction on wet tires, grippy underfoot for techs
-
Two RJ45A air-hydraulic jacks — 4,500 lb each, pneumatic actuation off shop air
-
RJ45A arm adjustment 39 1/2" to 64 3/4" — fits a wide range of vehicle wheelbases
-
110V / 30A electrical — installs on a single dedicated circuit
-
Caster kit with polyurethane wheels — relocate the lift between bays without tearing up the floor
-
Steel approach ramps + jack tray + drip trays — full operator accessory set, no extra purchases
ALI-Certified APEX9 4-Post Lift
The APEX9 carries the ALI Gold Label — independent third-party verification that the lift meets the ANSI/ALI ALCTV-2017 standard for design, construction, and testing. For shops that need to satisfy insurance, lease, or municipal inspection requirements, that certification is the document you'll be asked to produce.

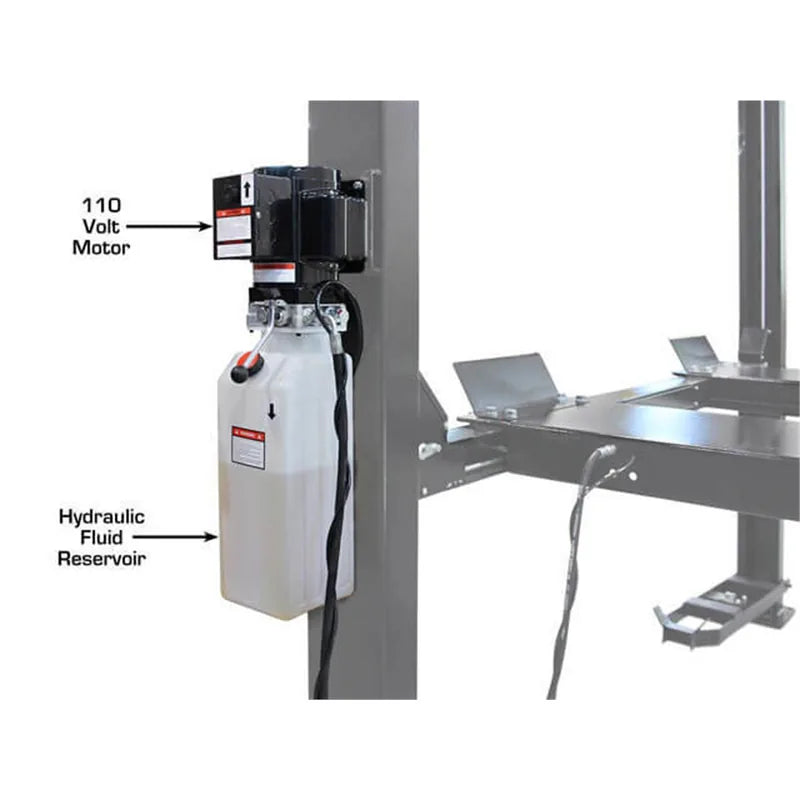

Diamond-plated steel runways give techs traction in oil and water, and the 4-post architecture keeps the bay open underneath for transmission jacks, exhaust dollies, and creeper work. The lift runs on a 110V circuit with a 30A breaker, so most shops install it without an electrical service upgrade.
RJ45A ProJack 45 Air-Over-Hydraulic Jacks
The RJ45A jacks roll between the runways on demand, then air-over-hydraulic lift the vehicle off the lift surface. Air pressure does the work — connect shop air at typical compressor pressures, hit the valve, and the jack extends. No external hydraulic power unit to maintain, no separate pump.
Each jack carries 4,500 lb (combined 9,000 lb across both axles), the arm spread adjusts from 39 1/2" to 64 3/4", and minimum height above the runway is 3 3/4" with the included adapters. Two jacks in the package means you can lift both axles simultaneously or work one end at a time without re-positioning a single bridge.
The Right 4-Post Lift Combo for Your Shop
At 9,000 lb lift capacity plus two 4,500 lb air-hydraulic rolling jacks, this combo turns a single bay into a lift station that handles oil changes, alignments, tires, brakes, and suspension work in one stall. The ALI Gold Label removes the compliance question.
Included steel ramps, caster kit, jack tray, drip trays, and wheel chocks mean the lift is operational the moment it's anchored — no extra accessory purchases required.
