Atlas Alignment Wheel Stand & Turntable Package (Set of 4)

Atlas Alignment Wheel Stand & Turntable Package — Turn Your 2-Post Into a 4-Post Alignment Bay

A dedicated 4-post alignment lift is the right call for high-volume alignment shops. But for the shop that does alignments occasionally — or runs primarily 2-post lift work but takes the occasional alignment job — buying a dedicated alignment lift is hard to justify financially or by floor-space.

The Atlas Wheel Stand & Turntable Package is the workaround. Set of 4 heavy-duty steel wheel stands (1,500 lb capacity each, 6,000 lb total) plus 4 alignment turntables. Place a turntable on each stand and your existing 2-post lift becomes a 4-point alignment platform. At 39-1/2" height, the stands put the wheels at proper height for hanging alignment sensors.

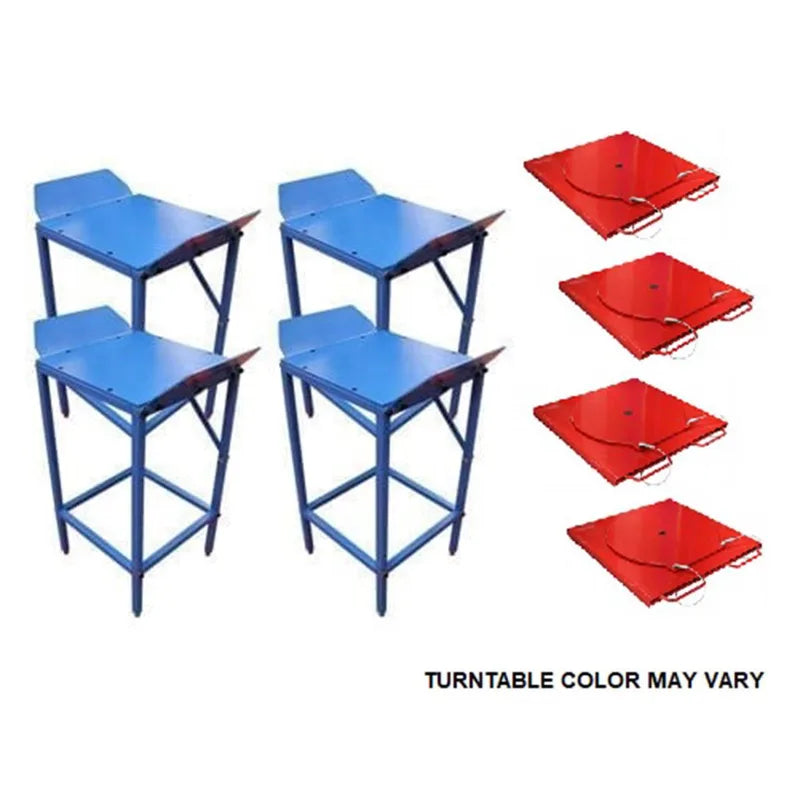

What's Included

• 4 steel wheel stands (39-1/2" height)
• 4 alignment turntables (color may vary)
• 19.5" x 19.5" solid steel top plates
• 0.38" thick top steel plating

Made For

Built for shops that need alignment capability but don't have the floor space or budget for a dedicated alignment lift.

• Independent repair shops with 2-post lifts that occasionally do alignments
• Tire shops adding alignment service to existing lift setup
• Restoration shops needing alignment-quality wheel positioning for chassis work
• Small shops with floor space constraints

Features

• Set of 4 wheel stands — supports the entire vehicle at proper alignment height.
• 6,000 lb total capacity — 1,500 lb per stand. Covers passenger cars, SUVs, light trucks.
• 4 alignment turntables included — front wheels rotate freely for toe/caster adjustment.
• 19.5" x 19.5" solid steel top plate — large stable platform for wheel positioning.
• 0.38" thick top steel — heavy-duty plate, no flex under load.
• 39-1/2" height — proper height for hanging alignment sensors.
• Adjustable/levelable — fine-tune for true alignment work on uneven floors.
• Heavy steel construction — designed for sustained commercial use.

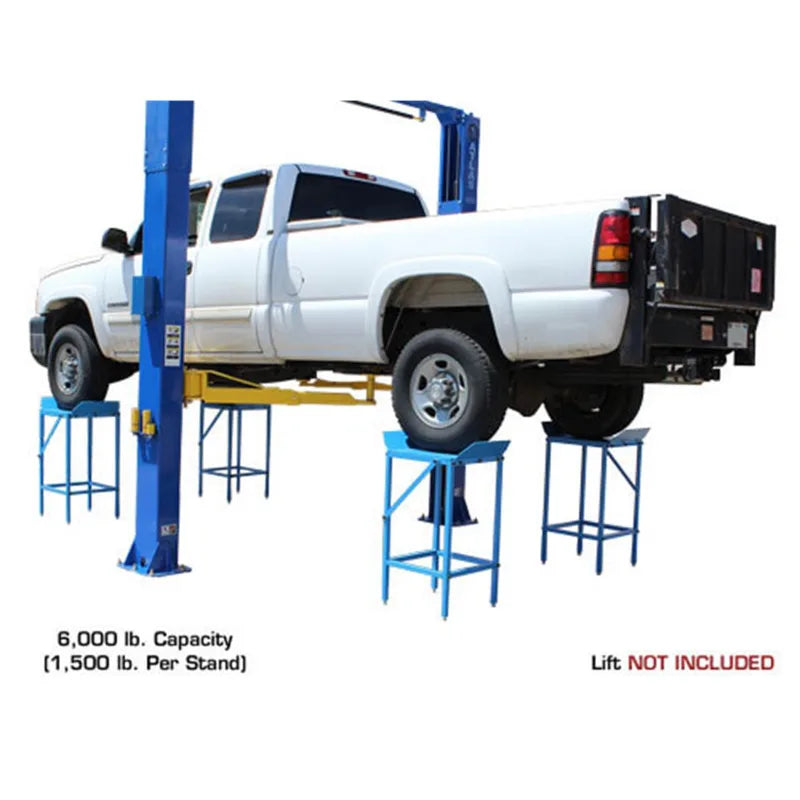

How It Works With Your 2-Post Lift

Run the vehicle up on your 2-post lift's arms with the wheels on the floor. Slide the wheel stands under each wheel. Place an alignment turntable on each stand. Lower the lift onto the stands so the vehicle weight is on the wheels (on the turntables) at alignment-sensor height. Use the arms of the 2-post for height adjustment if needed.

The result is a 4-point alignment platform with the wheels at proper working height — no dedicated alignment lift required.

WHLSTD vs SLJ-A000: Turntables Included or Not

The WHLSTD package includes the 4 turntables. The SLJ-A000 (Set of 4 wheel stands only) is the same stand without the turntables — appropriate when the shop already has turntables or doesn't need them.

For most shops adding alignment capability for the first time, the WHLSTD package with turntables is the right starting point.

The Right Alignment Solution for Limited-Space Shops

The Atlas Wheel Stand & Turntable Package turns an existing 2-post lift into an alignment-capable bay without adding a dedicated lift.

Don't wait — scroll back up and click the orange Add to Cart button to get this package on its way to your shop.

Technical Specifications
