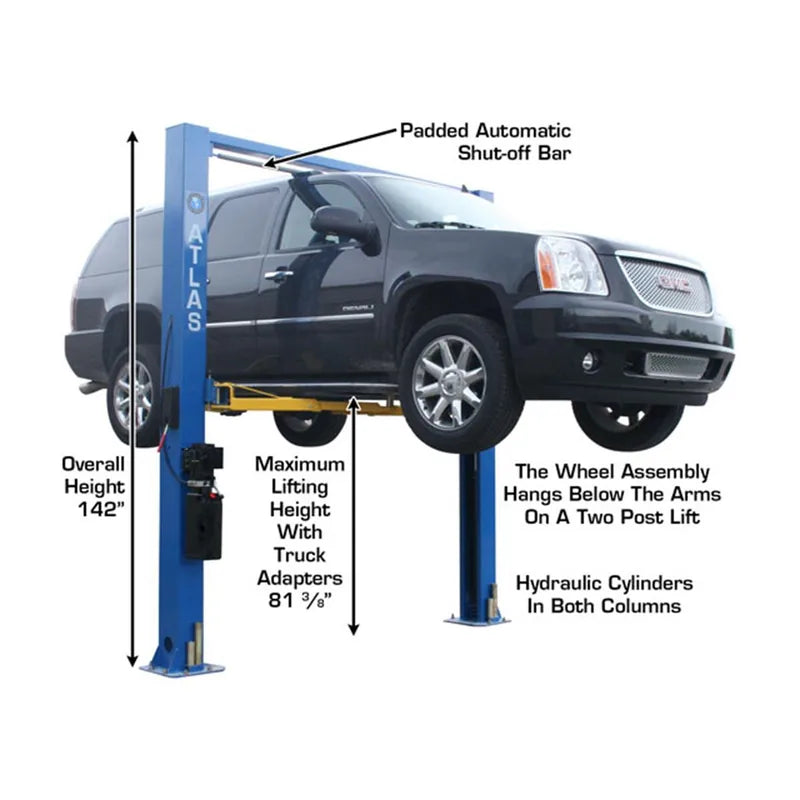

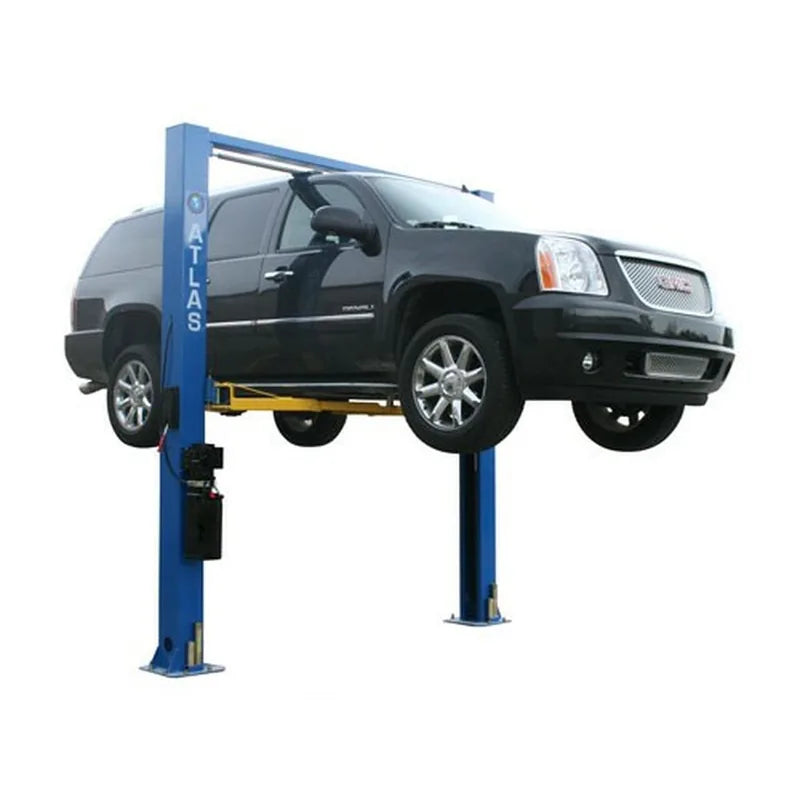

9,000 lb 2-post car lift — overhead design, open floor
Working under a vehicle without a reliable lift slows everything down. Floor jacks and jack stands eat up time, limit access, and create safety risks that no shop owner should accept. If you're outfitting a new bay or replacing aging equipment, the right 2-post lift pays for itself in productivity alone.
The Atlas 9OHSC delivers 9,000 lbs of lifting capacity in an overhead-connected, open-floor design. Single-piece columns, dual hydraulic chain-drive cylinders, and a single-point lock release give you the strength and speed to move through jobs without second-guessing your equipment.
What's Included
- Atlas 9OHSC 9,000 lb overhead 2-post lift
- 12-piece truck adapter set
- Mounting hardware
Made For
Built for shops that need a dependable, mid-capacity 2-post lift for everyday work.
- Independent auto repair shops
- Dealership service departments
- Fleet maintenance facilities
- Serious home garages and hobby builders
- Body shops and detail centers
Features
-
9,000 lb. lifting capacity — handles cars, trucks, and SUVs with room to spare
-
Overhead design with open floor — no base-plate obstruction, full drive-through clearance of 100 1/2"
-
Single-piece column construction — stronger and more rigid than two-piece bolted columns
-

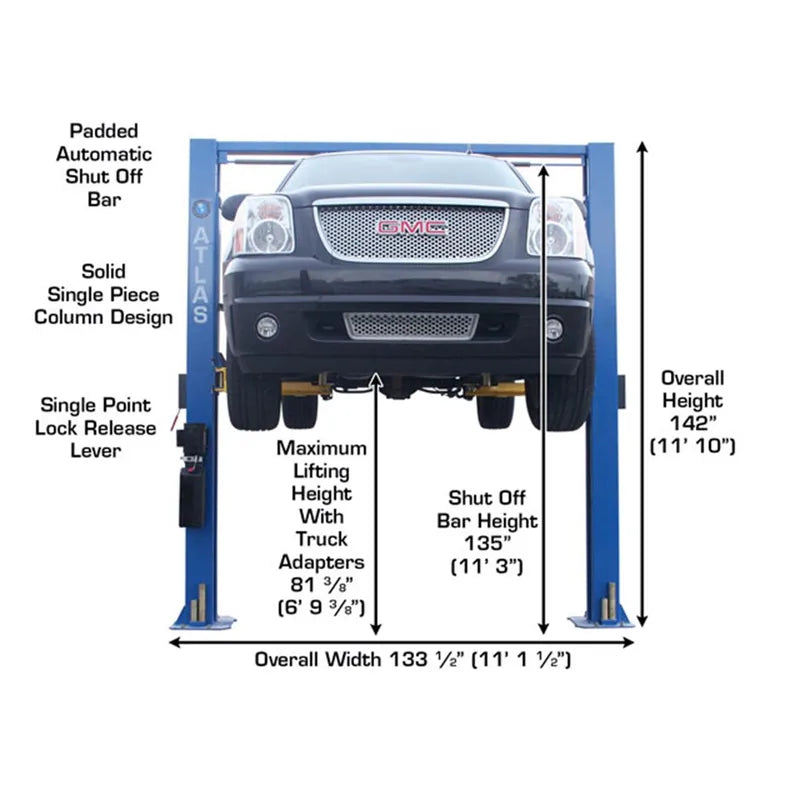

3-stage front arms / 2-stage rear arms — reach a wide range of lift points on different vehicles
-
Automatic arm restraints — arms lock into position for consistent, safe placement every time
-
Single-point lock release — lower the lift from one location instead of releasing each arm individually
-
Dual hydraulic chain-drive cylinders — smooth, even lifting on both sides with reliable hydraulic power
-
Rubber guards on carriages — protect vehicle underbodies from scratches and dents during lifts
Open-floor overhead design for maximum clearance
The 9OHSC uses an overhead beam connecting both columns at the top, keeping the floor completely clear between the posts. This gives you 100 1/2" of drive-through clearance — enough room for full-size trucks and SUVs to roll straight in without tight maneuvering.
With no base-plate connection running across the floor, you also get unobstructed access underneath the vehicle. Creepers, drain pans, and transmission jacks move freely without catching on cross-members or floor plates.

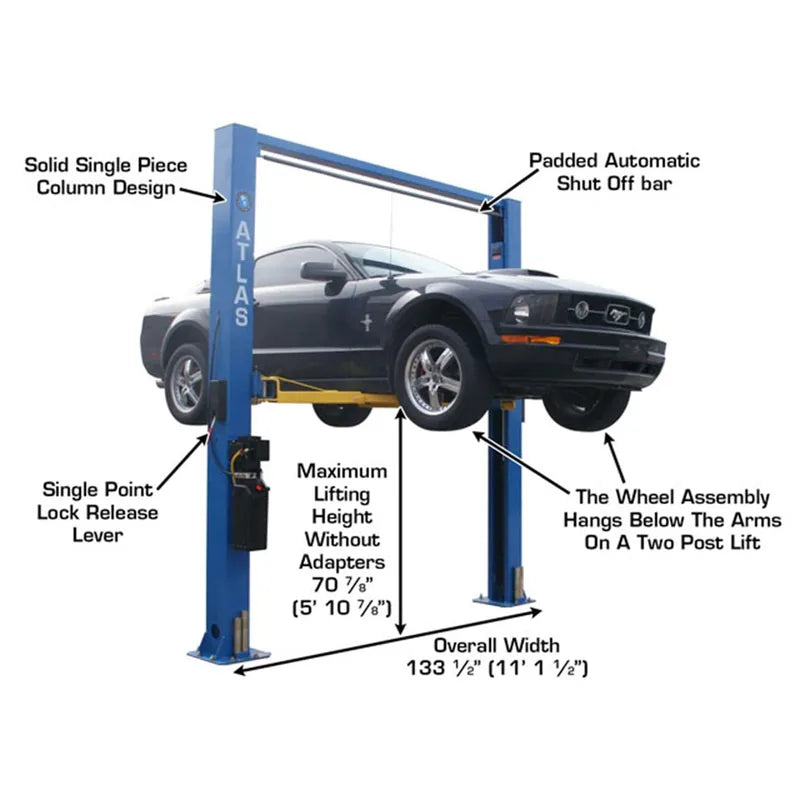

Single-piece columns built for long-term reliability
Each column on the 9OHSC is a single-piece design — no bolted joints or welded seams in the structural path. This matters because column flex under load is one of the most common failure points on cheaper lifts. A one-piece column stays true over years of daily use.
The 8" x 9 3/8" column footprint gives the structure a solid base without eating up floor space. Combined with a 16 3/4" x 17 3/4" base, the lift stays planted and stable even at full extension.
The right 2-post lift for your shop
The Atlas 9OHSC gives you 9,000 lbs of capacity, an open-floor overhead design, and single-piece column construction in a package that fits standard bay widths. With a 142" overall height and 76 3/4" max lift height (87 3/4" with adapters), it handles the full range of daily service work.
The included 12-piece truck adapter set and mounting hardware mean you're ready to install and start lifting on day one — no extra purchases needed.
Don't wait — scroll back up and click the orange Add to Cart button to get this 2-post lift on its way to your shop.
