6,000 lb Open Center Scissor Lift for Tire and Brake Service
Floor jacks and bottle jacks turn a 20-minute tire rotation into a back-breaking chore — and they don't lift the car high enough to make brake work comfortable. If your techs spend more time positioning a jack than turning wrenches, your shop is leaving billable hours on the floor.

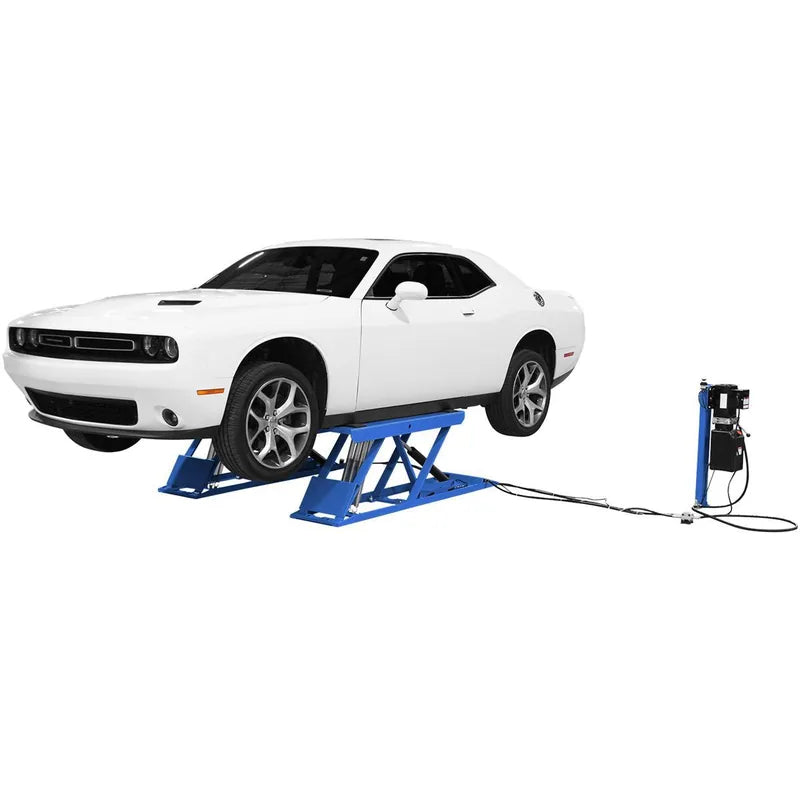

The Atlas 6PL is a commercial-grade 6,000 lb open-center scissor lift built for fast tire and brake service. Drive over, set the included rubber blocks under the factory lift points, press the button on the 110V power unit, and the vehicle is at working height in seconds. The open center keeps the entire underbody accessible while the air-operated single-point lock release lowers the lift smoothly when the job's done.
What's Included
- Atlas 6PL scissor lift platforms (one pair)
- Four high-density rubber lifting blocks
- Four non-slip rubber pads
- Drive-over ramps
- Mounting hardware
- 110-volt electric / hydraulic power unit
- Owner's manual
Made For
Built for shops that need fast vehicle access for tire and brake work without committing to a full above-ground lift.
- Tire shops and quick-service centers
- Brake and undercar service bays
- Mobile and detail-focused operations
- Home garages with limited ceiling height
- Specialty shops doing low-rise inspection work
Features
-
6,000 lb. Capacity — handles passenger cars, light SUVs, and small trucks with margin.
-
Open Center Design — no cross-member between the platforms; the full underbody is accessible.
-
Heavy-Duty Rubber Lifting Blocks Included — four high-density blocks protect factory pinch welds and lift points on most vehicles.
-
Drive-Over Ramps — drive the car straight on; no floor pit required.
-
Air-Operated Single-Point Lock Release — one lever drops all locks simultaneously for smooth, controlled descent (requires 90–125 PSI shop air).
-
110-Volt Power Unit — plugs into any standard 110V outlet; no special wiring or three-phase service.
-
Commercial Grade Construction — built for daily use in tire and brake shops.
-
4.5" Lowered Height — slides under most cars without ramps in many shop configurations.
-
26" Maximum Lift Height with Blocks — plenty of clearance for tire, brake, and low-rise inspection work.
-
Mounting Hardware Included — supplied in the carton, ready to install.
Why the Open-Center Design Wins for Tire and Brake Work
Most low-rise lifts have a structural cross-member between the two platforms. It makes the lift cheaper to build, but it puts a steel beam exactly where the differential, exhaust, or transmission pan typically hangs — and exactly where your tech needs to walk.
The Atlas 6PL splits the platforms apart and leaves the entire center of the vehicle exposed. You can roll a transmission jack, brake bleed bottle, or rolling tool tray right under the car without dancing around steel. For shops doing 20+ tire rotations a day, that lost-motion savings compounds into real labor hours every week.
110-Volt Power and Air Lock Release Built for a Working Bay
The 6PL includes a self-contained 110-volt electric / hydraulic power unit that plugs into any standard receptacle — no electrician visit, no panel upgrade. Push the button to raise; the cylinders fill from the integrated reservoir and lift the load smoothly.
Descent is controlled by an air-operated single-point lock release. One lever on the power unit retracts all mechanical safety locks simultaneously and releases the dump valve, so the lift lowers evenly with no manual lock-pulling at each post. You'll need shop air running 90–125 PSI plumbed to the lift — most shops already have this.
The Right Low-Rise Scissor Lift for Your Shop
With 6,000 lb capacity, an open-center design, 110V power, and the rubber lifting blocks already in the box, the Atlas 6PL is built to drop into a tire or brake bay and start producing on day one.
