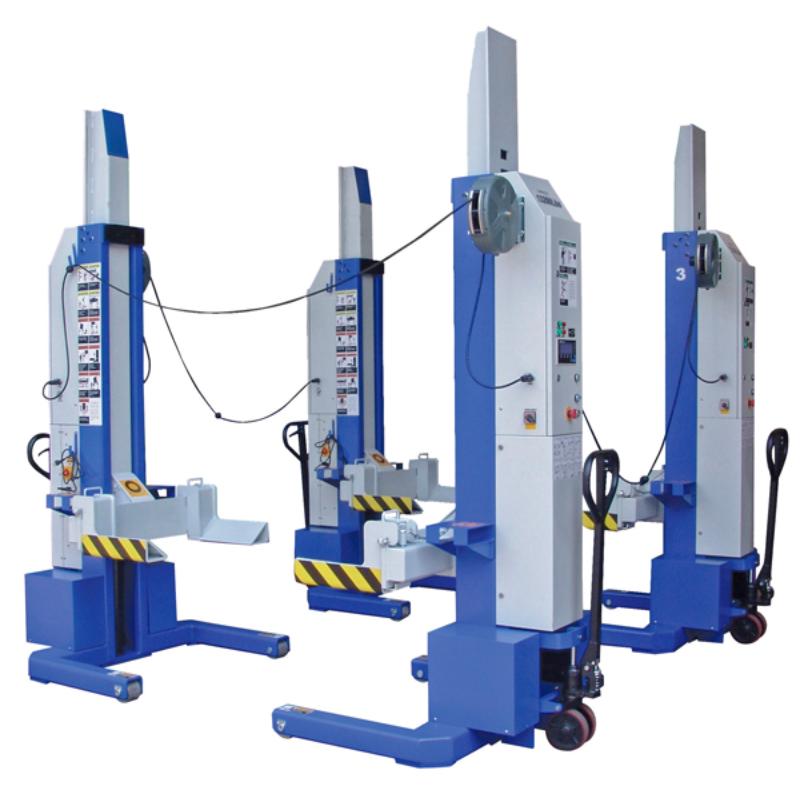

ATD Mobile Column Lift System up to 78,000 lb Capacity, Battery Powered

ATD Mobile Column Lift System up to 78,000 lb Capacity, Battery Powered

by ATD
Save $23,591.06 Save $23,591.06
$51,024.39
$51,024.39 - $51,024.39
$51,024.39
$27,433.33
$27,433.33 - $79,116.67
$27,433.33

+ FREE SHIPPING

  • 13,000 lbs per column capacity
  • 2, 4 or 6 mobile columns
  • Battery operated with pallet jack mobile base
Zed Valenzuela, product expert at Access Division

Zed Valenzuela · Product Expert

Questions on specs, fit or install? Ask before you buy.

+1 (855) 559-5589

Call or text · Weekdays 9–5 EST

- Call us for the best price +1 (855) 559-5589

- Authorized ATD Dealer | Covered by the manufacturer warranty

- Free pickup available

- Usually arrives in 3-10 business days | ships LTL freight

- Eligible for our 30-day easy returns

- Request a free quotation

Columns: 2 Column Lifts
SKU ATDMSC132
Description

ATD Mobile Column Lift System — 13,000 lbs per column, 2, 4 or 6 mobile columns

A vehicle that will not fit a bay does not stop needing service, and one column will only ever lift one corner of it.

The Mobile Column Lift System is rated at 13,000 lbs per column and runs on 100V AC, 60 Hz, 1PH; 24V DC; 3 Hp. Independent locking system and emergency switch on each column.

Why Choose the ATD Mobile Column Lift System

Built for the fleet lifting whole vehicles wherever they are parked, with every figure on this page taken from ATD.

  • 13,000 lbs per column — the capacity ATD publishes, not a number rounded up.
  • Configuration — 2, 4 or 6 mobile columns (choose at checkout).
  • Lock System — Independent locking system and emergency switch on each column.

Made For

Built for anyone lifting a whole vehicle where it stands, on as many columns as the job takes.

  • Fleet and municipal yards
  • Bus and commercial vehicle work
  • Shops without fixed lift bays
  • Field and on-site servicing
  • Anyone lifting outside a fixed bay

Features

  • Configuration — 2, 4 or 6 mobile columns (choose at checkout).
  • Capacity Per Column — 13,000 lbs.
  • Total Capacity - 2 Column Set — 26,000 lbs.
  • Total Capacity - 4 Column Set — 52,000 lbs.
  • Total Capacity - 6 Column Set — 78,000 lbs.
  • Lifting Time — 75 seconds.
  • Lowering Time — 60 seconds.
  • Overall Height — 88-1/2 inches.

What It Is Rated For

ATD rates each column at 13,000 lbs. The set total depends on how many columns you order: 2 Column Set = 26,000 lbs; 4 Column Set = 52,000 lbs; 6 Column Set = 78,000 lbs. Those are ATD’s figures, and the one that applies to you is the one matching the configuration you pick at checkout.

Every figure in the table below comes from ATD. Where the manufacturer publishes no number for something, this page leaves it out rather than filling the gap.

Check the published dimensions against your bay before ordering — ceiling height, floor slab and door width decide whether a lift fits, not the capacity.

Installing and Using It

Power: 100V AC, 60 Hz, 1PH; 24V DC; 3 Hp. Confirm the circuit before delivery rather than on the day.

Operation: Battery operated with pallet jack mobile base.

Nothing here is anchored to the floor, so the surface it stands on has to be flat, solid and level every time it is used.

The Right Mobile Column Lift Set for Your Bay

If a mobile column lift set is what your bay is missing, this is ATD’s answer at 13,000 lbs per column.

Don't wait — scroll back up and click the orange Add to Cart button to get this column lift set on its way to your shop.

Specs

Technical Specifications

Model ATDMSC132 / ATDMSC134 / ATDMSC136
Configuration 2, 4 or 6 mobile columns (choose at checkout)
Capacity Per Column 13,000 lbs
Total Capacity - 2 Column Set 26,000 lbs
Total Capacity - 4 Column Set 52,000 lbs
Total Capacity - 6 Column Set 78,000 lbs
Lifting Time 75 seconds
Lowering Time 60 seconds
Overall Height 88-1/2 inches
Overall Width 44 inches
Maximum Distance Between Columns 32 ft 8 in.
Fork Length 14 inches
Noise Level 70 dBA
Power Requirements 100V AC, 60 Hz, 1PH; 24V DC; 3 Hp
Operation Battery operated with pallet jack mobile base
Forks Adjustable lifting forks
Lock System Independent locking system and emergency switch on each column
Control Touchscreen control with Siemens technology
Cabling Retractable communication cable reels
Shipping Weight 1,210 lbs per column
