9,000 lb Rotary RJ9000Y-2 Wide-Track Air/Hydraulic Rolling Jack for SM30 Series 4-Post Lifts

A 4-post lift holds the car by its tires. That is great for oil changes and exhaust work. But the moment a job needs a wheel off, the car has to come up off the runways — and a floor jack under a raised lift is slow and awkward.

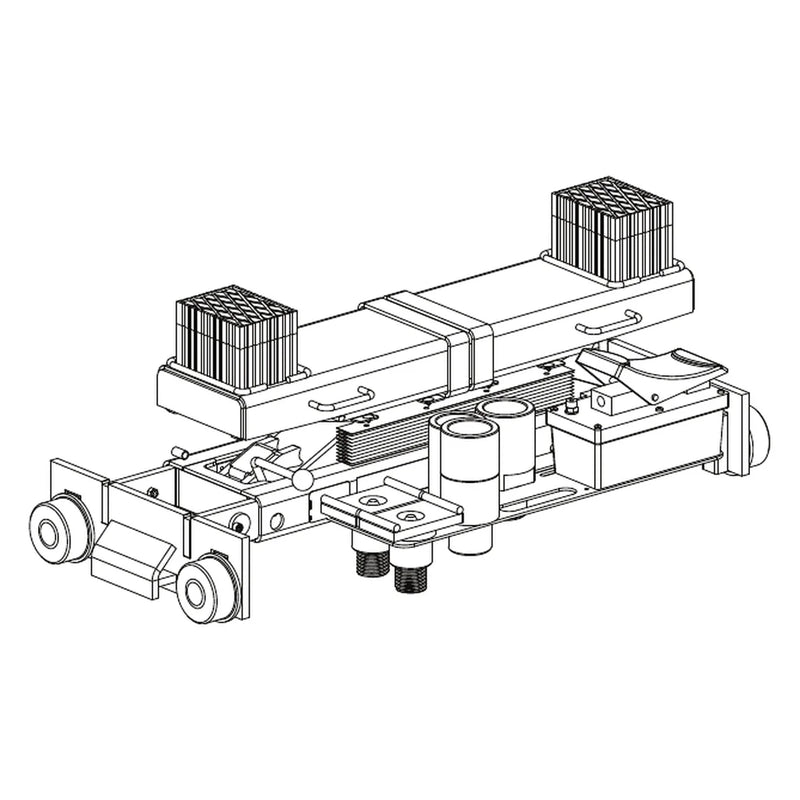

The Rotary RJ9000Y-2 is the wide-track version of Rotary's 9,000 lb rolling jack, made for SM30 series 4-post lifts. It rides on the runways and raises the vehicle up to 9,000 lbs off them, telescopes to fit runways from 46 1/2" to 56 1/8" apart, and locks at full rise.

Why Choose the RJ9000Y-2

It turns a drive-on lift into a wheels-free lift for up to 9,000 lbs.

• 9,000 lb capacity on shop air at 100–120 psi
• Wide telescoping ends fit an inside runway width of 46 1/2" to 56 1/8"
• 21 1/2" maximum height for clear wheel removal

What's Included

• RJ9000Y-2 9,000 lb rolling jack
• Rubber pads in 1/2", 1 1/2" and 3" sizes
• Two truck adapters
• Two 3" and two 5" adapter extensions

Made For

The RJ9000Y-2 is for shops running an SM30 series 4-post lift that want wheels-free work in the same bay.

• Fleet garages servicing heavy trucks on an SM30 series lift
• Commercial truck and van service shops
• Municipal and utility shops with wide-runway 4-post lifts
• General repair shops taking on heavier truck work
• Dealership service departments with a heavy-duty 4-post bay

Features

• 9,000 lbs (4,082 kg) capacity — enough for trucks and vans sitting on the runways
• Air-operated scissor design — an air-over-hydraulic pump raises the jack on 100–120 psi regulated shop air
• Wide telescoping ends, 46 1/2"–56 1/8" — sized for the wider runway spacing of SM30 series lifts
• 21 1/2" maximum height — lifts the tires clear of the runways for wheel removal
• 12 3/4" collapsed height — sits between the runways when the jack is not in use
• Locking latch at full rise — the jack sits on a mechanical latch, not just hydraulic pressure
• Four heavy-duty urethane wheels — the jack rolls along the runways to the front or rear lift points
• Accordion rubber shield — covers the scissor mechanism against dirt and debris

Wheels-Free Service Without Leaving the Lift

The jack sits between the runways and rolls to the vehicle's pick-up points. Connect the air supply, hold the pump lever, and the jack raises the vehicle off the runways to the lock position you need.

Brake jobs, suspension work and tire rotations then happen on the same 4-post lift, with the wheels hanging free.

Adapters for Cars and Trucks

Three sizes of rubber pads — 1/2", 1 1/2" and 3" — take up the gap to the lift points, and the blocks can be stacked up to two high.

Two truck adapters plus 3" and 5" adapter extensions reach higher frame points on pickups and vans.

The Right Rolling Jack for Your Shop

The RJ9000Y-2 adds 9,000 lbs of wheels-free lifting to an SM30 series 4-post lift, with wide telescoping ends, an air-over-hydraulic pump and a full-rise locking latch. Don't wait — scroll back up and click the orange Add to Cart button to get this rolling jack on its way to your shop.

Technical Specifications
