Laser-Guided Motorized Spin Wheel Balancer for Professional Tire Shops
The mid-tier of the Atlas Platinum line — Italian engineering, automatic data entry, laser-guided weight placement, and the FES / OWF functions that speed up high-volume wheel work — without stepping up to the full 3D video display of the PWB90XL.
The PWB70 builds on the popular PWB50 platform with a bigger wheel weight tray, a larger hood, an LED wheel-interior light, and the same laser-line weight placement guide found on the top-of-line PWB90XL. Automatic 2D data entry through a single gauge captures offset and diameter; rim width is still set manually, which keeps the price below the full-3D models without sacrificing balance accuracy.
What's Included
- Atlas Platinum PWB70 motorized spin balancer
- Plastic quick-release nut
- 4 centering cones
- Wheel weight pliers
- Measuring calipers
Made For
Built for high-volume passenger vehicle balancing where automatic data entry and laser-guided weight placement pay back over the shift.
- Independent tire shops handling steady passenger and light-truck volume
- Dealership service departments
- Multi-bay service garages
- Custom wheel and detail shops needing repeatable balance on alloy and aftermarket wheels
Features
-
Automatic 2D data entry — single gauge captures offset and diameter; only rim width is manual.
-
Laser line weight placement — guides the operator back to the exact location after the spin cycle.
-

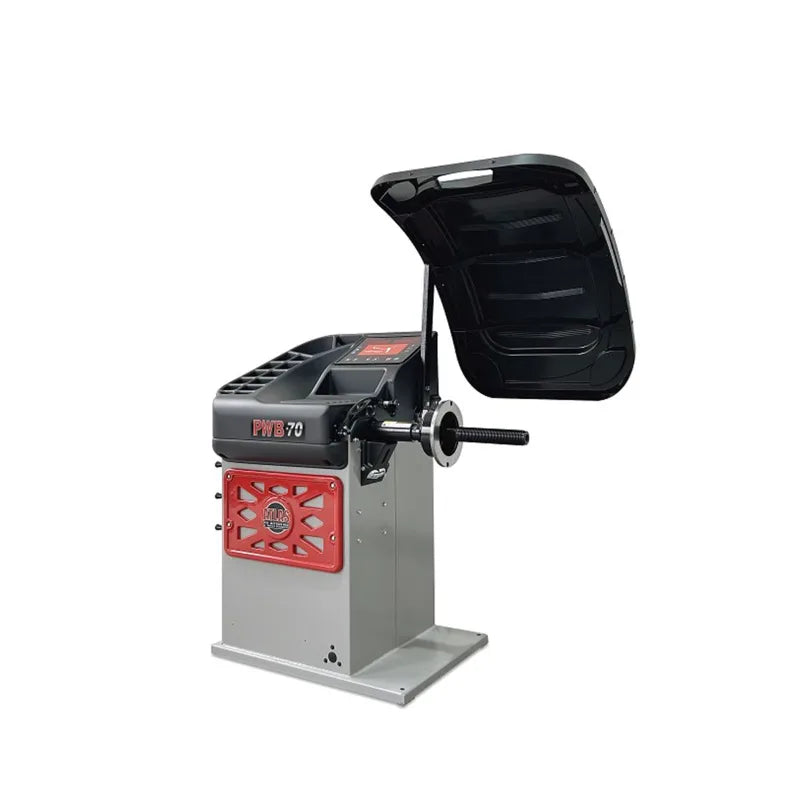

LED wheel-interior light — illuminates the rim for precise adhesive weight placement.
-
OPTIMATCH match-mounting — optimize tire and wheel unbalance on difficult assemblies.
-
FES split function — fast & easy split for hiding adhesive weights behind spokes.
-
Opposite Weight Function (OWF) — flip weight application from 12 o'clock to 6 o'clock for easier access.
-
ALU-S and other ALU programs — every common weight placement scheme covered.
-
NWN (No Wheel Need) system — calibrate and diagnose without mounting a wheel.
-
Electric brake with smart approach — fast, controlled stop at the weight placement point.
-

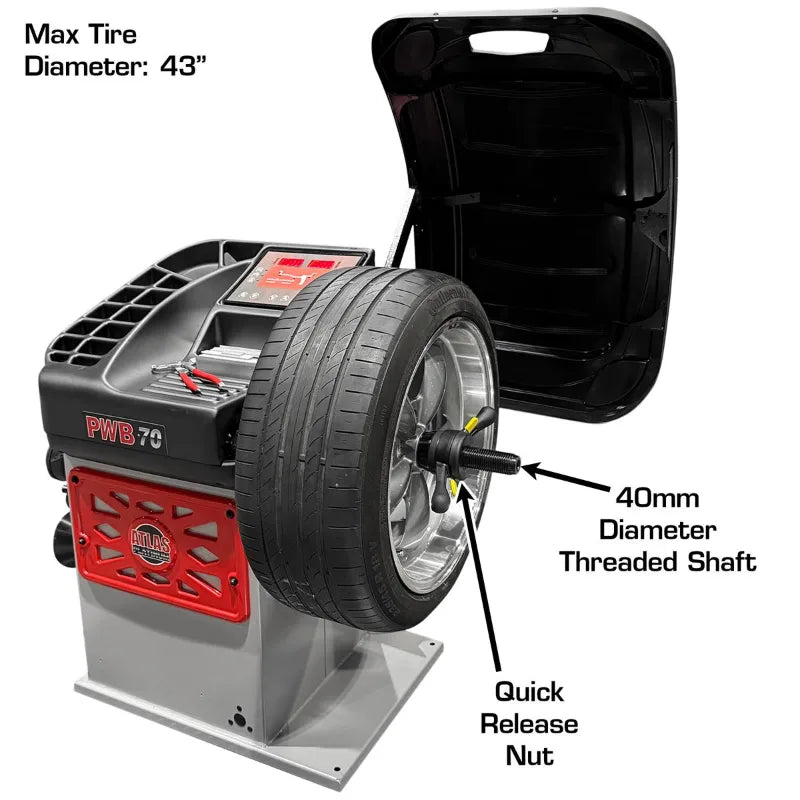

Large wheel weight tray — keep tools, cones, and weights at hand.
-
Self-diagnosing and self-calibrating — in-shop diagnostics and calibration.
-
USB firmware updates — keep the balancer current via PC/laptop.
-
43" max tire diameter, 165 lb max wheel weight — handles full-size truck and SUV assemblies.
-
No anchor-down installation — drop on a level slab and plug in.
Automatic 2D Data Entry, Faster Cycles

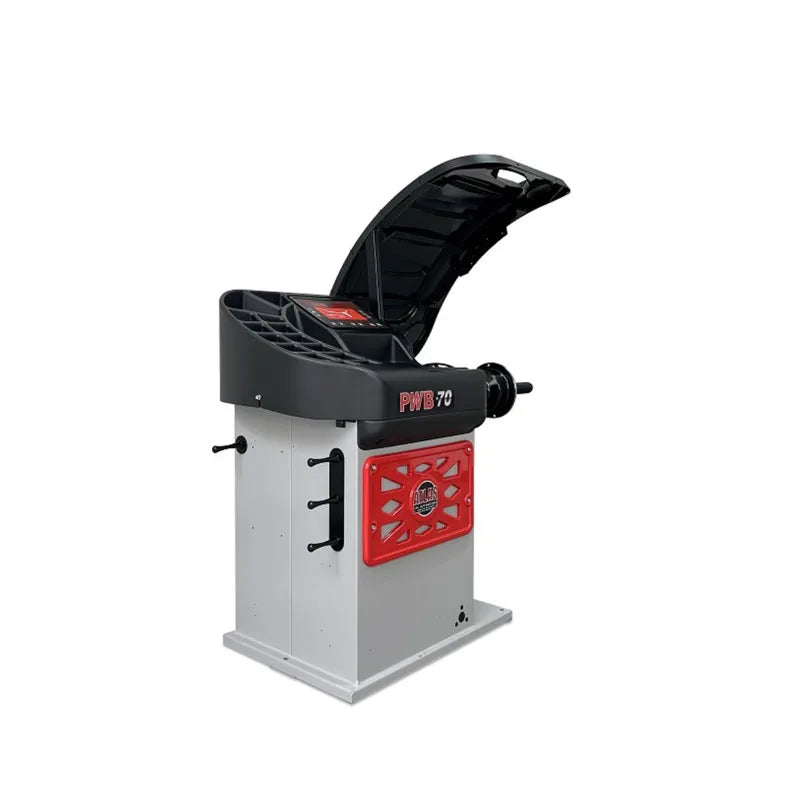

The PWB70's data-entry arm is the single biggest difference between this balancer and a basic computerized unit like the WB11. Swing the arm out, touch the rim flange, and the balancer captures both offset and diameter in one motion — no separate measurements, no transcription, no calipers.
That cuts the per-wheel cycle by 5-10 seconds versus a fully manual unit. Over a 10-wheel shift it's meaningful, and over a 100-wheel day it adds up to a noticeable difference in throughput. Rim width still has to be measured manually, which is where the PWB90XL pulls ahead with touchless sonar — but for shops where rim width is consistent across most of the day's volume, the PWB70 is the better fit on price.
Laser-Guided Weight Placement, Italian Build
After the spin, the PWB70 projects a laser line on the rim at the exact weight placement location. The operator follows the laser back to the placement point — no rotating the wheel by hand to find 12 o'clock, no second spins to fix mis-placed weights. The LED interior light makes adhesive weight placement on alloy wheels straightforward even on dim shop floors.
Italian engineering and componentry through the rest of the build — the motor, encoders, electronics — means the PWB70 reads unbalance consistently spin after spin, with the same 1-gram accuracy and 1.4° resolution as the top-of-line model.
The Right Wheel Balancer for Your Shop
The PWB70 is the middle ground of the Atlas Platinum line — automatic data entry, laser guidance, and Italian build quality, without the cost of a full 3D video display. It's the right call when the volume justifies the data-entry arm but rim widths are consistent enough that touchless sonar isn't paying back.
