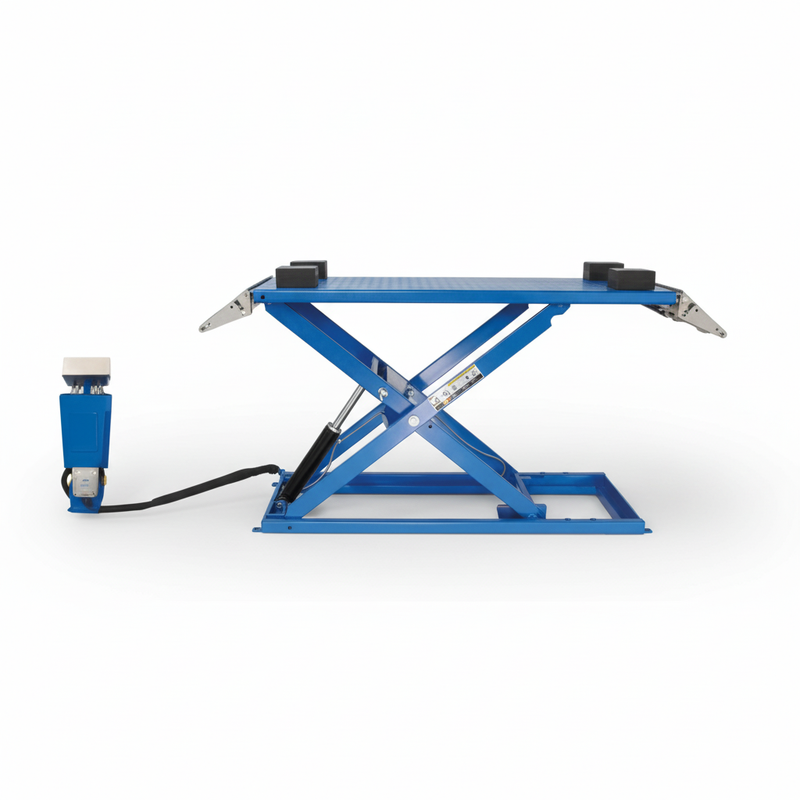

Revolutionize Your UTV and ATV Service with the ATD Electric Hydraulic Frame Lift
Tired of crawling under UTVs and ATVs on creepers, struggling with inadequate lifting solutions that can't accommodate the wide variety of frame configurations found on modern power sports vehicles? The ATD UFL2500 Electric Hydraulic UTV Frame Lift solves these challenges with its exclusive "wheels free" design that lifts vehicles by their frames rather than wheels, providing unobstructed access to suspension components, drivetrain parts, and undercarriage systems across the widest range of vehicles from massive side-by-sides to compact ATVs. The smooth 110V electric-hydraulic operation raises up to 2,500 lbs to a comfortable 43-inch working height in just 25 seconds, while three locking positions ensure safety during extended service procedures. After installing this professional-grade lift in your shop, you'll experience the confidence and efficiency that comes from having proper access to every component, eliminating back strain from ground-level work while dramatically improving service quality and reducing repair times on all power sports vehicles.
ATD UFL2500 Frame Lift Technical Specifications
- Model: ATD UFL2500
- Lifting Capacity: 2,500 lbs
- Minimum Platform Height: 4-3/4 inches
- Maximum Lifting Height: 43 inches (49" with rubber pads)
- Platform Dimensions: 67" x 24" (24" W x 88.9" L total)
- Overall Length with Ramp: 88-7/8 inches
- Rise Time: 25 seconds
- Lower Time: 25 seconds
- Power Requirements: 110V, 60Hz, 1PH, 18A
- Shipping Weight: 740 lbs
- Rubber Contact Pads: 4-3/4" x 6-1/2" (4 included)
- Safety Features: Three locking positions
- Control Options: Portable or mounted pedestal
Exclusive Wheels-Free Design Maximizes Service Access
The revolutionary "wheels free" lifting concept sets this lift apart from traditional wheel-based systems that limit access to suspension components and drivetrain elements. By supporting vehicles through their frames, the UFL2500 provides complete access to wheels, suspension arms, CV joints, differentials, and brake systems without obstruction.
This design philosophy proves especially valuable when servicing modern UTVs with independent suspension systems, where wheel-based lifts create interference with service procedures. Technicians can remove wheels, suspension components, and drivetrain parts without repositioning or lowering the vehicle, dramatically improving workflow efficiency.
The frame-lifting approach also accommodates the enormous variety in power sports vehicle configurations. From narrow sport ATVs to wide utility side-by-sides, the system adapts to different frame designs and wheelbases that would challenge conventional lifting equipment.
Professional 2,500 Pound Capacity
The substantial 2,500 lb capacity handles everything from lightweight sport ATVs to fully-loaded utility UTVs with accessories, cargo, and fuel. This generous capacity provides safety margins for the heaviest production power sports vehicles while accommodating aftermarket modifications that add weight.
Electric-Hydraulic Power Delivers Smooth Performance
The 110V electric-hydraulic system provides smooth, consistent lifting action without the noise and maintenance complexity of purely hydraulic systems. Standard household voltage eliminates special electrical requirements while the 18-amp draw works with typical shop electrical systems.
Rapid 25-second rise and lower times keep workflow moving efficiently during busy service periods. The quick cycle time means less waiting and more productive service time, directly impacting shop profitability and customer satisfaction. The electric-hydraulic combination provides precise control for accurate positioning while maintaining the power needed for heavy vehicles.
The smooth operation protects vehicles from jarring movements that could damage plastic bodywork or sensitive electronic components common on modern power sports vehicles. This gentle action demonstrates professionalism while protecting valuable customer equipment.
Three-Position Safety Lock System
Three mechanical locking positions provide safety redundancy during extended service procedures. These locks operate independently of hydraulic pressure, ensuring vehicles remain securely supported even during system maintenance or unexpected pressure loss.
Versatile Platform and Control Configuration
The 67" x 24" platform size accommodates wheelbase variations from compact ATVs to extended utility vehicles. The 4-3/4" minimum height allows easy drive-on access without steep ramps, while the maximum 43-inch height (49" with rubber pads) provides comfortable working positions for technicians of different heights.
Load-bearing hinged ramps support vehicle weight during loading and unloading, eliminating the sketchy experience of driving over lightweight ramps that flex or shift. These integrated ramps fold out of the way during lifting operations, maximizing workspace around the vehicle.
Control flexibility accommodates different shop layouts and preferences. Portable controls allow positioning for optimal visibility and access, while the mounted pedestal option provides permanent installation convenience for dedicated service bays.
Premium Construction for Commercial Use
The 740-pound shipping weight reflects substantial construction designed for daily commercial use. This isn't lightweight consumer equipment - it's engineered for professional shops that depend on reliable lifting equipment for consistent revenue generation.
Four large rubber contact pads measuring 4-3/4" x 6-1/2" each distribute lifting forces across vehicle frames while protecting painted and powder-coated surfaces from damage. These pads accommodate different frame configurations and provide secure contact without marring expensive vehicles.
The robust platform construction handles the concentrated loads created by power sports vehicles with their relatively short wheelbases and heavy drivetrains. Unlike automotive lifts that distribute weight across longer wheelbases, this lift manages the unique load characteristics of compact, heavy power sports equipment.
Enhanced Service Capabilities
The optional UTV/ATV Wheel Stand Kit (ATDWHSTDKIT) provides additional functionality for wheel and tire service procedures. This accessory expands the lift's versatility, making it suitable for complete vehicle service rather than just undercarriage work.
The frame-lifting design particularly benefits shops performing suspension modifications, drivetrain repairs, or comprehensive maintenance services. Complete access to all components eliminates the repositioning and partial disassembly often required with wheel-based lifting systems.
For power sports dealerships and service centers handling everything from youth ATVs to full-size UTVs, this lift provides the versatility and capacity needed to service the complete range efficiently and safely.
Add the ATD UFL2500 Electric Hydraulic UTV Frame Lift to your cart today and transform your power sports service capabilities with professional lifting equipment designed specifically for the unique requirements of UTVs and ATVs.
