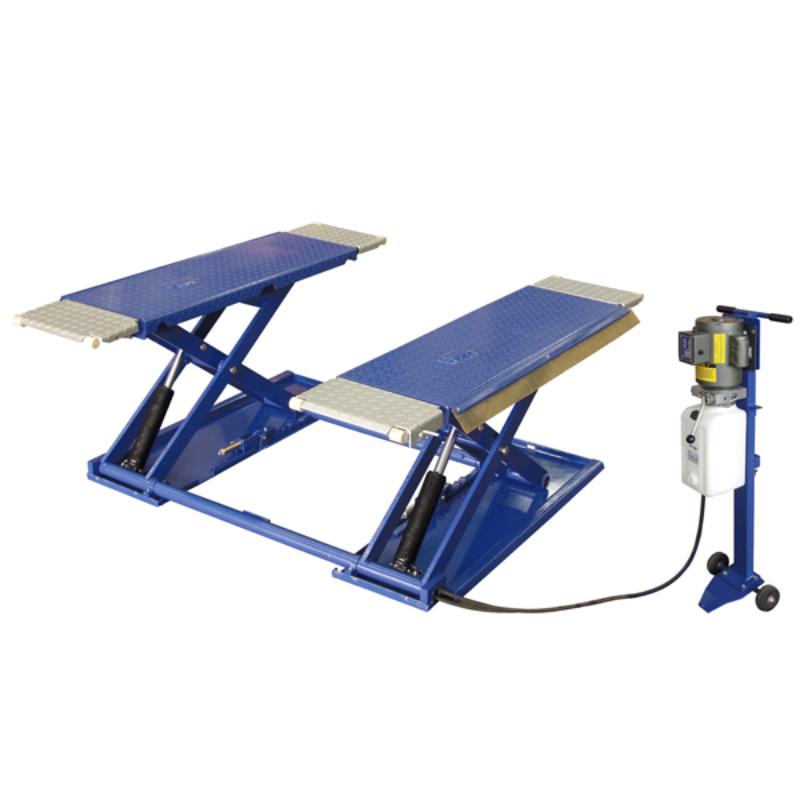

Experience Ultimate Flexibility with ATD Portable Mid-Rise Scissor Lift Technology
Tired of being locked into fixed lifting positions that limit your shop's layout flexibility, force you to dedicate permanent floor space to lifting equipment even when not needed, and prevent you from moving lifting capability to different work areas based on changing service demands throughout the day? The ATD SL6PM Mid-Rise Scissor Lift eliminates these constraints with its revolutionary portable design that delivers 6,000 lb lifting capacity wherever you need it, featuring an integrated wheel kit and tow bar that allows effortless repositioning throughout your facility while providing 38-inch lifting height for comfortable service access on routine maintenance, brake work, and undercarriage inspections. The automatic dual safety locks with pneumatic release ensure secure positioning with multiple locking positions throughout the lifting range, while included rubber riser blocks extend capability to 39-1/2 inches when additional height is needed for specific procedures. After adding this portable lifting solution to your operations, you'll experience the freedom of having professional-grade lifting capability that moves with your workflow instead of forcing your service operations around fixed equipment locations, maximizes shop floor utilization by storing the lift out of the way when not needed, and opens new possibilities for multi-bay flexibility that increases productivity and service efficiency.
ATD SL6PM Mid-Rise Scissor Lift Technical Specifications
- Model: ATD SL6PM
- Load Capacity: 6,000 lbs
- Overall Length: 77 inches
- Overall Width: 76-1/2 inches
- Maximum Lifting Height: 38 inches
- Minimum Pad Height: 4 inches
- Lifting Height with Adapters: 39-1/2 inches
- Lifting Speed: 40 seconds
- Pad Length: 56 inches
- Power Requirements: 110V, 20A, 1PH
- Shipping Weight: 1,355 lbs
- Portability: Wheel kit and tow bar included
- Safety Features: Automatic dual safety locks with pneumatic release
- Lock Positions: Multiple adjustable positions
- Accessories: Rubber riser blocks included
Revolutionary Portable Design Changes Everything
The game-changing portable design with integrated wheel kit and tow bar transforms this professional lift into a mobile solution that moves effortlessly throughout your facility. Position the lift exactly where needed for specific service procedures, then relocate it to optimize floor space when not in use or move it between service bays based on workload demands.
This mobility eliminates the permanent floor space commitment required by fixed lifts, allowing shops to maximize workspace utilization based on daily service requirements rather than permanent equipment placement. Small shops especially benefit from the ability to reclaim valuable floor space when lifting capability isn't needed.
The portability opens possibilities for outdoor service calls, mobile repair operations, or temporary service locations where permanent lift installation isn't feasible. Move the lift wherever vehicles need service rather than moving vehicles to fixed lifting positions.
Multi-bay operations gain enormous flexibility by deploying portable lifting capability where it's most needed throughout the day, seasonal demands, or special projects without the cost and space requirements of multiple fixed lifts.
Substantial 6,000 Pound Lifting Capacity
The impressive 6,000 lb capacity handles virtually every passenger vehicle and light truck, from compact economy cars to full-size SUVs and pickup trucks. This generous capacity provides comfortable safety margins while accommodating modern vehicles with heavy battery systems, all-wheel drive components, and aftermarket modifications.
Optimal 38-Inch Mid-Rise Height for Versatile Service
The 38-inch lifting height positions vehicles at the perfect level for a wide range of service procedures including oil changes, brake service, exhaust work, suspension inspection, and general maintenance. This mid-rise height provides excellent undercarriage access while maintaining comfortable working positions for technicians.
The height proves ideal for routine services that require more access than floor-level work provides but don't need full overhead clearance. Brake service becomes much more efficient with improved access to wheels, calipers, and brake lines compared to ground-level work.
Oil service procedures benefit greatly from proper working height that allows comfortable access to drain plugs, filters, and drain pans while providing adequate clearance for drain equipment positioning. The improved access also reduces service time per vehicle, increasing daily throughput.
Exhaust system inspection and service becomes much easier with mid-rise positioning that provides clear access to exhaust components, hangers, and mounting points without requiring technicians to work on creepers or in awkward positions.
Extended Height Capability with Riser Blocks
Included rubber riser blocks extend lifting capability to 39-1/2 inches when additional height is needed for specific service procedures or vehicle configurations. This flexibility accommodates varying service requirements without requiring multiple lifting systems or height limitations.
The riser blocks also provide options for different technician preferences and specific job requirements, allowing optimization of working height based on service type and individual comfort levels.
Advanced Dual Safety Lock System
Automatic dual safety locks provide redundant mechanical protection that engages independently of hydraulic pressure, ensuring vehicles remain securely supported even during extended service procedures or unexpected pressure loss. This dual-lock system provides superior safety compared to single-lock designs.
Pneumatic release operation allows convenient lock disengagement from a single control point, eliminating the need to manually release multiple locks or coordinate complex release procedures. The pneumatic system ensures consistent, reliable operation regardless of lock load or service conditions.
Multiple locking positions throughout the lifting range provide precise height control for optimizing working positions based on specific service procedures or vehicle configurations. This flexibility ensures optimal access and comfort for various service tasks.
The automatic engagement eliminates operator error possibilities while providing consistent safety protection regardless of technician experience level or service procedure duration.
Professional Construction for Mobile Applications
The substantial 1,355 lb construction weight reflects professional-grade components designed for portable commercial use rather than lightweight occasional applications. The robust construction ensures reliable performance under maximum loads while maintaining portability for repositioning operations.
The 77-inch length with 56-inch pad length accommodates wheelbases from compact cars to extended cab pickup trucks. This generous pad length ensures proper weight distribution and vehicle stability regardless of wheelbase variations.
The 76-1/2 inch overall width provides adequate stability under maximum load conditions while maintaining a footprint that fits through standard doorways and service bay openings for easy repositioning between work areas.
Standard 110V single-phase power with 20-amp requirements operates with typical shop electrical systems without requiring special installations. The standard power compatibility makes setup straightforward in any service location with basic electrical access.
Efficient 40-Second Lifting Speed
The 40-second lifting speed provides efficient cycle times that balance productivity with system longevity. This speed allows rapid vehicle positioning while avoiding hydraulic stress that could affect long-term reliability in portable applications.
Quick lifting capability improves workflow efficiency by minimizing vehicle positioning time, allowing technicians to focus on service procedures rather than waiting for lift cycles.
Complete Mobility Solution for Modern Shops
The 4-inch minimum pad height accommodates most passenger vehicles while providing adequate approach clearance for efficient drive-on positioning. This height works well with standard vehicles while avoiding approach problems that can slow service operations.
The tow bar design allows easy positioning by hand or with shop equipment, making repositioning practical even in busy service environments. The wheel kit ensures smooth movement across typical shop floors without requiring special surface preparations.
For shops seeking maximum flexibility, space optimization, and professional lifting capability without permanent installation commitments, the SL6PM provides the ideal combination of portability and performance.
The revolutionary portable design, substantial capacity, optimal working height, and advanced safety systems create unprecedented flexibility for service operations of all sizes.
Add the ATD SL6PM Mid-Rise Scissor Lift to your cart today and transform your shop into a flexible, efficient workspace where professional lifting capability moves with your workflow and maximizes both productivity and floor space utilization.
