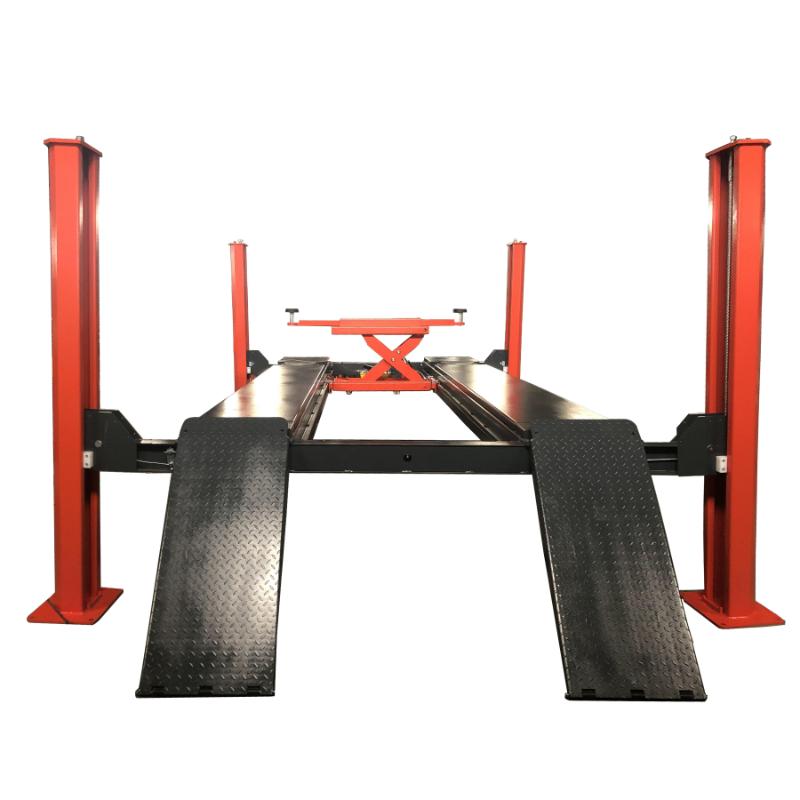

Transform Your Service Bay with the KT-4H150 Four-Post Alignment Beast - Professional 15,000 lb Capacity

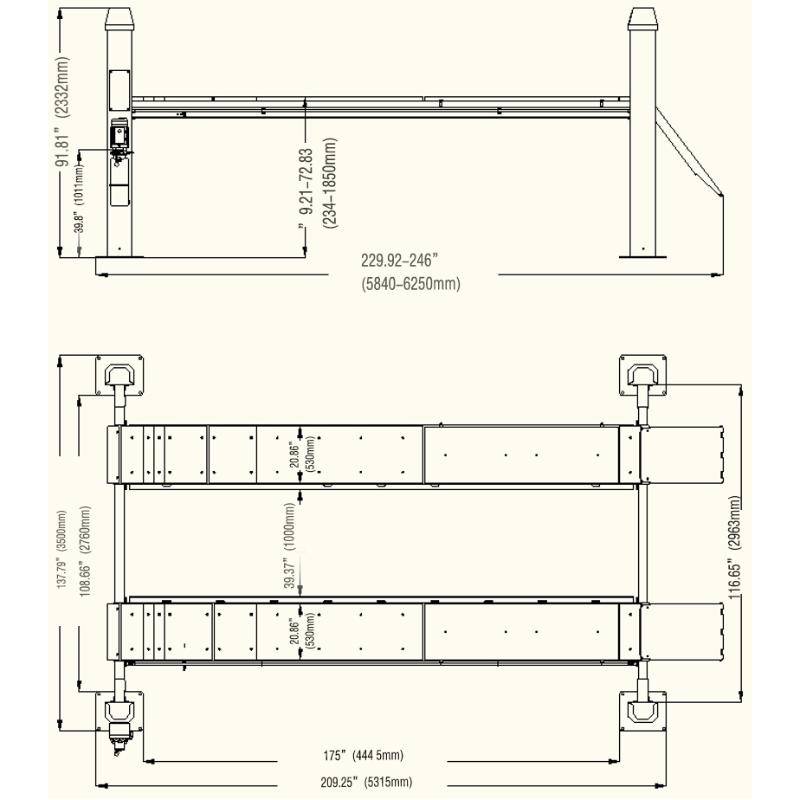

Specifications:
- Lifting Capacity: 15,000 lbs
- Maximum Lifting Height: 75" (1905 mm)
- Lifting Time: 95 seconds up / 55 seconds down
- Height of Posts: 86" (2184 mm)
- Width Overall: 136" (3454 mm)
- Length Overall: 208" (5283 mm)
- Overall Length with Ramps: 245" (6223 mm)
- Minimum Runway Height: 9" (228 mm)
- Motor: 220VAC/4PH (110V/60HZ/1PH optional)
- Net Weight: 4450 lbs
- Certification: CE Approved (115% dynamic load tested, 150% static load tested)
- Includes: One 6000 lbs capacity rolling jack
- Warranty: 12 Months All Parts
Running a professional auto shop without the right alignment equipment means turning away profitable alignment jobs or struggling with inadequate lifts that limit efficiency and create safety concerns. The KT-4H150 Heavy-Duty Four-Post Alignment Lift solves these challenges by providing massive 15,000-pound lifting capacity with built-in alignment capabilities that handle everything from compact cars to commercial vans and heavy trucks. Unlike standard service lifts that lack the precision features needed for proper alignment work, this commercial-grade system includes extended runways, precisely engineered turning radius plates, and the specialized clearance required for comprehensive alignment procedures. After installing this professional alignment system, shop owners experience immediate benefits – alignment jobs that once seemed intimidating become routine, technicians work more efficiently with proper access to suspension components, and the shop's service capabilities expand dramatically. Customer satisfaction increases as alignment issues are corrected with pinpoint accuracy, vehicle handling improves noticeably, and tire wear problems disappear. This single equipment upgrade can transform a general service facility into a complete alignment center, opening up entirely new revenue streams while enhancing the shop's reputation for comprehensive vehicle care.
Commercial-Grade Construction Built for Decades of Service
The KT-4H150 represents the pinnacle of four-post lift engineering with features that ensure exceptional durability in demanding shop environments:
Constructed with heavy-gauge steel throughout, this lift handles the rigors of daily commercial use without the flex, stress, or structural concerns common in lighter-duty models. The reinforced columns, crossbeams, and runway assemblies maintain precise alignment even when fully loaded with heavy vehicles. This robust construction creates a stable working platform that remains true after thousands of lifting cycles. The impressive 15,000-pound capacity accommodates virtually any passenger vehicle plus many commercial vehicles that exceed the limits of standard 12,000-pound lifts.

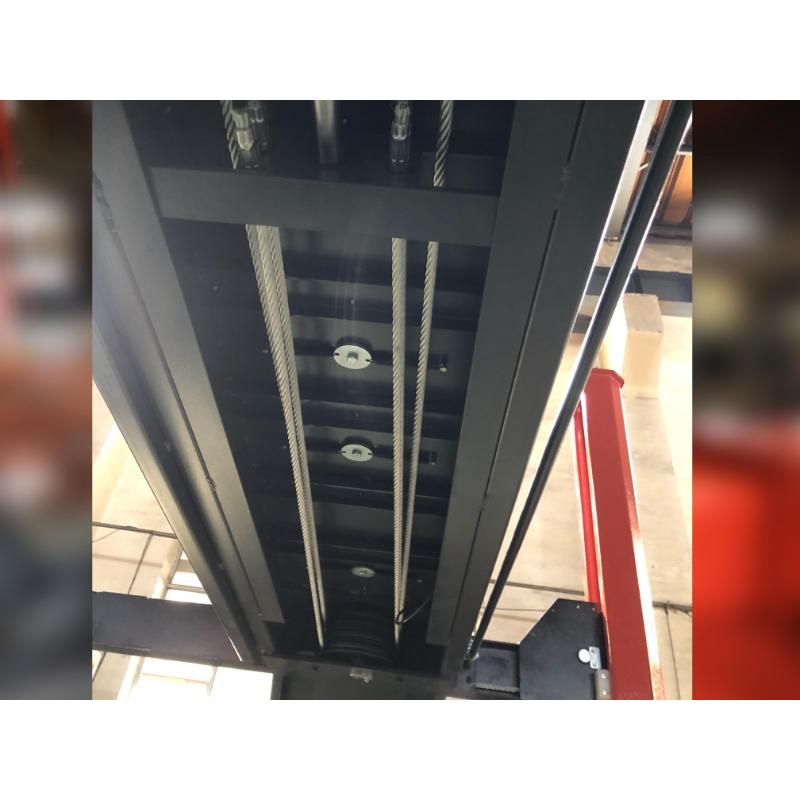

The comprehensive safety system includes spring-loaded safety locks that automatically engage continuously during lifting operations. These hardened steel locks provide secure mechanical support at multiple heights, independent of the hydraulic system. For additional protection, a secondary slack-cable safety mechanism instantly engages in the unlikely event of a cable failure. This redundant safety approach reflects the serious engineering focus that distinguishes professional-grade equipment from lighter alternatives. The convenient push-button pneumatic lock release system simultaneously disengages all four safety locks for smooth, controlled descent.
The premium hydraulic system pairs with a powerful 3KW motor to provide smooth, controlled lifting even with maximum-weight vehicles. The precision-engineered hydraulic cylinder, valves, and lines maintain consistent performance through thousands of lifting cycles in demanding shop environments. The carefully calibrated lifting speed balances efficiency with control – raising vehicles in approximately 95 seconds while allowing a faster 55-second descent when work is completed. This optimized cycle time maximizes shop throughput without compromising safety or control.
Specialized Features for Professional Alignment Services
The KT-4H150 includes critical features specifically designed for alignment work:
The extended runway length provides the necessary space for proper alignment of vehicles with varying wheelbases. At 208 inches (nearly 17.5 feet) without ramps, these runways accommodate everything from compact cars to extended commercial vans and trucks. This generous length ensures that all four wheels sit securely on the runways with proper spacing for accurate alignment readings. The substantial 245-inch overall length with ramps installed provides easy drive-on access even for low-clearance vehicles.

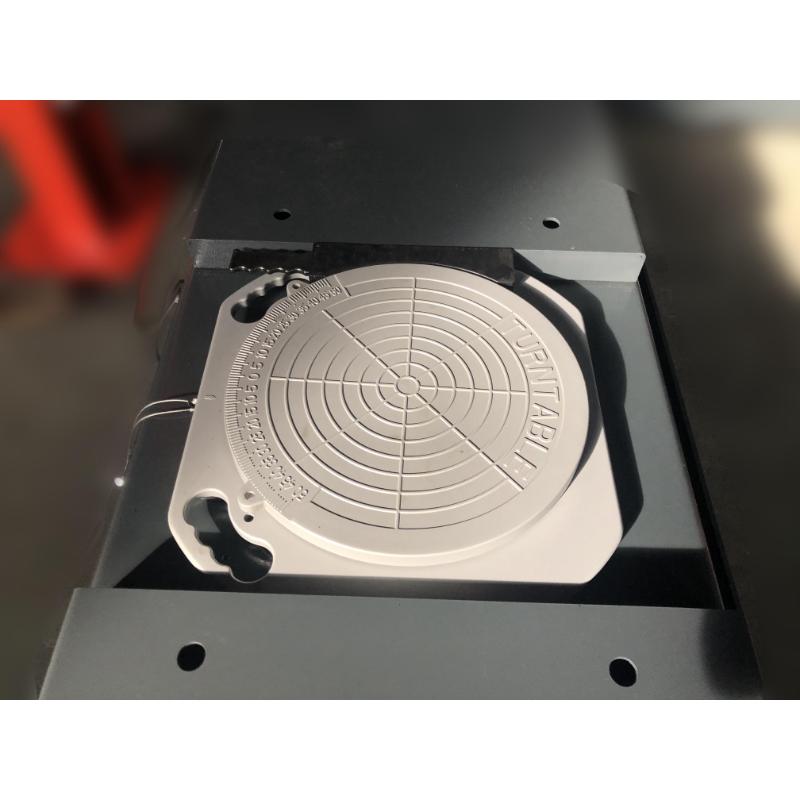

The precision-engineered turning radius plates integrated into the runways allow for accurate front-end alignment procedures. These specialized plates provide the controlled rotation needed for proper caster and camber adjustments while maintaining vehicle stability. Unlike add-on alignment accessories for standard lifts, these purpose-built components ensure accurate, repeatable alignment results. The non-slip coated runway surfaces provide secure vehicle positioning throughout the alignment process, even during steering adjustments that might cause vehicles to shift on less specialized lifts.

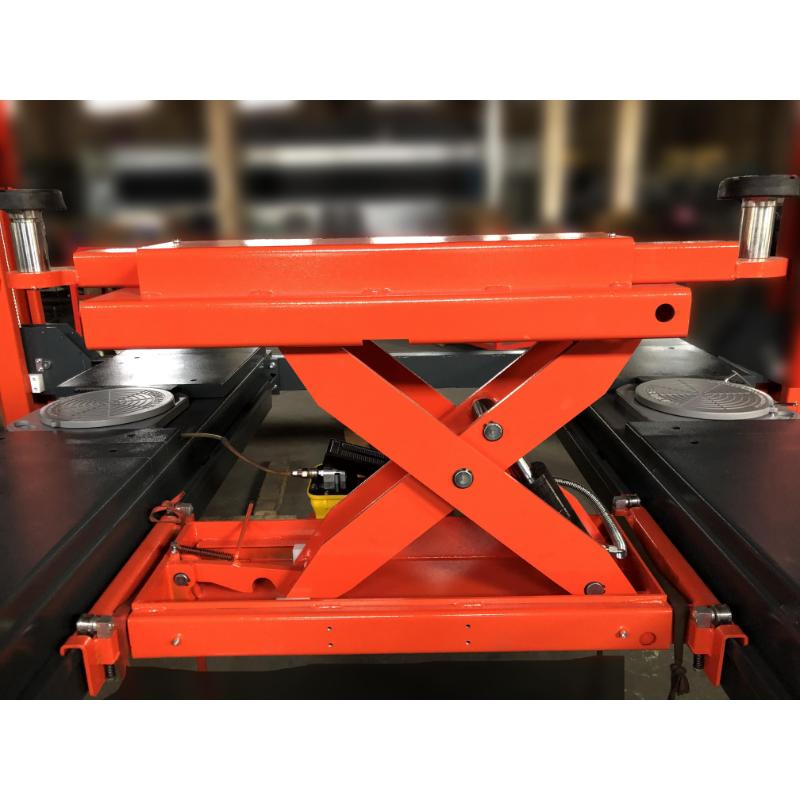

The included 6000-pound capacity rolling jack creates wheel-free service capability essential for comprehensive alignment work. This specialized jack slides between the runways to lift one axle at a time, allowing complete access to suspension components during alignment procedures. The substantial jack capacity handles even heavy front ends with ease, while the precision lifting mechanism maintains vehicle stability throughout suspension adjustments. This included component represents significant added value compared to lifts that require separate purchase of compatible jacks.
Versatile Design for Various Shop Configurations
The thoughtful engineering of the KT-4H150 accommodates different installation scenarios:
The flexible power column placement allows installation with the hydraulic power unit at either the front or rear and on either side of the lift. This adaptability ensures the lift can be configured to work within existing shop layouts where space constraints or workflow patterns might dictate a specific arrangement. The ability to position controls where they're most accessible to technicians improves operational efficiency in busy shop environments. This flexibility also simplifies installation in spaces with unusual dimensions or existing obstacles that can't be relocated.
The substantial 136-inch overall width provides excellent stability while still fitting within standard service bays. This carefully calculated dimension balances the need for a solid lifting footprint with practical space considerations in typical shop environments. The generous spacing between runways creates ample room for technicians to work comfortably between the lift rails during alignment procedures. This thoughtful sizing reflects decades of real-world lift application experience in professional service settings.
The multiple locking positions at different heights accommodate various service procedures and technician preferences. Lower locking positions provide ideal access for wheel and brake work, while higher positions create better visibility and access for undercarriage inspections and repairs. This variable height capability effectively creates multiple service lifts in one versatile package, enhancing the equipment's value in multi-technician environments where different procedures might be performed throughout the day.
Professional Installation Requirements for Safety and Performance
The KT-4H150's substantial capacity requires proper installation conditions:
The concrete foundation must be at least 3.93 inches (100mm) thick with a minimum 3000 PSI rating to safely support the lift and vehicles. This critical requirement ensures the concrete can withstand the substantial point loads created at the lift's anchor points when supporting heavy vehicles. Installing on inadequate concrete could result in serious injury or death, making it essential to verify concrete specifications before purchase. Many commercial spaces already meet these requirements, but some older facilities or residential installations might require concrete upgrades before installation.
Professional installation by experienced lift technicians is strongly recommended to ensure proper assembly, leveling, and anchoring. The precise alignment of runways, columns, and safety mechanisms is critical for safe operation and accurate alignment services. Experienced installers understand the importance of proper cable tensioning, hydraulic system setup, and safety system verification before placing the lift into service. The investment in professional installation typically represents a small fraction of the lift's total cost while providing confidence in its safe, accurate operation.
The substantial 4450-pound weight of the lift itself requires appropriate equipment for unloading and positioning during installation. Forklifts or engine hoists with sufficient capacity are typically needed to safely handle the major components during the installation process. Proper planning for equipment access to the installation site is an important pre-installation consideration. Professional installers will have the necessary equipment and experience to handle these substantial components safely.
The Ultimate Upgrade for Serious Service Facilities
The KT-4H150 represents a significant competitive advantage for various automotive businesses:
For general repair shops looking to expand into alignment services, this lift provides immediate capability for this profitable service category. The alignment-specific features eliminate the compromises and limitations of attempting alignment work on standard service lifts. Many shops report that alignment services provide some of their highest profit margins, making this capability expansion particularly valuable. The included rolling jack further enhances the lift's versatility for general repair work between alignment services.
For dedicated alignment specialists, the exceptional capacity and professional features handle a broader range of vehicles than standard alignment lifts. The ability to accommodate heavy trucks, commercial vans, and modified vehicles expands the potential customer base substantially. The precision engineering ensures accurate alignment readings even with challenging vehicles that might exceed the capabilities of lighter-duty alignment systems. This expanded service capability often attracts commercial fleet accounts that require alignment services for various vehicle types.
For shops with space constraints, this single lift effectively replaces multiple specialized pieces of equipment. The combination of heavy-duty lifting capacity, alignment capability, and the included rolling jack creates a complete service station in one footprint. This consolidation of capabilities maximizes the productivity of limited shop space – a critical consideration in facilities with high real estate costs. Many shops report that this multi-function approach significantly improves their return on investment compared to separate specialized equipment purchases.
Take your service capabilities to professional levels with the ultimate alignment solution! Add the KT-4H150 Heavy-Duty Four-Post Alignment Lift to your cart today and prepare to transform your service offerings. With massive 15,000-pound capacity, included rolling jack, and professional alignment features, this warehouse-pickup-only lift represents the gold standard for serious automotive businesses. Don't miss this opportunity to dramatically expand your service capabilities with equipment trusted by top alignment specialists nationwide. Contact us today to confirm availability at your preferred pickup location!
