KATOOL KT-AS110D 2-Post Car Lift 11,000 lb Capacity, Asymmetric Arms, Single Lock Release
Specifications:
- Lifting Capacity: 11,000 lbs (4,990 KG)
- Maximum Lifting Height: 70.75" (1800 mm)
- Minimum Height: 3.74" (95 mm)
- Overall Height: 141.25" (3587 mm)
- Overall Width: 134.65" (3420 mm)
- Outside Columns: 120.4" (3058 mm)
- Inside Columns: 109.37" (2778 mm)
- Drive-Through Clearance: 99.61" (2530 mm)
- Motor: 220VAC/60HZ/1PH (110V/60HZ/1PH optional)
- Net Weight: 1323 lbs (600 KG)
- Certification: CE Approved (115% dynamic load tested, 150% static load tested)
- Includes: Adjustable extended support adaptor sets (3.94" to 6")
- Safety Features: Single point lock release, overhead safety shutoff bar, rubber door protection
Are you tired of crawling around on cold, hard concrete for oil changes or struggling with unstable jacks that make you fear for your safety? The KT-AS110D Asymmetrical Two-Post Lift solves these frustrating problems by giving you professional-grade lifting power right in your own garage or shop. Unlike portable jacks or stands that offer limited access and questionable stability, this robust 11,000-pound capacity lift delivers complete, unobstructed access to your vehicle's undercarriage with rock-solid stability that commercial shops rely on. After installing this game-changing equipment, you'll immediately notice the transformation in your mechanical work – oil changes become quick, comfortable tasks rather than backbreaking ordeals; brake jobs that once required awkward positioning now happen at perfect working height; and complex repairs that previously seemed impossible become straightforward projects with full access to components. The satisfaction of having the right tool combines with newfound confidence in your safety. Your productivity increases dramatically as repair times shrink from hours to minutes, your comfort improves as you work standing instead of lying on concrete, and your ability to tackle previously intimidating projects expands with your newfound access and visibility. The KT-AS110D doesn't just lift your vehicle – it elevates your entire automotive maintenance experience.
Engineered for Superior Access and Professional Performance
The KT-AS110D's asymmetrical design sets it apart from standard lifts with advantages that serious mechanics will immediately appreciate:
The asymmetric arm configuration positions the vehicle slightly toward the rear of the lift, allowing for improved access to the passenger compartment when doors are open. This thoughtful design means no more awkwardly squeezing past partially opened doors or risking damage when entering and exiting the vehicle while it's elevated. The offset column placement creates approximately 30% more door opening space compared to symmetric lifts, making interior access for dashboard work, wiring repairs, or seat removal substantially easier and more efficient. This design advantage becomes particularly valuable during comprehensive restoration projects or extensive interior repairs where frequent entry and exit is necessary.
The direct drive hydraulic cylinders eliminate the maintenance headaches associated with chain-driven designs. With fewer moving parts and no chains to adjust, lubricate, or replace, this system delivers reliable performance year after year with minimal maintenance requirements. The cylinders are positioned within the columns for protection against damage and contamination, ensuring consistent operation even in challenging shop environments. The high-quality hydraulic system provides smooth, controlled lifting and lowering without the jerky movement common in budget lifts – a critical consideration when positioning valuable vehicles.
The impressive 11,000-pound capacity handles everything from compact cars to full-size trucks and SUVs with substantial safety margins. This robust rating exceeds many competitors in this price range that typically offer only 10,000-pound capacity. The additional 1,000 pounds of capacity might seem minor, but it provides crucial safety margin when lifting heavier modern vehicles or trucks with aftermarket modifications that add substantial weight. The CE certification with 115% dynamic load testing and 150% static load testing verifies that this lift exceeds international safety standards – offering peace of mind that can't be found in uncertified budget alternatives.
Comprehensive Safety Features for Absolute Confidence
The KT-AS110D incorporates multiple layers of safety features that reflect its professional heritage:
The single-point lock release system allows the operator to disengage all safety locks simultaneously from one convenient location. This intelligent design eliminates the awkward and potentially dangerous practice of manually releasing multiple locks while standing beneath a suspended vehicle. The automatically engaging safety locks provide secure mechanical support at multiple heights independent of the hydraulic system. These hardened steel locks ensure the vehicle remains securely supported even during extended work sessions or in the unlikely event of hydraulic pressure loss.
The overhead safety shutoff bar provides an additional layer of protection against potential ceiling contact or overhead obstructions. This automatic system immediately stops upward travel if contact occurs, preventing potential damage to the vehicle or building structure. The rubber door protection pads safeguard vehicle doors from potential contact with the lift columns, preserving the appearance of valuable vehicles during service. This thoughtful detail reflects the professional-grade attention to detail found throughout the KT-AS110D's design.

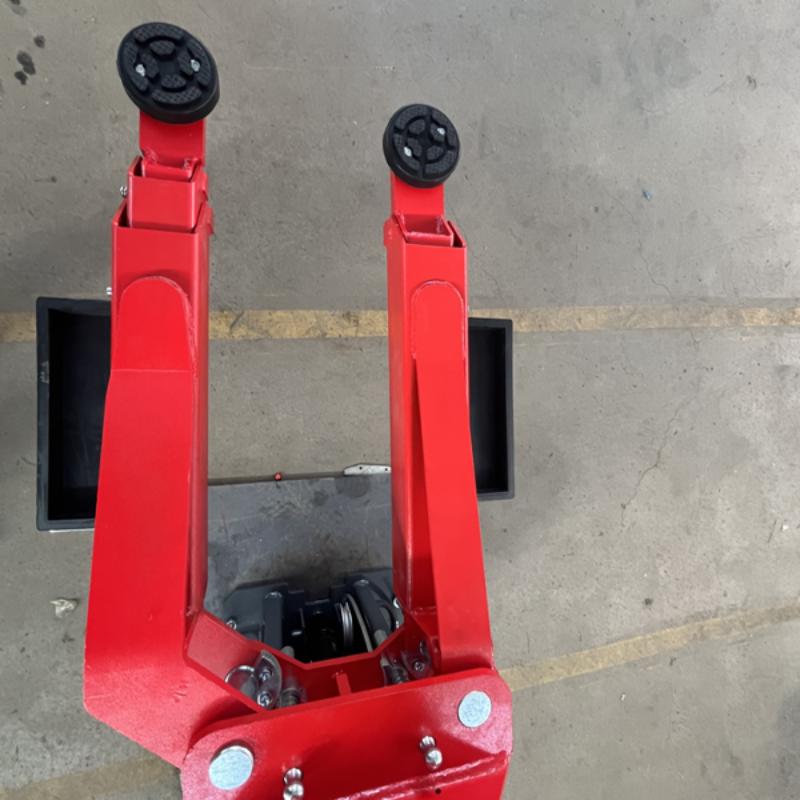

The included adjustable extended support adaptor sets range from 3.94 inches to 6 inches, allowing precise positioning on manufacturer-recommended lifting points regardless of vehicle design. These versatile adaptors accommodate various frame styles and underbody configurations, ensuring proper weight distribution and contact even with challenging modern vehicles. The ability to precisely position these adaptors ensures that weight is properly supported at the factory-specified lifting points – a critical safety consideration that budget lifts often overlook.
Thoughtful Design Details That Enhance User Experience
The KT-AS110D includes practical features that improve everyday usability:
The remarkably low 3.74-inch minimum pad height creates an exceptionally low profile that accommodates even lowered vehicles without requiring special approach considerations. This low-profile design makes positioning vehicles simple and stress-free, even for vehicles with minimal ground clearance. The generous 70.75-inch maximum lifting height provides abundant working room beneath even tall trucks and SUVs, allowing comfortable standing access for technicians of all heights. This vertical workspace eliminates the hunched positioning that leads to fatigue and potential injury during extended repair sessions.
The substantial 99.61-inch drive-through clearance between columns accommodates wide vehicles without risk of contact or positioning challenges. This generous spacing exceeds many competitor models, allowing easy positioning of full-size trucks and SUVs without precision maneuvering. The 134.65-inch overall width fits comfortably within standard two-car garage bays while still providing the stable footprint necessary for heavy-duty lifting. This thoughtful sizing balances space efficiency with the structural requirements for safe operation – a crucial consideration for both home and professional installations.
The automatic arm restraints engage instantly when lifting begins, preventing arms from shifting under load and maintaining secure contact with the vehicle's designated lifting points. This critical safety feature eliminates the risk of vehicle movement or slippage during lifting operations – a common concern with lesser equipment. The heavy-duty arm restraint teeth and locking mechanism ensure positive engagement even under challenging conditions or with vehicles that might shift slightly as weight transfers during the lifting process.
Professional Installation Requirements for Safety and Performance
The KT-AS110D's substantial capacity requires proper installation conditions:
The concrete foundation must be at least 5.9 inches (150mm) thick with a minimum 3000 PSI rating to safely support the lift and vehicles. This critical requirement ensures the concrete can withstand the substantial point loads created at the lift's anchor points when supporting heavy vehicles. Installing on inadequate concrete could result in serious injury or death, making it essential to verify concrete specifications before purchase. Many commercial spaces already meet these requirements, but residential garages might require concrete upgrades before installation.
Adequate ceiling height is essential for this lift's installation, requiring approximately 12 feet minimum for standard installations. This height requirement accommodates the 141.25-inch column height plus additional clearance for vehicles on the lift. Careful measurements of both ceiling height and garage dimensions are important pre-purchase considerations to ensure the lift will fit properly in your specific space. The substantial footprint requires thoughtful planning regarding placement relative to walls, doors, and other garage features.

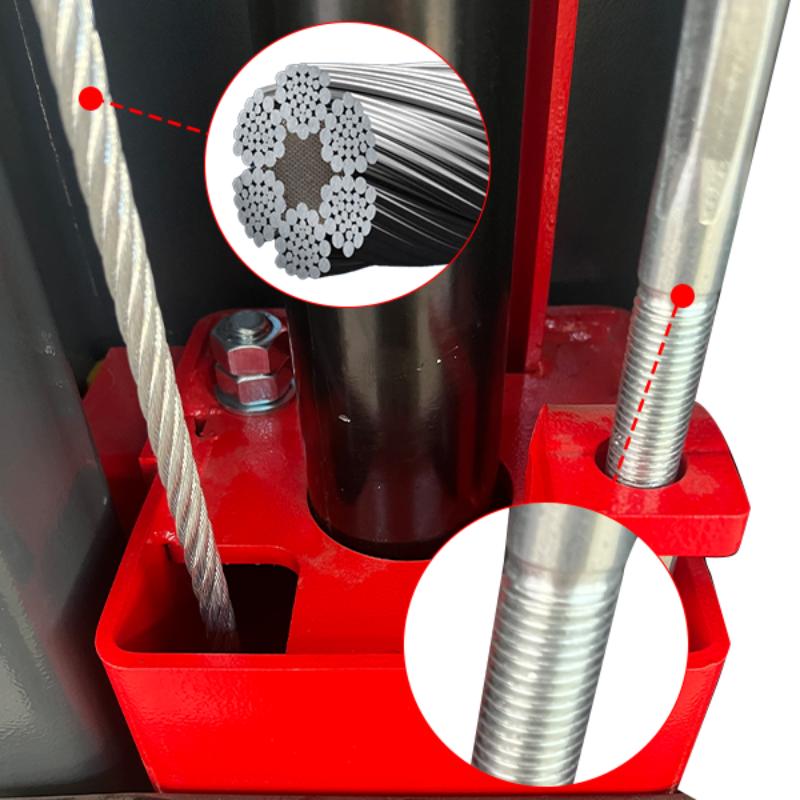

Professional installation by experienced lift technicians is strongly recommended to ensure proper assembly, leveling, and anchoring. The precise alignment of columns, equalizing cables, and hydraulic components is critical for safe operation and long-term reliability. Experienced installers understand the importance of proper torque specifications on critical fasteners and the correct tensioning of synchronization components. The investment in professional installation typically represents a small fraction of the lift's total cost while providing confidence in its safe, accurate operation.
Understanding Lift Capacity for Safe Operation
The KT-AS110D's 11,000-pound capacity rating requires proper understanding for safe application:
When evaluating whether this lift suits your needs, consider both total vehicle weight and weight distribution. A vehicle's weight isn't evenly distributed, with most passenger vehicles having approximately 60% of their weight on the front axle and 40% on the rear. This means each front arm might need to support 30% of the total vehicle weight independently. For a 9,000-pound truck, each front arm would need to safely support approximately 2,700 pounds. The KT-AS110D's robust design ensures each arm safely handles these concentrated loads without risk.
Many lift experts recommend utilizing no more than 75% of a lift's rated capacity for routine operations. This safety margin accounts for dynamic loading during vehicle positioning, weight distribution variations, and potential weight additions from vehicle contents or modifications. Following this guideline, the KT-AS110D would be ideally suited for vehicles weighing up to approximately 8,250 pounds for regular use. This capacity covers the vast majority of passenger vehicles, light trucks, and SUVs currently on the road, while still maintaining appropriate safety margins.
Proper vehicle positioning is critical for safe lifting operations. The vehicle should be centered between the columns with the arms positioned at manufacturer-recommended lifting points. The asymmetrical design requires attention to proper spotting marks to ensure the vehicle's center of gravity is correctly positioned relative to the lift's structure. This careful positioning ensures weight is evenly distributed across all four arms and the vehicle remains stable throughout the lifting process. Taking time to properly position each vehicle before lifting becomes an essential safety habit that protects both the equipment and the operator.
