Experience Revolutionary Vehicle Service with the ATD Automotive Tilt Lift System

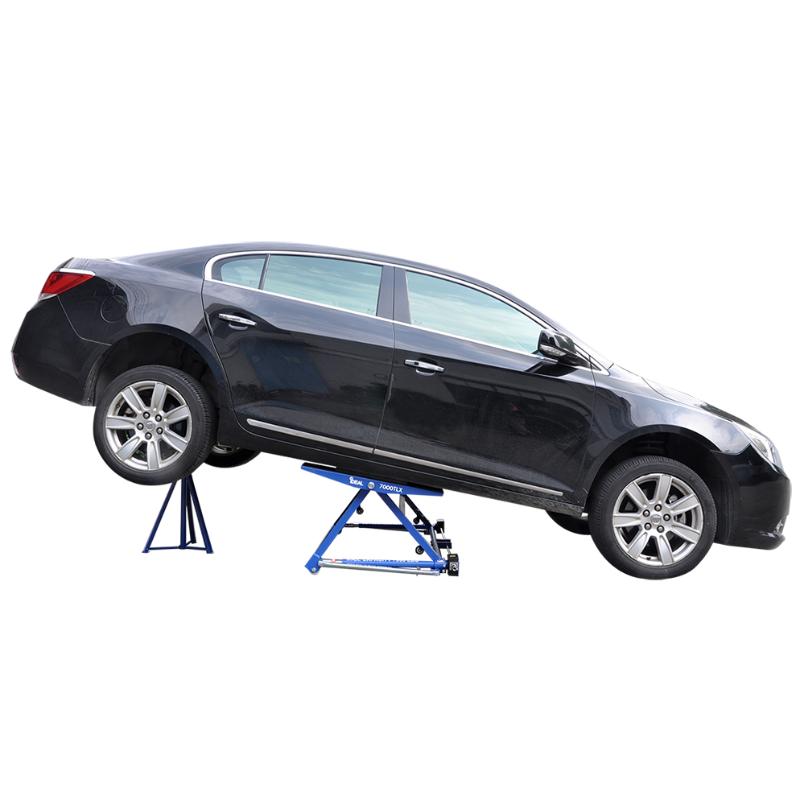

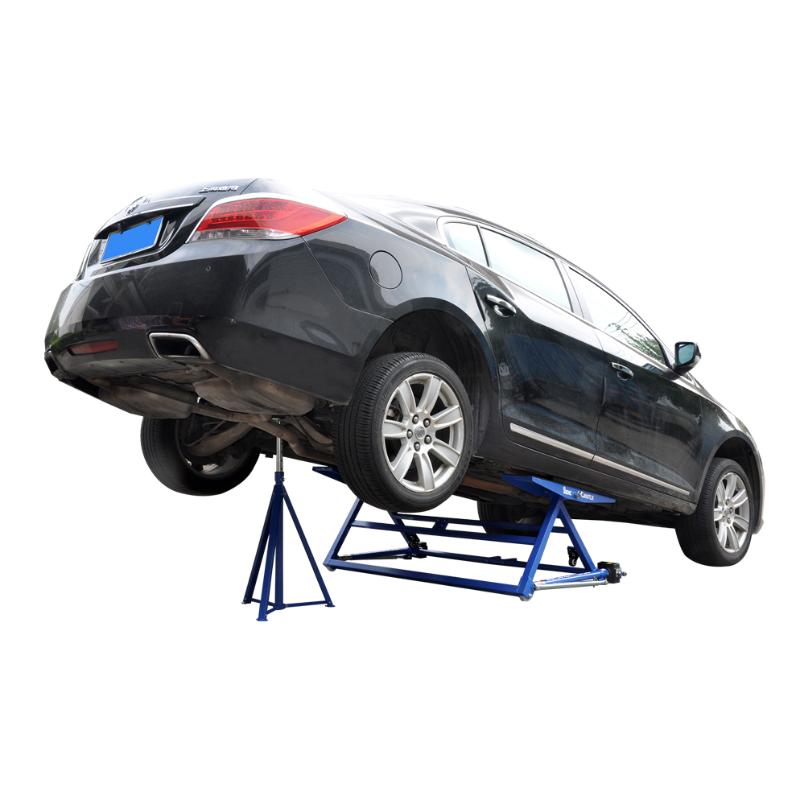

Tired of struggling with heavy hydraulic lifts that require permanent installation, expensive maintenance, and complex operations when you need flexible vehicle lifting solutions that can work anywhere in your shop or even outdoors? The ATD TLTLFT Automotive Tilt Lift eliminates these limitations with its innovative handheld drill operation that requires no hydraulics, pumps, or compressed air while safely lifting and tilting unibody vehicles up to 7,000 lbs with frame rail widths from 48" to 61" for comfortable working height and complete undercarriage access. This portable, lightweight system stores easily when not in use and operates from either side thanks to exclusive dual independent safety lock bars, transforming from a compact 214-lb unit into a professional-grade lifting platform in just 30-40 seconds. After adding this versatile lift to your shop, you'll experience the freedom of having lifting capability anywhere you need it, whether for quick inspections in tight spaces, outdoor emergency repairs, or expanding service capacity without the massive investment and permanent installation requirements of traditional hydraulic systems.

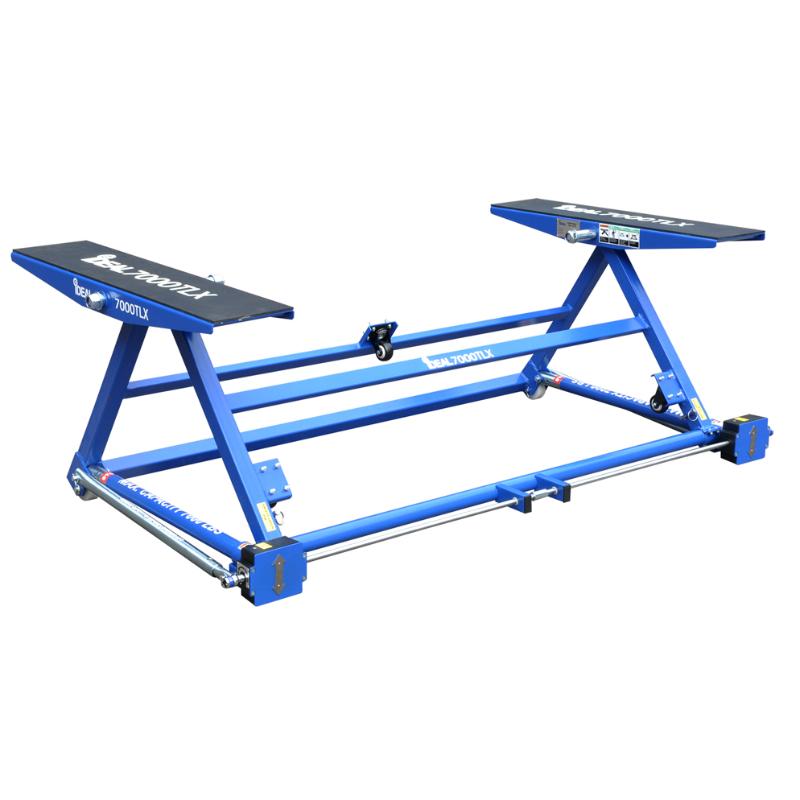

ATD TLTLFT Automotive Tilt Lift Technical Specifications
- Model: ATD TLTLFT
- Maximum Lifting Capacity: 7,000 lbs
- Maximum Lift Height: 22-1/2" (23-1/2" with risers)
- Lift Dimensions: 51-3/4" L x 64-3/8" W x 4-1/2" H
- Platform Length and Width: 31-1/2" x 7-1/4"
- Outside Platform Widths: 59-1/4" to 63-3/4" (adjustable)
- Inside Platform Widths: 44-1/2" to 49-1/4" (adjustable)
- Compatible Frame Rail Widths: 48" to 61"
- Lifting Speed: 30-40 seconds
- Power Requirements: 10 Amp, 120V AC corded drill with 1/2" chuck
- Shipping Weight: 214 lbs
- Operation: Handheld drill-powered (no hydraulics)
- Weather Resistance: Indoor or outdoor use
Revolutionary Drill-Powered Operation Eliminates Hydraulic Complexity
The breakthrough handheld drill operation transforms vehicle lifting from a complex hydraulic procedure into a simple, reliable process using standard shop tools. No hydraulic pumps, compressed air systems, or electrical installations are required - just connect any 10-amp corded drill and operate the lift anywhere power is available.
This drill-powered design eliminates hydraulic fluid leaks, pump maintenance, and system bleeding procedures that plague traditional lifts. The twin dual-action precision gear drives provide smooth, consistent lifting action while the mechanical operation ensures reliable performance in all weather conditions.
The simplicity extends to troubleshooting and maintenance. With no hydraulic components to service or replace, the mechanical drive system delivers years of dependable operation with minimal maintenance requirements. This reliability translates directly into reduced downtime and lower operating costs compared to hydraulic alternatives.
Industry-Leading 7,000 Pound Capacity
The impressive 7,000 lb capacity handles virtually every unibody passenger vehicle and light truck, from compact cars to full-size SUVs and pickup trucks. This substantial capacity provides comfortable safety margins while accommodating fully-loaded vehicles with fuel, cargo, and accessories.
Portable Design Delivers Professional Capability Anywhere
At just 214 lbs, this lift moves easily around the shop or loads into service vehicles for mobile operations. The compact 4-1/2" collapsed height allows storage under workbenches or in tight spaces, while the durable powder-coat finish withstands indoor and outdoor use without corrosion concerns.
The weather-resistant construction makes this lift perfect for outdoor emergency service, roadside repairs, or shops without climate-controlled environments. Rain, snow, and temperature extremes don't affect operation, providing reliable lifting capability regardless of conditions.
Wall mount brackets (included) provide convenient storage that keeps the lift accessible but out of the way when not needed. This storage capability makes the lift ideal for shops with limited floor space or operations that need lifting capability only occasionally.
The portability also enables service expansion without facility modifications. Mobile repair operations, remote service calls, and temporary service locations all become feasible with professional lifting equipment that travels easily.
Exclusive Dual Safety System for Maximum Protection
Dual independent safety lock bars and pins provide redundant protection throughout the lifting range. These mechanical locks operate independently from the drive system, ensuring vehicles remain securely supported even during system maintenance or unexpected component failure.
Adjustable Platform System Accommodates Various Vehicles
The adjustable width platforms accommodate frame rail widths from 48" to 61", covering the vast majority of unibody passenger vehicles and light trucks. Outside platform widths adjust from 59-1/4" to 63-3/4", while inside widths range from 44-1/2" to 49-1/4", providing precise positioning for optimal weight distribution and stability.
The 31-1/2" x 7-1/4" platform dimensions provide substantial contact area with vehicle frame rails while maintaining the narrow profile needed for technician access around lifted vehicles. This platform size distributes lifting forces effectively without interfering with undercarriage service procedures.
Platform risers (included) extend maximum lift height to 23-1/2", providing additional working clearance for specific service procedures. These risers install quickly when needed and store compactly when not required.
Complete System with Professional Accessories

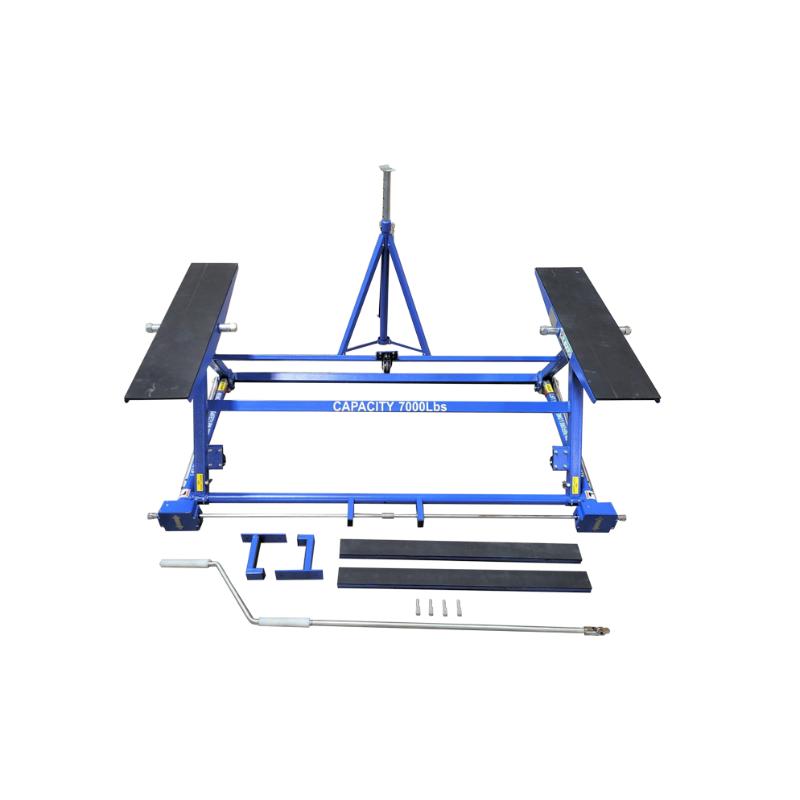

The comprehensive package includes everything needed for immediate operation: jack stand for additional safety support, platform risers for extended height, drill-drive adapters for secure tool connection, wall mount brackets for convenient storage, and manual handle with socket adapter for operation without power tools when needed.
The jack stand provides additional safety support during extended service procedures, while the manual handle ensures operation capability even when power tools aren't available or convenient. These accessories demonstrate the thoughtful engineering that makes this lift suitable for professional service operations.
Optional Floor Rail Kit for Enhanced Performance
The optional ATDTLTLFTFR Floor Rail Kit (sold separately) addresses specific floor conditions that could affect lift performance. For uneven, rough, or highly polished floors, the rail kit reduces wheel travel marks while ensuring smooth, stable operation regardless of floor surface conditions.
This optional accessory makes the lift suitable for premium shop environments with polished concrete or epoxy floors where wheel marks would be unacceptable, while also providing enhanced stability on uneven surfaces typical of older facilities.
For shops seeking professional lifting capability without the complexity, expense, and installation requirements of hydraulic systems, the TLTLFT represents revolutionary advancement in portable vehicle lifting technology.
The combination of substantial capacity, weather-resistant construction, drill-powered simplicity, and complete portability creates unprecedented flexibility for service operations of all sizes.
Add the ATD TLTLFT Automotive Tilt Lift to your cart today and discover how portable, drill-powered lifting technology transforms vehicle service with professional capability that works anywhere, anytime, without hydraulic complexity or installation requirements.
